The Pancadao from DS18 has new siblings to compliment anyone's high-performance pro audio system! These high-performance "do all" woofers can play an amazing range of frequencies. From hard-punching midbass to mid-high vocals at an unbelievable volume. These are the go-to DS18 Pro Audio speakers to set your sound above the rest.
This Listing Includes:

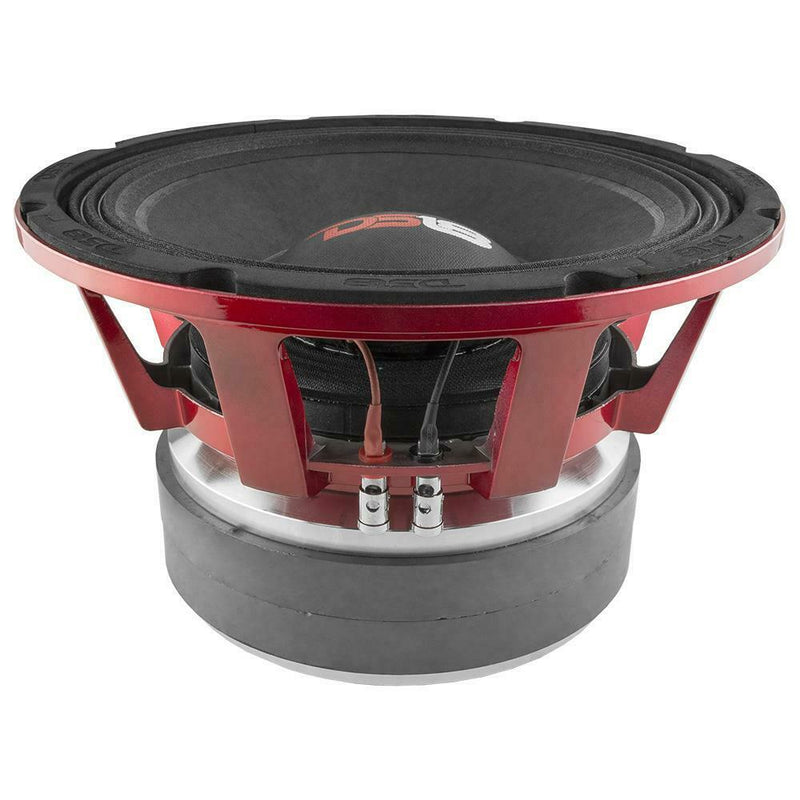

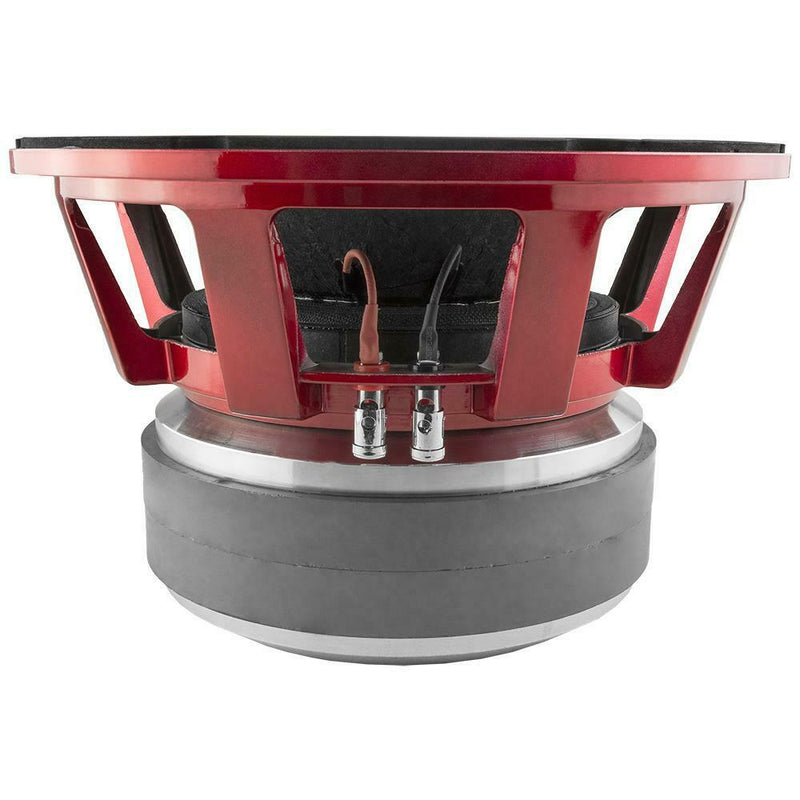

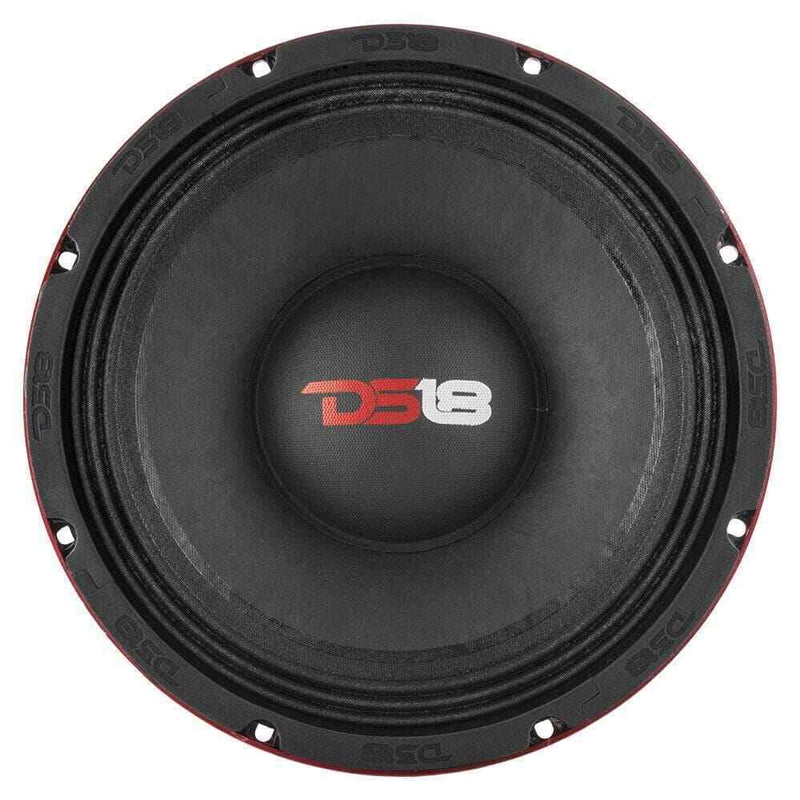

(1) DS18 12" Mid-Bass Loudspeaker PRO-1.5KP12.8
SPECIFICATIONS:
Nominal Diameter: 12"
Nominal Impedance: 8 Ohms
RMS Power Handling: 1500 Watts
MAX Power Handling: 3000 Watts
Sensitivity (1w/1m): 95 dB
Frequency Response: 60Hz ~ 8kHz
Recommended Hi Pass Crossover: 70Hz
MOTOR:
Voice Coil Diameter: 4"
Voice Coil Former Material: Fiber Glass
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 150 Oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 19.9 L
Free Air Resonance: Fs - 73.5Hz
Mechanical Factor: Qms - 10.02
Electrical Factor: Qes - 0.383
Total Factor: Qts - 0.369
DC Resistance: Re - 5.6 Ohms
Force Factor: Bl - 26.65
Moving Mass: Mms - 105.1
Compliance: Cms - 44.57 mm/N
Voice Coil Inductance: Le - 1.057MH
Diaphragm Area: Sd - 560 cm/2
Efficiency Bandwidth Product: EBP - 191.9
MEASUREMENTS:
Overall Diameter: 12.36" (314mm)
Overall Depth: 6.53" (166mm)
Front Mount Baffle Cutout: 11.18" (284mm)
Mounting Depth: 5.36" (152mm)
Motor Diameter: 8.66" (220mm)
