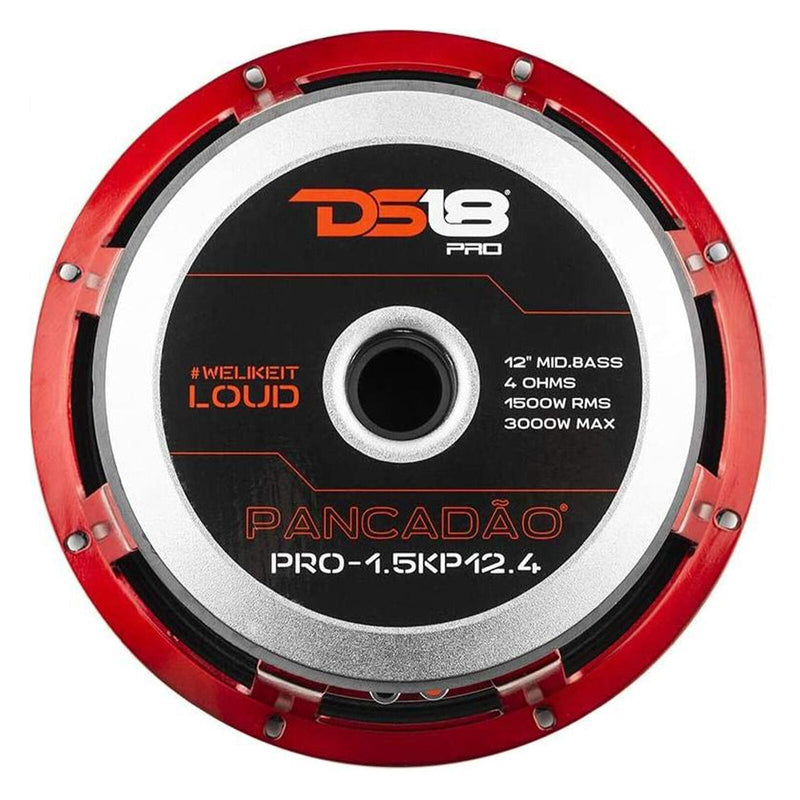

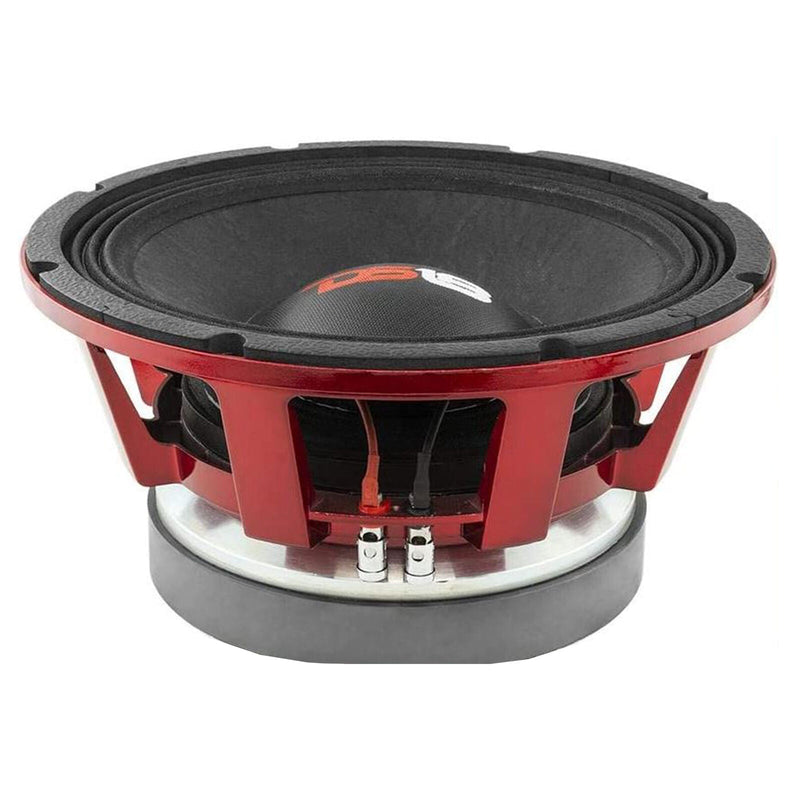

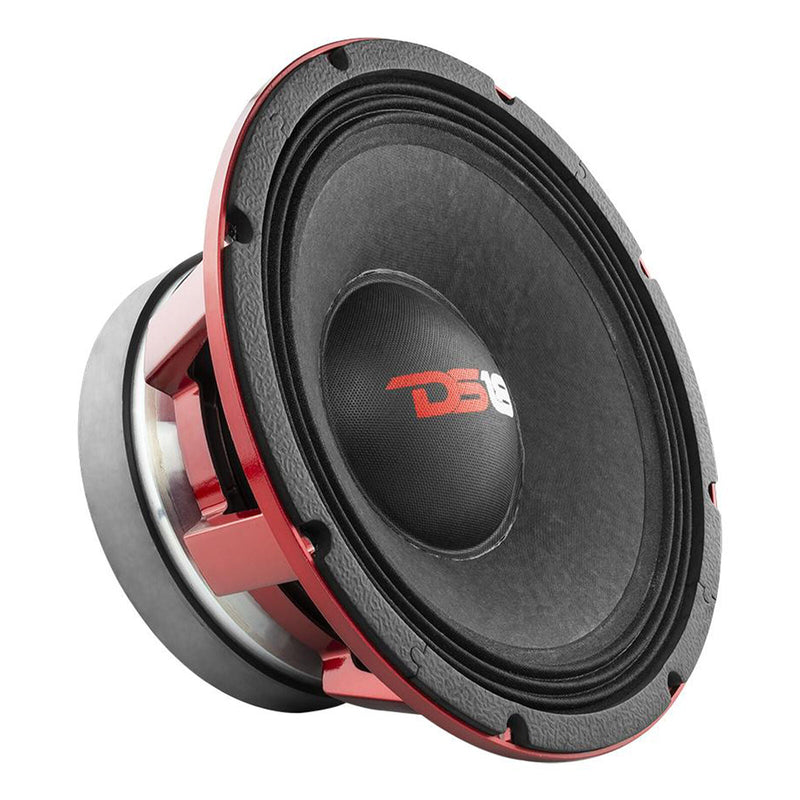

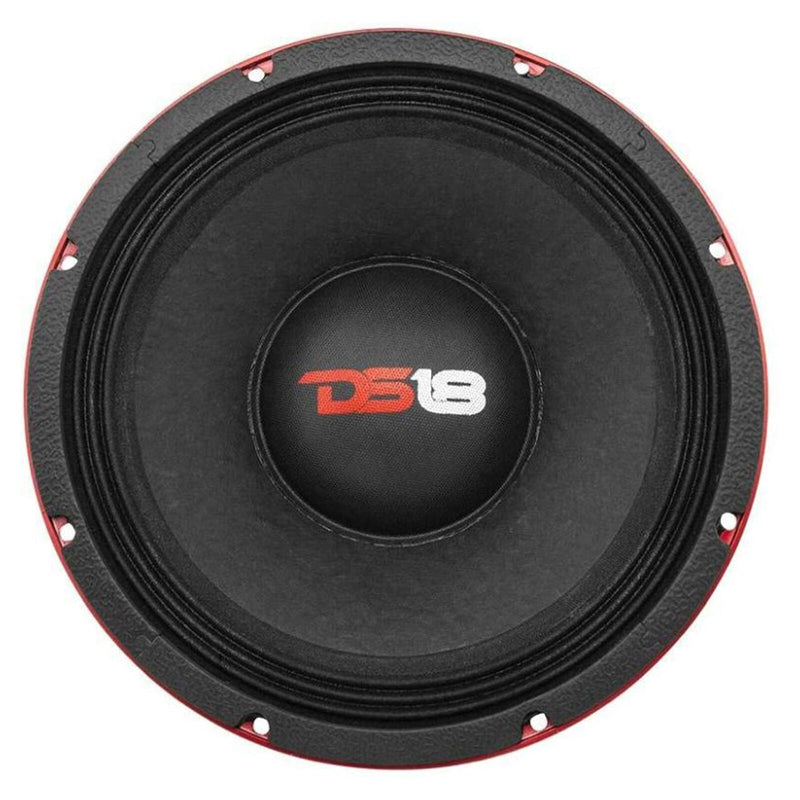

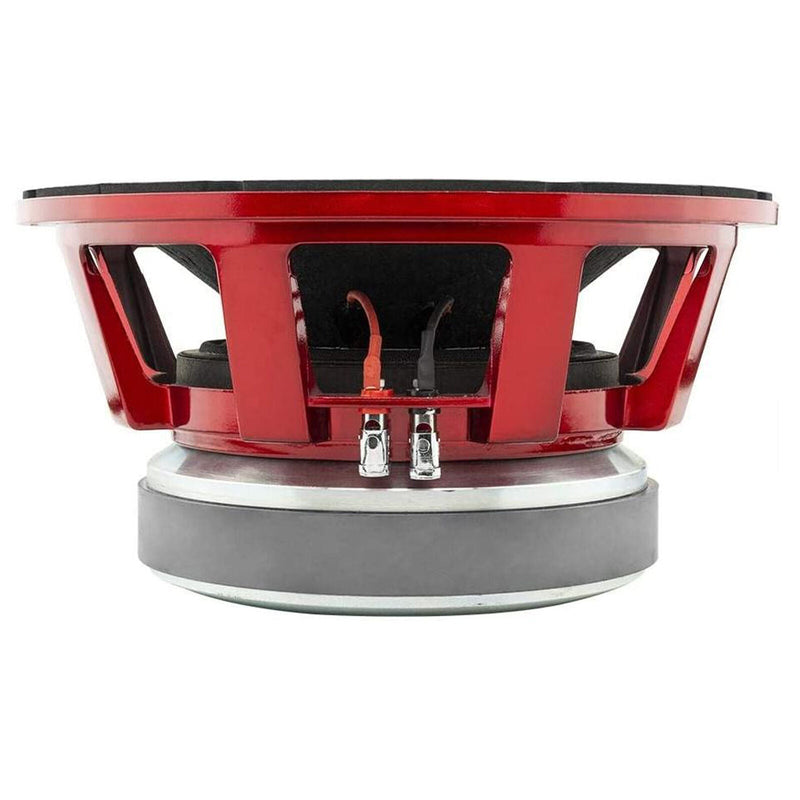

DS18 Car Audio 12" Mid-Bass Loudspeaker 3000 Watt 4 Ohm PANCADO PRO-1.5KP12.4
The Pancadao from DS18 has new siblings to compliment anyone's high-performance pro audio system! These high-performance "do all" woofers can play an amazing range of frequencies. From hard-punching midbass to mid-high vocals at an unbelievable volume. These are the go-to DS18 Pro Audio speakers to set your sound above the rest.
This Listing Includes:
(1) DS18 12" Mid-Bass Loudspeaker PRO-1.5KP12.4
- Red Color Aluminum Basket with Cloth Edge
- Non-Pressed Paper Cone
- High Temperature CCAW Voice Coil
- 150 Oz High-Strength Ferrite Magnet
Nominal Diameter: 12"
Nominal Impedance: 4 Ohms
RMS Power Handling: 1500 Watts
MAX Power Handling: 3000 Watts
Sensitivity (1w/1m): 96dB
Frequency Response: 60Hz-8KHz
Recommended Hi Pass Crossover: 70Hz
Grill Included: No
Voice Coil Diameter: 4"
Voice Coil Former Material: Fiber Glass
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color: Black
Magnet Material: Ferrite
Magnet Weight: 150 Oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 23.29 L
Free Air Resonance: Fs - 61.6Hz
Mechanical Factor: Qms - 6.905
Electrical Factor: Qes - 0.388
Total Factor: Qts - 0.388
Mechanical Mass: Mms - 184.02g
Mechanical Compliance: Cms - 60.952 mm/N
BL Factor: BL - 15.144
Voice Coil Inductance: Le - 1.566MH
Cone Area: Sd - 560 cm
DC Resistance: Re - 3 Ohm
Efficiency Bandwidth Product: EBP - 158
Overall Diameter: 12.36" (314mm)
Overall Depth: 6.53" (166mm)
Front Mount Baffle Cutout: 11.18" (284mm)
Mounting Depth: 5.98" (152mm)
Motor Diameter: 8.66" (220mm)
