DS18 Monoblock Subwoofer Amplifier Class D 1500W Pro Car Audio Bass ZR1500.1D
This Listing Includes:
(1) DS18 Amplifier ZR1500.1D

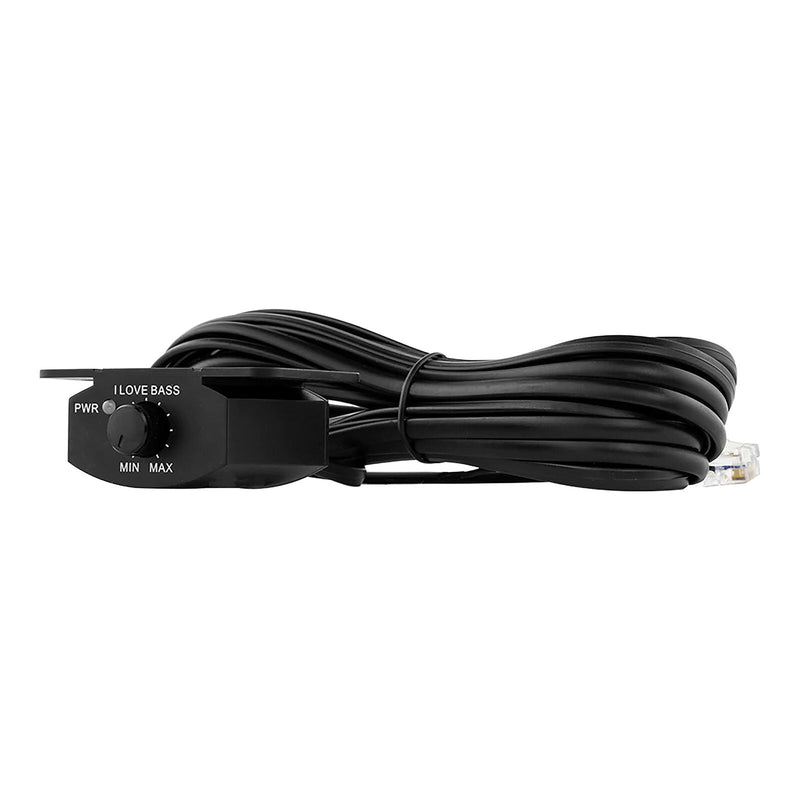

(1) Bass Knob and Cord
(1) Manual
(4) Screws
(2) Allen Wrench
The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.
This amp has been made to pump out hard hitting bass and put your subwoofers at their maximum potential.
Easily tuned, the ZR1500.1D car audio amp comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference. The included bass knob will help you attenuate your bass with a quick turn of the dial to tune your bass volume to every song you play. Made to deliver 1500 watts RMS @ 1-Ohm, 950 watts RMS @ 2-Ohms, and 550 watts RMS @ 4 ohms giving you the perfect power for your bass.
FEATURES:
-Digital Class D Subwoofer Monoblock
-MAX Wattage: 4500w Peak @ 1-Ohm
-RMS Wattage: 1500 Watts RMS @ 4-Ohms, 950 Watts RMS @ 2-Ohms, 550 Watts RMS @ 4-Ohms
-Frequency Response: 10-220 Hz
-Signal to Noise Ratio: Greater Than 95Db
-Power and Ground Terminal: 4 Ga
-Minimum Impedance: 1 Ohm
SPECIFICATIONS:
POWER
Total Watts (Peak) 4500W
RMS Power @ 4 ohm 550W
RMS Power @ 2 ohm 950W
RMS Power @ 1 ohm 1500W
AUDIO
Frequency Response:10-220Hz
Signal to Noise Ratio: Greater Than 95dB
Efficiency @ 4ohm: 85%
Damping Factor: 220
Input Impedance: 20K ohm
Channel Separation: N/A
Total Harmonic Distortion (THD: 0.01%
Low Level Input Range: 0.2-6V
High Level Input: No
Selectable X-Over: LPF Fixed
X-Over Filter Range: 40-180Hz
Bass Boost Range: 0-12dB
Bass Boost Frequency: 30-80Hz
Infrasonic Filter: 10-50Hz
Phase Selector: No
MEASUREMENT
Overall Length: 14.8"
Overall Wide: 7.24"
Overall Height: 2"
Heatsink Length: 13.4"
WEIGHT: 7 lbs
