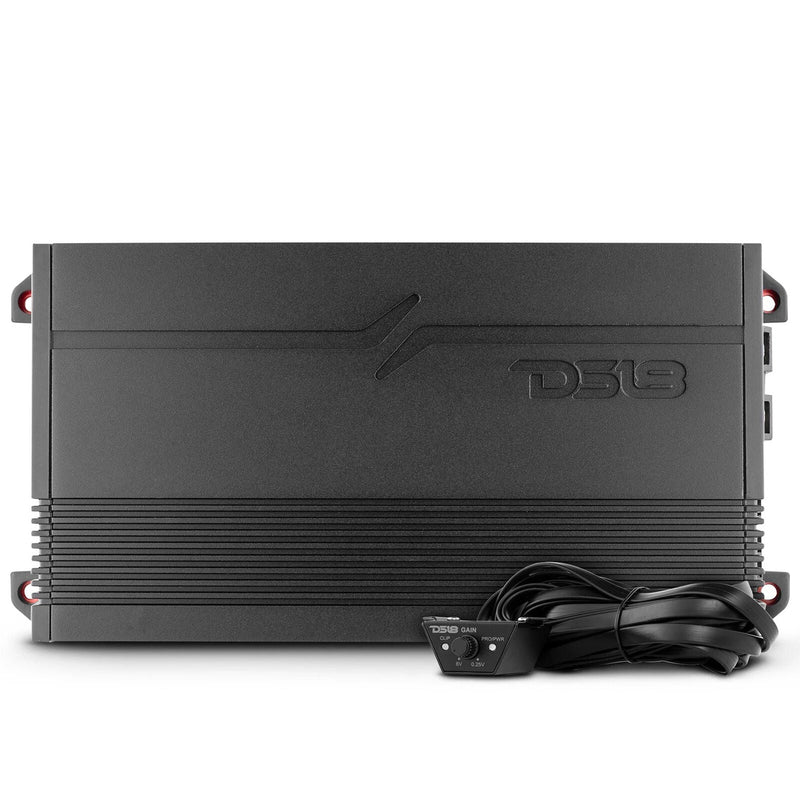

DS18 Monoblock Subwoofer Amplifier 1800W Class D & Bass Knob w/ Clip Indicator
The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released. We have redesigned the GEN-X series from the ground up to meet audio enthusiasts high standards and complete every goal for the system of their dreams with great power, reliability, and efficiency. The G1800.1D has a power rating of 250 Watts RMS at 4 Ohms,400 Watts RMS at 2 Ohms, 600 Watts RMS at 1 Ohm, and 1800 Watts MAX at the ohm load it was designed for, giving you pure and clean power on demand. This amp has the power to drive your speakers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud. Built with a Small and powerful design so you can power your subs with great efficiency and power without taking up much space.
Listing Includes:
(1) DS18 Monoblock Amplifier G1800.1D
(1) DS18 Remote Bass Knob
(1) 5 Pin Wire Harness
(2) 40 Watt Fuses
(4) Phillip Head Screws
(4) Washers
(4) Spacers
Power Features:
Total Watts (Peak):1800W
RMS Power @ 4 Ohm: 250W
RMS Power @ 2 Ohm: 400W
RMS Power @ 1 Ohm: 600W
SPECIFICATIONS:
Frequency Response: 10Hz ~ 500Hz
Signal to Noise Ratio: Greater than 93 dB
Efficiency @ 4 Ohms: 90%
Damping Factor: 45
Input Impedance: 22 K
Total Harmonic Distortion (THD): 0.0014%
Low Level Input Range: 0.25 -6V
High Level Input: Yes
Selectable X-Over: Fixed LPF
X-Over Filter Range: 35 ~ 250Hz
Bass Boost Range: 0 ~ 12 dB
Bass Boost Frequency: Fixed @ 45Hz
Infrasonic Filter: 10 ~ 50 Hz
FEATURES:
Amplifier Class : Digital(D)
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1 Channel
Minimum Impendence: 1 Ohm
Led Indicator: Power / Protection / Clip
Power Input Terminal Size: 4 GA
Fuse Size: 2 x 40A
Remote Level Control: Yes
Thermal Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection
Clipping protection: Yes
Body Color: Matte Black
Measurement:
Overall Length: 9.64" (245mm)
Overall Wide 4.72" (120mm)
Overall Height: 1.96" (50mm)
Heatsink Length: 7.79" (198mm)
Weight: 2.89 Lbs (1.313 kg)
