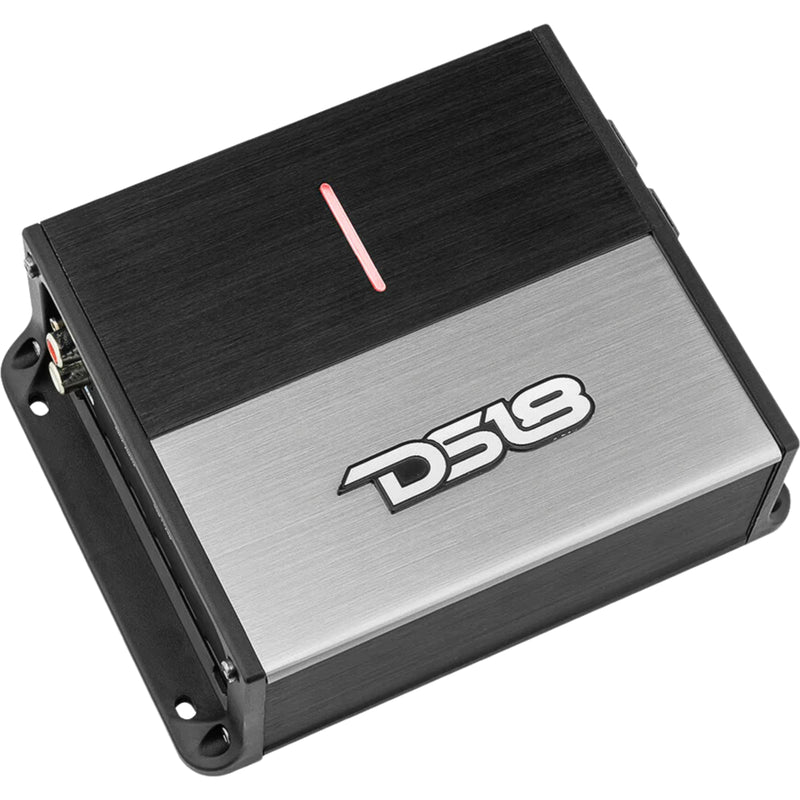

DS18 ION Monoblock Compact Full Range Amp 600 Watts RMS 1-Ohm ION600.1D

• Monoblock Power Beast: Experience deep, punchy bass with the DS18 ION600.1D Monoblock Amp, a compact powerhouse designed for car audio enthusiasts who crave intense low frequencies. Unleash 600 Watts RMS at 1 ohm, ensuring your bass hits hard and resonates through your entire car audio system.
• Compact and Efficient Design: Enjoy efficient power delivery in a compact form factor, thanks to the Class D amplifier technology. The ION600.1D not only saves space but also maximizes energy efficiency, delivering clear and dynamic bass without unnecessary heat.
• Stable at 1 Ohm: Achieve flexibility in speaker configurations with the ION600.1D, as it remains stable at 1 ohm. Whether you're driving a single powerful subwoofer or a combination, this monoblock amp ensures reliable and consistent bass performance.
• Seamless Integration and Wiring: Streamline your installation process with user-friendly features, making it easy to integrate the ION600.1D into your car audio system. Enjoy hassle-free wiring options, allowing you to quickly upgrade your setup for an immersive and powerful listening experience.
• Versatile Bass Enhancement: Tailor your bass response to your preferences with the monoblock design, perfect for dedicated low-frequency applications. Enhance your music experience by feeling the impact of every beat, thanks to the powerful and versatile capabilities of the DS18 ION600.1D.
• Upgrade your car audio system with the DS18 ION600.1D Monoblock Compact Full-Range Amp – where compact design meets powerful bass enhancement for an immersive and impactful audio experience. Immerse yourself in the depth and clarity of high-quality bass.

DS18 ION Monoblock Compact Full Range Amp 600 Watts RMS 1-Ohm ION600.1D

This listing includes: (1) DS18 ION600.1D Amplifier

Experience an unparalleled sound journey with DS18’s ION600.1D, a full-range high efficiency micro digital 1-channel amplifier, designed for powerful and crisp audio performance that will elevate your listening experience to new heights.

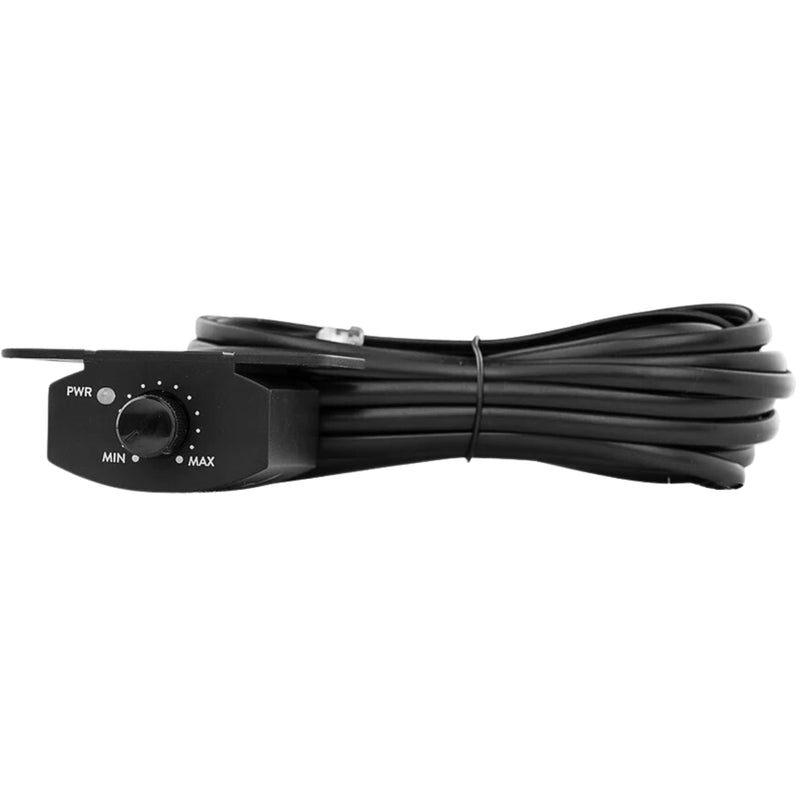

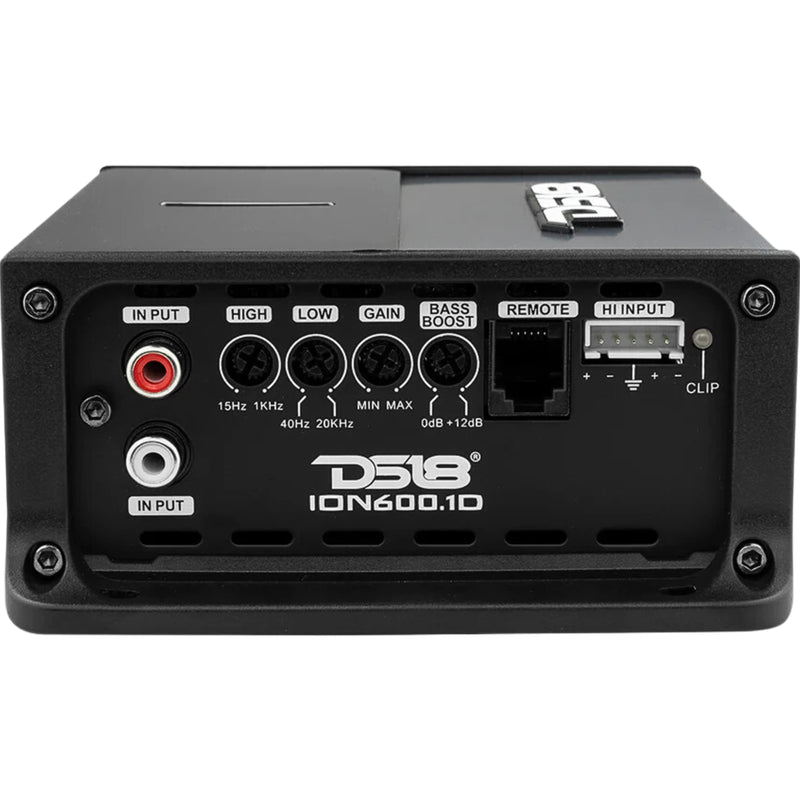

Built for seamless integration into your audio system, DS18’s ION600.1D allows for easy connectivity and optimal signal transfer using Hi-Level Inputs and Tiffany RCA’s. With a frequency response of 10Hz – 20KHz this full-range amplifier comes with variable full-range crossover filters for precise control over your sound. This gives the ION600.1D the ability to be configured for bass or mids/highs depending on how you set the full range crossover. Fine tune these levels with the convenient remote level control knob!

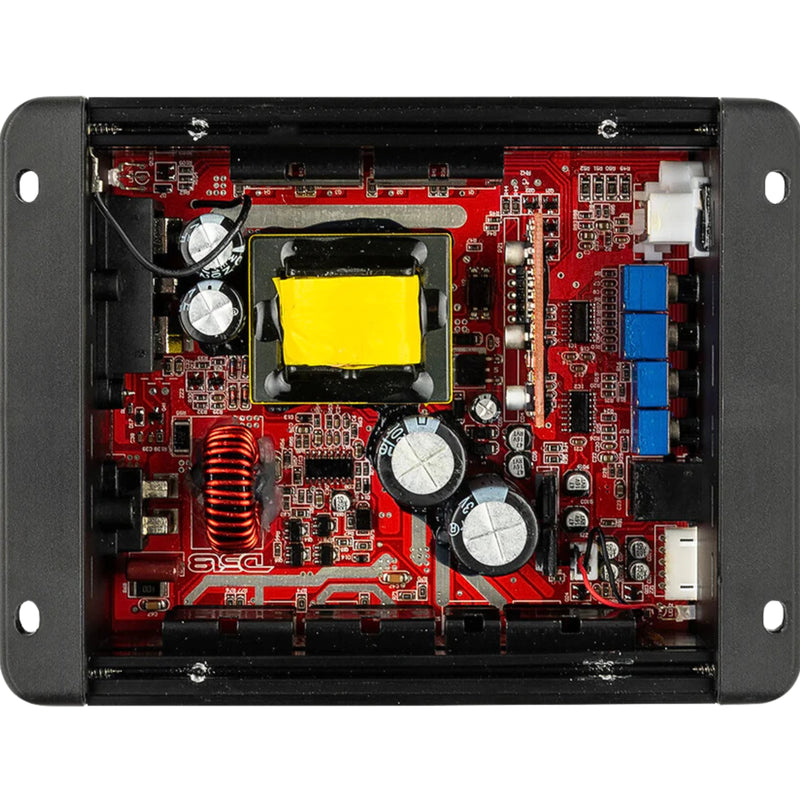

The ION600.1D is engineered to withstand the test of time. Protective coating on the PCB prevents moisture corrosion, while bonded components provide extra vibration protection.
Safety was a top priority in the construction of DS18’s ION600.1D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifier’s status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely.
The ION600.1D has power ratings of 600W at 1 ohm, 400W at 2 ohms, and 200W at 4 ohms; perfect power ratings to turbocharge every piece of equipment in your system!
Immerse yourself in a world of superior sound quality and reliability with DS18’s ION600.1D!

SPECS:
Total Watts (Peak)-1800W
RMS Power @ 4 ohm-200W
RMS Power @ 2 ohm-400W
RMS Power @ 1 ohm-600W
RMS Power @ 4 ohm Bridge-N/A

AUDIO:
Frequency Response-10Hz-20KHz
Signal to Noise Ratio->95dB
Efficiency @ 4 ohm-88%
Damping Factor-210
Input Impedance-27Kohms
Channel Separation-N/A
Total Harmonic Distortion (THD)-0.01%
Low Level Input Range-0.2-6V
High Level Input-Yes
Selectable X-Over-Band-Pass
X-Over Filter Range-HP: 15Hz-1KHz / LP: 40Hz-20KHz
Bass Boost Range-0~12dB
Bass Boost Frequency-45Hz

FEATURES:
Amplifier Class-Digital
Amplifier Type-Full-Range Monoblock
Number of Channels-1
Minimum Impedance-1 Ohm
Led Indicator-Power / Protect / Clipping

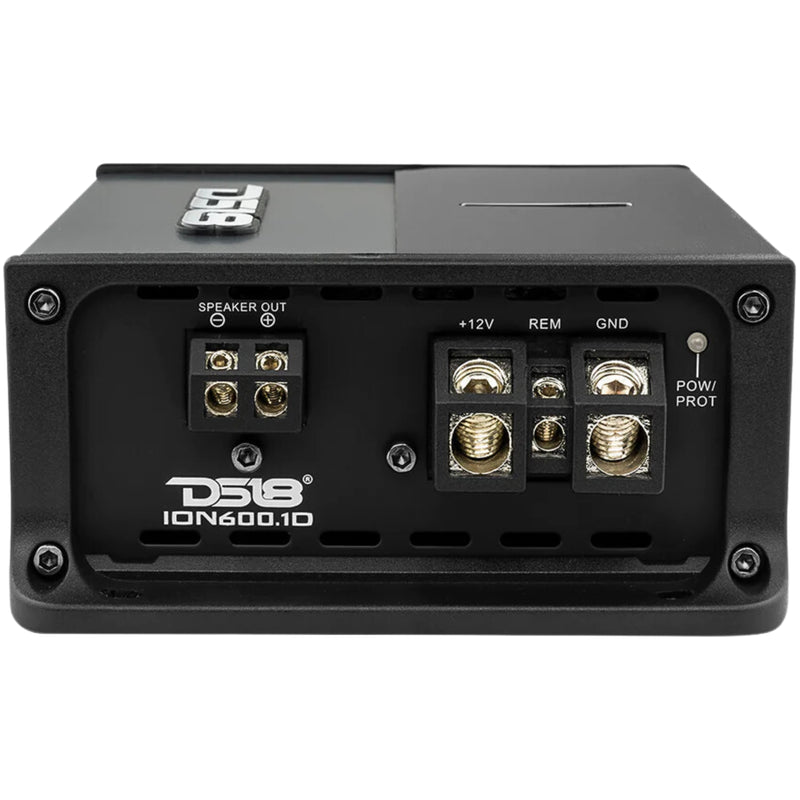

Power Input Terminal Size-4 AWG
Fuse Size-80A (external)
Remote Level Control-Yes
Cooling Fan-No
Thermal Protection-Yes
Over-Load Protection-Yes
DC Output Protection-Yes
Short Circuit Output Protection-Yes
Voltage Input Protection-Yes
Clipping Protection-Yes
Body Color / Finish-Aluminum Black / Silver

EXTRA FEATURES:
Hi-Level Speaker connector-Yes
Tiffany RCA Terminal-Yes
LED Clip Indicator-Yes
High Efficiency Micro Digital Design-Yes

MEASUREMENT:
Overall Length-6.14" / 156mm
Overall Wide-4.72" / 120mm
Overall Height-2" / 52mm
Heatsink Length-4.84" / 123mm
Gross Single Unit Weight-0.7Kg
