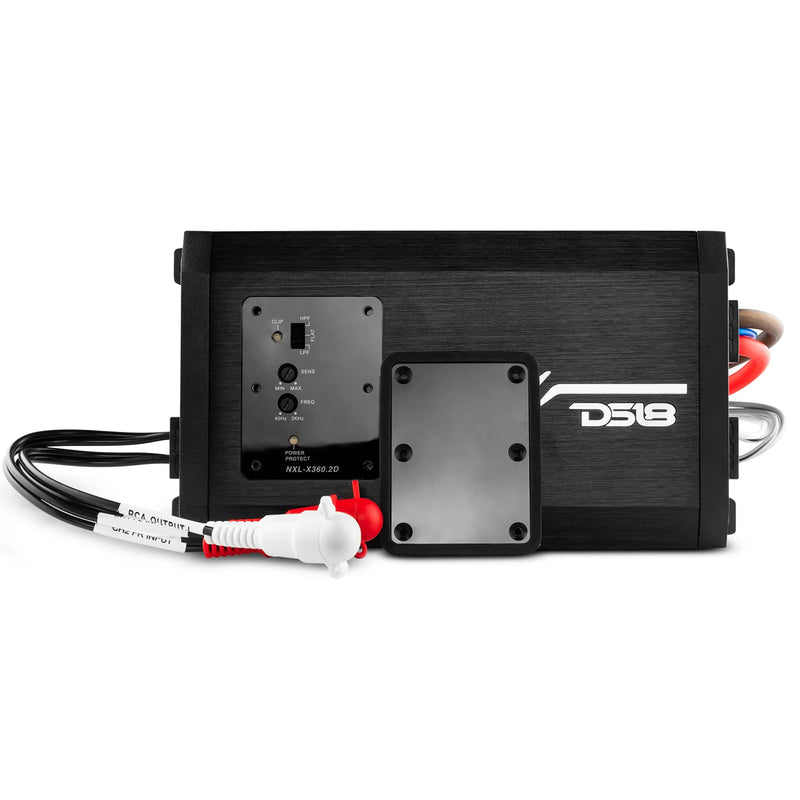

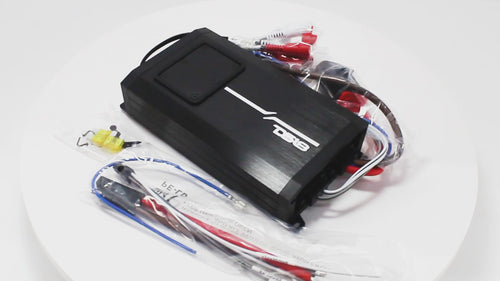

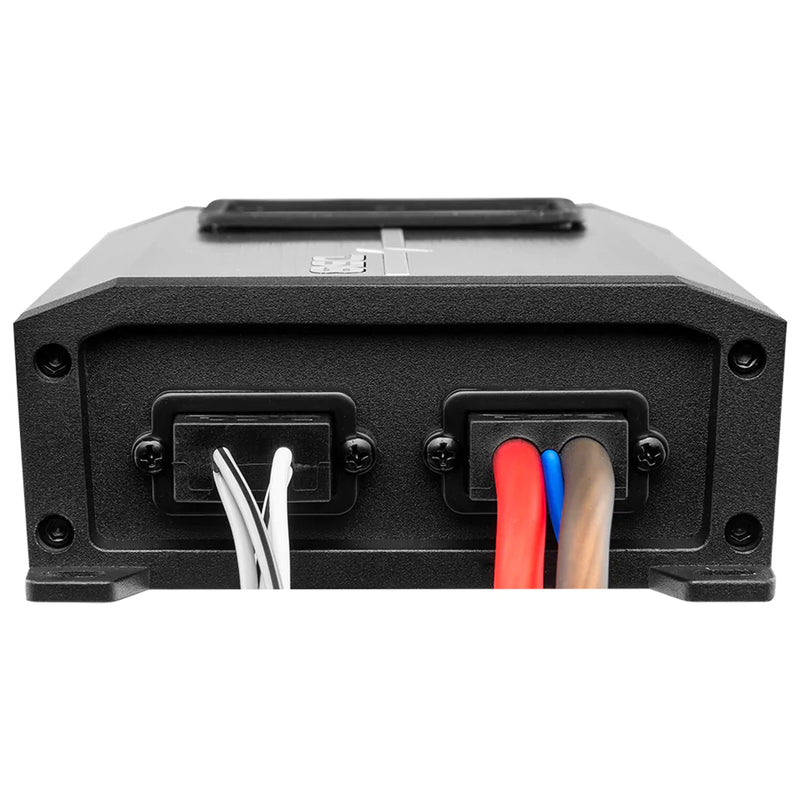

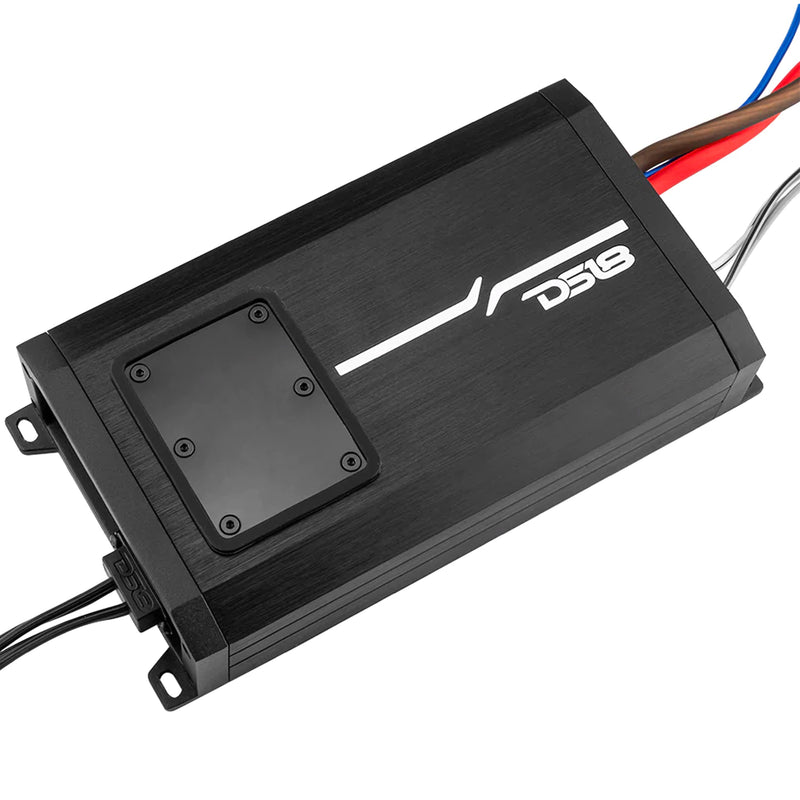

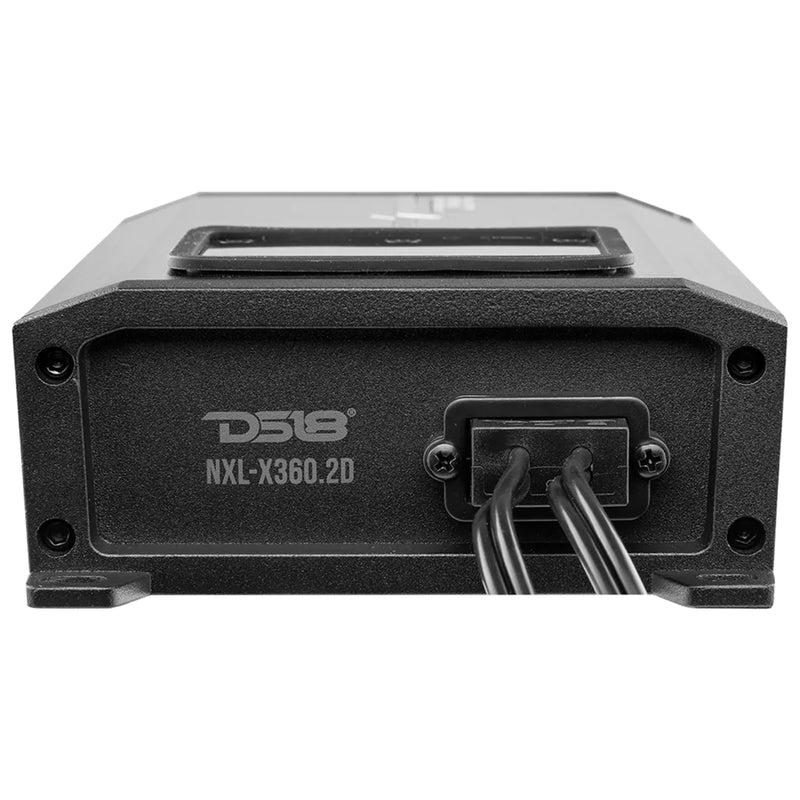

2-Channel 1000 Watt 4-Ohm Compact Marine Amplifier DS18 Hydro NXL-X360.2D

• Marine-grade fuse and fuse holder included for protection against the elements.
• Provides impressive power output and efficiency, making it perfect for harsh, wet environments.
• 2-channel configuration suitable for powering speakers or bridging to supercharge a subwoofer.
• Stable 4-layer PCB layout with IP67 waterproof rating for powersports.
• Ultra-compact size for easy installation.

2-Channel 1000 Watt 4-Ohm Compact Marine Amplifier DS18 Hydro NXL-X360.2D

This Listing Includes:

• (1) 2-Channel 1000 Watt 4-Ohm Compact Marine Amplifier DS18 Hydro NXL-X360.2D

Description:

• Designed for customers seeking a compact and waterproof amplifier with exceptional power output.


• Ideal for boosting sound in marine and outdoor settings.


• Provides impressive power output and efficiency, making it perfect for harsh, wet environments.


• 2-channel configuration suitable for powering speakers or bridging to supercharge a subwoofer.


• Features high-pass and low-pass filters for accurate tuning and crystal-clear sound at all volumes.


• Stable 4-layer PCB layout with IP67 waterproof rating for powersports.


• Ultra-compact size for easy installation.


• Suitable for rugged environments like trails or lakes.

Features:

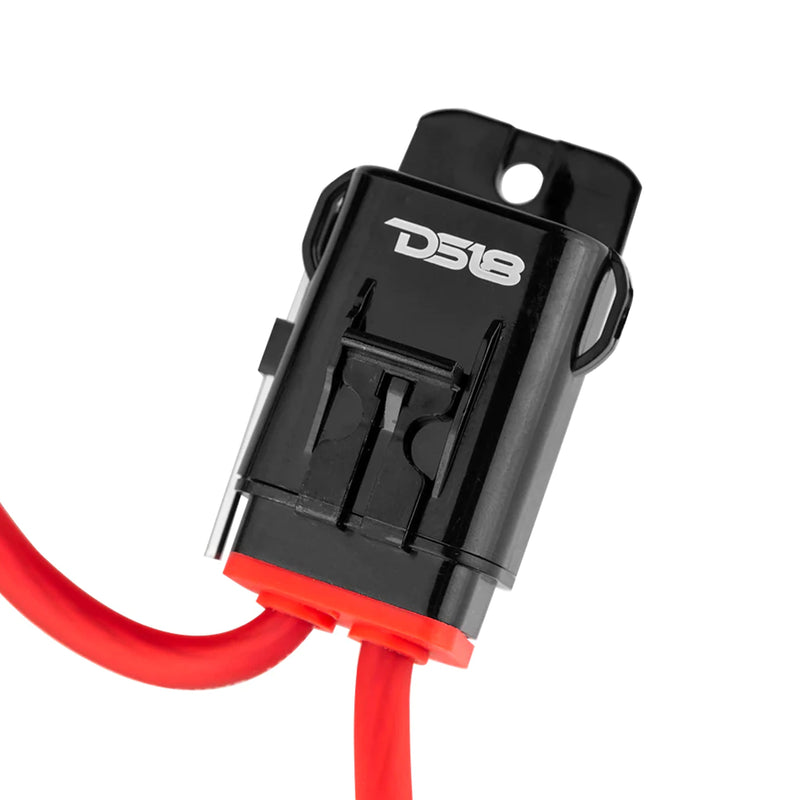

• Marine-grade fuse and fuse holder included for protection against the elements.


• IP67 Waterproof Rating.


• UV, salt, and fog protection.


• Direct Power Harness Design with marine-grade OFC tinned wires.


• Latest digital amplifier design with SMC technology.


• Maximum output: 500W bridged at 4-Ohms, 180W x 2CH at 4-Ohms, and 250W x 2CH at 2-Ohms.

Specifications:

• Total Watts (Peak): 1000W


• RMS Power @ 4 Ohm: 2 x 180W


• RMS Power @ 2 Ohm: 2 x 250W


• RMS Power @ 4 Ohm (Bridge): 500W


• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number of Channels: 2


• Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge)


• LED Indicators: Power / Protection / Clip


• Power Input Size: 8GA Tinned OFC


• Fuse Size: 2 x 25A (50A)


• Thermal Protection: Yes (75C)


• Overload Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (7-16V)


• Body Color / Finish: Black Brushed Aluminum


• RCA Audio Output: Yes


• Waterproof Rating: IP67


• UV / Salt Fog Protection: Yes


• Direct Power Harness Design: Yes


• Quick Connect Plug: Yes


• Surface Mount Component Technology: Yes


• Marine-Grade Fuse Holder: Yes

Audio:

• Frequency Response: 10Hz-20KHz


• Signal to Noise Ratio (1W@4 Ohm): >82dB


• Efficiency @ 4 Ohm: 0.84


• Input Impedance: 20K


• Channel Separation: 60dB


• Total Harmonic Distortion (THD): < 0.03%


• Low-Level Input Range: 200mV-5V


• Selectable X-Over (HPF/Full/LPF)


• X-Over Filter Range: 40Hz-2KHz

Package Dimensions (in inches):

• Length: 12"


• Width: 9"


• Height: 3.5"


• Weight: 4.5
