DS18 Hooligan X 15“ Competition Subwoofer 6000 Watt 4 Ohm 4" DVC HOOL-X15.4DSPL

DS18 SKU: DS-HOOL-X15.4DSPL

$999.95

Shipping calculated at checkout

Available Now!

DS18 Hooligan X 15" Competition Subwoofer 6000 Watt 4 Ohm 4" DVC HOOL-X15.4DSPL

The DS18 Hooligan X15 has been proven to provide top end performance and bass now for 6 years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.

We have taken the Traditional Hooligan and revamped it in our new revision, the Hooligan X15 SPL. This model features heavy duty pole, SPL spider, and high strength surround to reinforce sound pressure level of the speaker making it louder at competition frequencies. This massive sub will be great for high powered music or SPL. A FS of 38 will ensure great bass down to 28Hz and great punchy bass up around 65Hz depending on your box tuning. This subwoofer is rated at 4000 Watts RMS and 6000 Watts MAX so your vehicle will require electrical upgrades and large wire.

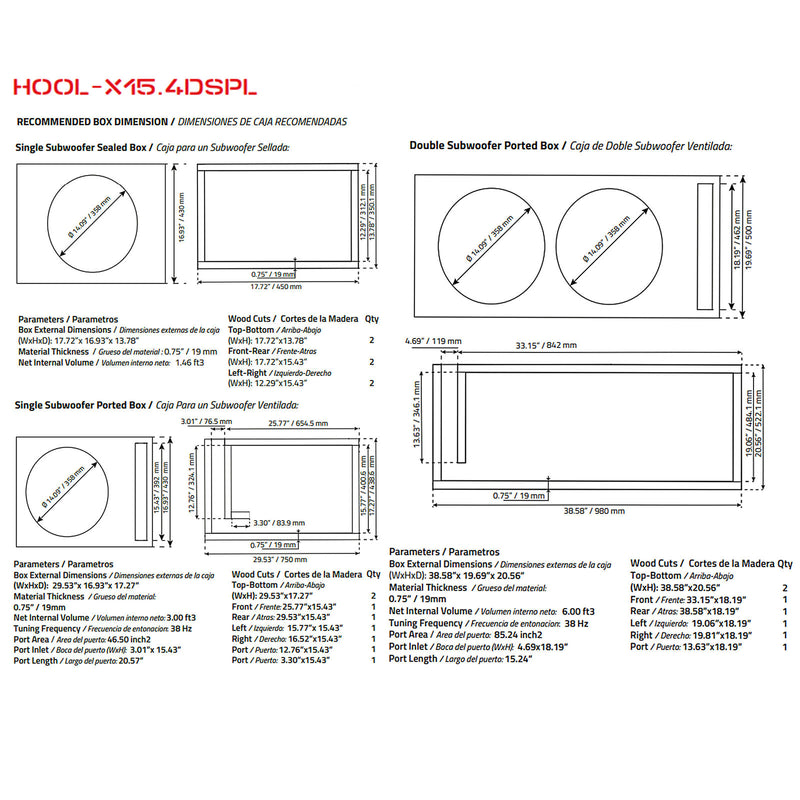

This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box.

Highlights

- High powered 4" Aluminum voice coil handling 4000 Watts RMS and 6000 Watts MAX power for heavy hitting competition bass.
- Large SPL surround to help with the high SPL of this subwoofer.
- Stronger spider that helps reinforce your frequency so this sub plays more efficiently at a louder level than previous versions.
- Tooled Red basket is not only extremely strong but looks great so you can use plexiglass or mount inverted on your box to see the show quality frame and motor topped off by a carbon fiber dust cap.
- Huge 500 Oz magnet will help the voice coil receive and handle the massive power this sub requires with high efficiency and durability.

This listing includes:
(1) DS18 15" Competition Subwoofer HOOL-X15.4DSPL

SPECIFICATIONS PER SUBWOOFER:
Nominal Diameter: 15"
Nominal Impedance: 4+4 Ohm
MAX Power Handling: 6000 Watts
RMS Power Handling: 4000 Watts
Sensitivity (1w/1m): 89dB
Frequency Response: 20 ~ 250Hz
Recommended HI Pass Crossover: 100Hz

MOTOR:
Voice Coil Diameter: 4" (101.6mm)
Voice Coil Former Material: Black Aluminum
Winding Material: CCAW
Cone Material: Non-Pressed Paper
Dust Cap Material: Carbon Fiber
Surround Material: Foam
Basket Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 500 Oz
Displacement Volume: 9.1L (0.32ft³)

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 46.23L (1.63ft³)
Excursion: X-max - 59mm
Free Air Resonance: Fs - 38.12Hz
Mechanical Factor: Qms - 6.26
Electrical Factor: Qes - 0.508
Total Factor: Qts - 0.482
Cone Area: Sd - 754.77cm²
DC Resistance: Re - 3.6 + 3.6 Ohm
Moving Mass: Mms - 459.68g
Compliance: Cms - 0.026mm/N
Force Factor: BL - 19.35
Voice Coil Inductance: Le - 2.078mH
Efficiency Bandwidth Product: EBP - 75

DIMENSIONS PER SUBWOOFER:
Overall Diameter: 15.55" (395mm)
Front Mount Baffle Cutout: 14" (358mm)
Mounting Depth: 11.18" (284mm)
Overall Depth: 13.3" (338mm)
Motor Diameter: 9.96" (253mm)

Weight : 82.50 lbs
