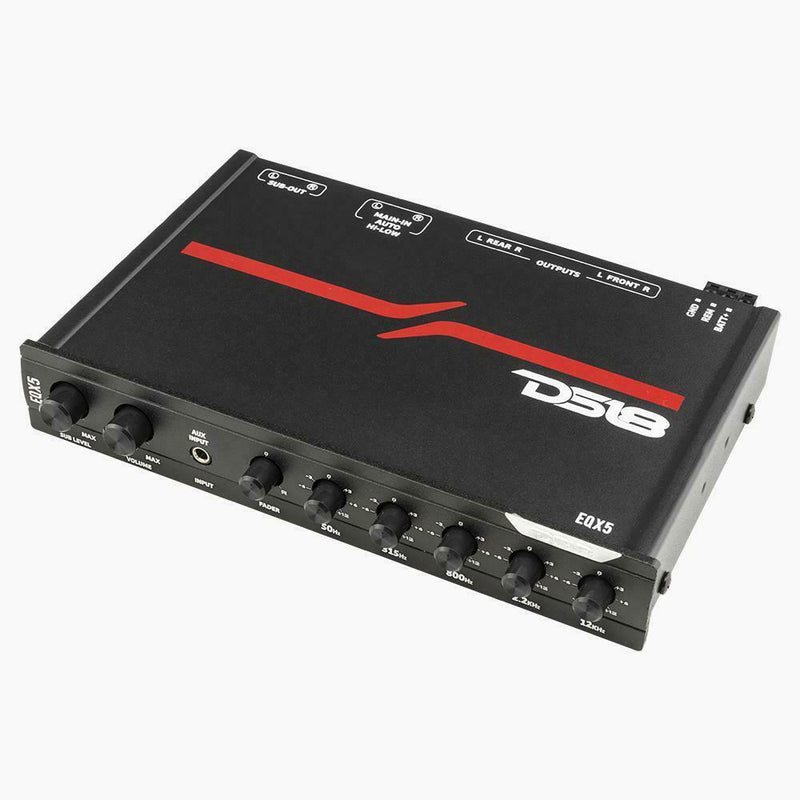

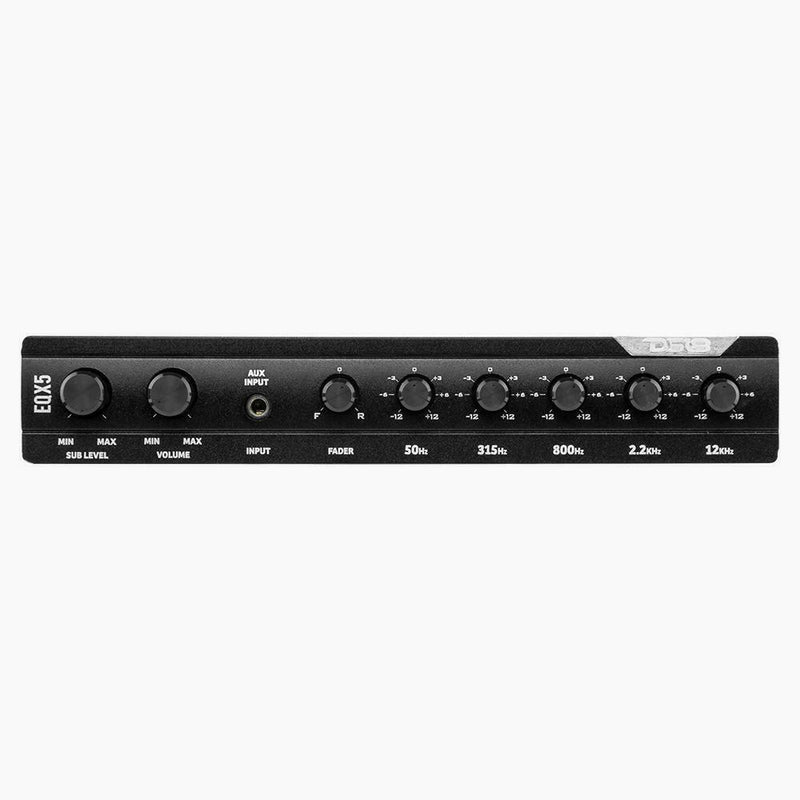

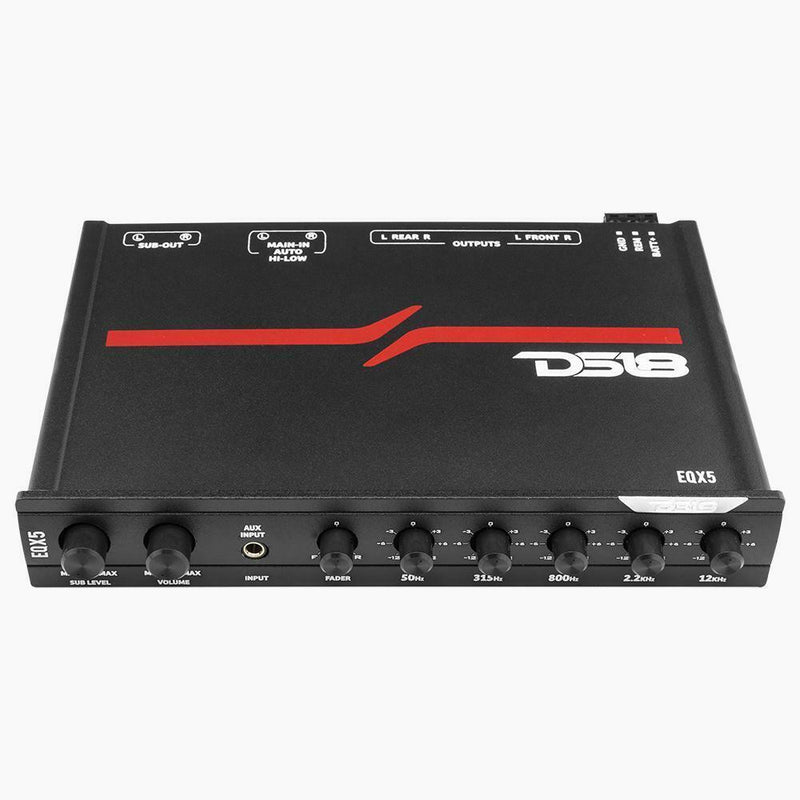

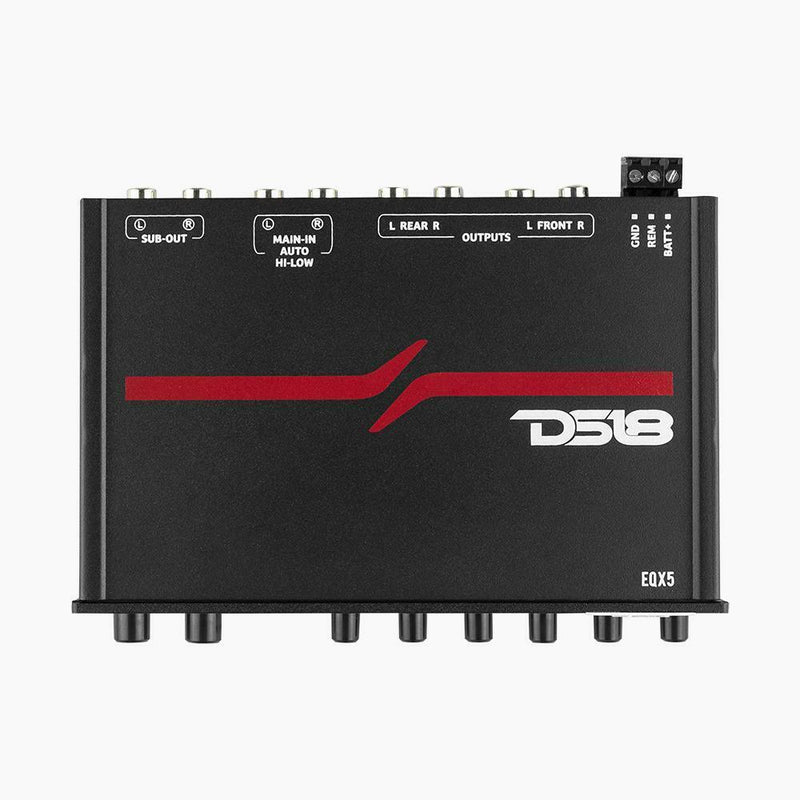

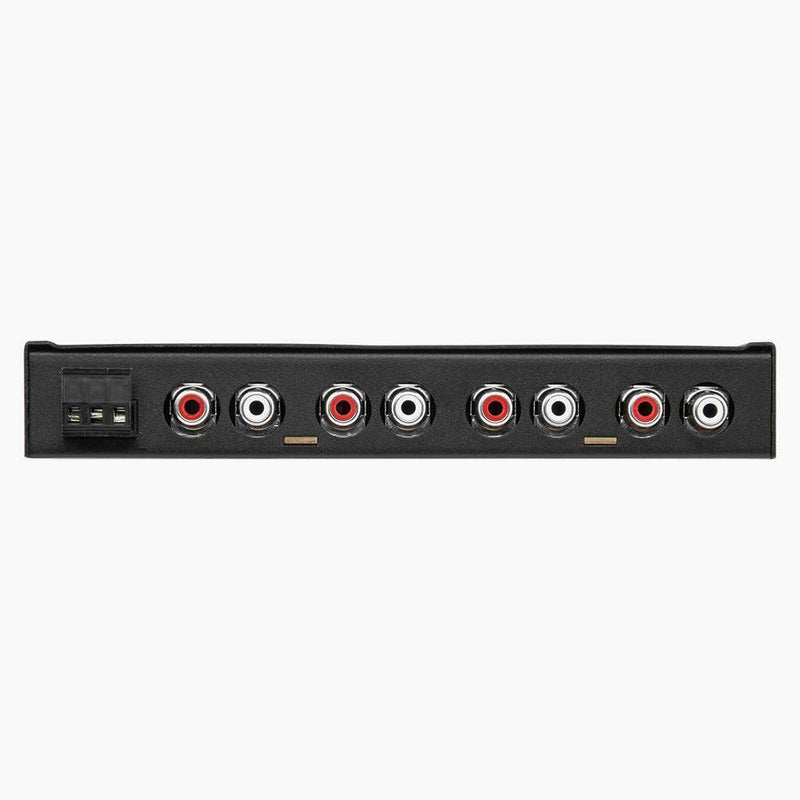

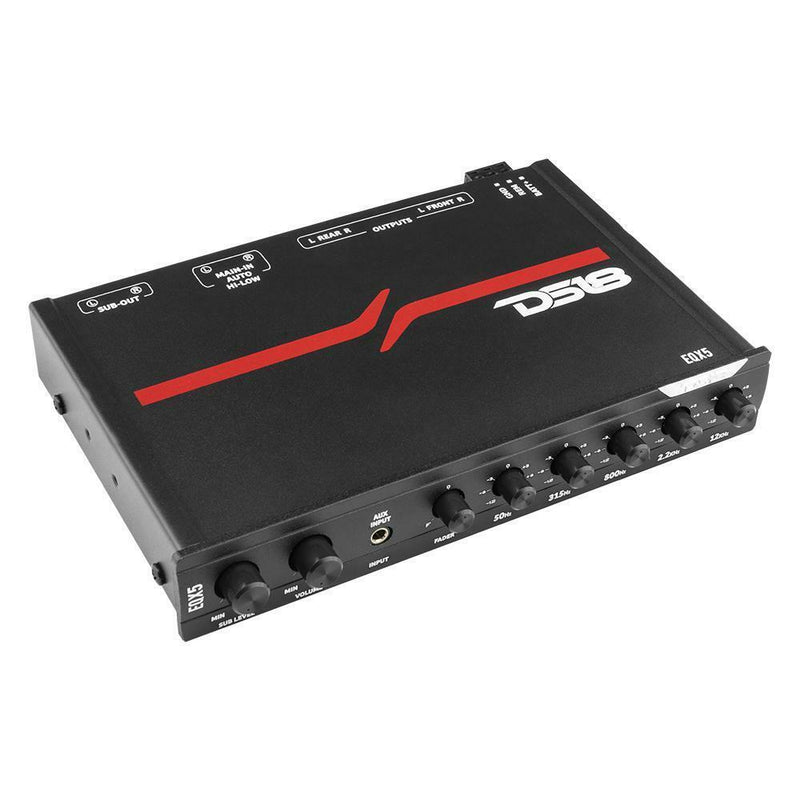

DS18 EQX5 5 Band 8V Car Equalizer w Subwoofer Control & High Level Input

CASE QUANTITY: 20

PACKAGE WEIGHT: 2.0 LB

Availability:
12 in stock, ready to be shipped
SKU DS-EQX5
by DS18
Save 33% Save 33%
Original price $81.99
Original price $81.99 - Original price $81.99
Original price $81.99
Current price $54.95
$54.95 - $54.95
Current price $54.95
BLACK FRIDAY DEAL
Get it as low as $43.96
Save 20% when you spend $1,000+ on merchandise before discounts.
Add to cart for your code. Apply code at checkout. Cannot be combined with other promotional discounts.

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Flexible payment options

  • 5 Band EQ: Five bands with 12dB of boost or cut let you shape your sound and tune multiple amps easily.
  • Subwoofer Control: Adjust your bass level from the front seat without going back to the amp.
  • Built-In High Level Input: Converts factory speaker level signal so you can add amps to a factory radio without a separate line output converter.
  • 8V Max Output: High voltage output sends a strong, clean signal to your amplifiers, with 100dB signal to noise and 0.005% THD.
  • Compact Mounting: Small 7" x 4.40" x 1.18" size with included brackets and screws makes it easy to mount and blend into your install.


DS18 EQX5 5 Band 8V Car Equalizer w Subwoofer Control & High Level Input

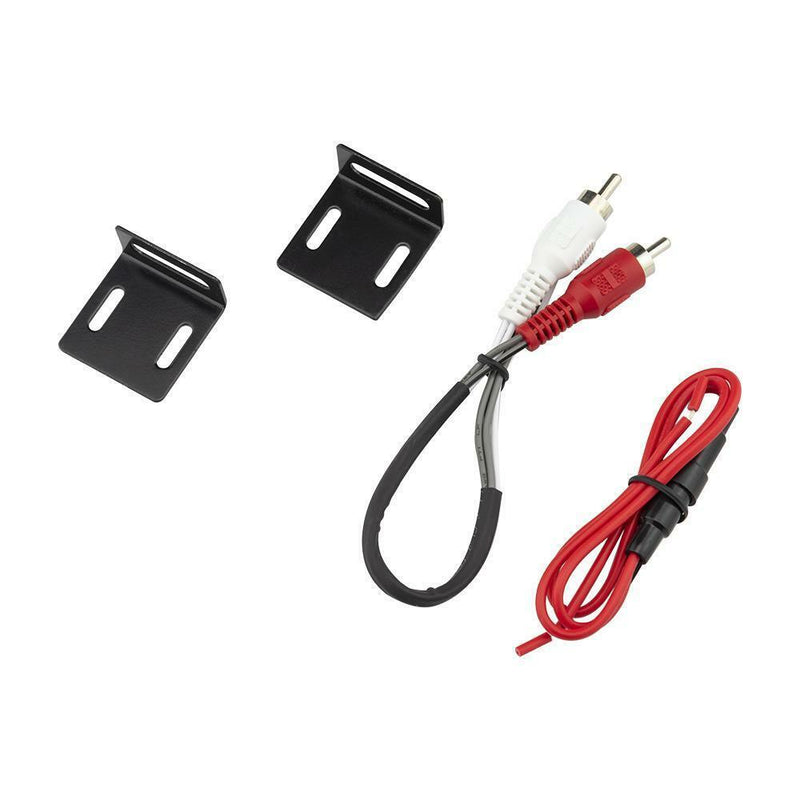

This Listing Includes:



  • (1) DS18 EQX5 Equalizer

  • (2) Mounting Brackets

  • (8) Phillips Head Screws

  • (1) RCA to High Level Input Wire Adapter (for high level speaker mode)



The DS18 EQX5 is a 5 band stereo equalizer that lets you fine tune your system from the driver’s seat. Each band, including bass, adjusts in real time with a turn of the knob, so you can dial in your sound while you listen. Its 8V maximum output sends a strong signal to your amps, and the built-in high to low level converter means you can add amplifiers to a factory radio without buying a separate converter. The compact size makes it easy to mount in or under the dash.



Features:



  • 5 Band EQ: Five bands with 12dB of boost or cut let you shape your sound and tune multiple amps easily.

  • Subwoofer Control: Adjust your bass level from the front seat without going back to the amp.

  • Built-In High Level Input: Converts factory speaker level signal so you can add amps to a factory radio without a separate line output converter.

  • 8V Max Output: High voltage output sends a strong, clean signal to your amplifiers, with 100dB signal to noise and 0.005% THD.

  • Compact Mounting: Small 7" x 4.40" x 1.18" size with included brackets and screws makes it easy to mount and blend into your install.


Specifications:



  • Model: EQX5

  • Bands: 5

  • Boost / Cut: 12dB

  • Signal to Noise Ratio: 100dB

  • Frequency Response: 10Hz - 50kHz (+/-1dB)

  • Max Output Voltage: 8V

  • THD: 0.005%

  • Input Sensitivity: 50mV - 3V

  • Headroom: 20dB

  • Output Impedance: 2K Ohms

  • Input Impedance: 20K Ohms

  • Stereo Separation: 82dB @ 1kHz

  • Operating Voltage: 11V - 15V, Negative Ground


Dimensions:



  • Length: 7"

  • Width: 4.40"

  • Height: 1.18"
