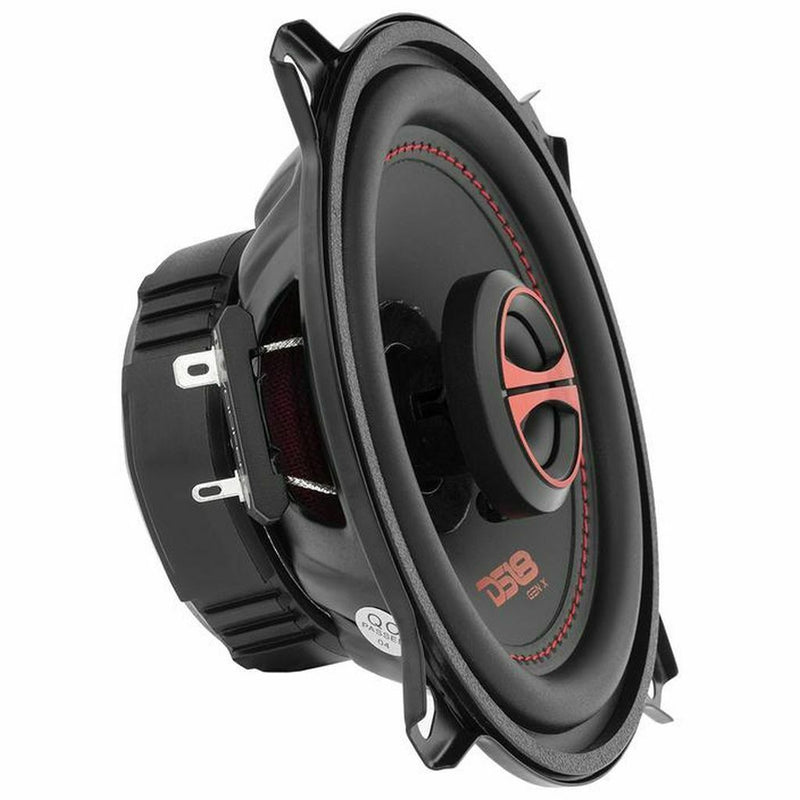

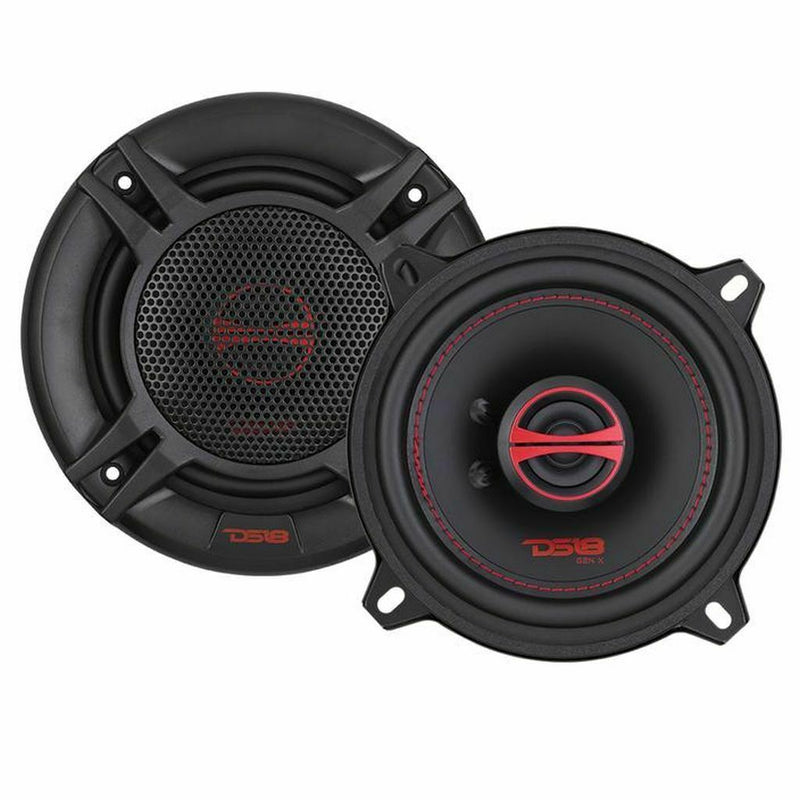

DS18 GEN-X 6x9" + 5.25" Car Audio Door Speakers Combo 630 Watts 4 Ohm Coaxial

DS18 SKU: DS-GEN-X6.9-X5.25

$102.72 $102.95 Save $0.23

Shipping calculated at checkout

Available Now!

DS18 GEN-X 6x9" + 5.25" Car Audio Door Speakers Combo 630 Watts 4 Ohm Coaxial

The GEN-X Coaxial Series features Mylar balanced dome tweeters, black paper cones with rubber edges, and sleek mesh grills with red accents. These unique speakers will hit all frequencies with great style. They boast a fine clarity that is unparalleled by any other speaker in their class.

This listing includes:
(2) GEN-X6.9 DS18 6x9" Coaxial Speakers
(2) GEN-X5.25 DS18 5.25" Coaxial Speakers

Highlights:
-2 to 4 way design for extreme full range quality hitting all the right frequencies.
-Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio.
-included grills to protect your speakers as well as great looks to blend in to any vehicle.

SPECIFICATIONS PER GEN-X6.9 SPEAKER:
Size: Woofer 6x9" Mid: 45mm Tweeter: 26 + 18mm
RMS Power: 60W
MAX Power: 180W
Impedance: 4 Ohm
Sensitivity: 87dB/W/M
Frequency Response: 65-20kHZ
Grilles: Yes
Tweeter Design: Coaxial 3 WAY

MATERIALS FOR GEN-X6.9:
Surround: Rubber Edge
Woofer Cone: Black Paper
Voice Coil Wire: ASV
Woofer Surround: Rubber
Tweeter Magnet Material: Ferrite
Tweeter Dome Material: Mylar

DIAMETERS FOR GEN-X6.9:
Voice coil size: 1.25" (30 mm)
Magnet Size: 3.93“ x 2.36“ x 0.70“ (100 x 60 x 18 mm)
Tweeter Size: 1.10“/0.78“ (28 mm/20 mm) Mylar Dome Top (No Grill): 3.30“ (84 mm)
Mounting depth: Top (w/Grill) 4.25“ (108.2 mm) Bottom: 2.97“ (76.5 mm)
Cut-out dimension: 6.59“ x 4.68“ (167.5 x 119mm)
Mounting Hole: 5.90“ x 8.66“ (150 x 220 mm)
Top Mount Depth (No Grill): 3.30“ (84 mm)
Tweeter Protrusion: 0.35“ (9 mm)

SPECIFICATIONS PER GEN-X5.25 SPEAKER:
Type: Coaxial
Size(woofer): 5.25" Tweeter: 1.02“(26 mm)
Impedance: 4 ohms
RMS Power: 45W
MAX Power: 135W
Sensitivity: 83 dB/w/m
Frequency response: 90Hz - 20KHz
Speaker Design: 2 WAY
Tweeter Design: Coaxial 1 WAY
Grilles: Yes

MATERIALS FOR GEN-X5.25 SPEAKER:
Surround: Rubber Edge
Cone: Black Paper
Voice Coil Wire: ASV

DIAMETERS for GEN-X5.25 SPEAKER:
Voice coil size: 0.98"(25mm)
Magnet Size: 2.75“ x 1.25“ x 0.47“ (70 x 32 x 12 mm)
Tweeter Size: 1.10“ (28mm) Mylar Balanced Dome
Top (No Grill); 2.20“ (56mm)
Mounting depth:Top (w/Grill): 2.95“ (75mm)
Bottom: 1.92“ (49mm)
Cut-out dimension: 5.47“-0.15“ (139-4mm) (5x9")
