- Powerful Output: 6 x 200W RMS @ 4 Ohm or 6 x 250W RMS @ 2 Ohm for strong, clear audio across multiple channels.
- Bridgeable Design: Combine channels to power subs at 3 x 500W RMS @ 4 Ohm bridged.
- Custom Sound Control: Variable HPF/BPF/FULL crossover with adjustable 0–12dB bass boost @ 45Hz.
- Compact & Efficient: Class D digital design with 75% efficiency and <0.01% THD.
- Fully Protected: Thermal, overload, short circuit, and clipping protection for long-term reliability.

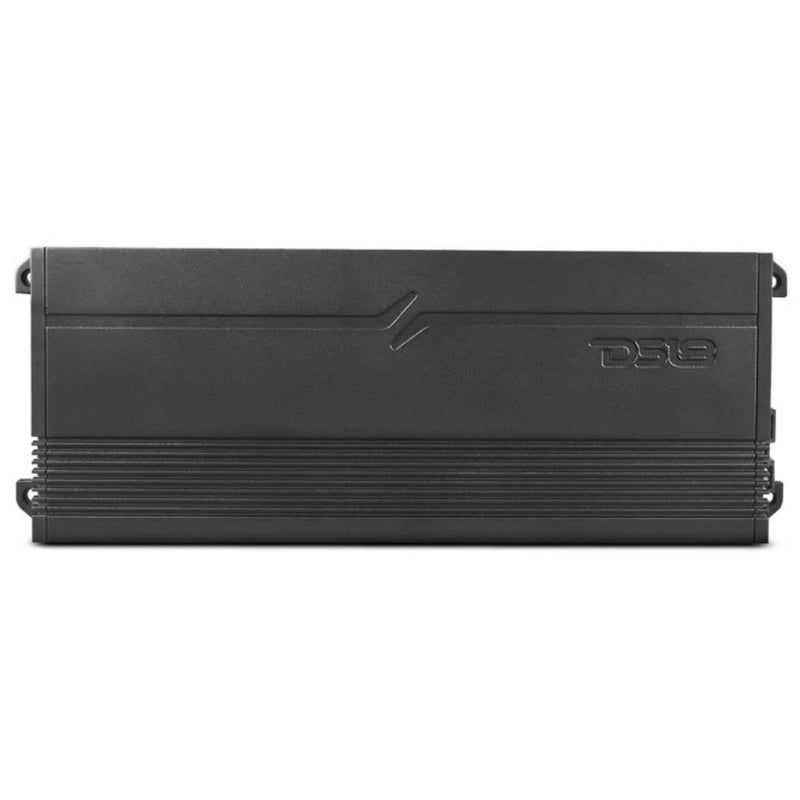

DS18 GEN-X 3600 Watt Bridgeable 6-Channel Class D Full Range Amplifier G3600.6D
Included Items
- (1) DS18 GEN-X 6-Channel Class D Full Range Amplifier
- (1) Remote Level Control with Cable
- (1) User Manual
Unleash powerful, precise sound across six channels with the DS18 GEN-X G3600.6D 6-Channel Class D Full Range Amplifier. Delivering up to 200W RMS per channel at 4 ohms and 250W RMS per channel at 2 ohms, this amp provides the versatility and clean performance your system demands. For high-output setups, bridge into 3 channels at 500W RMS each at 4 ohms.
Fine-tune your system with variable high-pass, band-pass, and full-range crossovers, plus adjustable bass boost up to 12dB at 45Hz. Built with efficiency and reliability in mind, the G3600.6D maintains low distortion (<0.01% THD) and over 90dB signal-to-noise ratio.
Compact yet powerful, this amplifier features multiple input modes (2, 4, or 6 channels), a remote level control, and a full suite of protection circuits, including thermal, overload, DC output, and short-circuit protection. Finished in matte black, the G3600.6D is a stylish and durable addition to any audio build.
Features
- 6-Channel Class D Full Range Amplifier
- RMS Power: 6 x 200W @ 4 Ohm / 6 x 250W @ 2 Ohm / 3 x 500W @ 4 Ohm Bridged
- Frequency Response: 20Hz–20kHz with 0.01% THD
- Variable HPF/BPF/FULL crossovers, adjustable bass boost up to 12dB @ 45Hz
- Full protection suite: thermal, overload, DC output, short circuit, and clipping protection
Specifications
- Total Power (Peak): 3600W
- Amplifier Class: Digital (D)
- Amplifier Type: Full Range
- Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridged
- Signal to Noise Ratio: >90dB
- Efficiency @ 4 Ohm: 75%
- Input Impedance: 22K
- Channel Separation: 57dB
- Damping Factor: 75
- Low-Level Input Range: 0.25–6V
- Selectable X-Over: HPF / HPF-BPF-FULL (5/6CH)
- Crossover Filter Range: HPF: 10–250Hz / LPF: 50–250Hz
- Fuse Rating: 3 x 40A
- Power Input Terminal: 4GA
- Weight: 2.2 kg
Dimensions:
- Length: 12.8"
- Width: 4.72"
- Height: 1.96"
