Compact Design — 7.2” body fits tight installs without sacrificing power or quality.

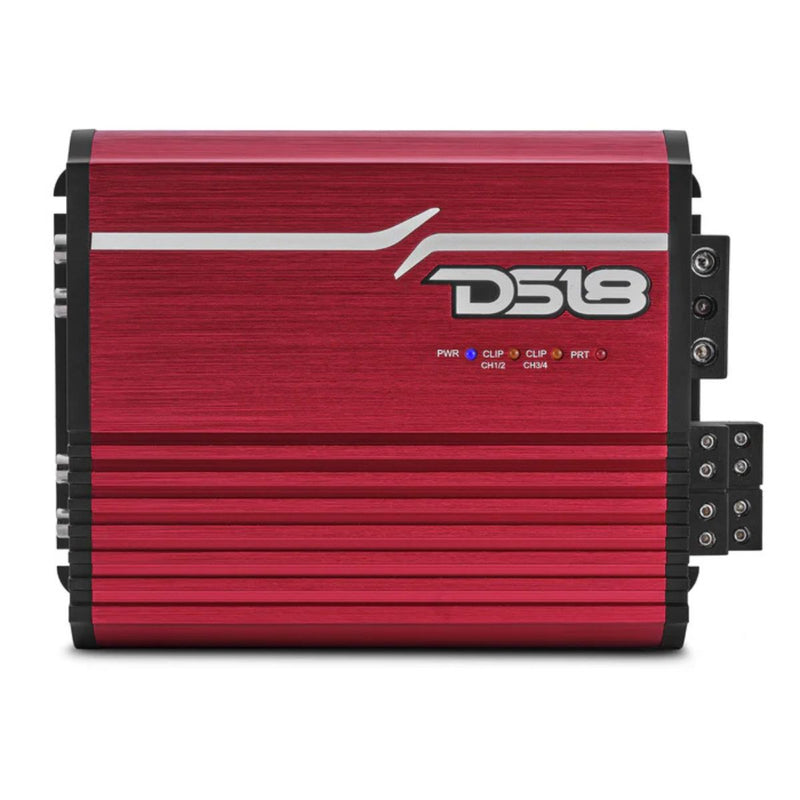

DS18 FRP1200W RMS Compact 4-Channel Full-Range Class-D Amplifier FRP-1.2K4/RD RED
This Listing Includes
(1) DS18 FRP-1.2K4/RD 4-Channel Amplifier
FULL-RANGE POWER IS BACK. The DS18 FRP-1.2K4 packs a serious punch into a compact design, delivering up to 1200W RMS of clean, efficient full-range power. Engineered for flexibility, this 4-channel Class D amplifier effortlessly drives mids, highs, or subs with clarity and control - all while staying cool under pressure.
Built for Versatility:
Stable at 1 Ohm per channel or 2 Ohm bridged

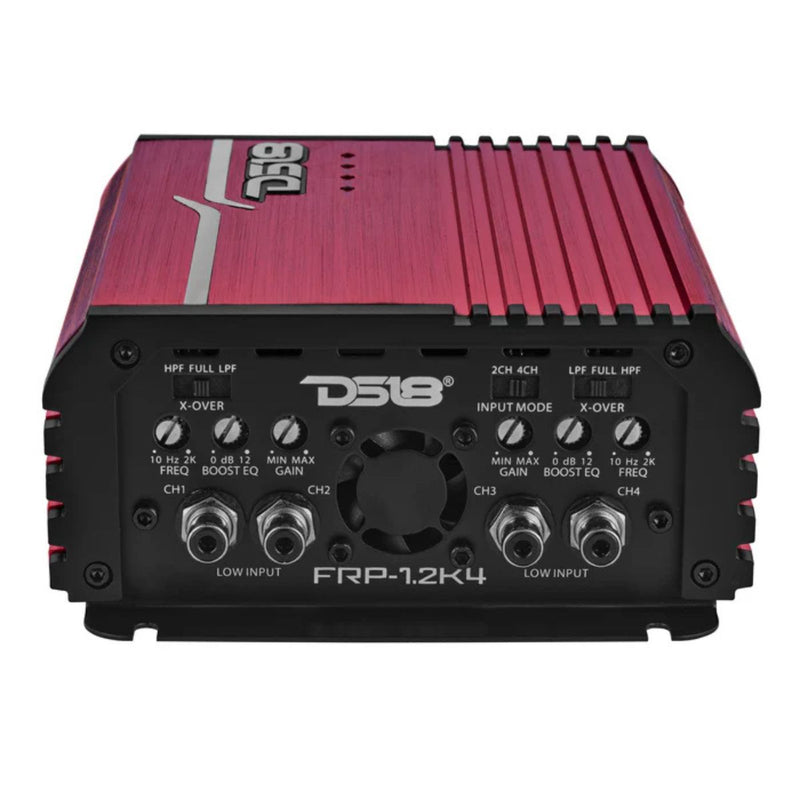

Fully variable HPF, LPF, and full-pass crossover
Up to 12dB bass boost at 50Hz
Smart cooling fan + 4-layer PCB for reliable performance
Compact Doesn't Mean Compromise:
With Tiffany RCA terminals, surface-mount technology, and precision testing, the FRP-1.2K4 is designed to thrive in real-world installs. It's built tough, runs cool, and delivers clean power where it counts.
Features
Compact size for easy installs
Audio Precision tested
LED Power, Protect, and Clip indicators
Smart cooling fan
Specifications:
RMS Power @ 4 Ohm: 4 x 120W
RMS Power @ 2 Ohm: 4 x 200W
RMS Power @ 1 Ohm: 4 x 300W
Bridged Power @ 4 Ohm: 2 x 350W
Bridged Power @ 2 Ohm: 2 x 500W
Amplifier Class: Digital D
Channels: 4CH
Minimum Impedance: 1Ohm Stereo / 2 Ohm Bridged
Fuse Size: 140A (recommended)
Cooling Fan: Smart Cooling x 1

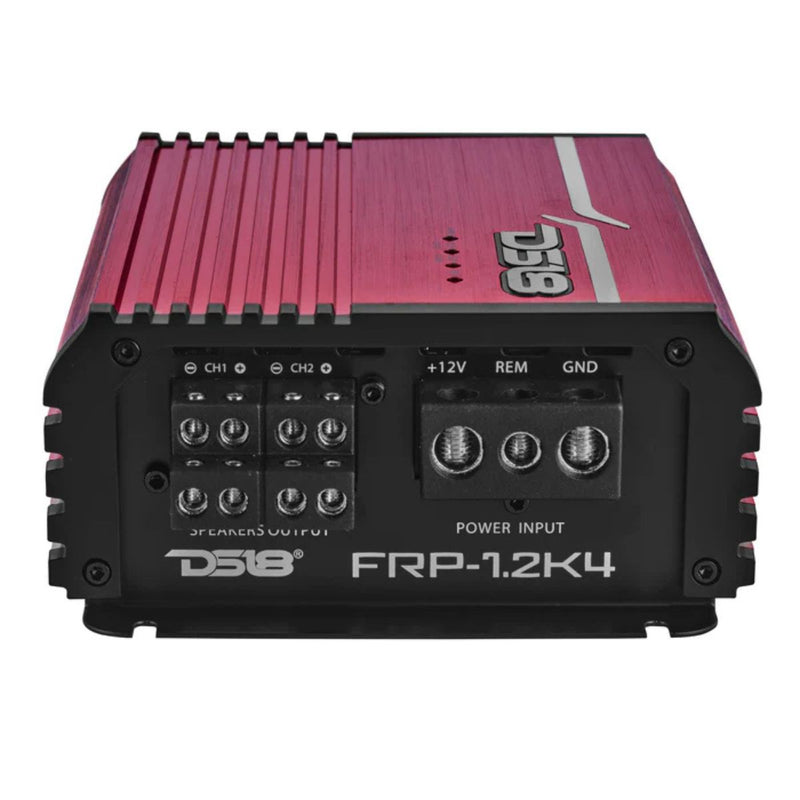

Power Input: 4GA
Protection: Thermal / Overload / Short / DC Output / Voltage Input / Clipping

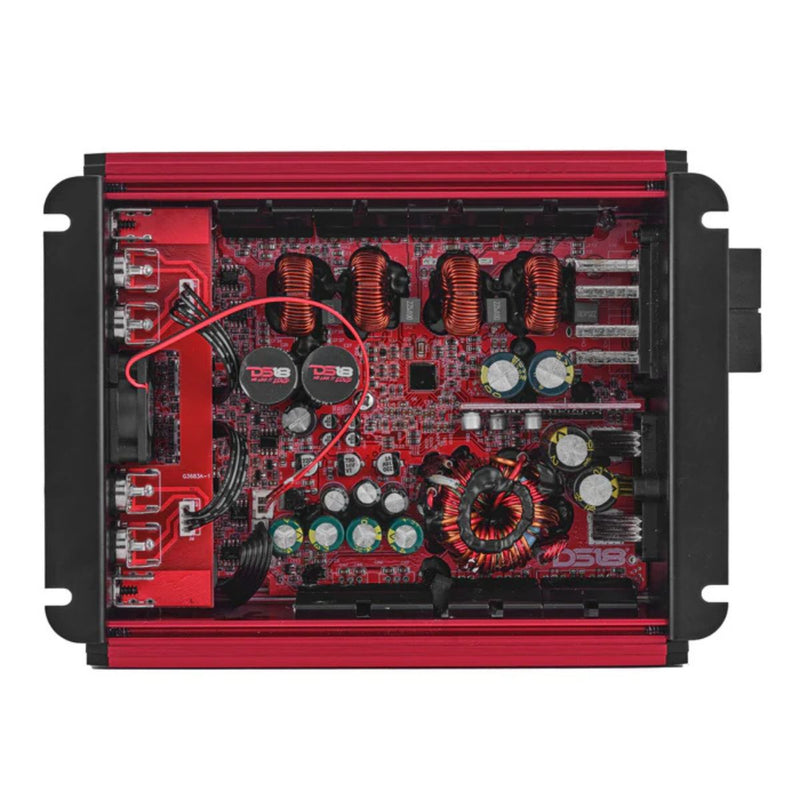

Surface Mount Technology & 4-layer PCB
Tiffany RCA Terminals
LED Clip Indicator
Frequency Response: 10Hz-20KHz
S/N Ratio: 90dB
Efficiency @ 4 Ohm: 97%
Damping Factor: 90
THD: 0.5%
X-Over Filter: HPF / LPF / Full (10Hz-2KHz)
Bass Boost: 0-12dB @ 50Hz
Dimensions:
Length: 7.2"
Width: 5.5"
Height: 2.4"
Weight: 3.53 lbs
