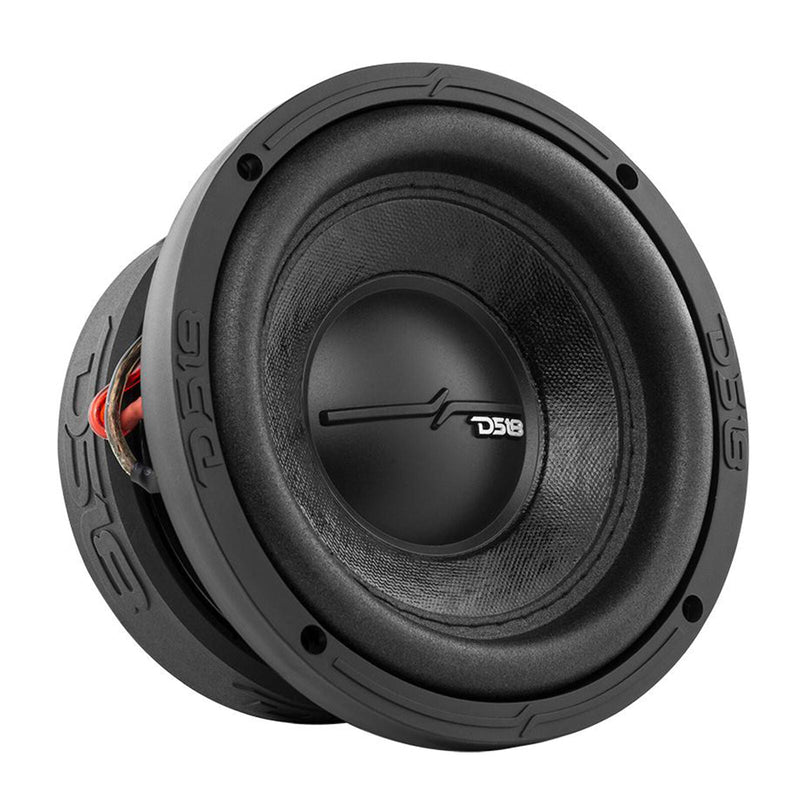

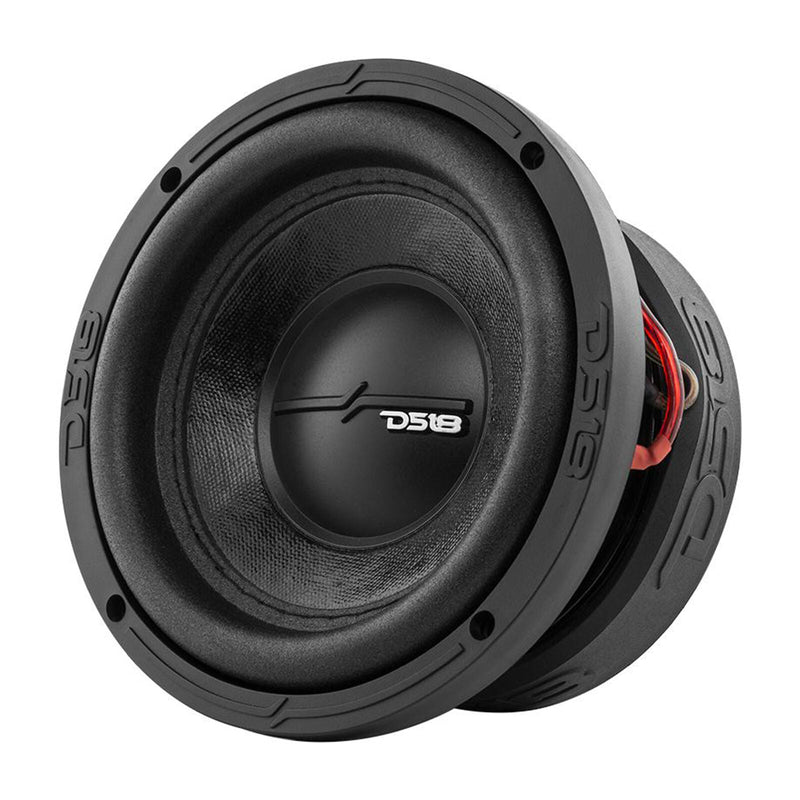

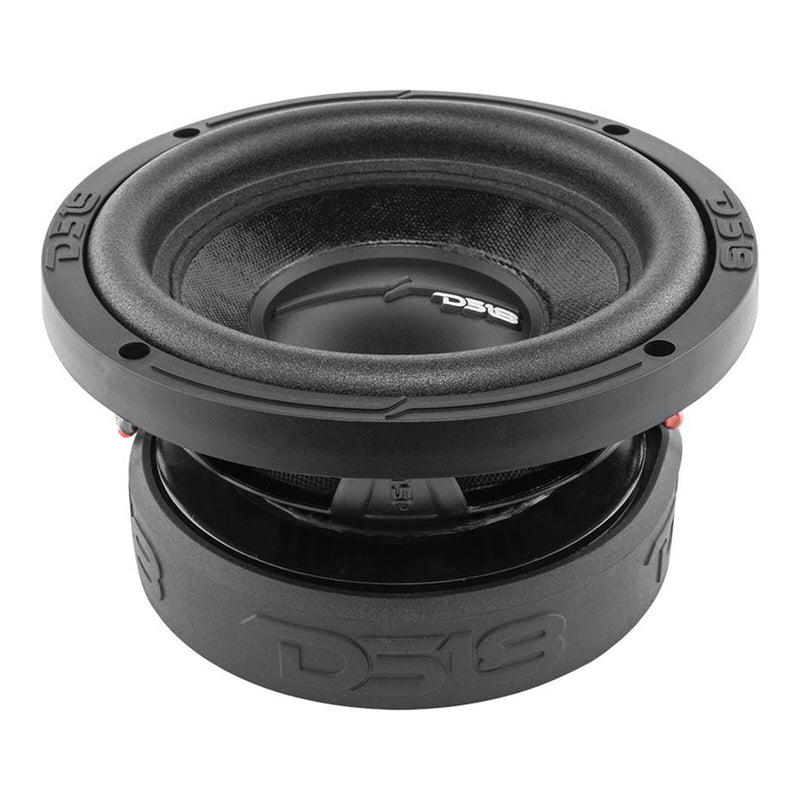

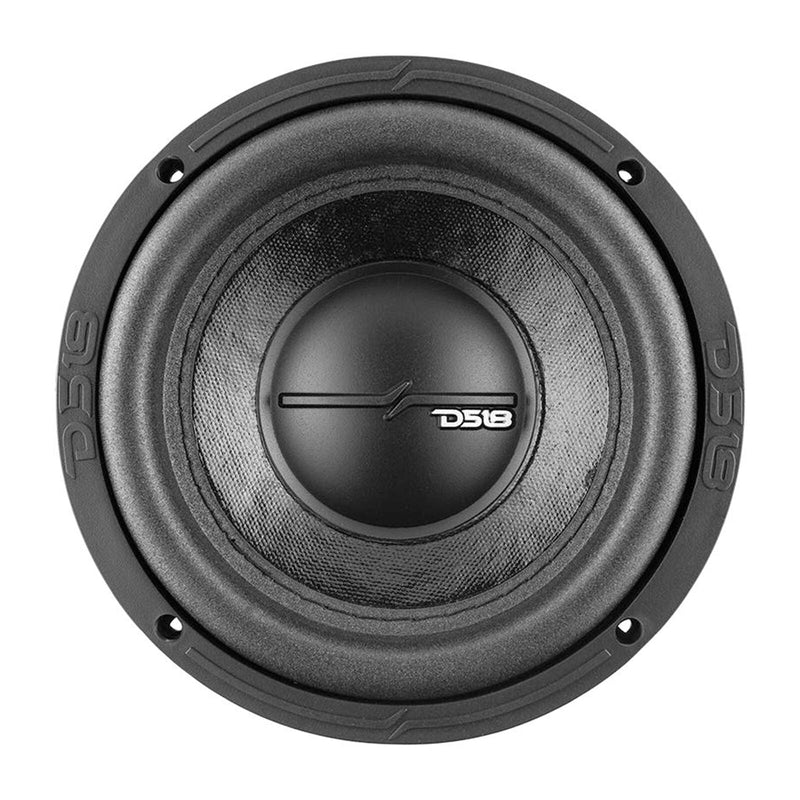

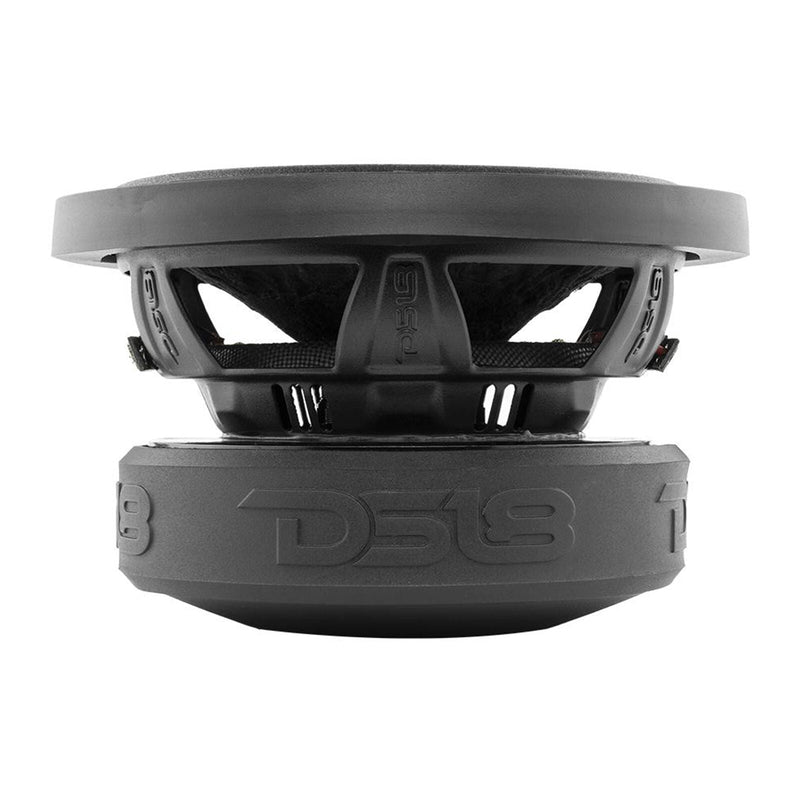

DS18 ELITE-Z 6.5" 300W RMS 4-Ohm DVC Subwoofer / ZR6.4D

• High Power Handling: 300W RMS for robust and powerful sound performance.
• 6.5-Inch Size: Compact design ideal for various installation spaces.
• 4-Ohm Dual Voice Coil (DVC): Offers flexibility in wiring configurations to optimize your audio system.
• Elite-Z Series: Part of DS18's premium line, ensuring top-quality materials and construction.
• Enhanced Bass Response: Engineered to deliver deep, rich bass for an immersive listening experience.

DS18 ELITE-Z 6.5" 300W RMS 4-Ohm DVC Subwoofer / ZR6.4D

This Listing Includes:

• (1) DS18 6" Subwoofer ZR6.4D

Description:

The DS18 ZR6.4D is an excellent entry level subwoofer that handles massive power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle. This 6.5" model comes in a dual 4 ohm configuration to match your amplifiers optimal impedance. This model comes with a 1.5" voice coil that handles 300 watts RMS and 600 watts max power. The large foam surround and pressed paper cone work greatly together to deliver smooth crisp bass that can be heard clearly throughout the vehicle.

Features:

• Large foam surround for great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.


• Great power handling of 300w RMS and 600w max through a high-strength 1.5" aluminum voice coil.


• Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.


• Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.

GENERAL SPECIFICATIONS:

• Nominal Diameter: 6.5"


• Nominal Impedance: 4+4 OHM


• RMS Power Handling: 300W


• MAX Power Handling: 600W


• Sensitivity (1w/1m): 82 dB


• Frequency Response: 38Hz - 200 Hz


• Recommended Lo Pass Crossover: 160 Hz

MOTOR SPECIFICATIONS:

• Voice Coil Diameter: 1.5" / 38.8mm


• VC Former Material: Aluminum


• Winding Material: Copper


• Cone Material: Non Pressed Paper


• Dust Cap Material: PPI


• Surround Material: Foam


• Basket Material: Steel


• Basket Color/Finish: Matte Black

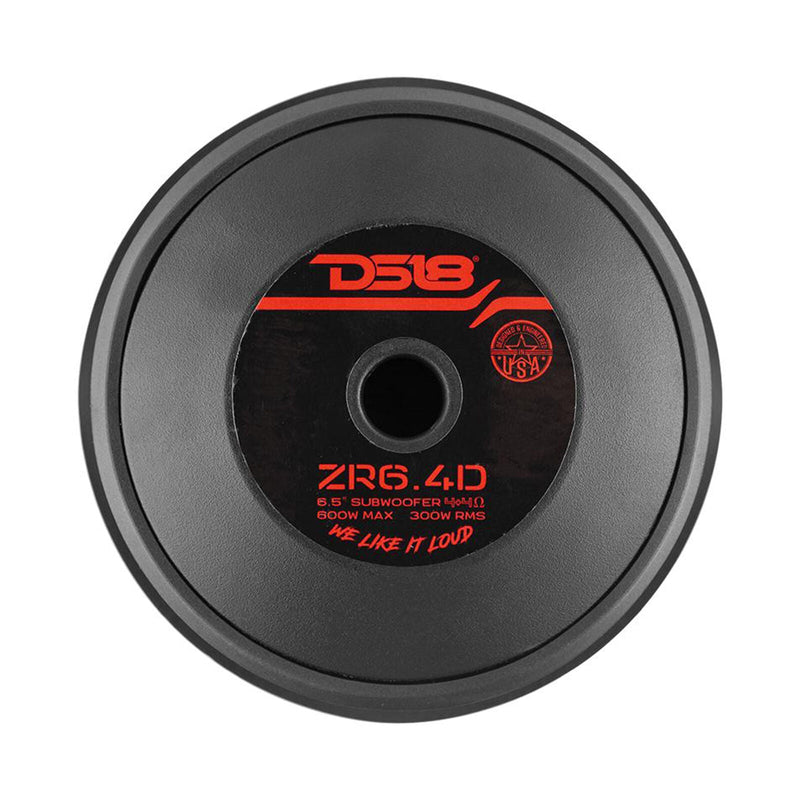

• Magnet Material: Ferrite


• Magnet Weight: 50 oz


• Displacement Volume: 0.02 ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: 2.79 L


• Excursion (one way): 15mm


• Free Air Resonance: 70Hz


• Mechanical Factor: 3.611


• Electrical Factor: 0.86


• Total Factor: 0.695


• Moving Mass: 44.6g


• Compliance: 96.01 m/N


• BL Factor: 6.53


• Voice Coil Inductance: 461.9m mH


• Cone Area: 143 Cm2


• DC Resistance: 3.4 + 3.4 ohm


• Efficiency Bandwidth Product: 81.4

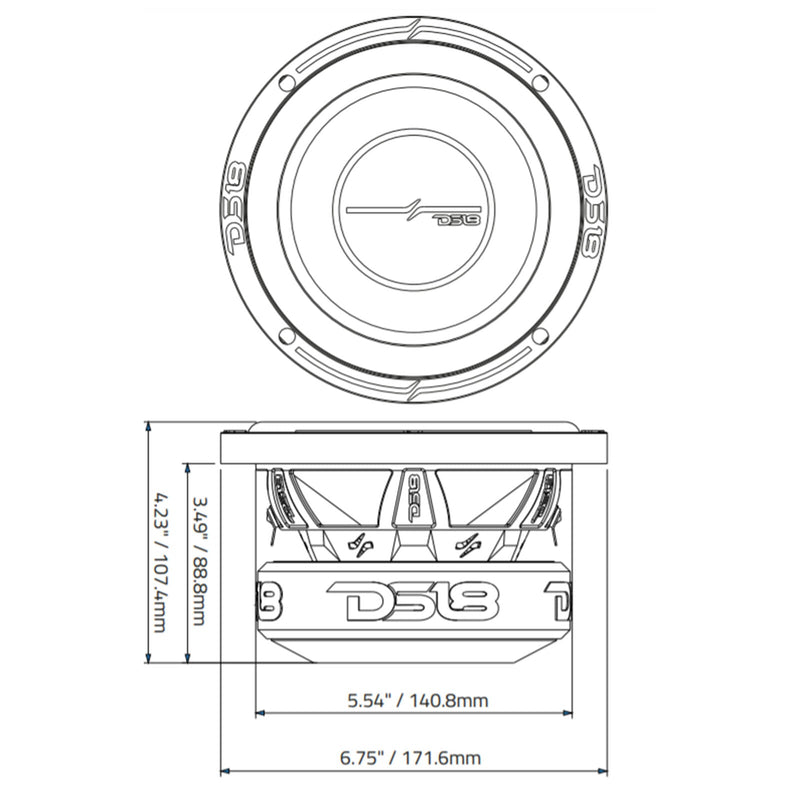

DIMENSIONS:

• Overall Diameter: 6.75" (171.6 mm)


• Overall Depth: 4.23" (107.4 mm)


• Front Mount Baffle Cutout: 5.54" (140.8 mm)


• Mounting Depth: 3.49" (88.8 mm)


• Motor Diameter: 5.23" (133 mm)
