DS18 ELITE 6x9 Coaxial Speakers 120W RMS 4 Ohm 2-Way Pair ZXI-694

DS18 ELITE 6x9 Coaxial Speakers 120W RMS 4 Ohm 2-Way Pair ZXI-694

This Listing Includes:

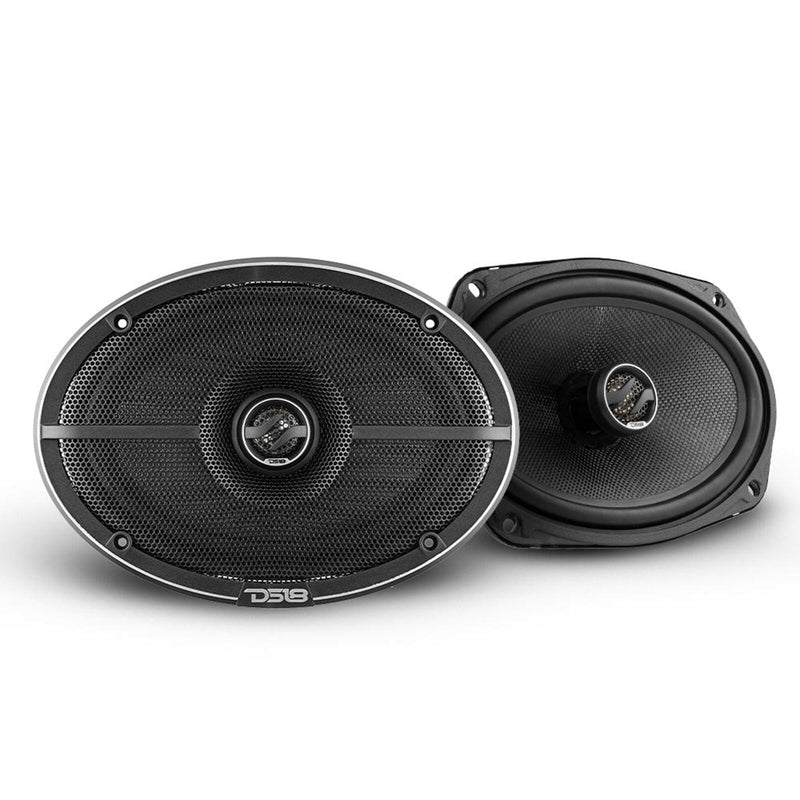

• (2) DS18 6x9" Coaxial Speakers ZXI.694

Description:

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI 694 is 6x9 inch, 4 ohm coaxial speaker designed for audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

Download Owner's Manual

Features:

• High Power handling of 360 Watts for extra loud listening.
• 6x9" inch 2 way 4 ohm speaker gives amazing sound at all volumes.
• 2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.

SPECIFICATIONS PER SPEAKER:

• Nominal Diameter: 6x9"
• Nominal Impedance: 4 Ohm
• RMS Power Handling: 120 Watts
• MAX Power Handling: 360 Watts
• Sensitivity (1w/1m): 92dB
• Frequency Response: 31.5Hz-20Khz
• Recommended HI Pass Crossover: 50Hz
• Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:

• Voice Coil Diameter: 1.2" (30.4mm)
• Voice Coil Former Material: KSV
• Winding Material: EISV
• Cone Material: Glass fiber
• Surround Material: Rubber
• Basket Material: Steel
• Magnet Material: Barium Ferrite
• Magnet Weight: 19.4 Oz / 550g

TWEETER SPECIFICATIONS:

• Nominal Diameter: 1" (25.4mm)
• Voice Coil Diameter: 0.8"(20.4mm)
• Voice Coil Former Material: KSV
• Winding Material: EISVM
• Diaphragm Material: PEI
• Magnet Material: Neodymium
• Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:

• Equivalent Volume: 17.52L
• Excursion (one way): 3.3mm
• Free Air Resonance: 58Hz
• Mechanical Factor: 5.77
• Electrical Factor: 1.18
• Total Factor: 0.98
• Mechanical Mass: 23.44g
• Mechanical Compliance: 286mm/N
• BL Factor: 5.18
• Cone Area: 207.7 cm
• DC Resistance: 3.5 Ohm
• Mechanical Mass w/o air: 20.0g

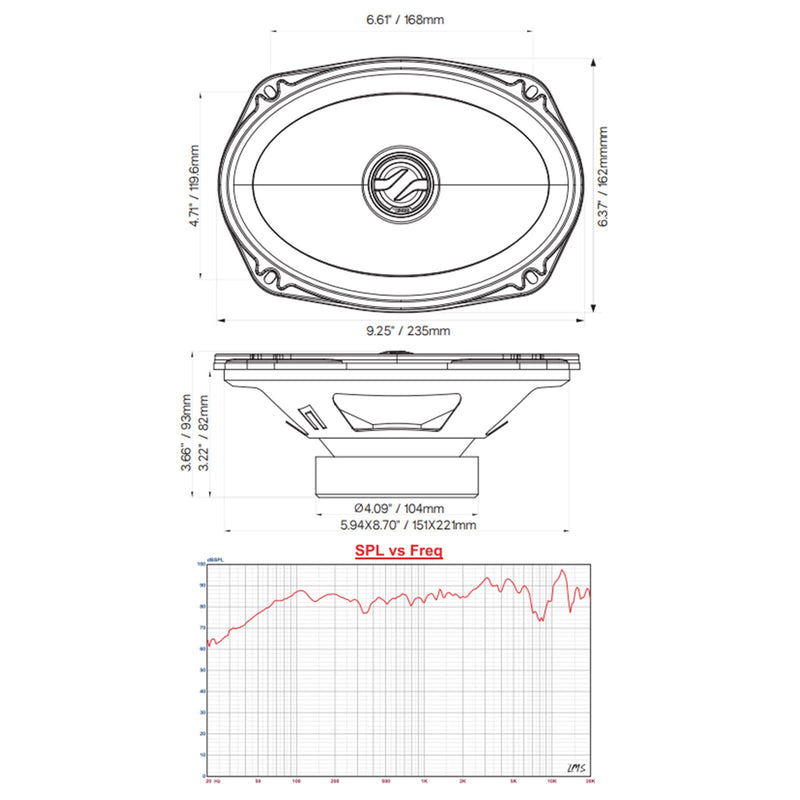

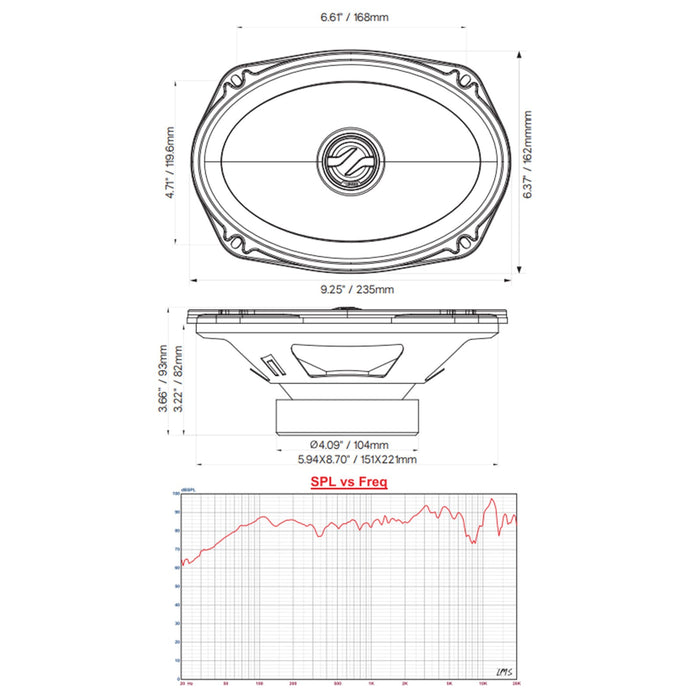

MEASUREMENTS:

• Overall Diameter: 6.37x9.25" (162 x 235mm)
• Overall Depth: 3.66" (93mm)
• Front Mount Baffle Cutout: 5.94x8.70" (151 x 221mm)
• Mounting Depth: 3.22" (82mm)
• Motor Diameter: 4.09" (104mm)
