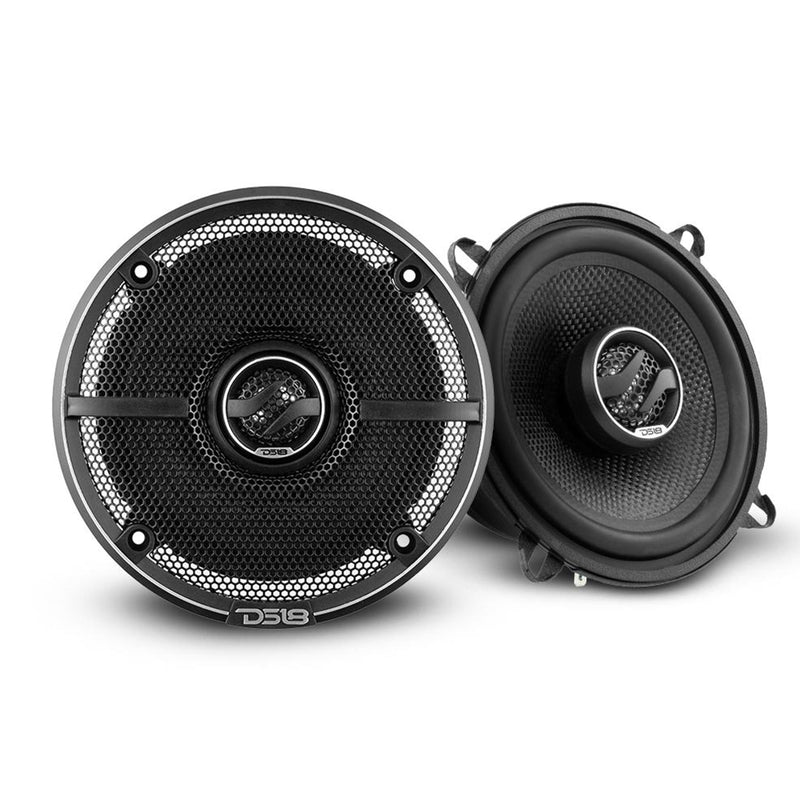

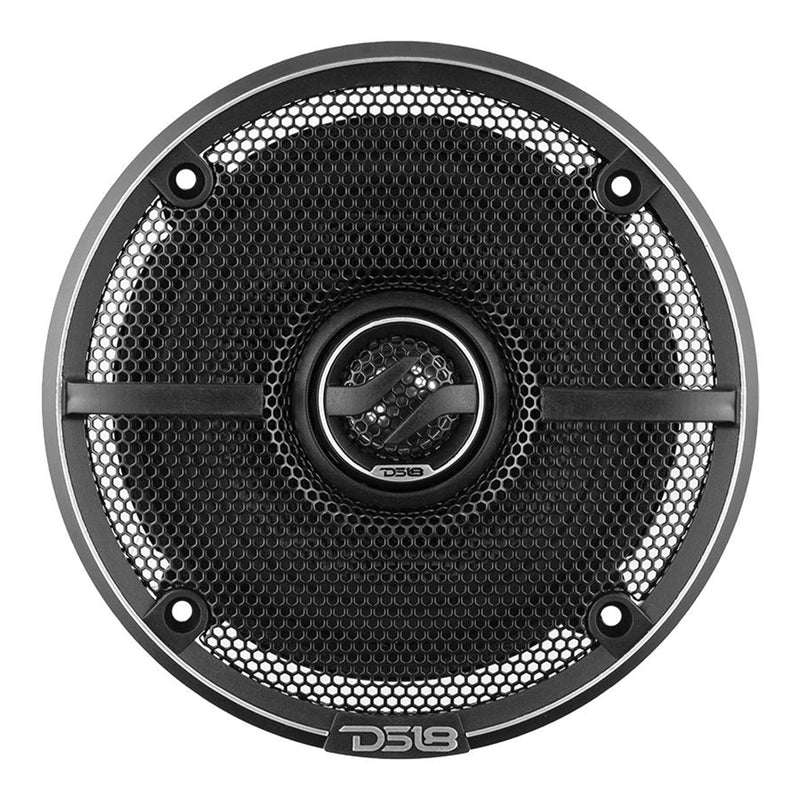

DS18 ELITE 5.25" 2-Way Coaxial Speakers 60 Watts RMS 4 Ohm Pair ZXI-5254

• 2-WAY COAXIAL DESIGN: 5.25 Inch coaxial speakers combine a midrange and tweeter for full-range sound from a compact speaker location.
• 60 WATTS RMS PER SPEAKER: Handles 60 Watts RMS and 180 Watts Max per speaker for dependable daily listening.
• GLASS FIBER CONE: Glass fiber cone, rubber surround, steel basket, and barium ferrite motor support responsive sound and durable performance.
• INTEGRATED PEI TWEETER: Built-in 1 Inch PEI tweeter with a neodymium magnet helps deliver crisp high-frequency detail.
• VERIFY FITMENT BEFORE ORDERING: Features a 4.45 Inch cutout requirement and 2.28 Inch mounting depth. Confirm vehicle fitment and available installation space before purchase.

DS18 ELITE 5.25" 2-Way Coaxial Speakers 60 Watts RMS 4 Ohm Pair  ZXI-525

This Listing Includes

• (2) DS18 ELITE ZXI-5254 5.25 Inch 2-Way Coaxial Speakers

Upgrade your sound with the DS18 ELITE ZXI-5254 5.25 Inch 2-Way Coaxial Speakers. Built for audio enthusiasts who want a compact speaker with clean, full-range output, these 4 Ohm coaxials are a strong choice for replacing factory speakers or building a custom system.

Each speaker handles 60 Watts RMS and 180 watts max, using a glass fiber cone, rubber surround, steel basket, and barium ferrite motor for reliable daily listening. The integrated 1 Inch PEI tweeter helps deliver clear high frequencies without needing a separate component setup.

Sold as a pair, the ZXI-5254 speakers use a shallow 2.28 Inch mounting depth and a 4.45 Inch cutout requirement. Verify available mounting depth, cutout size, and vehicle fitment before ordering.

Features

• 2-WAY COAXIAL DESIGN


• 60 WATTS RMS PER SPEAKER


• GLASS FIBER CONE


• BUILT-IN PEI TWEETER


• COMPACT 5.25 INCH FITMENT


• RECOMMENDED HIGH-PASS

FULL SPECIFICATIONS

General

• Model: ZXI-5254


• Product Type: 2-Way Coaxial Speakers


• Quantity: Pair


• Nominal Diameter: 5.25 Inch / 129 mm


• Nominal Impedance: 4 Ohm

Power Handling Per Speaker

• RMS Power Handling: 60 Watts


• Max Power Handling: 180 Watts

Performance

• Sensitivity: 89dB at 1W/1m


• Frequency Response: 40Hz to 20kHz


• Recommended High-Pass Crossover: 60Hz

Midrange Construction

• Voice Coil Diameter: 1 Inch / 25.5 mm


• Voice Coil Former Material: KSV


• Voice Coil Winding Material: EISV


• Cone Material: Glass Fiber


• Surround Material: Rubber


• Basket Material: Steel


• Magnet Material: Barium Ferrite


• Magnet Weight: 10.9 oz / 310 g

Tweeter Construction

• Tweeter Diameter: 1 Inch / 25.4 mm


• Voice Coil Diameter: 0.8 Inch / 20.4 mm


• Voice Coil Former Material: KSV


• Voice Coil Winding Material: EISVM


• Diaphragm Material: PEI


• Magnet Material: Neodymium


• Magnet Weight: 0.3 oz / 8.5 g

Thiele and Small Parameters

• Equivalent Volume: 4.86 L


• Excursion, One Way: 2.3 mm


• Free Air Resonance: 77Hz


• Mechanical Q Factor: 8.39


• Electrical Q Factor: 0.87


• Total Q Factor: 0.79


• Mechanical Mass: 9.93 g


• Mechanical Compliance: 457 mm/N


• BL Factor: 4.321


• Cone Area: 86.5 cm2


• DC Resistance: 3.5 Ohm


• Mechanical Mass Without Air: 9.0 g

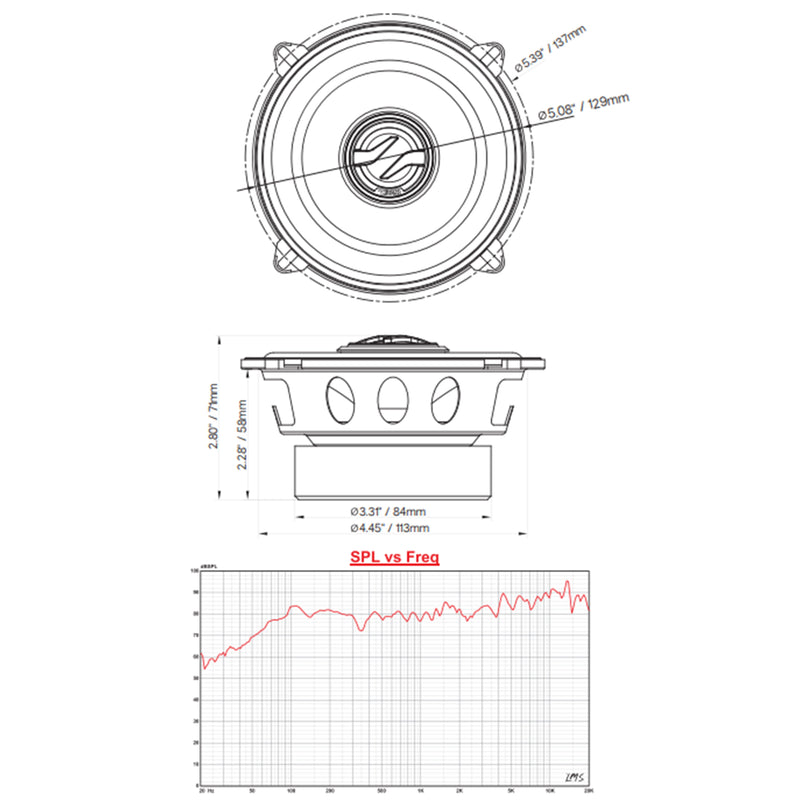

Diminsions

• Overall Diameter: 5.08 Inches


• Overall Depth: 2.80 inches


• Front Mount Baffle Cutout: 4.45 inches


• Mounting Depth: 2.28 inches


• Motor Diameter: 3.31 inches
