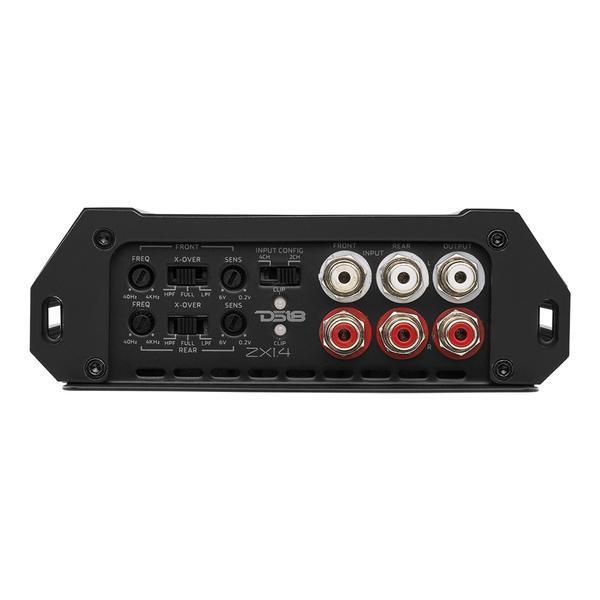

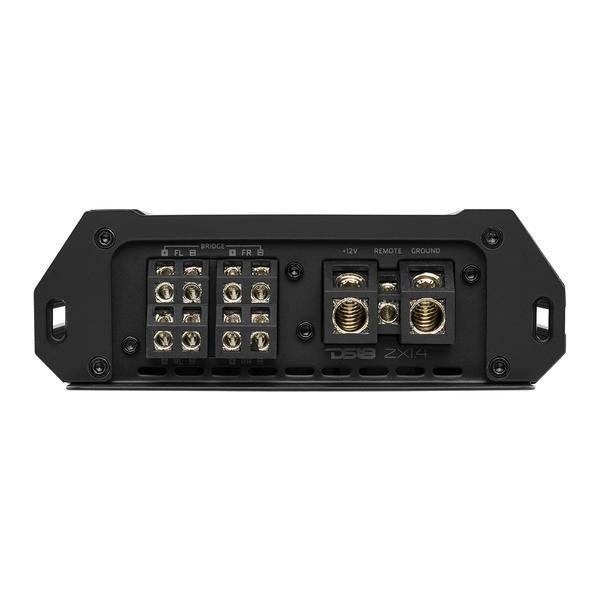

4-Channel 2200 Watt Class D Full Range 2-Ohm Compact Amplifier DS18 ZXI.4

• AMAZING POWER IN AN EFFICIENT PACKAGE - Capable of 1480 Watts Max Power You'll have all the power you need while utilizing state-of-the-art technology that requires less energy
• PROTECTION CIRCUITRY – Against Overload Short Circuit Thermal Low Voltage High Voltage and Reverse Polarity These Protection Features Are Designed to Protect the Amplifier From Misuse As Well As From Common Causes Of Amplifier Failure
• PLATINUM FINISH CONNECTIONS – Ensure solid electrical connections that resist corrosion Fully Variable crossovers promote installation ease and save the cost of outboard crossovers
• FULL RANGE AMP - If you are looking for an amplifier that can handle the full frequency range then look no further! Wire the most powerful midranges tweeters drivers or coaxial to this full range series

4-Channel 2200 Watt Class D Full Range 2-Ohm Compact Amplifier DS18 ZXI.4

This listing includes:

• (1) DS18 4-Channel Amplifier ZXI.4

In the world of car audio, evolution is inevitable, and DS18 understands this better than anyone else. We proudly present the ZXI.4, a monumental upgrade to our already legendary Z Series amplifiers.

The DS18 ZXI.4 is more than just an amplifier; it's an elegantly designed powerhouse that effortlessly blends aesthetics with durability. Its sleek, modern design hides the high-efficiency heat sinks and high quality circuit board that keep it cool under the most demanding conditions, ensuring uninterrupted performance when you need it most.

With 125W x 4 @ 4-Ohm RMS, DS18's ZXI.4 doesn't just play music; it commands it. Feel the earth-shaking bass and the crystal-clear highs like never before. It's not just volume; it's an immersive audio experience that'll transport you to another world.

Tuning your audio system has never been easier. The DS18 ZXI.4 allows you to expertly tune your music to your preferences with easily adjustable crossover and gain controls, putting the power to create your perfect soundstage right at your fingertips. Whether you're a bass enthusiast or a lover of crystal-clear highs, this amplifier ensures that your audio settings are tailored to perfection, elevating your in-car audio experience to levels never thought possible.

The DS18 ZXI.4 isn't just an amplifier; it's the key to unlocking your car's full sonic potential. With power that roars, precision that astounds, and craftsmanship that shines; it's your gateway to an audio experience like no other. Elevate your car audio to legendary status. Your ears deserve nothing less.

Specifications:

• Total Watts (Peak): 2200W


• RMS Power @ 4 Ohm: 4 x 125W


• RMS Power @ 2 Ohm: 4 x 185W


• RMS Power @ 1 Ohm: N/A


• RMS Power @ 4 Ohm Bridge: 2 x 370W


• Frequency Response: 20Hz-20KHz


• Signal to Noise Ratio: >90dB


• Efficiency @ 4 Ohm: >85%


• Damping Factor: >200


• Total Harmonic Distortion (THD): <0.1%


• Low Level Input Range: 0.2 - 6v


• High Level Input: No


• Selectable X-Over: LPF/FULL/HPF


• X-Over Filter Range: 40Hz-4KHz


• Bass Boost Range: No


• Bass Boost Frequency: No


• Infrasonic Filter: No


• Phase Selector: No

Features:

• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number of Channels: 4


• Minimum Impedance: 2 ohm (Stereo) / 4 ohm (Bridge)


• Led Indicator: Power/Protection/Clip


• Power Input Terminal Size: 4ga


• Fuse Size: 2 x 40A


• Remote Level Control: No


• Cooling Fan: No


• Voltmeter: No


• Thermal Protection: Yes (>160?F / 71?C)


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (8.5-16.8V)


• Clipping Protection: Yes


• Body Color / Finish: Black Aluminum Brush


• Tiffany RCA connectors: Yes


• Input Selector: Yes (2ch/4ch)


• Compact Size to easy Installation for Any Applications: Yes


• Stable/Reliable Two Layers Traces PCB Design: Yes


• Quality Control Verification using Audio Precision Instruments: Yes

Measurements:

• Overall Length: 9.5" / 241.3mm


• Overall Width: 5.66" / 144mm


• Overall Height: 1.9" / 48.5mm


• Heatsink Length: 8.7" / 221.3mm


• Gross Single Unit Weight (Lb): 5
