DS18 ELITE 4" Coaxial Speakers 150 Watts 4 Ohm 2-Way Pair /w Kevlar Cone ZXI-44

DS18 SKU: DS-ZXI-44

$66.95

Shipping calculated at checkout

Available Now!

DS18 ELITE 4" Coaxial Speakers 150 Watts 4 Ohm 2-Way Pair /w Kevlar Cone ZXI-44

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. This ZXI-44 “4 inch, 4 ohm coaxial speaker is designed audio enthusiasts as these speakers have an amazing range of frequencies and are very loud. The 2 way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember. Small 4" size for a wide variety of applications.

This Listing Includes:
(2) DS18 4" Coaxial Speakers ZXI-44

Features:
- High Power handling of 150 Watts for loud listening.
- Small 4" size for limitless audio applications.
- 2 way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.

SPECIFICATIONS PER SPEAKER:
Nominal Diameter: 4"
Nominal Impedance: 4 Ohm
RMS Power Handling: 50 Watts
MAX Power Handling: 150 Watts
Sensitivity (1w/1m): 88dB
Frequency Response: 80Hz-20Khz
Recommended HI Pass Crossover: 100Hz
Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:
Voice Coil Diameter: 1" (25.5mm)
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass fiber
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Barium Ferrite
Magnet Weight: 10.9 Oz / 310g

TWEETER SPECIFICATIONS:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)
Voice Coil Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:
Equivalent Volume: 1.59L
Excursion (one way): 2.3mm
Free Air Resonance: 95Hz
Mechanical Factor: 9
Electrical Factor: 0.8
Total Factor: 0.74
Mechanical Mass: 8.47g
Mechanical Compliance: 364.9mm/N
BL Factor: 4.583
Cone Area: 55.4cm²
DC Resistance: 3.5 Ohm
Mechanical Mass w/o air: 8.0g

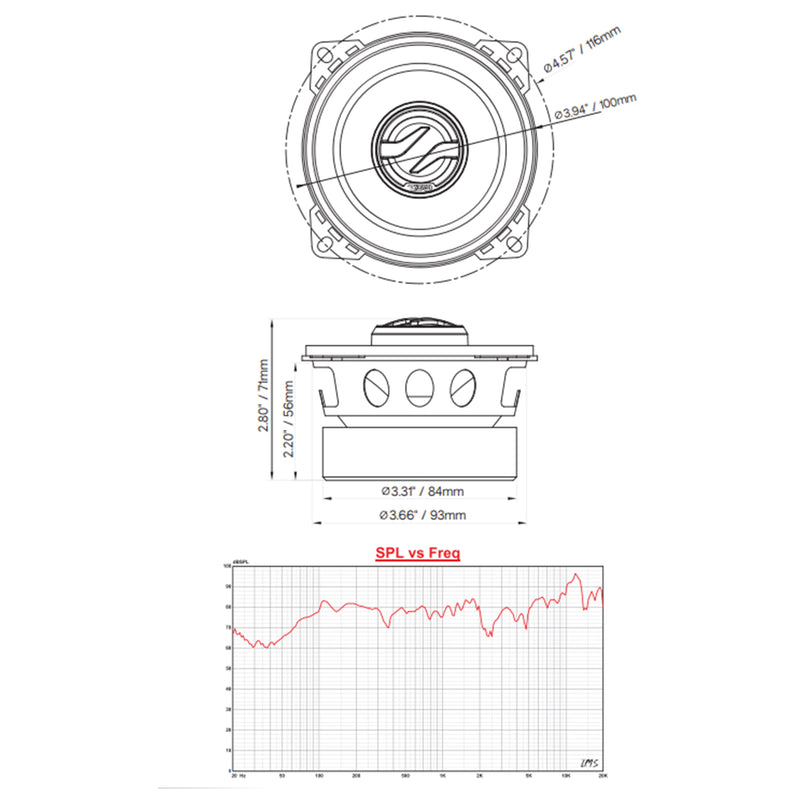

DIMENSIONS:
Overall Diameter: 3.94" (100mm)
Overall Depth: 2.80" (71mm)
Front Mount Baffle Cutout: 3.66" (93mm)
Mounting Depth: 2.20" (56mm)
Motor Diameter: 3.31" (84mm)
