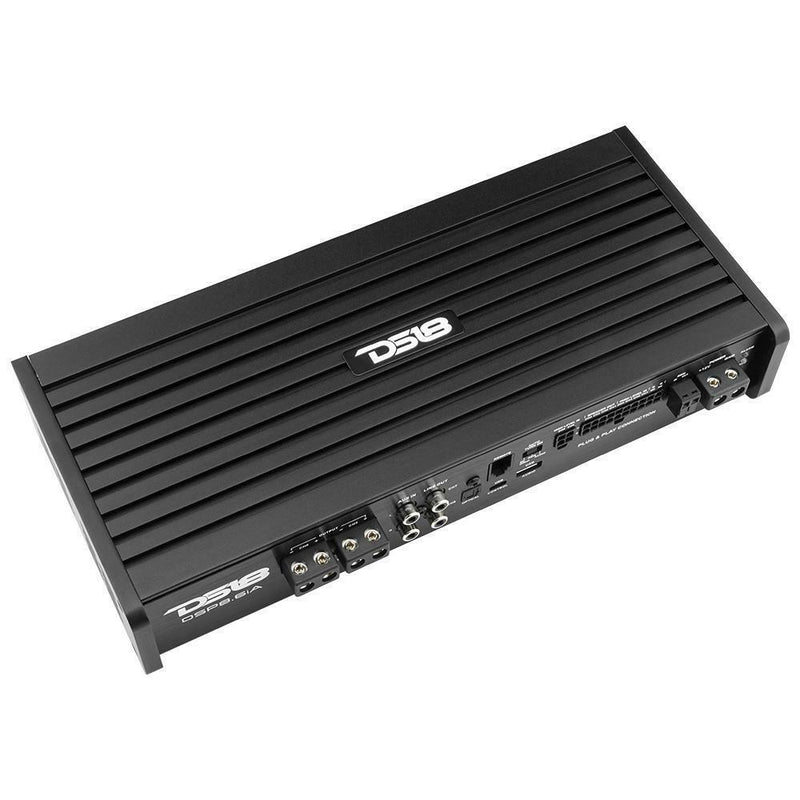

DS18 DSP8.6iA 6 Channel Amplifier w/ 8-Channel Digital Sound Processor

DS18 SKU: DS-DSP8.6iA

$619.95

Shipping calculated at checkout

Only 6 left!

DS18 DSP8.6iA 6 Channel Amplifier w/ 8-Channel Digital Sound Processor

Take complete control of your audio system with DS18's new line of Digital Sound Processors! Now you can control every aspect of your audio system with ease with precise filtering settings. The DSP6iA gives you many highways in which you can fine tune your audio.

This DSP comes with a built in amplifier which yields 70 watts rms per 6 channels @4ohms. Channels 5/6 can be bridged for a subwoofer that will get you 240w rms @4 ohms bridged.

The DSP6iA will be hooked up directly to your PC (not mac compatible) or laptop for a multitude of tuning options that are just a few mouse clicks away. Also included is an easy to use wired controller that acts as an interface for song switching, volume, and your saved presets. This unit has an included BT receiver so you do not even need a head unit. You can stream directly from your phone if you so wish, which makes the versitility of this DSP immeasurable.

The software is downloaded at ds18.tools and does not take a high learning curve to master. Each input can be adjusted and summed. You can save your options and multiple presets for 6 channels, @6db/octave to 48db/octave, and visualization for your actual and simulated EQ curve.

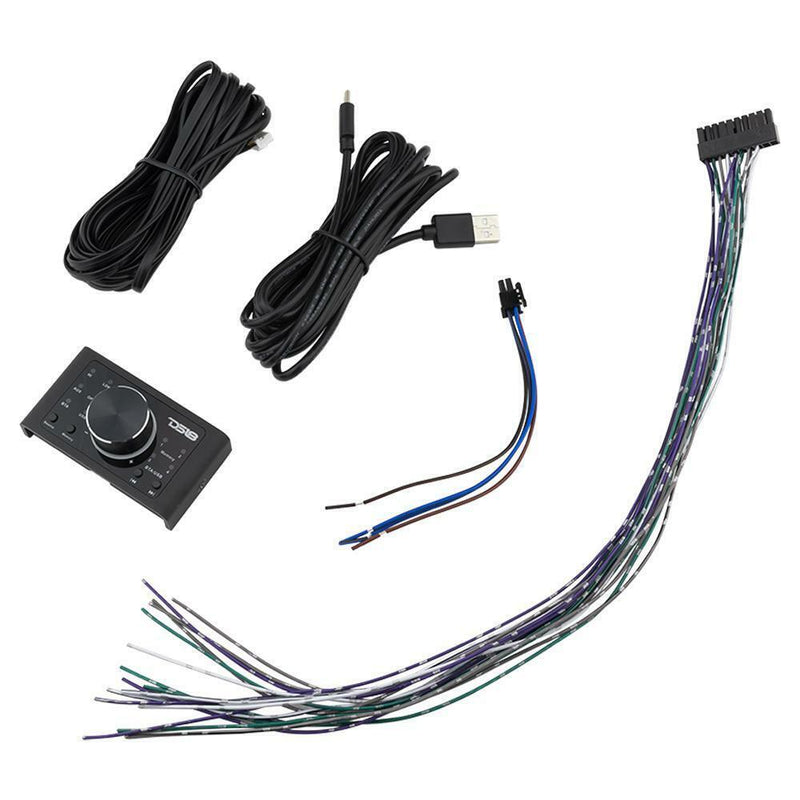

This Listing Includes:
(1) DSP8.6iA
(1) User Manual
(1) Type-C USB cable(3m)
(1) High level IN cable(12pin)

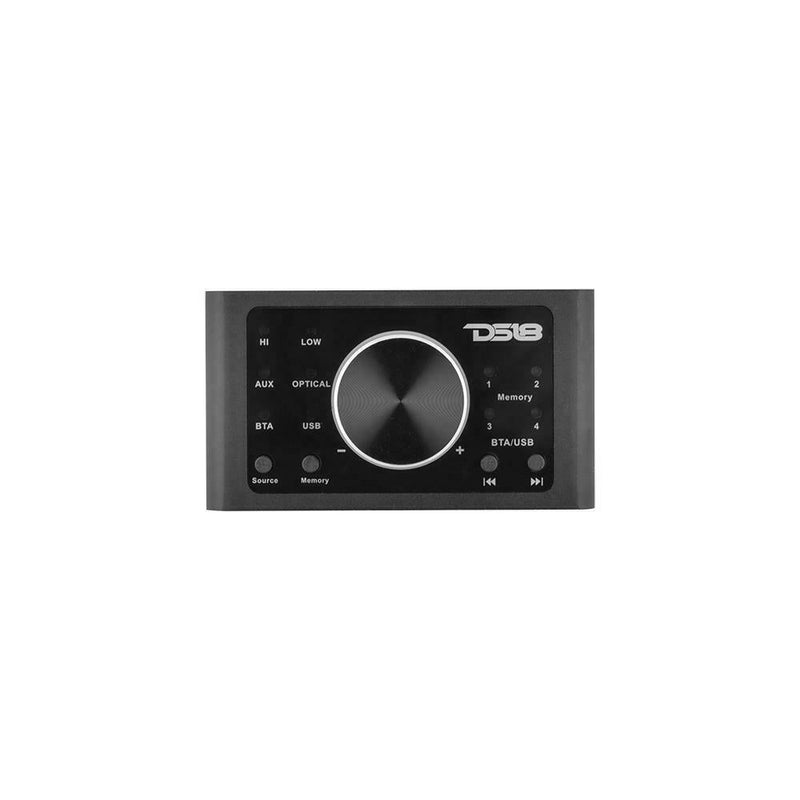

(1) Remote controller
(1) Connecting cable for remote controller (5m)
(4) Installation Bracket
(4) Black self tapping Screw
(8) Hexagon socket screw
(1) 2.5mm Allen wrench

Features:
- Blue Tooth streaming so you can use your smartphone, tablet, or laptop for endless music.
- Built in amplifier that gives 70w rms @4ohms x6 channels. Channels 5/6 can be bridged for a subwoofer and will give 240w @4ohms bridged.
- Easy to use software found at ds18.tools to fine tune and monitor every aspect of your signal processing.
- Wired controller that acts as a gateway to all your presets and also will control your volume, play list, and other functions you would normally need a head unit for.

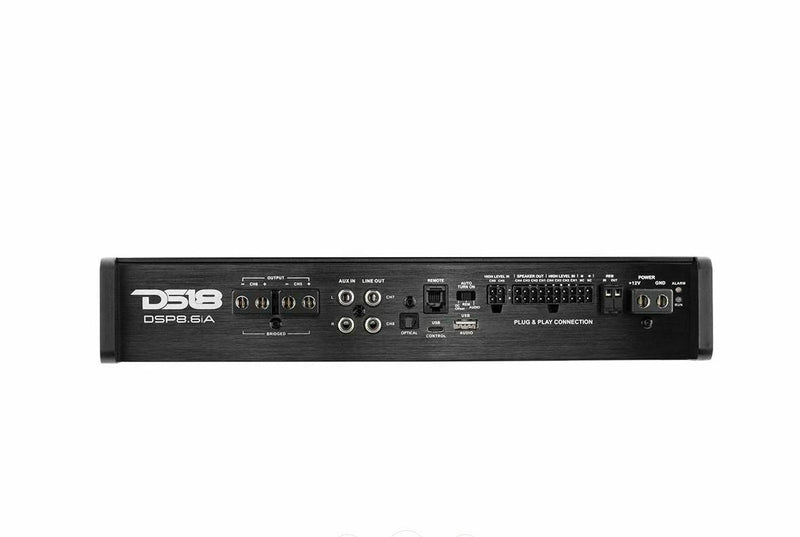

- Multiple inputs such as 6ch high level, 2ch low level, Auxiliary, Optical, and USB to get you a highway of musical paths.

Specifications:
80 Watts RMS @ 4-Ohm x 6 Channels
130 Watts RMS @ 2 Ohm x 2 (Ch5/Ch6 Only)
260 Watts RMS @ 4 Ohm x 1 Bridged (Ch5/Ch6 Only)
Working Voltage: DC 7.5-16V
REM input voltage: 9-16V
REM output voltage: DC12.8V (0.5A
THD @1KHz, 1V Rated Power Output: 0.02%
Band width @-3dB: 10-21KHz
Signal-to-noise ratio @ A weighted: More than 95dB
Channel Separation @ 1kHz: More Than 60dB
Input sensitivity (AUX in): 2mV - 2V
Input sensitivity (high level): 8mV - 10V
Input impedance    low level: 22K / high level : 36
Maximum output level (RMS) @ 0.1% THD: 2V
High level input: Up to 6channel
Auxiliary input: Stereo
Optical Input: Stereo( 96kHz/24bit)
Bluetooth input: Stereo
Low level (PRE) output: Up to 2channel

Dimensions (LxWxH): 320mm x 143mm x 56mm
