DS18 Deluxe DX2 6.5" 460 Watts 4 Ohm 2-Way Component Speaker System



Shipping calculated at checkout

Available Now!

DS18 Deluxe DX2 6.5" 460 Watts 4 Ohm 2-Way Component Speaker System

DS18 has an amazing line of component sets that are sure to leave you with goosebumps when you hear the full and rich sound they produce.
The DX2 Silver line has been developed with the greatest care and over engineered to give you the highest quality along with strength that will last ages.

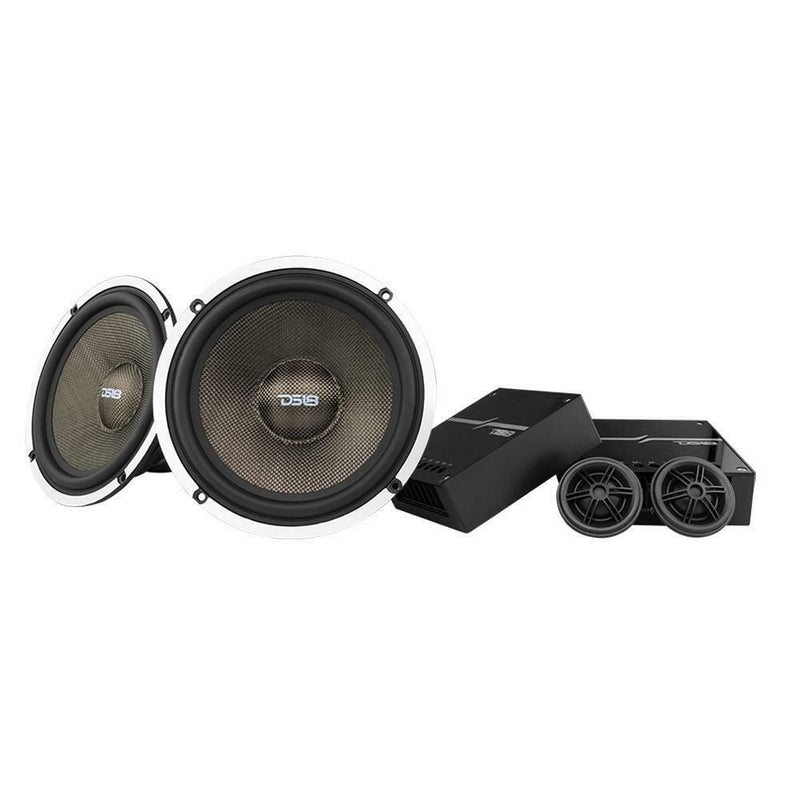

This Listing Includes:
(2) Woofers
(2) Tweeters
(2) Crossovers

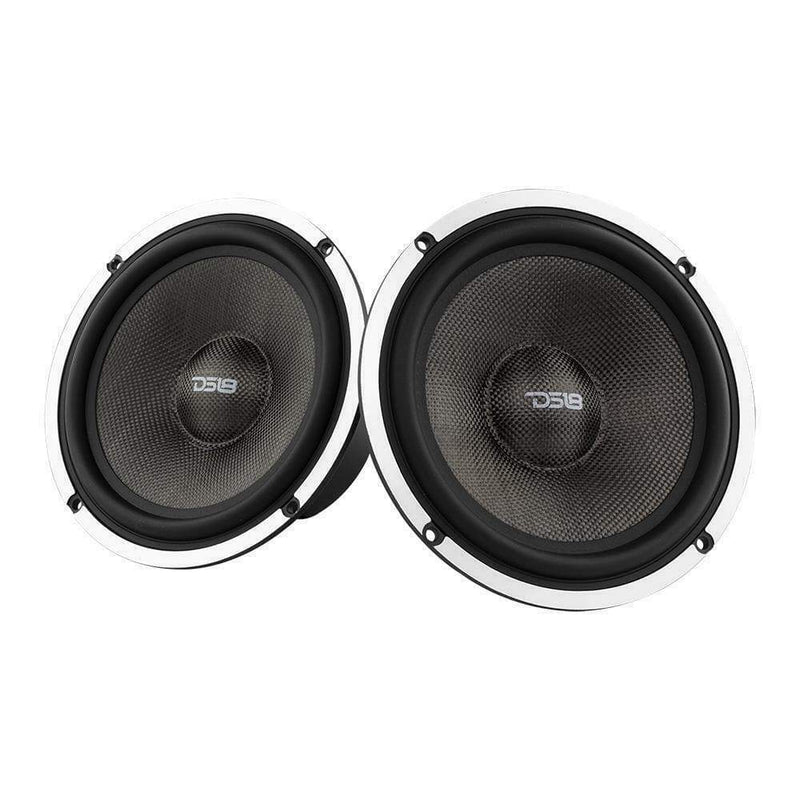

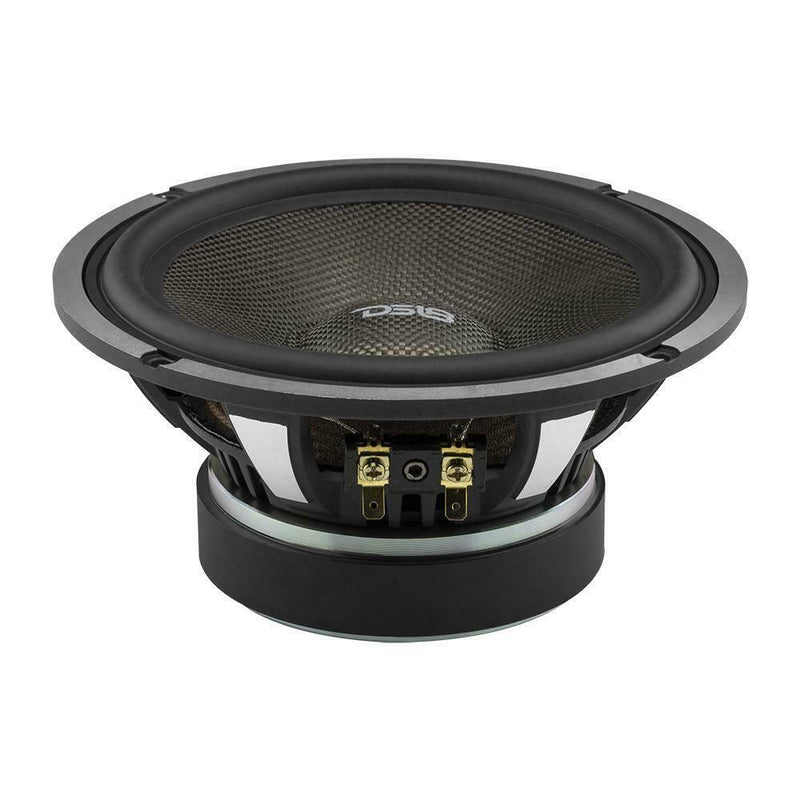

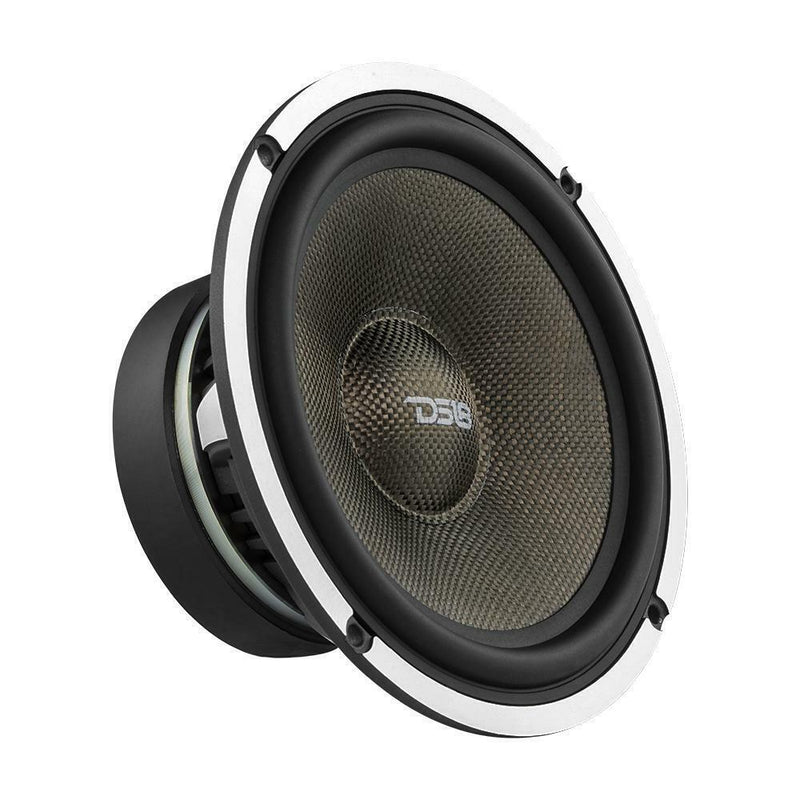

- DX2W 6.5 inch woofer which handles 100w AES. Featuring a carbon fiber cone, machined basket, and high quality terminals.

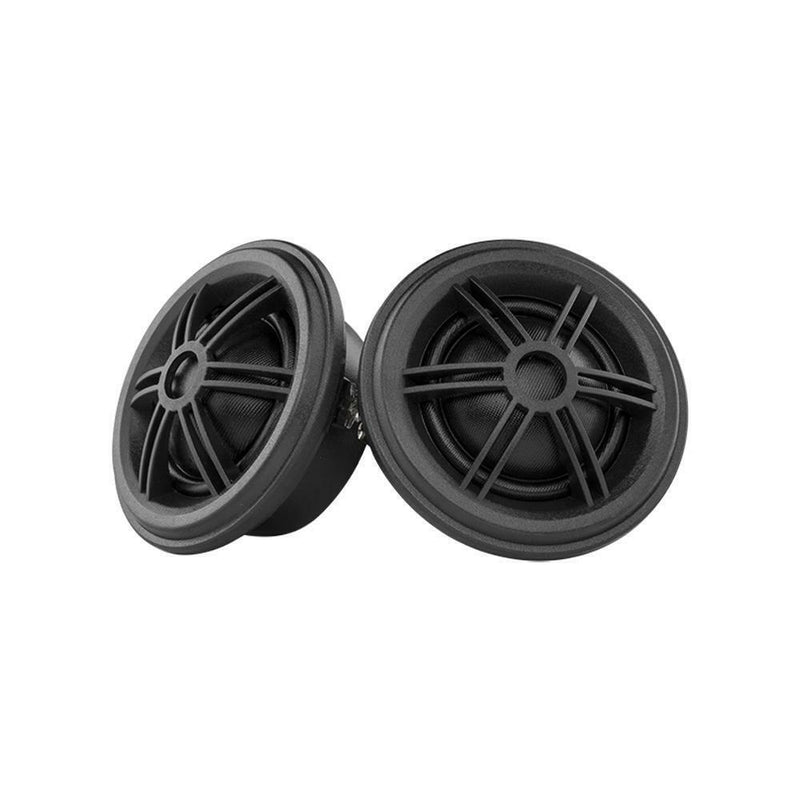

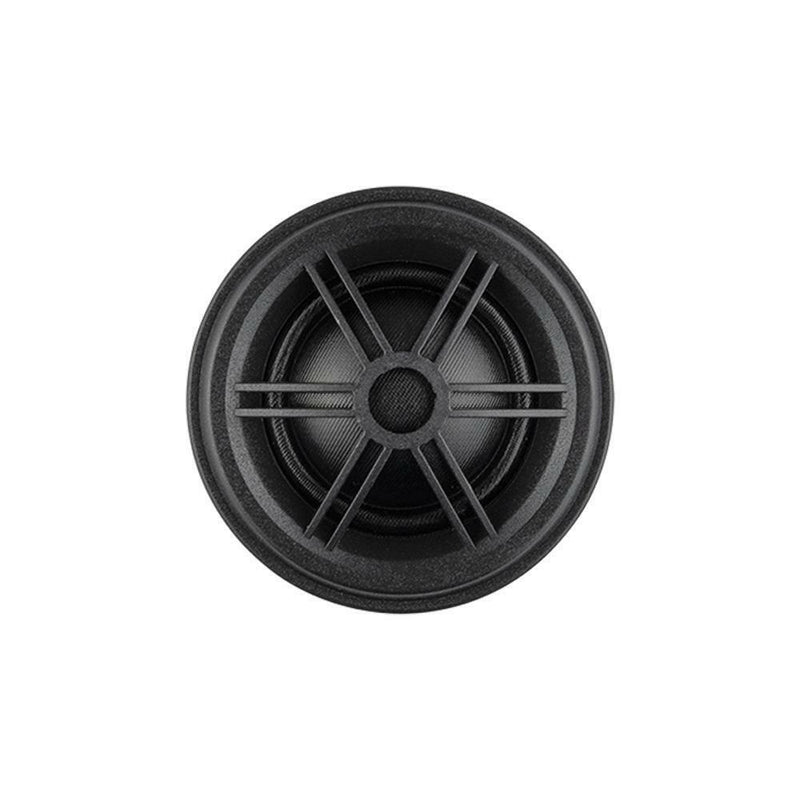

- DX2T high fidelity tweeter that is easy to mount and will complete your HQ full range experience.

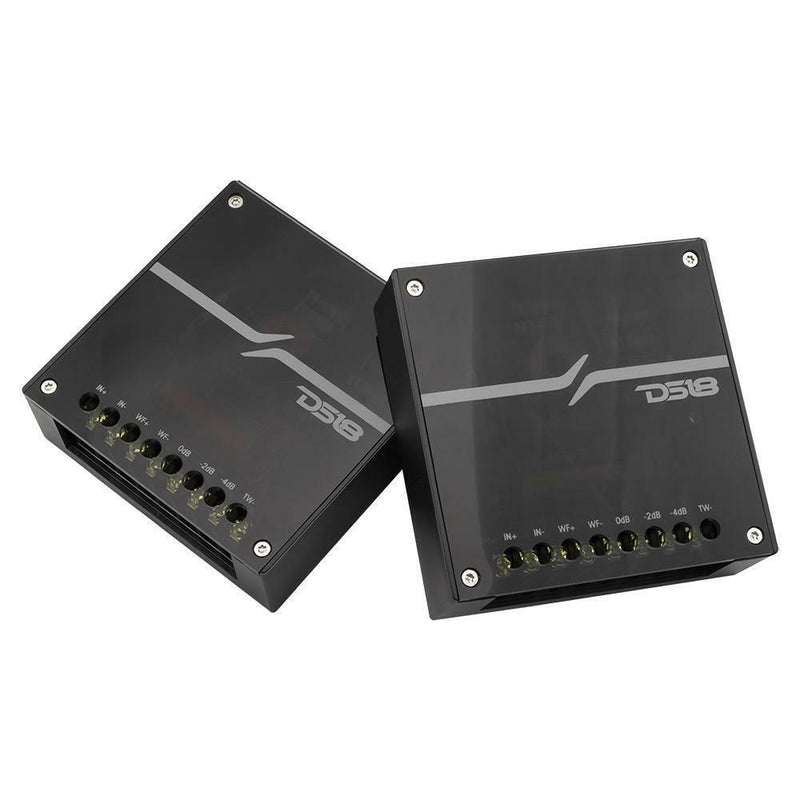

- DX2 2 way passive crossover with multiple DB selections so you can be sure to get distortion free HQ sound accurately routed to the
proper speaker with ease.

Specifications Woofer:
Nominal Diameter: 6.5"
Nominal Impedance: 4 OHMS
Peak Power Handling: 400W
Program Power Handling: 200W
AES Power Handling: 100W
Sensitivity (1w/1m): 89 dB
Frequency Response: 50hz-12KHz
Recommended HI Pass Crossover: 45 Hz
Voice Coil Diameter: 1.2"/30.5 mm
Voice Coil Former Material: TIL
Winding Material: SV
Cone Material: Carbon Fiber
Surround Materia: Rubber Edge
Basket Materia: Aluminum
Magnet Materia: Ferrite
Magnet Weight: 20.2 oz

Overall Diameter: 6.49"/165 mm
Front Mount Baffle Cutout: 5.59"/142 mm
Mounting Depth: 2.85"/72.5 mm
Overall Depth: 3.05/77.5mm
Motor Diameter: 3.93"/100mm

Specifications Tweeter:
Nominal Diameter: 1.18"
Nominal Impedance: 4 ohms
Peak Power Handling: 60 Watts
Program Power Handling: 30 Watts
AES Power Handling: 15 Watts
Sensitivity (1w/1m): 90dB
Frequency Response: 800Hz-20Khz
Recommended HI Pass Crossover: 3.8 KHz
Voice Coil Diameter: 0.98"
Voice Coil Former Material: ASV
Winding Material: CCAW
Diaphragm Material: Silk
Magnet Material: Neodymium
Magnet Weight: 14 oz
Body Material: ABS

Overall Diameter: 2" / 51mm
Overall Depth: 1.1"/28.1 mm
Front Mount Baffle Cutout: 1.85" x 47 mm
Mounting Depth: 0.7" / 18 mm

Specifications Crossover:
Passive Crossover Ways: 3 Ways
Frequency Crossover: 800HZ (Mid) 3.8 Khz (Tw)
Power Handling: 300 Watts
Cut Off Slope: 6dB (Mid) 12dB (Tw)/ Oct
Tweeter Attenuation (+/-): 3dB
Capacitor Type: Metac Film
Coil Type: Inductor
Terminals Type: Screw Terminal
Housing Material: ABS
Adjustments: Tw Att Switch
Extra Features: Spk Phase Switch

Overall Length: 4.3"/110 mm
Overall Depth: 4.3"/110 mm
Overall Height: 1.37"/35 mm
