DS18 Car Audio Package 10" Sub, 6.5" & 6x9" Coaxial Speakers w/ 4ch Amplifier

DS18 Car Audio Package 10" Sub, 6.5" & 6x9" Coaxial Speakers w/ 4ch Amplifier

Sometimes there are just too many selections and audio choices can be overwhelming. So leave it to our Audio experts at DS18 to come up with a package with everything you need all included in one package to ease your pain of selection. These package have been specially picked by our top audio experts to be perfect matches for their counterparts and provide amazing clarity and loudness that will please any audio enthusiast.

This package will include 1 pair of our ZXi654 component sets with another pair of our ZXi694 coaxial speakers pushed by our Select S1200.4 amplifier guaranteed to emit extremely loud audio clearly with the bass to match.

Highlights

• Full audio mids package that includes one pair of our extremely loud coaxial 6.5 inch speakers, the ZXI654.




• To complement the entire frequency range we also included a pair of our highly popular 6x9s, the ZXi694.




• Included Select S1200.4 high powered amplifier that perfectly matches your speakers.

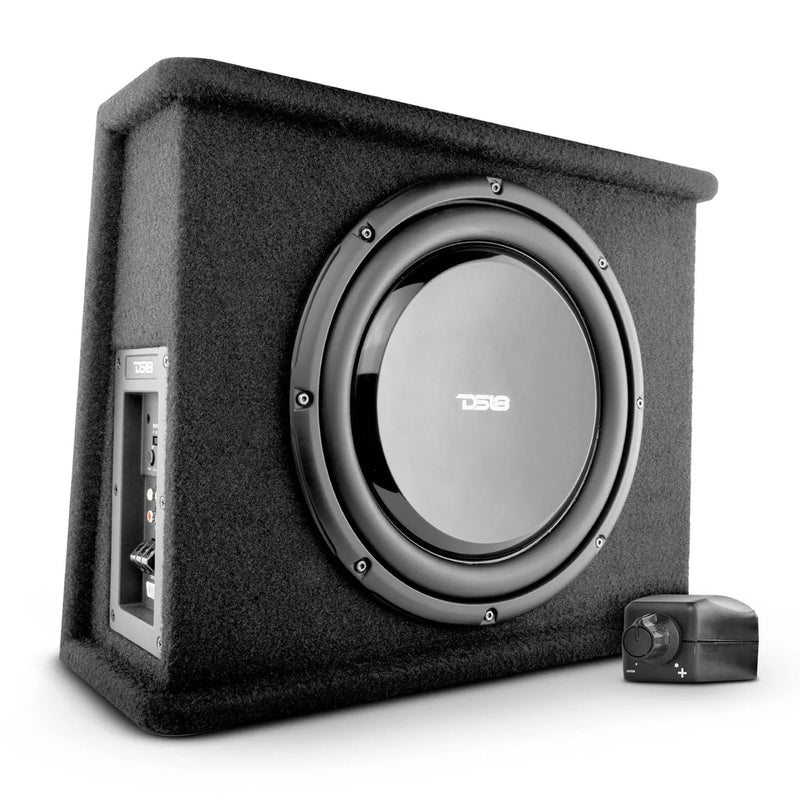

To finish the complete system we also added an easy to use booming 10 inch subwoofer / box / 350w RMS 700wax amp package built into the box that will fit in a great many applications with included bass knob for easy volume control.

Specifications:

ZXI-654 (Per Speaker)

Nominal Diameter: 6.5"/165mm

Nominal Impedance: 4 ohm

RMS Power Handling: 80 watts

Max Power Handling: 240 watts

Sensitivity (1w/1m): 89db

Frequency Response: 40Hz-20KHz

Recommended HI Pass Crossover: 60Hz

Speaker Type: 2-Way

Midrange

Voice Coil Diameter: 1"/25.4mm

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass Fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 14.46 oz/410g

Tweeter

Nominal Diameter: 1" (25.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 0.3 oz/8.5g

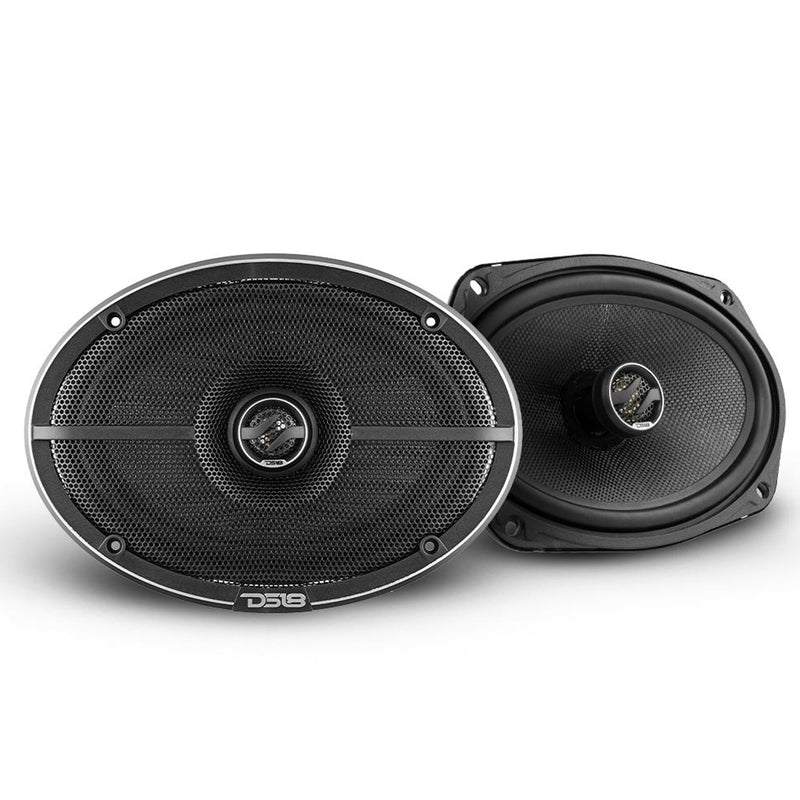

ZXI-694

Nominal Diameter: 6X9

Nominal Impedance: 4 ohm

RMS Power Handling: 120 Watts

Max Power Handling: 360 Watts

Sensitivity (1w/1m): 92dB

Frequency Response: 31.5Hz-20KHz

Recommended HI Pass Crossover: 50Hz

Speaker Type: 2-Way

Midrange

Voice Coil Diameter: 1.2"/30.4mm

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass Fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 19.4 oz/ 550g

Tweeter

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8: (20.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 8.5g

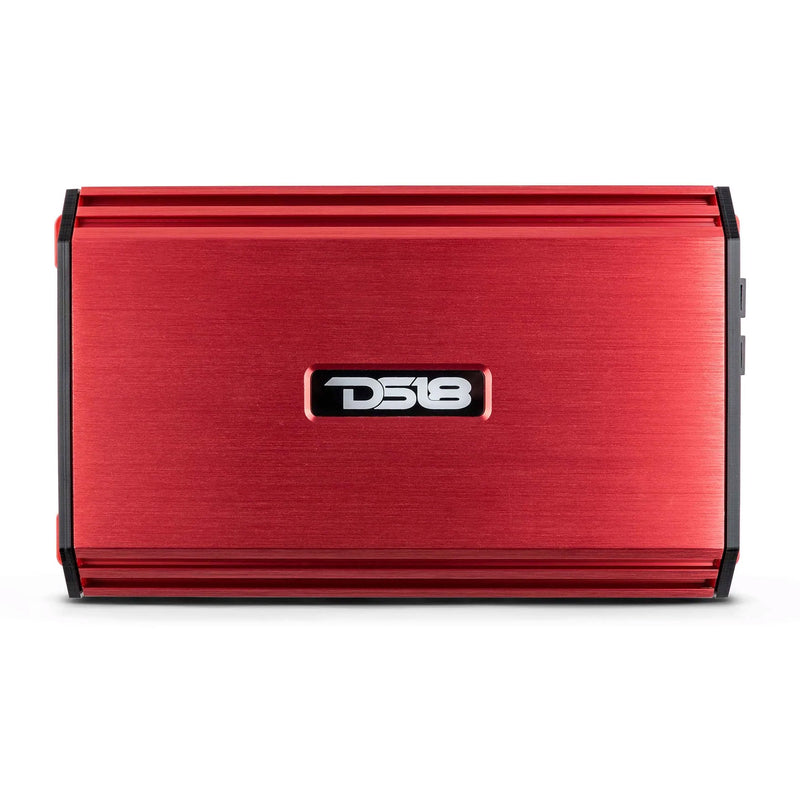

S1200.4

Circuit Topology:  Full Range Class-AB

RMS Power@1 OHM:  N/A

RMS Power@2 OHMS: 80W x 4CH

RMS Power@4 OHMS: 50W x 4CH

RMS Power@4 OHMS BRIDGED: 160W x @CH

Total Harmonic Distortion: <0.3%

S/N Ratio Ref 1W @ 4 OHMS: 160W x 2CH

Gain Range: 0 2-6V

Crossover Range: 40-400Hz

Frequency Range: 20-20Hz

Dimension (mm):  250 x 148 x47.5

SB10A

Speaker Type / Size: 10" / 261mm

Total Impedance: 2ohm

RMS Power Handling: 350W

Max Power Handling: 700W

Sensitivity (1w/1m): 83dB

Frequency Response: 30-250Hz

Motor

Voice Coil Diameter: 1.5" /38.6mm

Voice Coil Former Material: Aluminum

Winding Material: EISV

Cone Material: IPP

Surround Material: Rubber

Basket Material: SPCC

Magnet Material: Fererite

Magnet Weight: 40 oz

Amplifier

Amplifier Class: Digital

Amplifier Type: Monoblock Subwoofere

Number of Channels: 1 CH

Minimum Impedance: 2 ohm

Signal to Noise Ratio: 75 dB

Efficiency @ 4 ohm: 0.75

Total Harmonic Distortion (T.H.D): 0.3%

Low Level Input Range: 0.1-0.6 V

High Level Input Range: Yes

Selectable X-Over: LPF Fixed

X-Over Filter Range: 50-200Hz

Bass Boost Range: 0-6 dB

Bass Boost Frequency: 50Hz

Phase Selector: 0-180°

Led Indicator: Pwer -Protection

Power Input Terminal Size: 8ga

Fuse Size: 30A

Remote Level Control: Yes

Thermal Protection: (75°C/167°F)

Over-Load Protection: Yes

DC Output Protection: Yes

Short Circuit Output Protection:  Yes

Voltage Input Protection: Yes (<8v,>16v)

Box Specifications

Internal Volume:  16L/0.56ft3

Load Configuration:  Parallel IN

Box Type:  Sealed Box

Box Material: 0.59"MDF

Finish Material: Non-Woven Fabric

(-3Db) Dropping Point: 45 Hz

Measurements:

Height: 14.96" / 380mm

Width: 19.3" / 490mm

Depth 1: 4.92" / 125mm

Depth 2: 7.4" / 188mm
