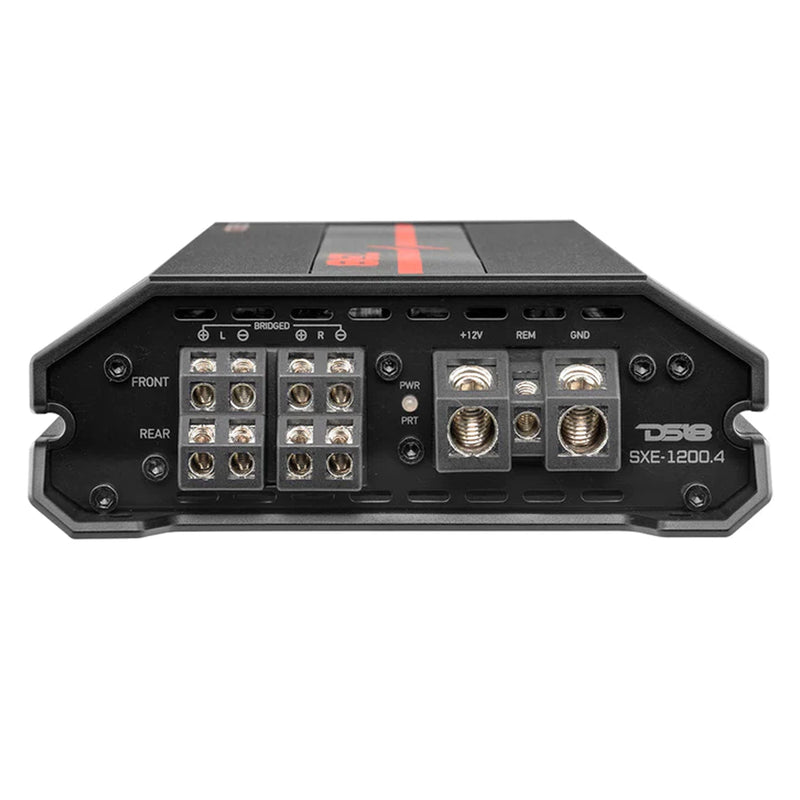

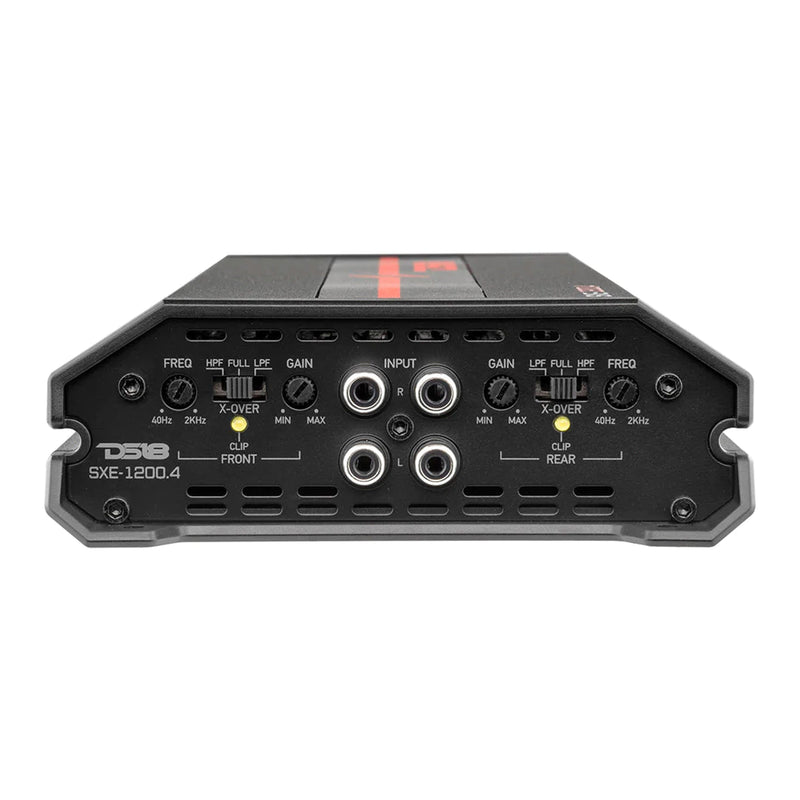

DS18 Car Audio Full Range 4 Channel 1200W Amplifier Class A/B Black SXE-1200.4-BK

DS18 Car Audio Full Range 4 Channel 1200W Amplifier Class A/B Black SXE-1200.4-BK

This listing includes :

(1) Black Full Range 4 Channel 1200W Amplifier SXE-1200.4-BK

DS18s SXE series of amps was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The SXE-1200.4 guarantees your sound systems speakers perform at their peaks on every use.

The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design: everything you need to take control of your listening experience.

As a Class A/B amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicles custom build: but, what it lacks in size it makes up for in power. The SXE-1200.4 has a power output of 200W x 2 CH bridged at 4-ohms, 100W x 4 CH at 2-ohms, 60W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build.

HIGHLIGHTS :

- Compact size for easy installation anywhere

- Stable Two or Four Layer Traced PCB Design

- Audio Precision Quality Control Verification

- Full Adjustable HP/LP @ 12dB/oct Crossover

- Various Forms of Electronic Protection

SPECIFICATIONS -

POWER :

-Total Watts (Peak)1200W

-RMS Power @ 4 ohms4 x 60W

-RMS Power @ 2 ohms 4 x 100W

-RMS Power @ 4 ohms Bridge 2 x 200W

AUDIO :

-Frequency Response10Hz-20KHz

-Signal to Noise Ratio90dB

-Efficiency @ 4 ohms64%

-Damping Factor170

-Input Impedance20k

-Channel Separation45dB

-Total Harmonic Distortion (THD)0.05%

-Low Level Input Range200mV-5V

-Selectable X-OverHPF/FULL/LPF

-X-Over Filter Range40Hz-2KHz

FEATURES :

-Amplifier ClassAnalog (AB)

-Amplifier TypeStereo Full Range

-Number of Channels4

-Minimum Impedance2 Ohms Stereo / 4 Ohms Bridge

-Led IndicatorPower/Protect/Clip

-Power Input Terminal Size 4Ga

-Fuse Size2 x 25A (50A)

-Cooling FanYes

-Thermal ProtectionYes (80)

-Over-Load ProtectionYes

-DC Output ProtectionYes

-Short Circuit Output ProtectionYes

-Voltage Input ProtectionYes (16.5v)

-Clipping ProtectionYes

-Body Color / FinishRed / Black Brushed Aluminum

MEASUREMENT :

-Overall Length9.8" / 249.3mm

-Overall Wide5.5" / 140mm

-Overall Height1.8" / 48mm

-Heatsink Length8.34" / 212mm

-Gross Single Unit Weight 1.76KG
