DS18 Car Audio 8 High Excursion Subwoofer 1200 Watt Dual 2 Ohm VC ZXI8.2D

• Show-quality design featuring a stamped basket, logos, and a non-pressed paper cone for longevity.
• Dual 2-ohm configuration and 2-inch voice coils ensure maximum system potential.
• With 600W RMS and 1200W MAX power, experience crisp, smooth bass in any vehicle.
• Unleash thunderous bass with the DS18 ZXI8.2D High Excursion Subwoofer.
• Quad stacked magnets provide increased strength and durability for superior performance.

DS18 8" 2 Ohm Dual Voice Coil 1200 watts Quad Stacked Magnet Subwoofer ZXI8.2D

This listing includes:

• (1) DS18 8" Quad Stacked Subwoofer ZXI8.2D

Elevate your car audio experience with the DS18 ZXI8.2D High Excursion Subwoofer. Delivering thunderous bass through its quad stacked magnets, this subwoofer boasts 600W RMS and 1200W MAX power. The dual 2-ohm configuration, 2-inch voice coils, and non-pressed paper cone ensure unparalleled performance. The show-quality design, including a stamped basket with DS18 logos, guarantees longevity and style. Immerse yourself in crisp and clear bass that outlasts any vehicle, thanks to DS18's commitment to quality and innovation.

SPECIFICATIONS PER SUBWOOFER:

• Nominal Diameter: 8" / 203.2mm


• Nominal Impedance: 2+2 OHMS


• MAX Power Handling: 1200 Watts


• RMS Power Handling: 600 Watts


• Sensitivity (1w/1m): 86 dB


• Frequency Response: 25-880Hz


• Recommended Lo Pass Crossover: 90 Hz

MOTOR:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Black Aluminum


• Winding Material: CCAW


• Cone Material: Non Pressed Paper


• Dust Cap Material: PPI


• Surround Material: Foam


• Basket Material: Aluminum


• Basket Color: Sandblasted Black


• Magnet Material: Ferrite


• Magnet Weight: 104 Oz


• Displacement Volume: 1.02L / 0.036ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas - 7L / 0.25ft3 -


• Excursion: X-max - 18.5mm


• Free Air Resonance: Fs - 45Hz


• Mechanical Factor: Qms - 6.499


• Electrical Factor: Qes - 0.946


• Total Factor: Qts - 0.826


• DC Resistance: Re - 2.8+2.8 ohms


• Moving Mass: Mms - 92.55g


• Compliance: Cms - .0.142mm/N


• Force Factor: BL - 6.2


• Voice Coil Inductance: Le - 0.373mH


• Diaphragm Area: Sd - 188.69cm


• Efficiency Bandwidth Product: EBP - 47.5

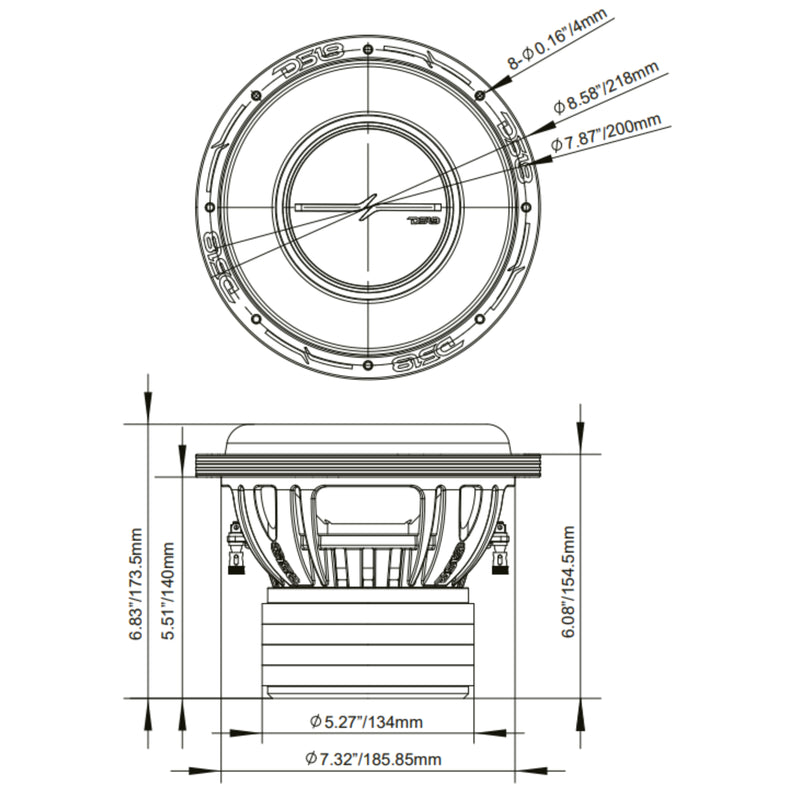

DIMENSIONS:

• Overall Diameter: 8.58"


• Front Mount Baffle Cutout: 7.31"


• Mounting Depth: 6.83"


• Overall Depth: 5.51"


• Motor Diameter: 5.27"
