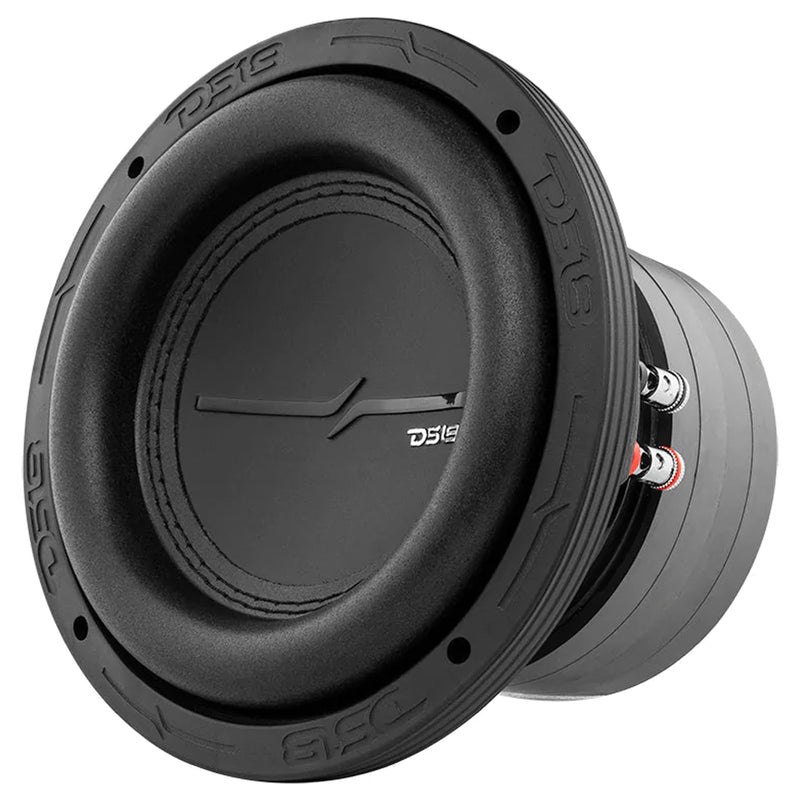

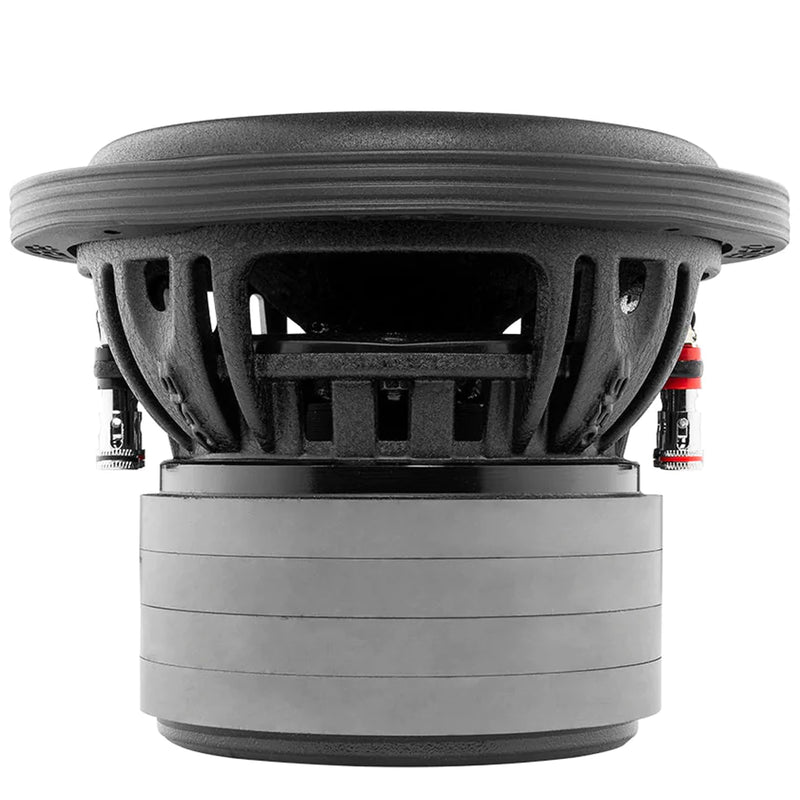

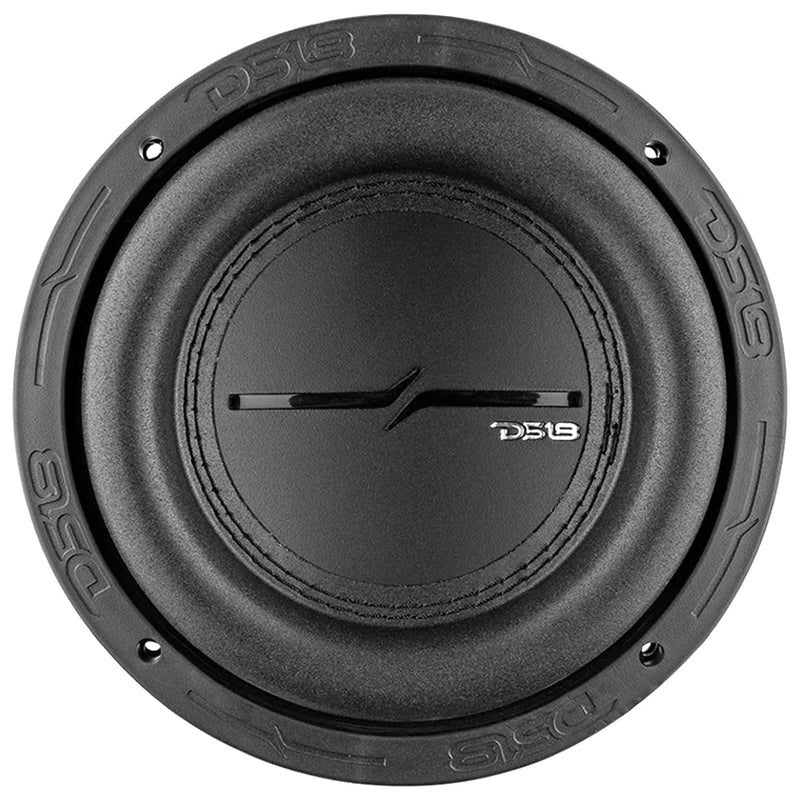

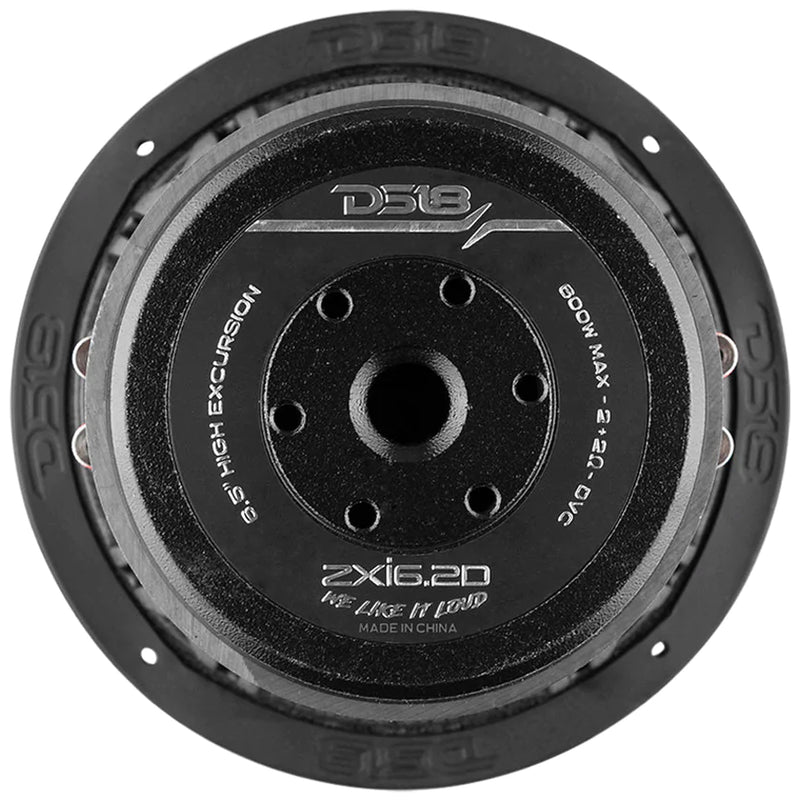

DS18 Car Audio 6.5 High Excursion Subwoofer 600W DVC 2 Ohm Quad-Magnet ZXI6.2D
Do you want more excursion, more thumping power, and to shake everyone's mirrors around you?
DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed for the ZXI6.2D high excursion subwoofer. This monster sub packs a 1.5 inch coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass. This sub has a low FS so it can be used in large boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies in the bass zone of sub frequencies. The ZXI subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
- Large foam surround giving great high xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 300W RMS and 600W MAX through a high strength 1.5 inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dustcap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
This listing includes:
(1) DS18 6.5 Subwoofer ZXI6.2D
SPECIFICATIONS PER SUBWOOFER:
Nominal Diameter: 6.5 (165.1mm)
Nominal Impedance: 2+2 Ohms
MAX Power Handling: 600 Watts
RMS Power Handling: 300 Watts
Sensitivity (1w/1m): 87dB
Frequency Response: 35Hz ~ 1.8KHz
Recommended Lo Pass Crossover: 90Hz
Voice Coil Diameter: 1.5 (38.6mm)
Voice Coil Former Material: Black Aluminum
Winding Material: CCAW
Cone Material: Non Pressed Paper
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Aluminum
Basket Color: Sandblasted Black
Magnet Material: Ferrite
Magnet Weight: 80 Oz (4 x 20 Oz)
Displacement Volume: 0.63L (0.022ft)
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 2.4L (0.0849ft)
Excursion: X-max - 18mm
Free Air Resonance: Fs - 65Hz
Mechanical Factor: Qms - 5.919
Electrical Factor: Qes - 1.121
Total Factor: Qts - 0.942
DC Resistance: Re - 2.6+2.6 Ohms
Moving Mass: Mms - 42.91g
Compliance: Cms - 0.103mm/N
Force Factor: BL - 4.975
Voice Coil Inductance: Le - 0.264 mH
Diaphragm Area: Sd - 128.68cm
Efficiency Bandwidth Product: EBP - 57.9

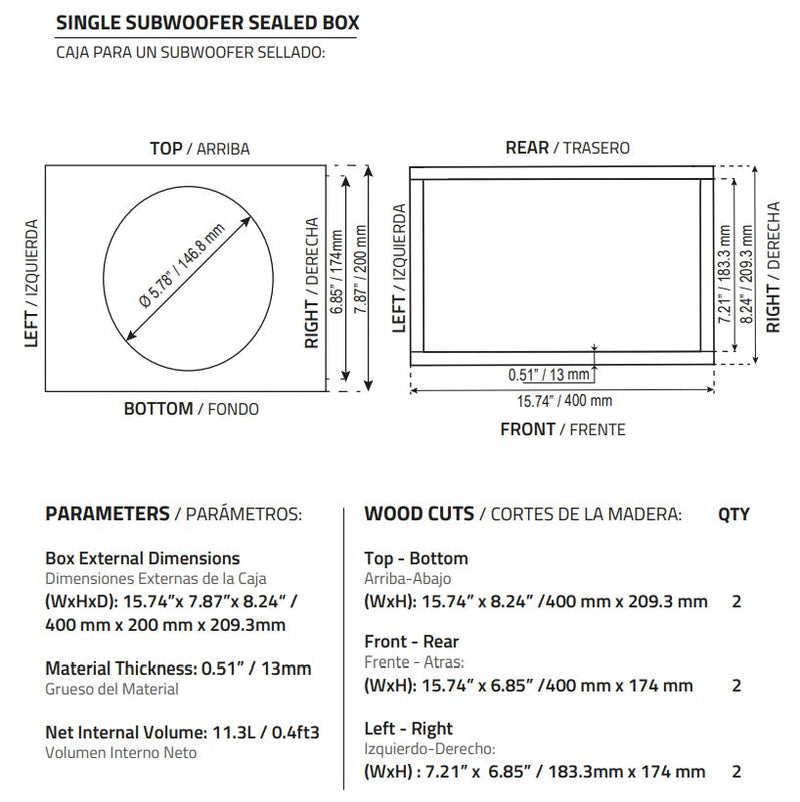

Sealing Internal Volume: 11.3L (0.4ft)
Sealed Box Output Response: F3 - 57.8Hz

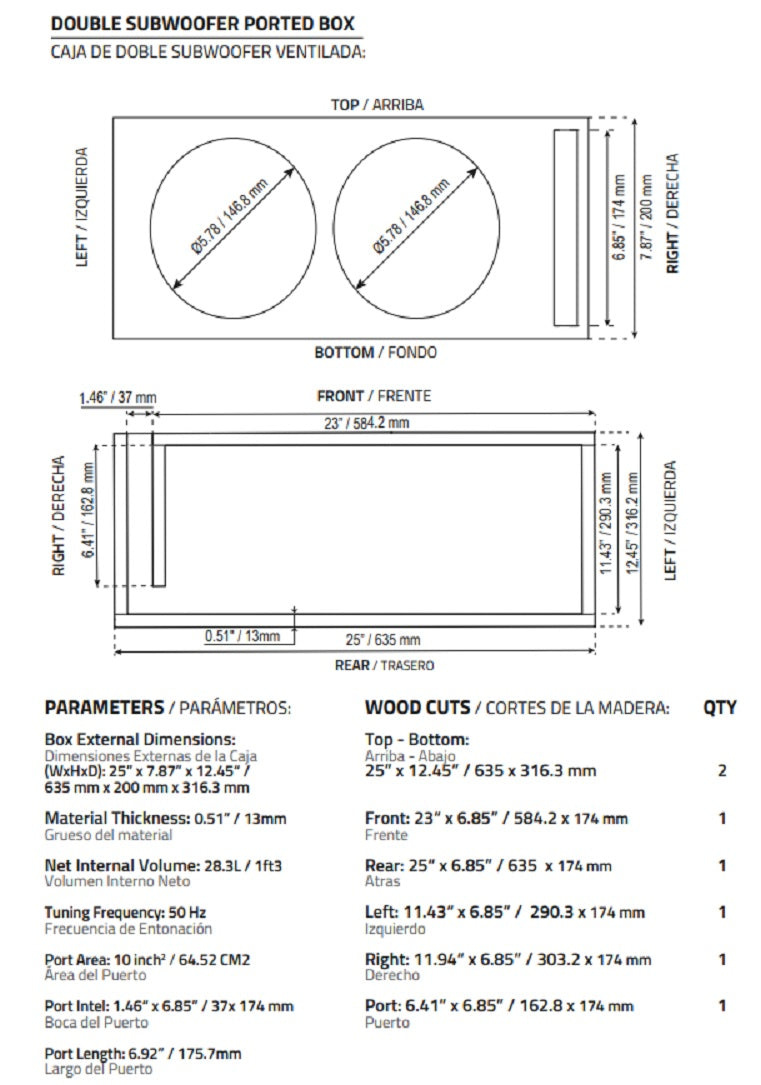

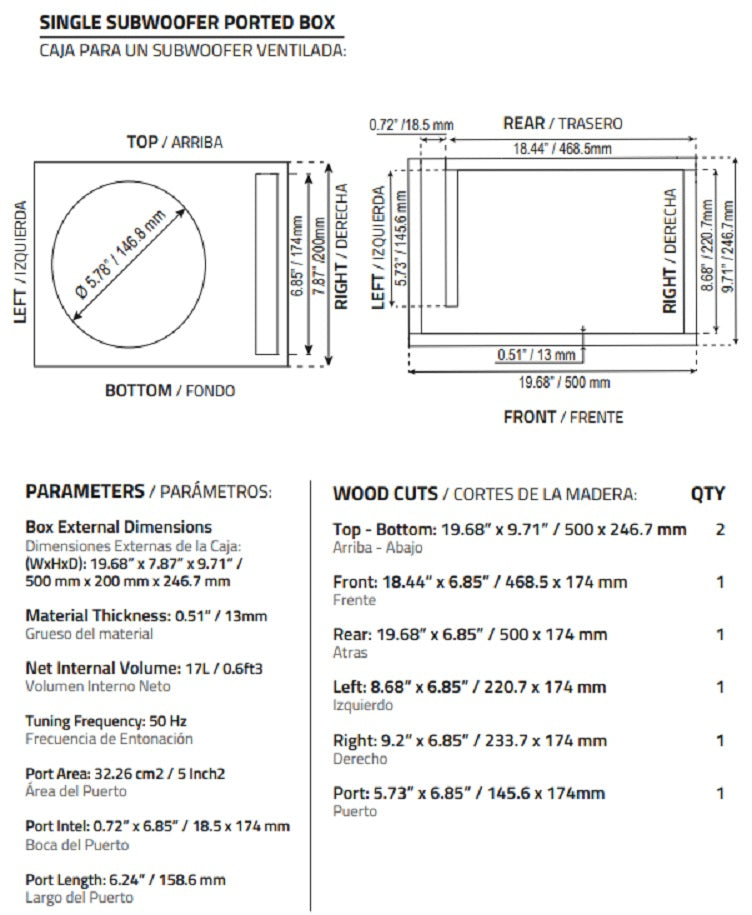

Ported Internal Volume: 17L (0.6ft)
Port Size (WxHxL): 0.73 x 6.85 x 6.24 (18.5 x 174 x 158.6mm)
Port Tunning Frequency: Fb - 50Hz
Ported Box Output Response: F3 - 39Hz
DIMENSIONS PER SPEAKER:
Overall Diameter: 6.93 (176mm)
Front Mount Baffle Cutout: 5.78 (146.8mm)
Mounting Depth: 4.41 (112mm)
Overall Depth: 5.33 (135.5mm)
Motor Diameter: 4.72 (120mm)
