DS18 Car Audio 12 Volt 5 Channel Hi/Lo Converter with Remote Trigger Output V5HL

DS18 Car Audio 12 Volt 5 Channel Hi/Lo Converter with Remote Trigger Output V5HL

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic.

This Listing Includes:

(1) DS18 Hi/Lo Converter V5HL

Features:

- Integrate any amplifier to your existing factory audio system easily

- 5 channel design that uses hi/lo connections to convert signal to RCA which is the typical input for most aftermarket amps with added subwoofer connections.

- 4 CH High Level Input

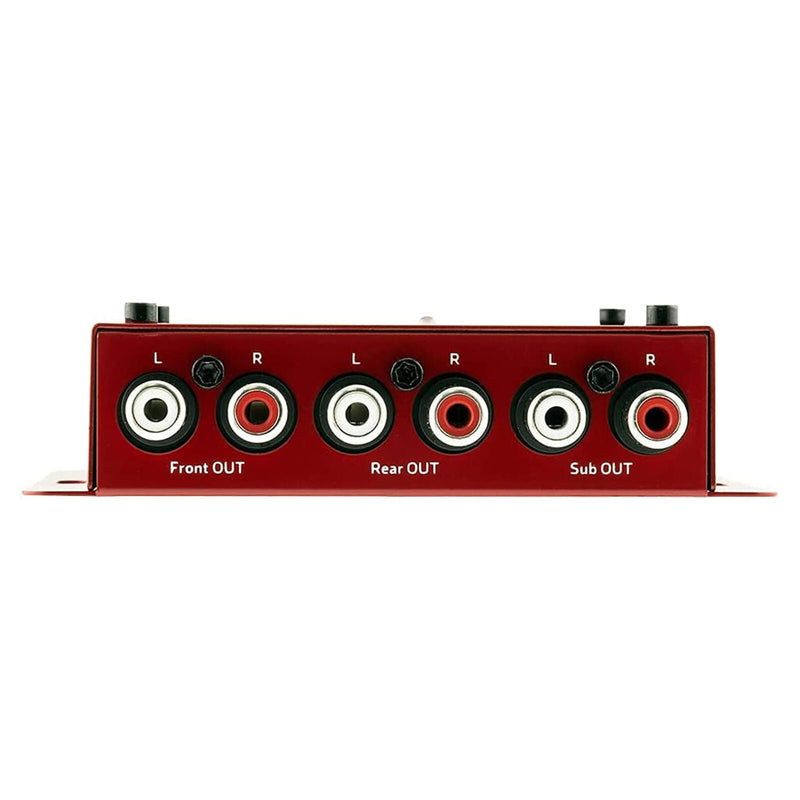

- 5 CH RCA Output

- Surface Mount Component Technology

- Direct Insert Power

- Speaker Terminal

- Lowest Impedance and Best Power Filter

- FR4 Double Sides PCB

- Remote Trigger Output with Signal Sensing

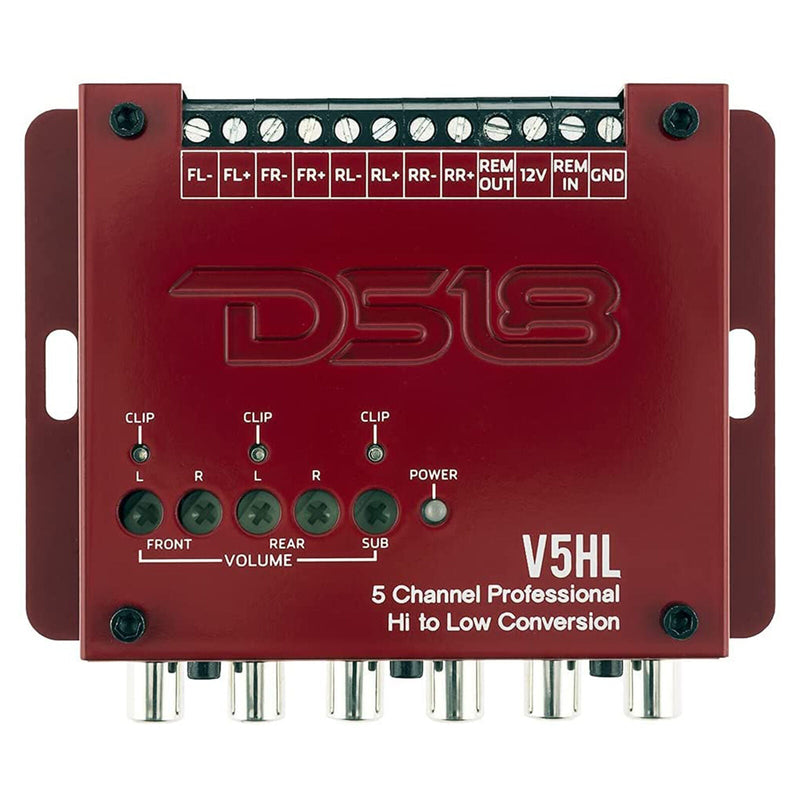

- Power / Clipping LED Indicators

Specifications:

Model: V5HL

Working Voltage: +12V

Input: Sensitivity: 0.1-16V

MAX RCA Output: 4V

Frequency Response: 10Hz - 30KHz

Input Impedance: 20K Ohms

Standby Current: 200 mA

Dimensions: 109mm L x 88mm W
