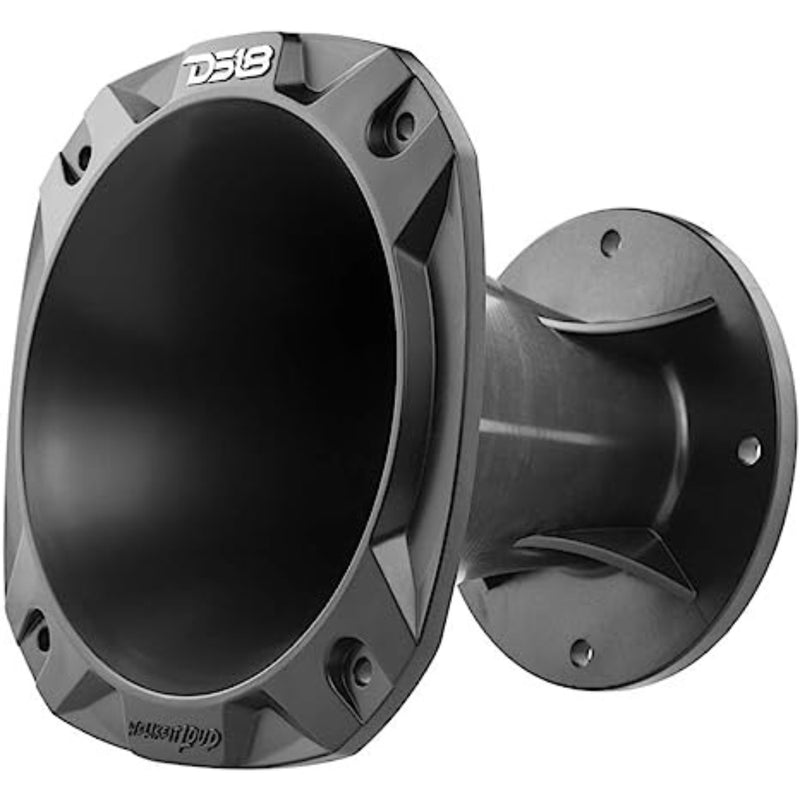

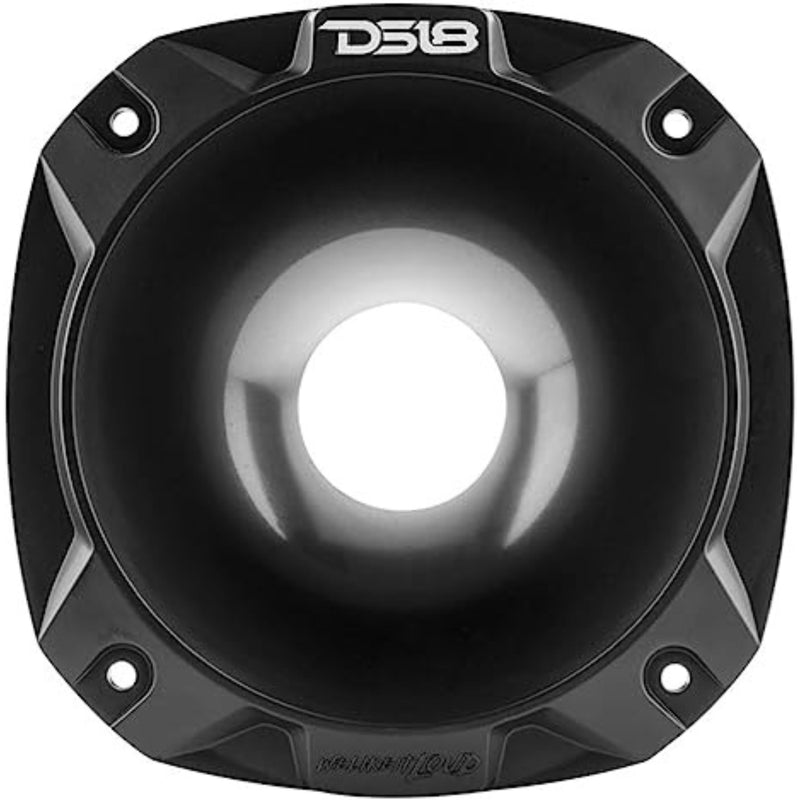

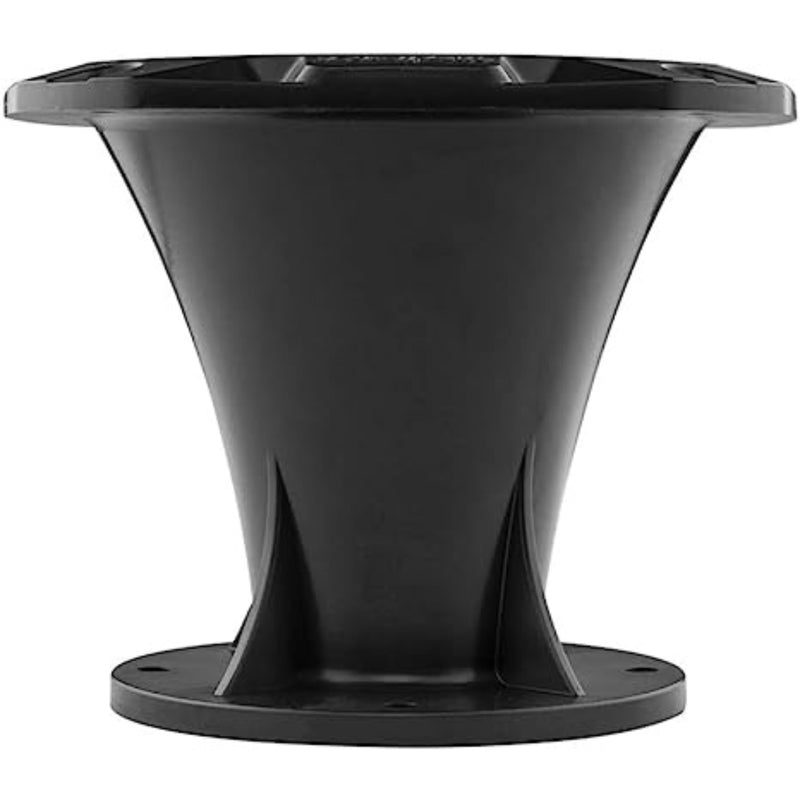

DS18 Bolt On 2" Throat 35 Degrees 4.84 Inch Depth Plastic Horn PRO-HP102

• ABS Plastic Frame
• Shorter style horn to save mounting depth space but still get tons of directional volume
• 4 bolt pattern for comparability for most bolt on drivers

DS18 Bolt On 2" Throat 35 Degrees 4.84 Inch Depth Plastic Horn PRO-HP102

This Listing Includes:

(1) 4.8 Inch Horn (Depth)

DS18's PRO-HP102 is our latest addition to our series of throated horns! This Waveguide has a mounting depth of 4.81" and a throat diameter of 2" for extreme directional sound that can fit anywhere! This horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage as well as a brighter selection of colors to choose from! To give your system a more polished look, DS18 is offering the PRO-HP102 in five colors: Black. Chrome Blue, Chrome Gold, Chrome Red and Chrome Red/White. This bolt on throat horn requires a 4-bolt pattern on your driver to be installed correctly.  Get full sound coverage with the PRO-HP102!

Installation Type Bolt-on

Throat Diameter: 2" / 50.8mm

Nominal Horn Diameter: 6.5"

Sound Coverage: 35 Rounded

Measurements:

Overall Diameter: 7.08" / 180mm

Overall Depth: 5.17" / 131.50mm

Mounting Depth: 4.84" / 122.936mm

Driver Bolt Pattern: 4"/ 102mm x 4-0.26" / 6.8mm

Mounting Bolt Pattern: : 6.3" / 161mm x 4- 0.21" / 5.5mm

Mounting Hole Diameter: 5.43" / 138mm
