- 400 WATTS RMS POWER: The DS18 8XL800-8 handles 400 watts RMS and 800 watts max power, giving custom car audio systems strong midrange output and serious volume.
- LOUD MIDRANGE PERFORMANCE: With a 99dB sensitivity rating and 60Hz-8KHz frequency response, this 8" loudspeaker is built to deliver clear vocals, instruments, and midrange detail.
- 8-OHM XL SERIES DESIGN: Built with an 8-ohm impedance, this speaker works well in high-output car audio systems, custom door builds, demo vehicles, and pro-style installs.
- DURABLE COMPONENTS: Features a 2" Kapton voice coil, CCAW winding, non-pressed paper cone, paper dust cap, cloth surround, and satin black aluminum basket.
- STRONG FERRITE MOTOR: A 56 oz ferrite magnet helps provide powerful performance, accurate response, and the strength needed for demanding audio builds.

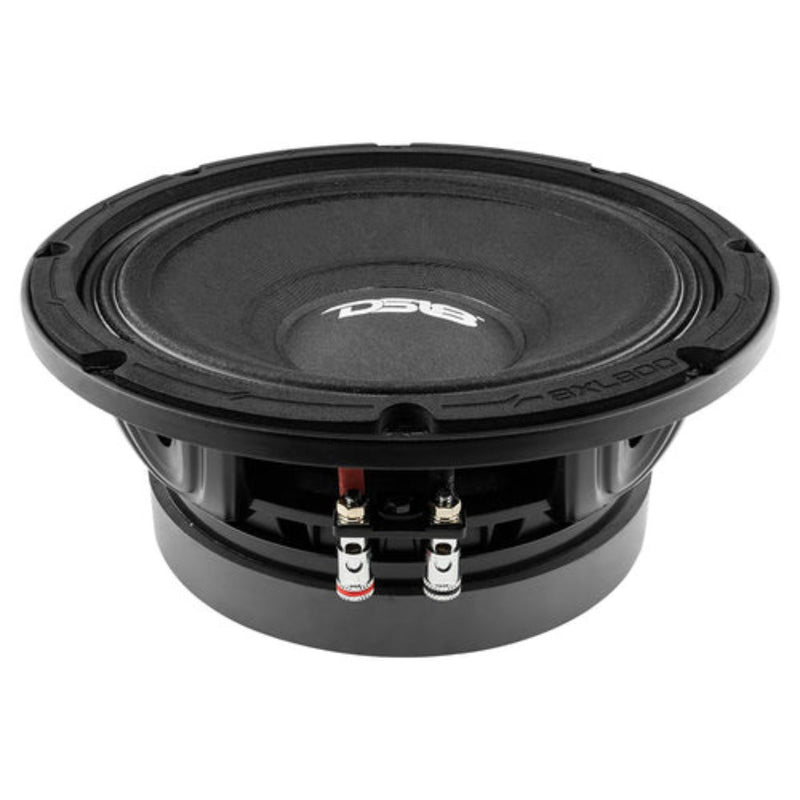

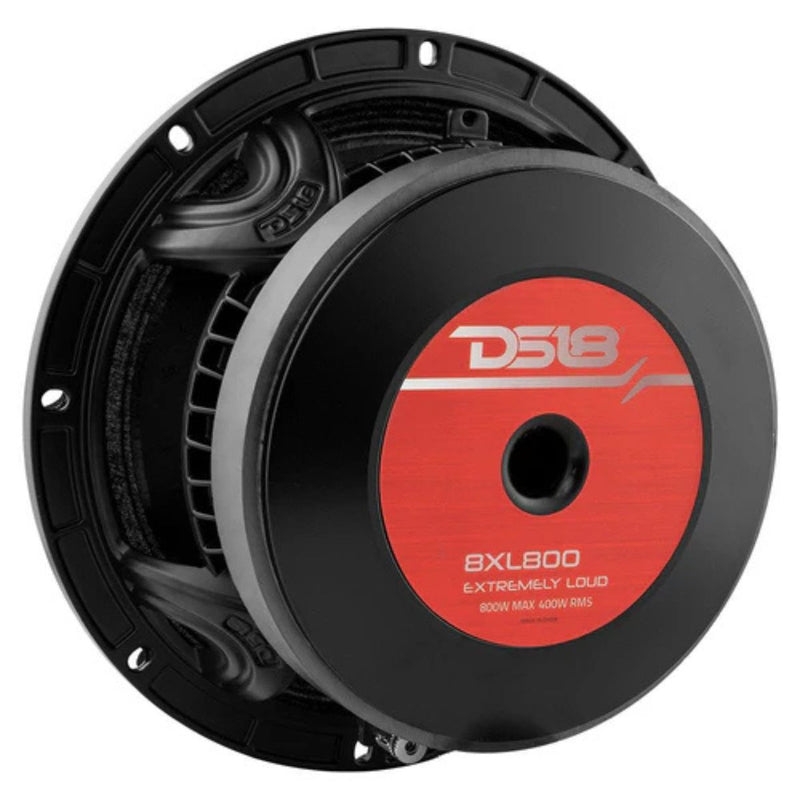

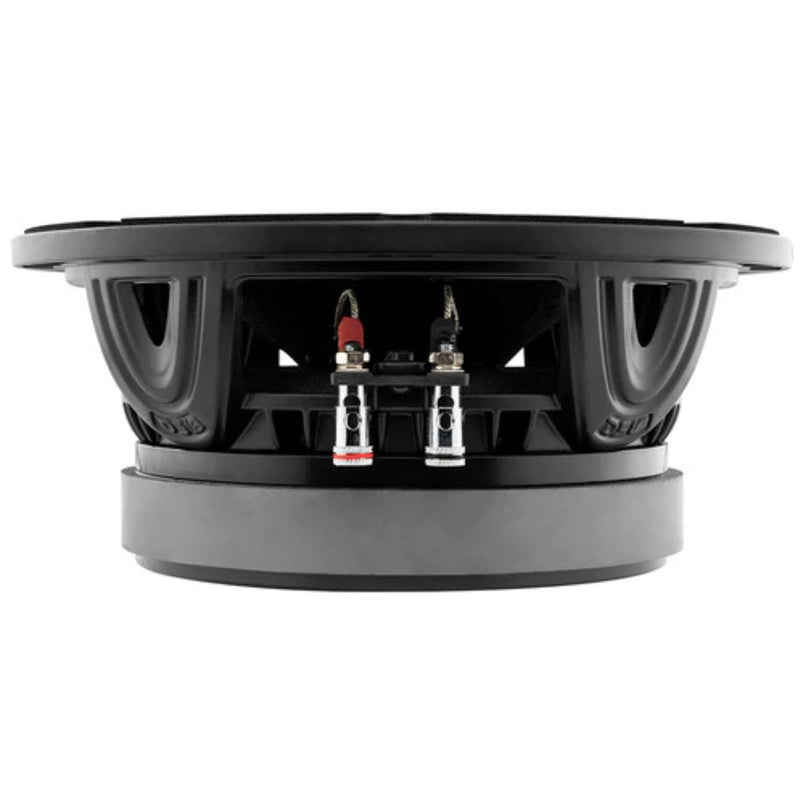

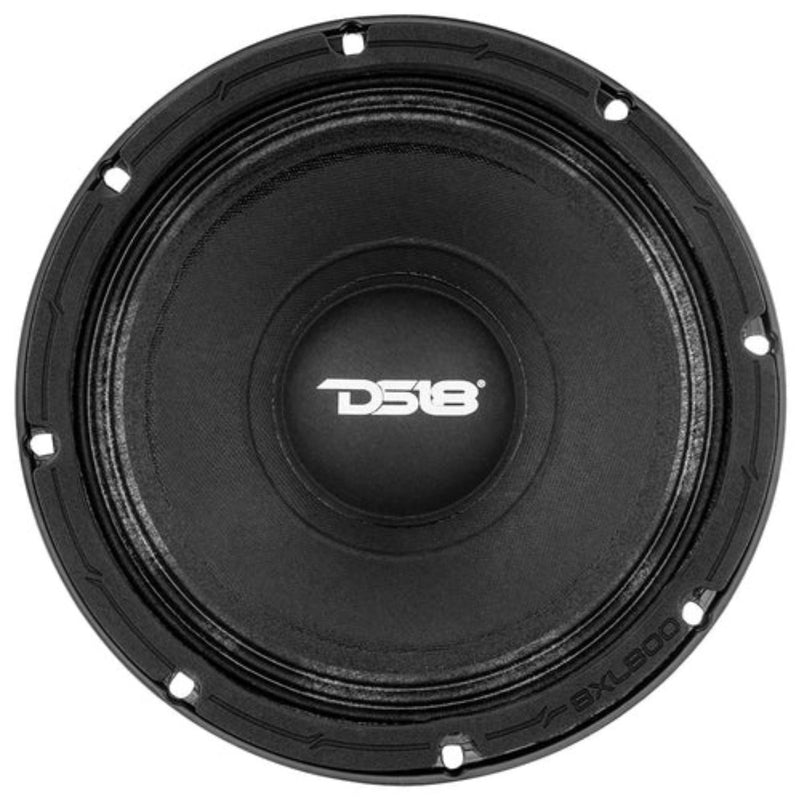

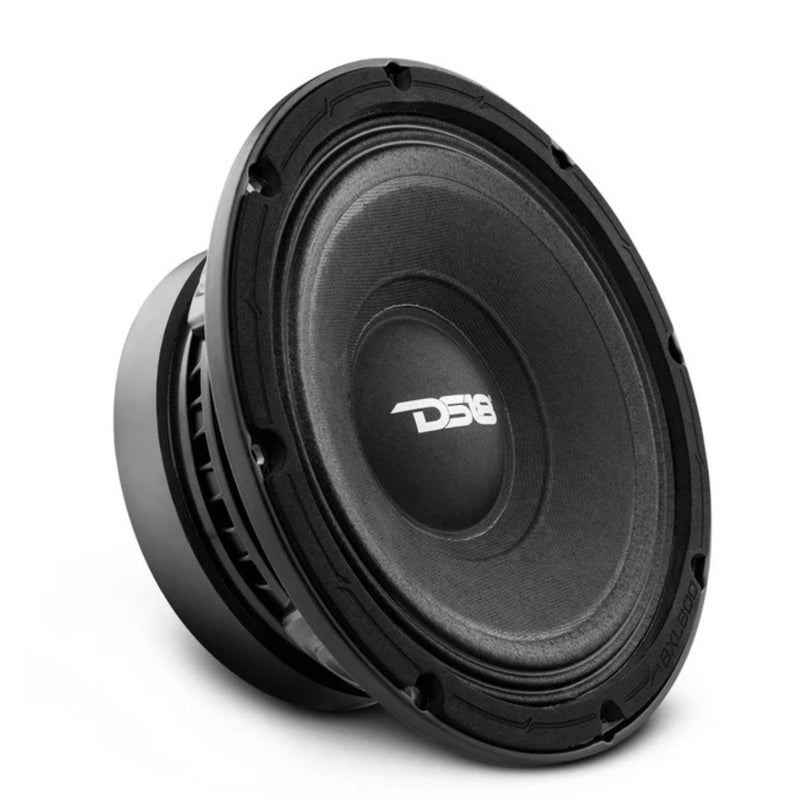

DS18 8" XL Series Mid-Range Loudspeaker 400 Watts RMS 8-Ohm 8XL800-8
This Listing Includes
- (1) DS18 8" Loudspeaker DS-8XL800-8
The DS18 8XL800-8 XL Series 8" Mid-Range Loudspeaker delivers loud, clean midrange performance for serious car audio systems, custom door builds, pro audio setups, and high-output demo vehicles. Built with an 8-ohm impedance, 400 watts RMS power handling, and 800 watts max power, this speaker is made to bring strong vocal clarity, musical detail, and impressive output to your system.
With a 99dB sensitivity rating and a wide 60Hz-8KHz frequency response, the 8XL800-8 is designed to play loud while keeping midrange frequencies clear and controlled. DS18 recommends a 90Hz high-pass crossover to help protect the speaker and maintain clean performance at higher volume levels.
The 8XL800-8 features a 2" Kapton voice coil with CCAW winding, non-pressed paper cone, paper dust cap, cloth surround, satin black aluminum basket, and a 56 oz ferrite magnet. This combination gives the speaker durability, efficiency, and the power needed for demanding car audio builds.
Features
- 8" XL Series mid-range loudspeaker
- 400 watts RMS power handling
- 800 watts max power handling
- 8-ohm impedance
- 99dB sensitivity for loud, efficient output
- 60Hz-8KHz frequency response
- Recommended 90Hz high-pass crossover
- 2" Kapton voice coil
- CCAW voice coil winding
- Non-pressed paper cone
- Paper dust cap
- Cloth surround
- Satin black aluminum basket
- 56 oz ferrite magnet
- Designed for custom car audio, door speaker builds, and pro-style systems
- Sold individually
Specifications:
- SKU: 8XL800-4
- Nominal Diameter: 8" / 203mm
- Nominal Impedance: 8 Ohm
- RMS Power Handling: 400 watts
- MAX Power Handling: 800 watts
- Sensitivity (1w/1m): 99dB
- Frequency Response: 60Hz-8KHz
- Recommended HI Pass Crossover: 90Hz
- Sold in Pair or Single: Single
- Grill Included: No
- Voice Coil Diameter: 2" / 50.8mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Non-pressed Paper
- Dust Cap Material: Paper
- Bullet Material: N/A
- Bullet Color/Finish: N/A
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Satin Black
- Magnet Material: Ferrite
- Magnet Weight: 56 Oz
- Displacement Volume: 0.85L / 0.03ft3
THIELE & SMALL PARAMETERS:
- Equivalent Volume: 14.8L / 0.52ft
- Excursion: 2.3mm
- Free Air Resonance: 90Hz
- Mechanical Factor: 4.251
- Electrical Factor: 0.356
- Total Factor: 0.328
- Mechanical Mass: 15.784g
- Mechanical Compliance: 0.23mm/N
- BL Factor: 8.93
- Voice Coil Inductance: 0.05mH
- Cone Area: 211.24cm
- Mechanical Mass Without Air: 18g
Dimensions:
- Overall Diameter: 8.2" / 210mm
- Overall Depth: 3.8" / 96.4mm
- Front Mount Baffle Cutout: 7.2" / 183mm
- Mounting Depth: 3.34" / 84.5mm
- Motor Diameter: 6.14" / 156mm
