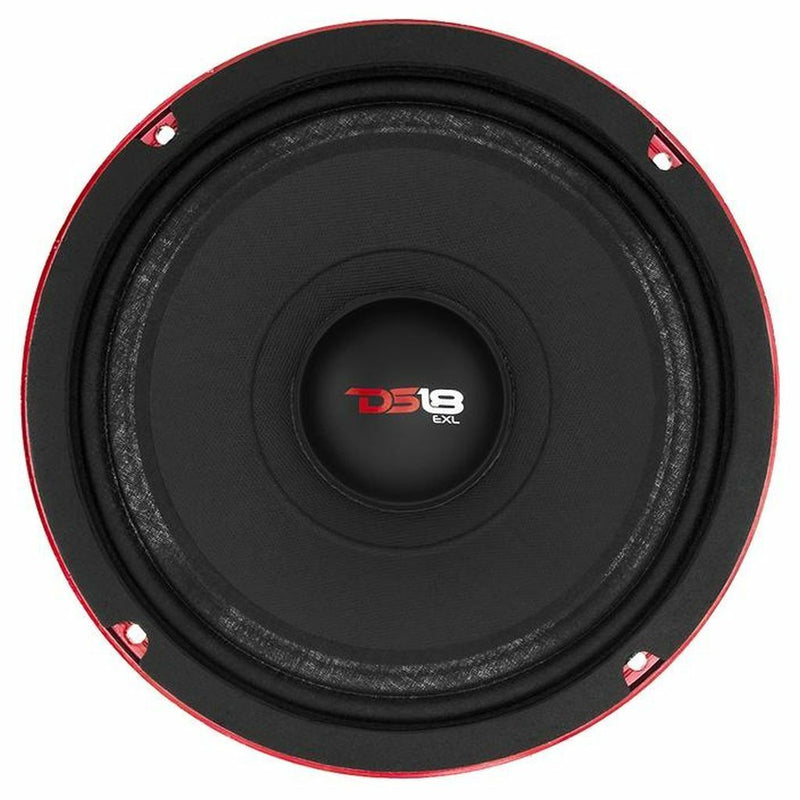

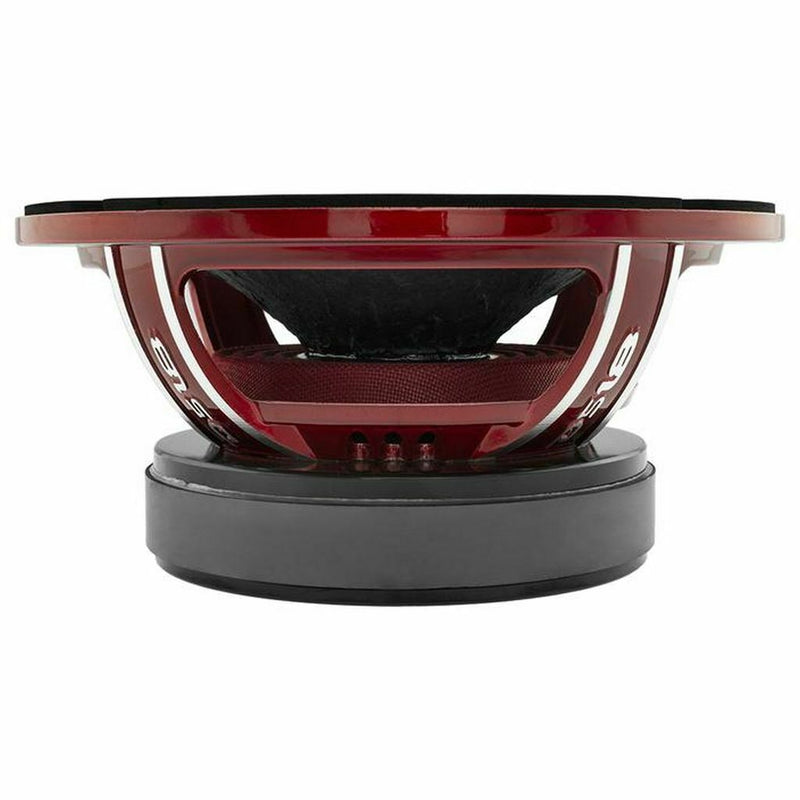

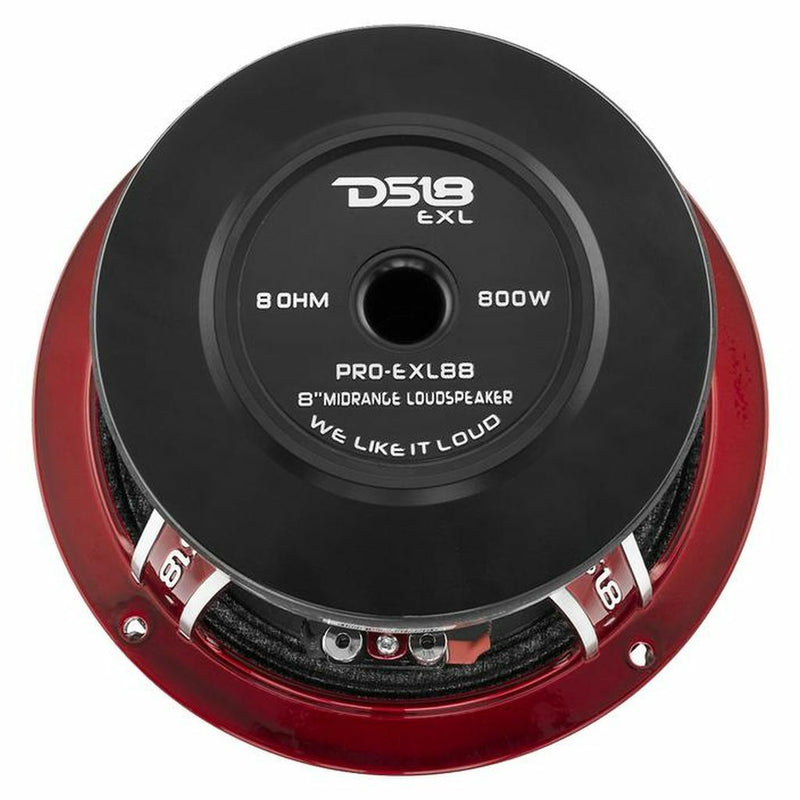

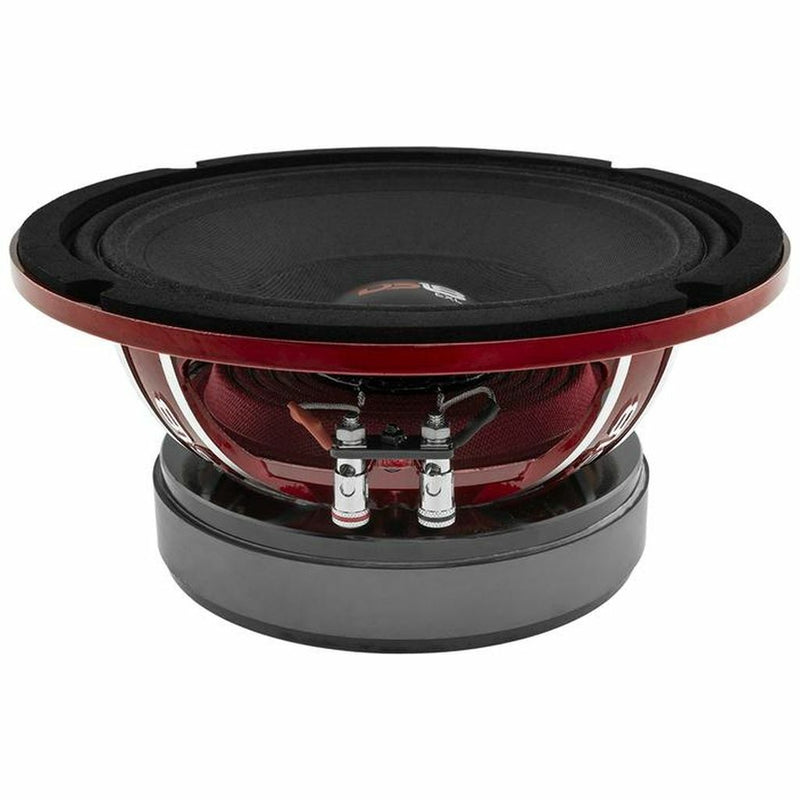

DS18 Car Audio 8" Competition Midrange Loudspeaker 800 Watt 8 Ohm PRO-EXL88
The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 Ohm or 4 Ohm impedance; these are only the basic components, the rest is pure DS18 technology.
This Listing Includes:

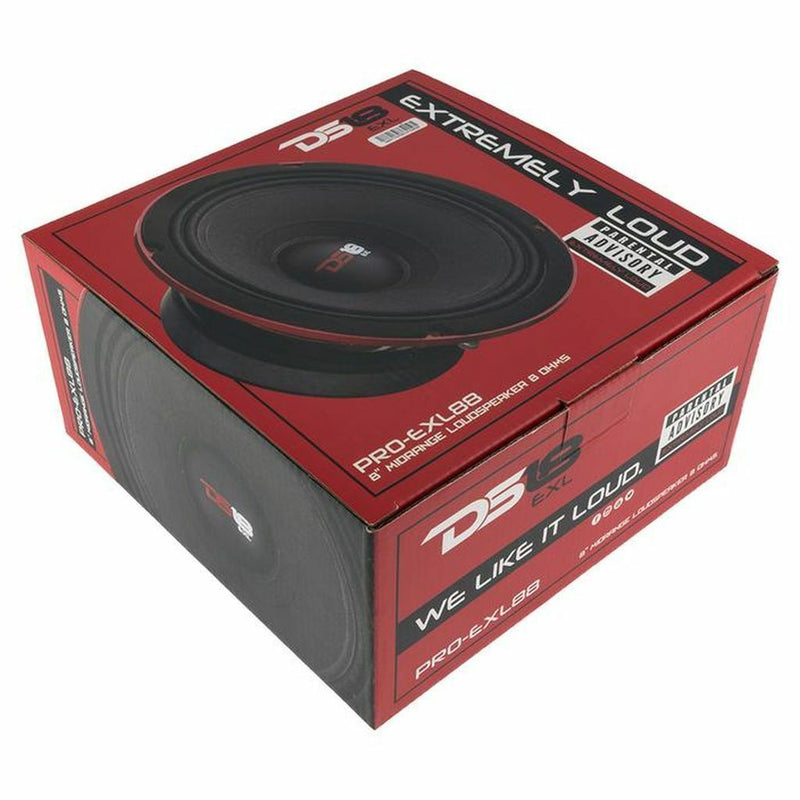

(1) DS18 8" Midrange Loudspeaker PRO-EXL88
SPECIFICATIONS:
Nominal Diameter: 8"
Nominal Impedance: 8 Ohm
MAX Power Handling: 800 Watts
RMS Power Handling: 400 Watts
Sensitivity (1w/1m): 96 dB
Frequency Response: 100 Hz ~ 10 KHz
MOTOR:
Voice Coil Diameter: 2" (50.8mm)
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 49 Oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 4.1330L
Excursion: X-max - 9.2mm
Free Air Resonance: Fs - 94 Hz
Mechanical Factor: Qms - 1.024
Electrical Factor: Qes - 0.575
Total Factor: Qts - 0.368
Dc Resistance: Re - 5.2 Ohm
DIMENSIONS:
Overall Diameter: 8.34" (212mm)
Front Mount Baffle Cutout: 7.16" (182mm)
Mounting Depth: 3.66" (93mm)
Overall Depth: 4" (103mm)
Motor Diameter: 5.7" (145mm)
