DS18 8 Channel Full Range Class D 220W x 8CH 2 Ohm Marine Amplifier NXL-X12008D

• Versatile Channels: 8 channels for stereo full-range audio, allowing customization for a complete marine sound experience
• Waterproof Marvel: IP67 Waterproof Rating ensures protection against water intrusion, making it perfect for marine and powersports adventures

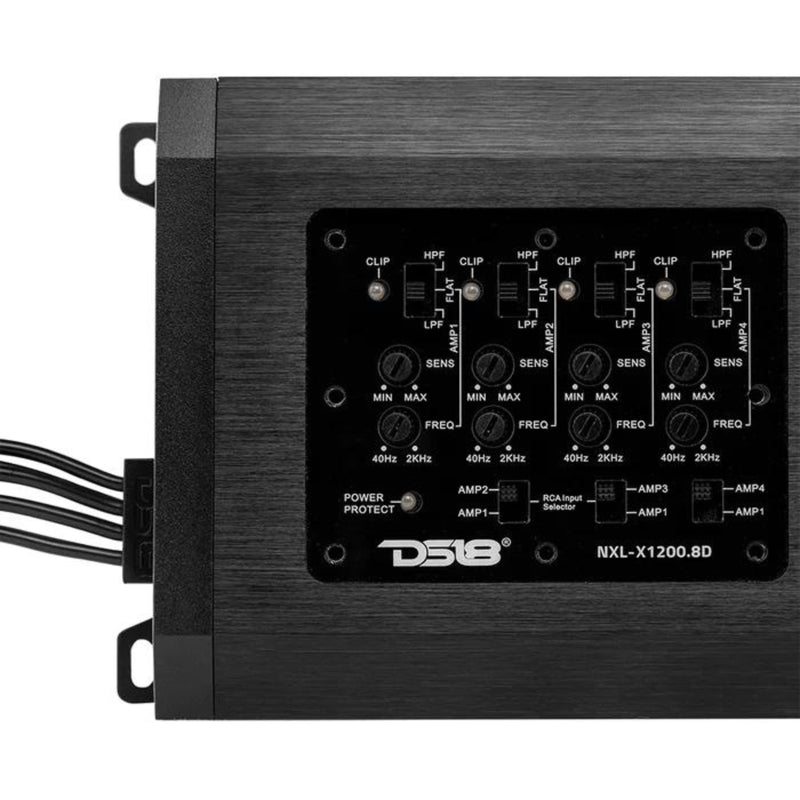

• Precision Audio Controls: HPF/FULL/LPF controls provide flexibility for audio enthusiasts to fine-tune their marine audio system
• Durable Build: Built to endure harsh marine conditions with UV, Salt, and Fog protection, ensuring longevity without compromising sound quality
• Channels Input Selector: Easy selection with 2/4/6/8 channels for a seamless and hassle-free installation process

DS18 8-Channel x 220W Full Range Class-D Marine Amplifier NXL-X12008D

This Listing Includes:

• (1) Full Range 220W x 8 Ch @ 2 Ohms Marine Amplifier

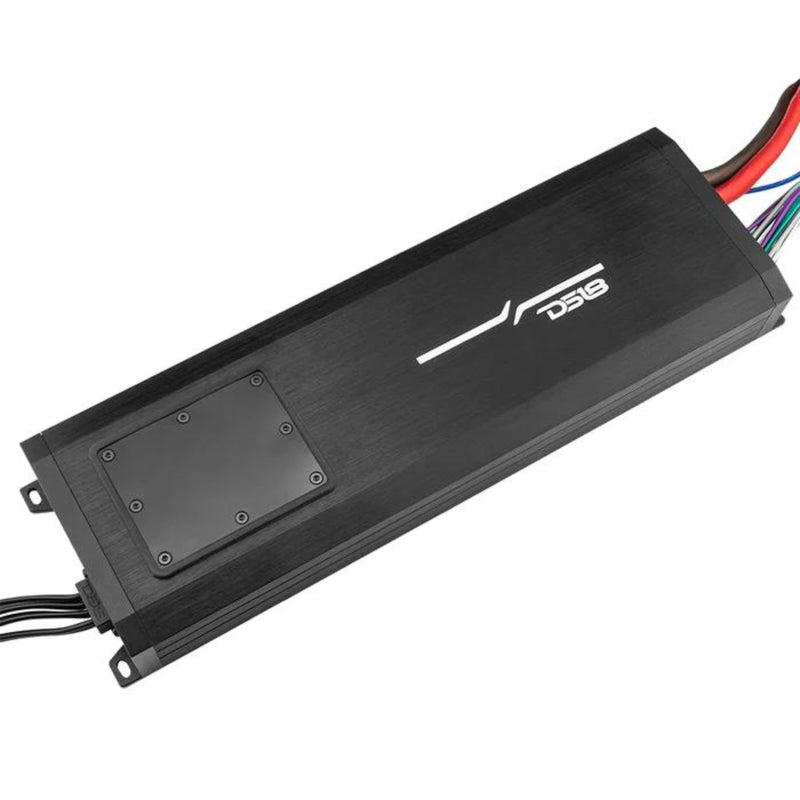

Introducing the DS18 NXL-X1200.8D, an elite marine amplifier with 8 channels delivering 150W RMS each at 4-Ohm. Built to excel in marine environments, it features an IP67 Waterproof Rating, UV, Salt, and Fog protection for durability without compromising sound quality. Enjoy precision audio control with HPF/FULL/LPF settings and a Channels Input Selector for easy installation. The NXL-X1200.8D utilizes cutting-edge digital amplifier design and SMC technology, enhancing audio clarity and providing an immersive sound experience. It delivers powerful performance with 8 x 150W RMS @ 4-Ohm, 8 x 220W RMS @ 2-Ohm, and 4 x 450W RMS @ 1-Ohm, making it the ultimate choice for custom marine builds.

Features:

• Channels Input Selector: Yes (2/4/6/8 CH)


• RCA Audio Output: No


• Waterproof Rating: IP67


• UV / Salt Fog Protection: Yes

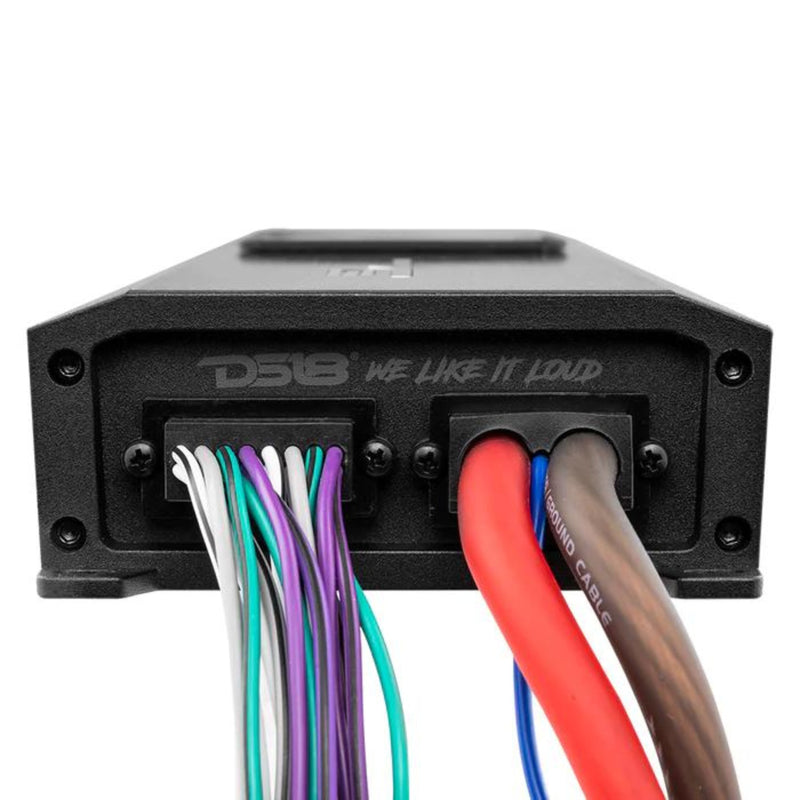

• Direct Power Harness Design: Yes

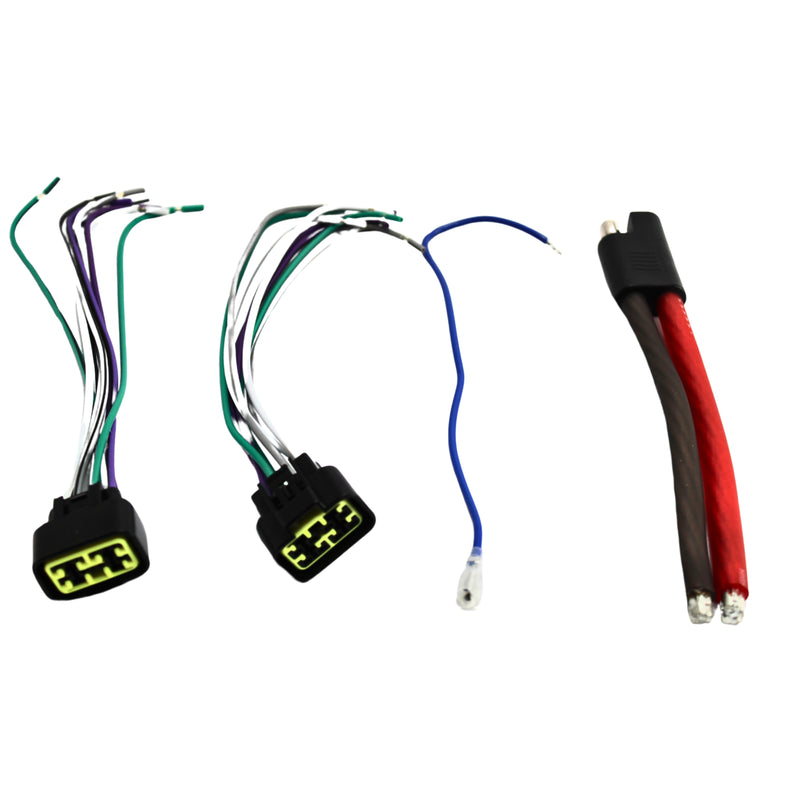

• Quick Connect Plug: Yes


• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number of Channels: 8


• Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)


• Power | Protection | Clip: 4GA Tinned OFC

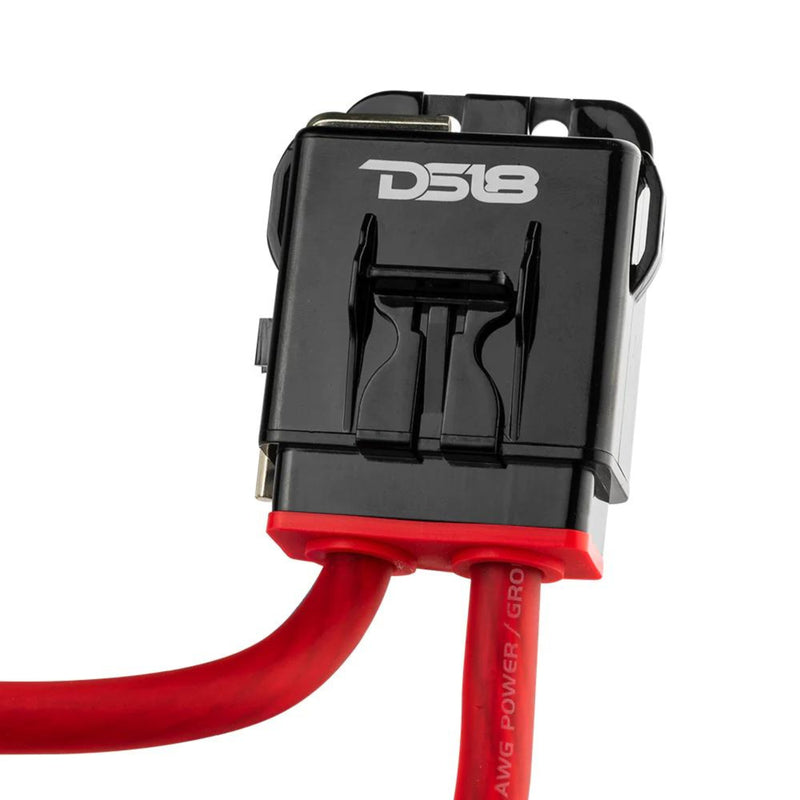

• Fuse: 150A


• LED Indicator: Yes (7-16V)

Specifications:

• Frequency Response: 10Hz-20Khz


• Signal to Noise Ratio (1W @ 4?): >80dB


• Efficiency @ 4 ohm: 81%


• Input Impedance: 20K OHM


• Total Harmonic Distortion (THD): <0.04%


• Input Sensitivity: 200mV-5V


• Crossover Type: HPF/FULL/LPF


• Crossover Range: 40Hz-2KHz

Output Power

• SKU: NXL-X1200.8D


• Total Watts (Peak): 2800W


• RMS Power @ 4 ohm: 8 x 150W


• RMS Power @ 2 ohm: 8 x 220W


• RMS Power @ 1 ohm: 4 x 450W

Measurements:

• Overall Length: 14"


• Overall Width: 4.4"


• Overall Height: 1.77"
