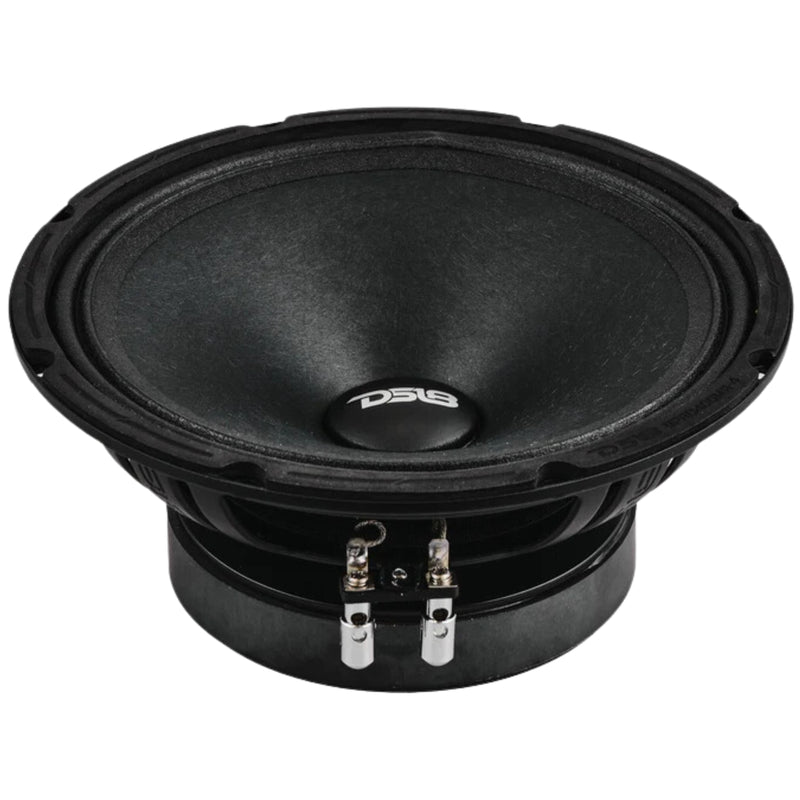

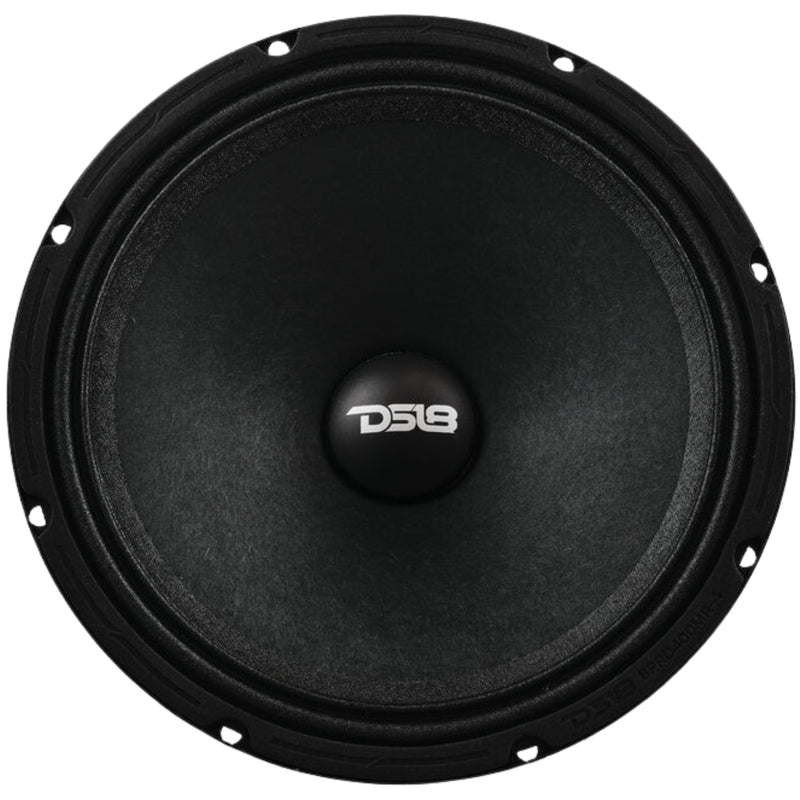

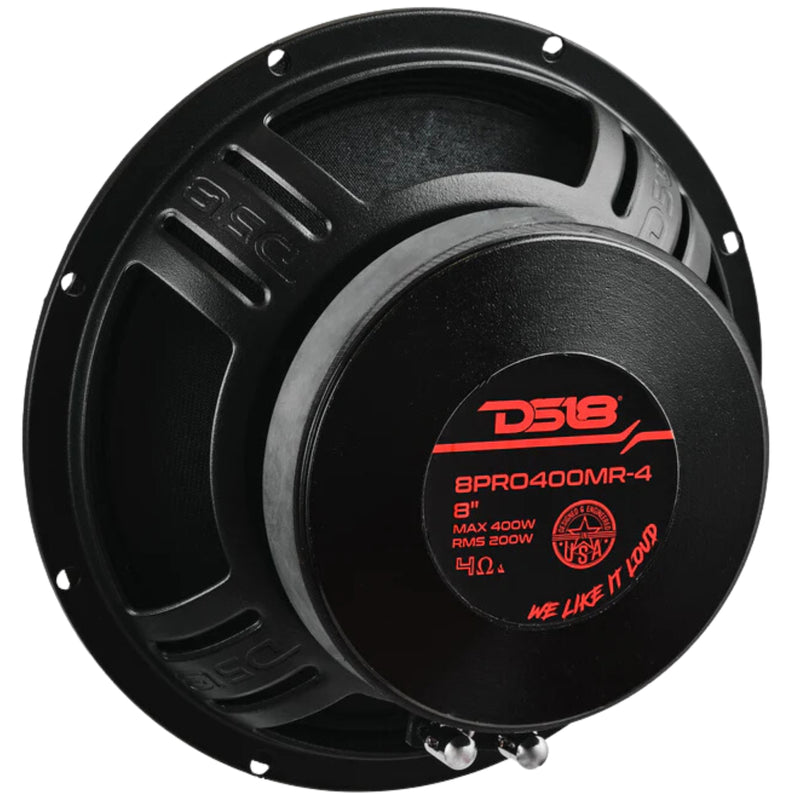

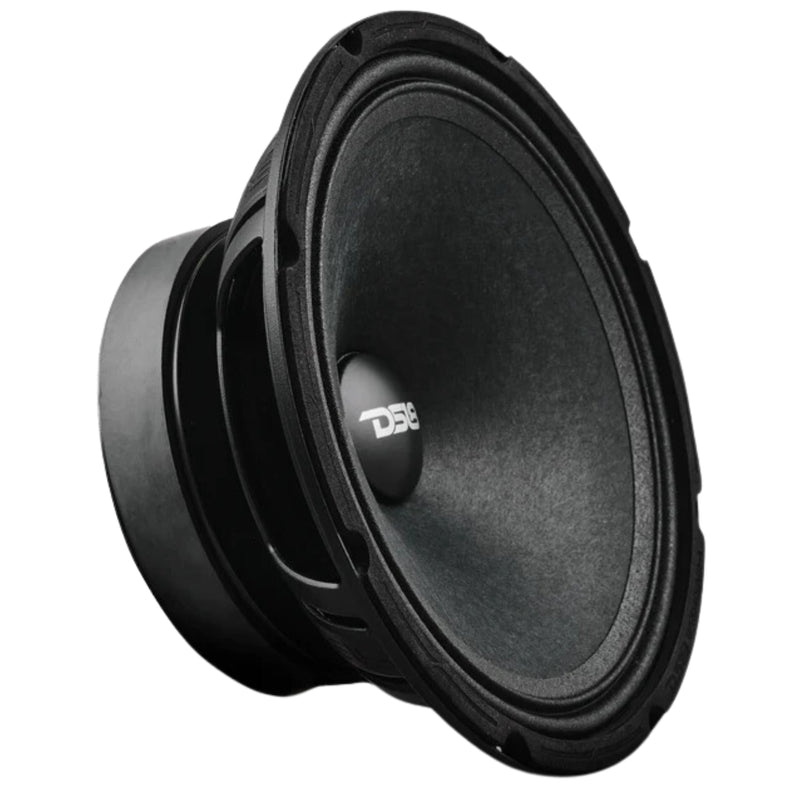

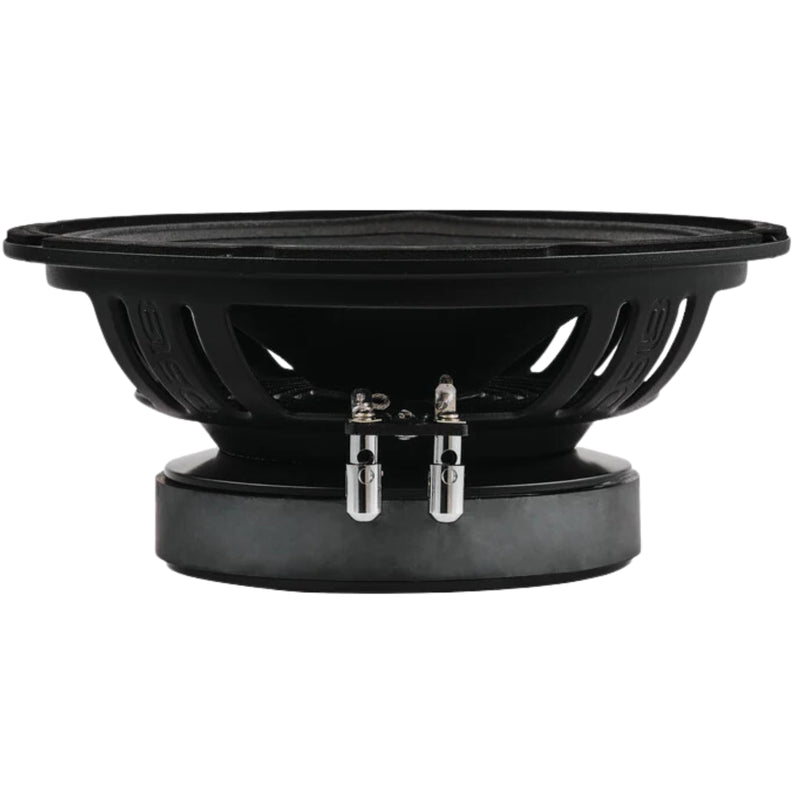

DS18 8" 400W-Peak 4-Ohm SVC Pro Mid-Range Loudspeaker 8PRO400MR-4

• High-Powered Performance: With 200W RMS and 400W MAX power handling, this 8-inch loudspeaker delivers powerful and clear sound reproduction, making it ideal for a range of audio applications.
• Exceptional Clarity: Featuring a high sensitivity rating of 104dB and a frequency response range of 100Hz-12.5KHz, this speaker ensures immersive sound with exceptional clarity and detail, filling any space with rich audio.
• Advanced Design: The curvilinear cone shape enhances dispersion, while demodulating rings made of copper reduce distortion, ensuring cleaner output and improved sound quality.
• Durable Construction: Constructed with high-quality materials, including a paper cone, cloth surround, and steel basket, this speaker is designed for durability and longevity, even under demanding conditions.
• Easy Installation: Equipped with push speaker terminals and a compact design, installation is hassle-free, and the speaker can be easily integrated into various audio systems.

DS18 8" 400W-Peak 4-Ohm SVC Pro Mid-Range Loudspeaker 8PRO400MR-4

This Listing Includes:

• (1) DS18, 8-inch loudspeaker 8PRO400MR-4

Experience superior sound with DS18’s 8PRO400MR-4! Featuring an 8" diameter and 4 OHMS impedance, it delivers exceptional clarity. With 200W RMS and 400W MAX power handling, enjoy a powerful sound. A high sensitivity rating of 104 dB fills any space with immersive sound, while demodulating rings made of copper reduce distortion for cleaner output. The curvilinear cone shape enhances dispersion, and push speaker terminals ensure hassle-free installation. With its 1.5" SVC made of Til material allows enjoyment of extended playtime without compromise.

SPECIFICATIONS:

• Nominal Diameter: 8" / 203mm


• Nominal Impedance: 4-OHMS


• RMS Power Handling: 200 Watts


• MAX Power Handling: 400 Watts


• Sensitivity (1w/1m): 104dB


• Frequency Response: 100Hz-12.5KHz


• Recommended HI Pass Crossover: 160Hz


• Sold as Pair or Single: Single

FEATURES:

• Demodulating Rings: Copper Ring


• Cone Shape: Curvilinear


• Speaker Terminals: Push (16ga)

MOTOR:

• Voice Coil Diameter: 1.5" / 38.6mm


• VC Former Material: Til


• Winding Material: CCAW


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Spider Diameter: 4" / 102mm


• Leads Connection Type: Spider Crossed


• Basket Material: Steel


• Basket Color: Black


• Magnet Material: Ferrite


• Magnet Weight: 40 Oz


• Displacement Volume: 0.56L / 0.02ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: Vas 37.3L / 1.31ft3


• Excursion (one way): Xmax 0.75mm


• Free Air Resonance: Fs 70Hz


• Mechanical Factor: Qms 4.31


• Electrical Factor: Qes 0.34


• Total Factor: Qts 0.32


• Mechanical Mass: Mms 12.72g


• Mechanical Compliance: Cms 0.43mm/N


• BL Factor: Bl 7.44


• Voice Coil Inductance: Le 0.03mH


• Cone Area: Sd 246.06cm2


• DC Resistance: Re 3.5ohms


• Mechanical Mass w/o air: Mmd 12.5g

MEASUREMENTS:

• Overall Diameter: 8.19" / 208mm


• Overall Depth: 3.72" / 94.6mm


• Front Mount Baffle Cutout: 7.36" / 187mm


• Mounting Depth: 3.48" / 88.5mm


• Motor Diameter: 5.1" / 130mm
