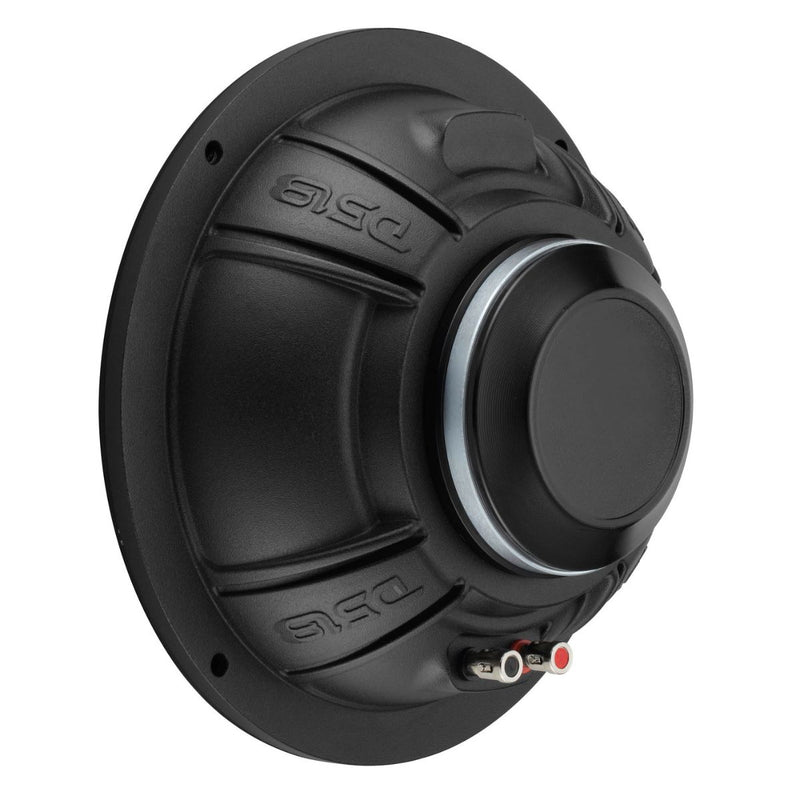

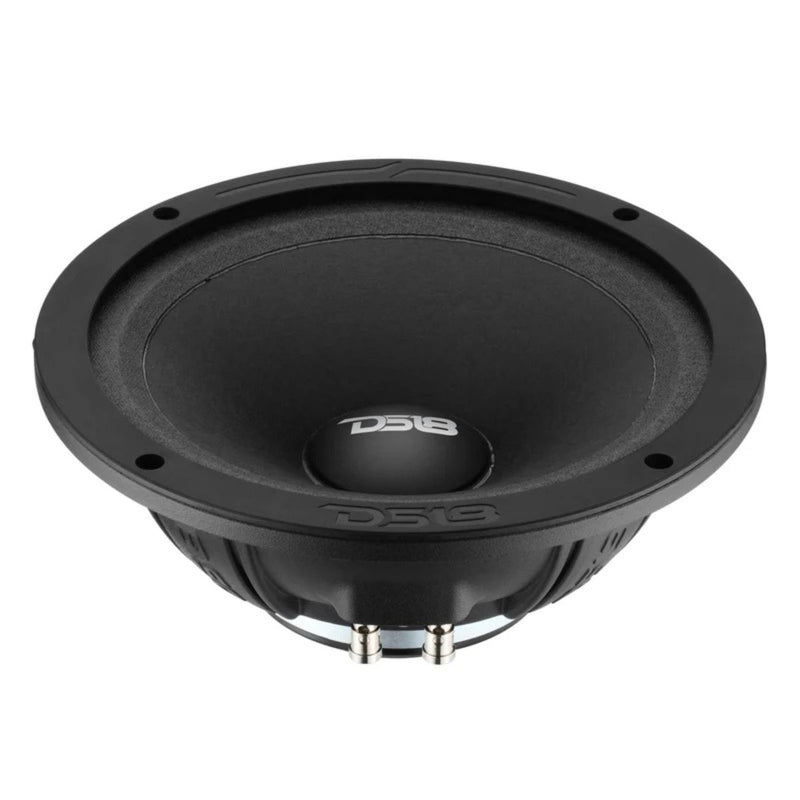

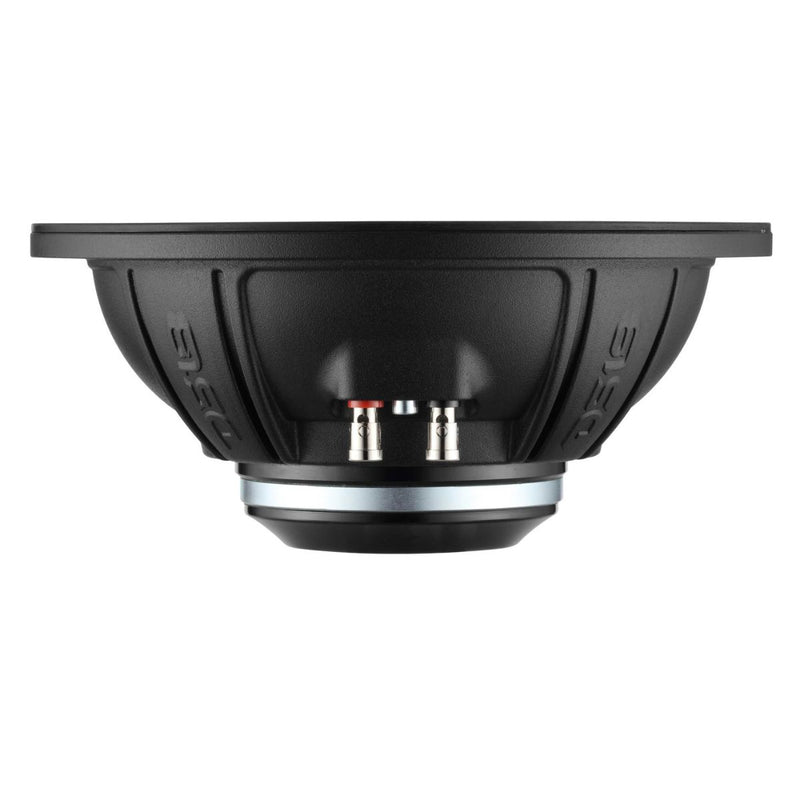

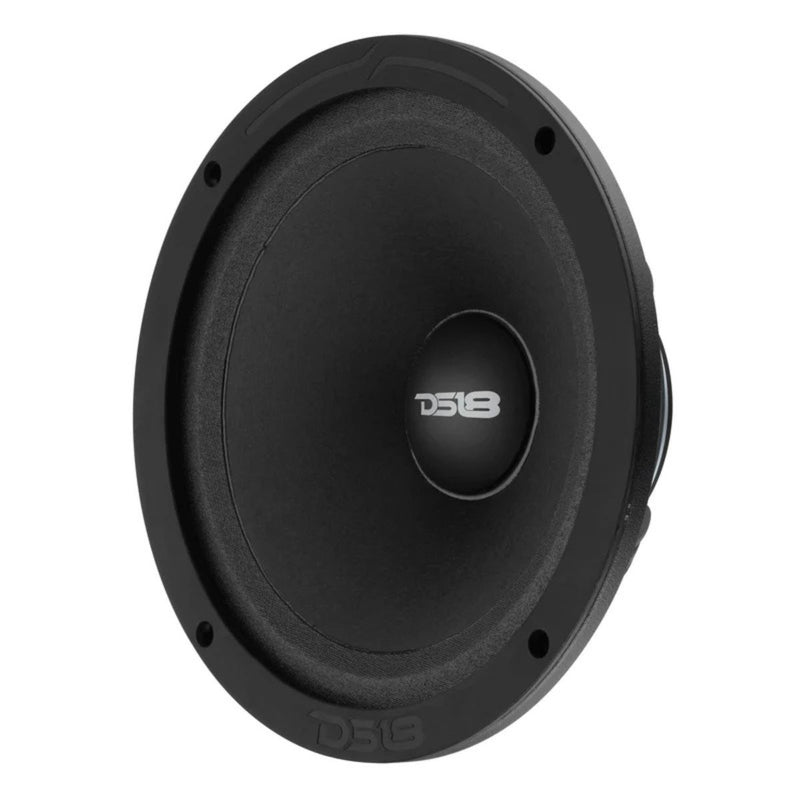

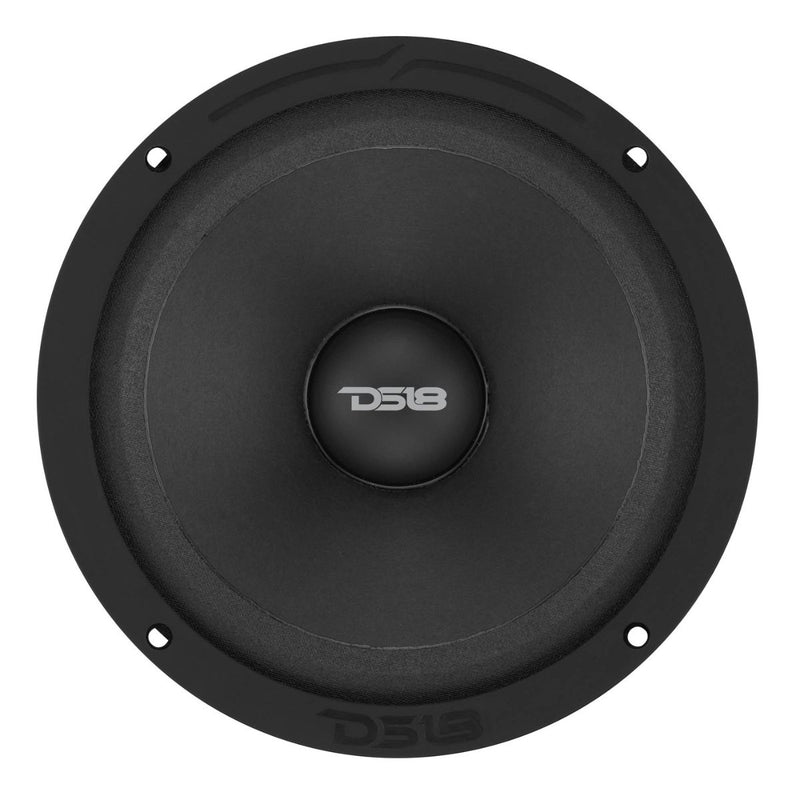

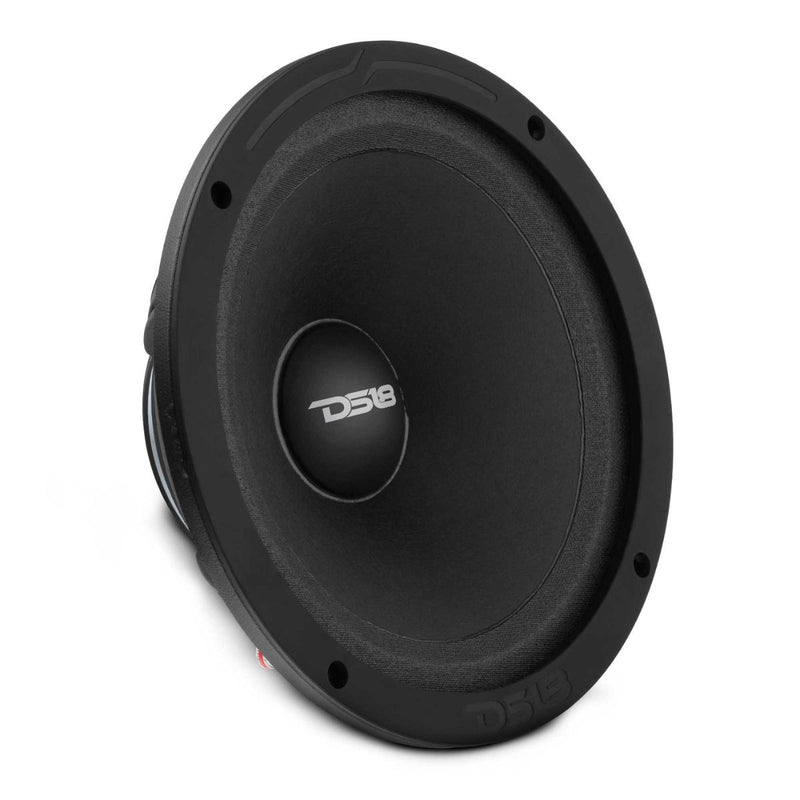

DS18 8" 300W RMS 4 Ohm Neodymium Sealed Back Mid-High Loudspeaker 8PRO600NSE-4

• HIGH-OUTPUT MID-HIGH SPEAKER: DS18 8PRO600NSE-4 8-inch sealed-back pro audio loudspeaker delivers 300 watts RMS and 600 watts maximum power handling at 4 ohms for demanding custom audio applications.
• NEODYMIUM MOTOR PERFORMANCE: Features an 8 oz neodymium magnet, 2-inch glass fiber voice coil former, CCAW winding, and copper demodulating ring for efficient mid-high frequency reproduction.
• 98DB SENSITIVITY: Designed for strong vocal projection and upper-frequency performance with a 280Hz-16kHz frequency response and manufacturer-recommended 400Hz high-pass crossover.
• SEALED-BACK IP65 DESIGN: Sealed-back construction, water-resistant paper cone, cloth surround, and IP65-rated protection make this speaker suitable for compatible installations requiring added environmental resistance.
• DURABLE ALUMINUM CONSTRUCTION: Matte black aluminum basket, curvilinear cone, and 16 AWG push terminals provide a rigid speaker platform with convenient wiring connections. Includes one 8-inch loudspeaker.

DS18 8" 300W RMS 4 Ohm Neodymium Sealed Back Mid-High Loudspeaker 8PRO600NSE-4

This Listing Includes:

• (1) DS18 8" Loudspeaker 8PRO600NSE-4

Sold individually - This listing includes ONE speaker, not a pair.

Big sound. Compact motor. Built to project.

The DS18 8PRO600NSE-4 is an 8-inch professional mid-high loudspeaker engineered for high-output audio systems that demand powerful vocal projection, detailed upper frequencies, and dependable performance. Part of DS18's PRO600NSE series, this sealed-back speaker combines a lightweight neodymium motor structure with high sensitivity and durable construction.

Delivering 300 watts RMS and 600 watts maximum power handling, the 8PRO600NSE-4 is designed for demanding audio applications. Its 98 dB sensitivity helps produce strong output, while the 280Hz to 16kHz frequency response covers the mid-high range needed for clear vocals, instruments, and upper-frequency detail.

The sealed-back construction helps isolate the speaker's rear radiation from the surrounding enclosure or mounting cavity, making it a useful choice for custom pro audio installations and line-array-style speaker arrangements where controlled mid-high output is important.

Inside, a 2-inch glass fiber voice coil former with CCAW winding works alongside an 8 oz neodymium magnet and copper demodulating ring. The curvilinear water-resistant paper cone, cloth surround, and rigid aluminum basket provide a balance of responsive performance and durability.

Rated IP65 for water and dust resistance, the 8PRO600NSE-4 is also suited for installations where exposure to the elements is a concern. Its matte black aluminum basket delivers a clean, professional appearance.

Whether you're building a custom high-output car audio system or a multi-speaker pro audio arrangement, the DS18 8PRO600NSE-4 provides focused mid-high performance with serious power handling in a compact neodymium design.

Features

• 300W RMS / 600W Max Power: High power handling for demanding mid-high audio applications.


• 8-Inch Mid-High Loudspeaker: Designed to reproduce vocals, instruments, and upper-frequency content in professional audio systems.


• Sealed-Back Design: Isolates the rear of the speaker from the mounting environment, supporting flexible custom installation configurations.


• Neodymium Motor Structure: Uses an 8 oz neodymium magnet for strong motor performance with reduced magnet size and weight compared with many conventional ferrite designs.


• 98 dB Sensitivity: Efficient speaker design engineered for high acoustic output.


• 280Hz-16kHz Frequency Response: Broad mid-high frequency coverage for detailed sound reproduction.


• IP65 Water Resistance: Rated for protection against dust ingress and water jets under specified test conditions.


• 2-Inch Glass Fiber Voice Coil Former: Features CCAW winding material for a combination of strength and electrical performance.


• Copper Demodulating Ring: Incorporated into the motor structure to help control inductance-related distortion.


• Water-Resistant Paper Cone: Curvilinear cone design paired with a cloth surround.


• Aluminum Basket: Rigid matte black construction for structural support.


• 16 AWG Push Terminals: Convenient speaker wire connection points.


• 4-Ohm Impedance: Compatible with properly matched 4-ohm amplifier channels.


• 400Hz Recommended High-Pass Crossover: Manufacturer-recommended crossover frequency for protecting the driver from excessive low-frequency content.

Specifications:

• Brand: DS18


• Model: 8PRO600NSE-4


• Series: PRO600NSE


• Speaker Type: Sealed-Back Mid-High Pro Audio Loudspeaker


• Nominal Diameter: 8" / 203 mm


• Nominal Impedance: 4 Ohms


• RMS Power Handling: 300 Watts


• Maximum Power Handling: 600 Watts


• Sensitivity (1W/1m): 98 dB


• Frequency Response: 280Hz-16kHz


• Recommended High-Pass Crossover: 400Hz


• Water-Resistant Rating: IP65


• Cone Shape: Curvilinear


• Demodulating Ring: Yes, Copper


• Speaker Terminals: 16 AWG Push Terminals


• Quantity: Single Speaker

Motor & Construction

• Voice Coil Diameter: 2" / 50.6 mm


• Voice Coil Former Material: Glass Fiber


• Winding Material: CCAW


• Magnet Material: Neodymium


• Magnet Weight: 8 oz


• Cone Material: Water-Resistant Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color: Matte Black

Thiele & Small Parameters

• Equivalent Volume (Vas): 0.29 L / 0.0102 ft


• Excursion, One Way: 0.05 mm


• Free Air Resonance (Fs): 400 Hz


• Mechanical Q (Qms): 5.212


• Electrical Q (Qes): 2.092


• Total Q (Qts): 1.493


• Moving Mass (Mms): 20.312 g


• Mechanical Compliance (Cms): 0.005 mm/N


• BL Factor: 9.916


• Voice Coil Inductance (Le): 0.035 mH


• Effective Cone Area (Sd): 201.06 cm


• DC Resistance (Re): 3.2 Ohms

Dimensions:

• Overall Diameter: 8.27" / 210 mm


• Overall Depth: 3.6" / 91 mm


• Front Mount Baffle Cutout: 7" / 179 mm


• Mounting Depth: 3.2" / 82 mm


• Motor Diameter: 3.6" / 92 mm

Installation Note: The 8PRO600NSE-4 is a dedicated mid-high loudspeaker, not a subwoofer or conventional midbass driver. DS18 recommends a 400Hz high-pass crossover. Verify amplifier power, crossover settings, mounting clearance, and system configuration before installation.
