DS18 Car Audio 6x9 Motorcycle Midrange Loudspeaker 600W 4Ohm PRO-ZXI694BM

SKU DS-PRO-ZXI694BM
Save 20% Save 20%
Original price $103.69
Original price $103.69 - Original price $103.69
Original price $103.69
Current price $82.95
$82.95 - $82.95
Current price $82.95

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3% *Must purchase 2 items to qualify
  • Spend $500, Save 5% *Must purchase 3 items to qualify
  • Spend $1000, Save 7% *Must purchase 4 items to qualify

*Does not apply to: Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

  • RMS Power Handling: 300 Watts
  • MAX Power Handling: 600 Watts
  • Frequency Response: 80Hz ~ 12.5KHz
  • Recommended HI Pass Crossover: 100 Hz
  • Magnet Material: Ferrite + Neodymium


DS18 Car Audio 6x9" Mid-Range Loudspeaker w/ Bullet 600 Watt 4 Ohm PRO-ZXI694BM



The DS18 ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness. This ZXI 6"x9" mid-range speaker was designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently. The PRO-ZXi694BM has a beautiful gloss black basket face with strong black on black bullet dust-cap. This 4-ohm 6x9 Inches handles a huge 300 Watts RMS and 600 Watts MAX power ensuring screaming loud clear mid and high range frequencies!



This Listing Includes:

(1) DS18 6x9" Mid-Range Loudspeaker PRO-ZXI694BM



SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6x9"  (152.4 x 228.6mm)

Nominal Impedance: 4 Ohms

RMS Power Handling: 300 Watts

MAX Power Handling: 600 Watts

Sensitivity (1w/1m): 98dB

Frequency Response: 80Hz ~ 12.5KHz

Recommended HI Pass Crossover: 100 Hz



MOTOR:

Voice Coil Diameter: 1.5"  (38.6mm)

Voice Coil Former Material: Glass Fiber

Winding Material: CCAW

Cone Material: Paper

Bullet Material: Aluminum

Surround Material: Cloth

Basket Material: Aluminum

Basket Color: Sandblasted Black

Magnet Material: Ferrite + Neodymium

Magnet Weight: 30+3 Oz

Displacement Volume: 0.62L (0.0219ft)



THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 14.9L (0.5271ft)

Excursion (one way): Xmas - 7.2mm

Free Air Resonance: Fs - 100Hz

Mechanical Factor: Qms - 10.64

Electrical Factor: 0.439

Total Factor: Qts - 0.421

Mechanical Mass: Mms - 4g

Mechanical Compliance: Cms - 0.662mm/N

BL Factor: BL - 4.439

Voice Coil Inductance: Le - 0.08798mH

Cone Area : Sd - 207.85cm

DC Resistance: Re - 3.6 Ohms

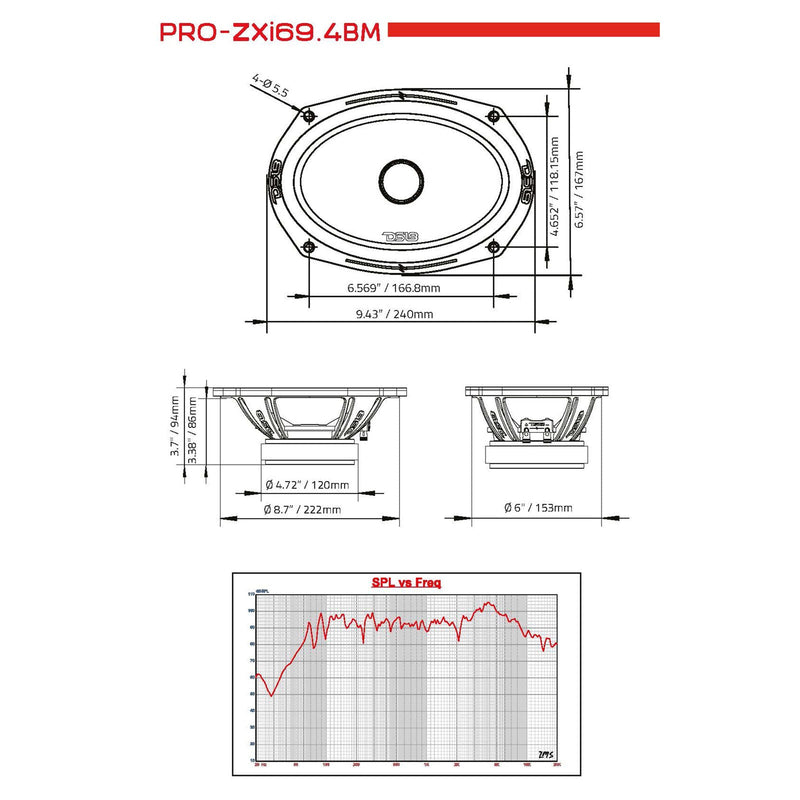

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.57x9.43" (167x240mm)

Overall Depth: 5.19" (132mm)

Front Mount Baffle Cutout: 3.7" (94mm)

Mounting Depth: 3.38" (86mm)

Motor Diameter: 4.72" (120mm)



Weight:  6 lbs.
