- HIGH-OUTPUT MIDRANGE PERFORMANCE: DS18 69PRO400NMR-4 delivers 200W RMS / 400W MAX with 100 dB sensitivity for loud, clear midrange and strong vocal projection.
- NEODYMIUM MOTOR DESIGN: Lightweight neodymium magnet provides high efficiency, improved response, and reduced overall weight for performance builds.
- CLEAR VOCALS AND DETAIL: Wide 100Hz–17kHz frequency response ensures aggressive midrange presence and crisp upper-frequency clarity.
- BUILT FOR DURABILITY: Features a 1.5” Kapton voice coil, CCAW winding, copper demodulating ring, and cloth surround for reliable performance and reduced distortion.
- VERSATILE INSTALLATION: Slim motor structure and efficient design make it ideal for doors, panels, and custom pro audio setups.

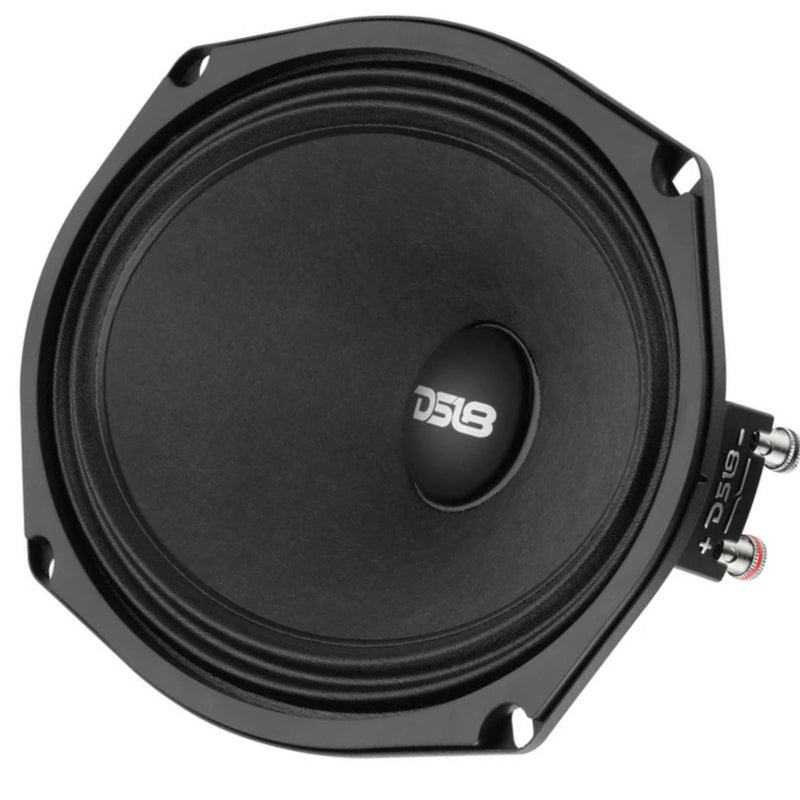

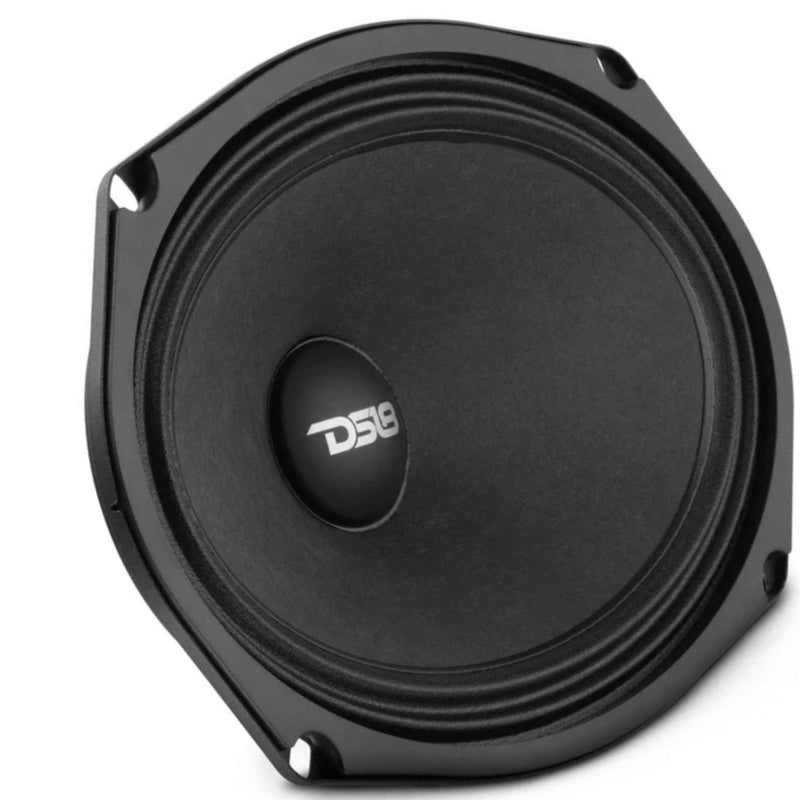

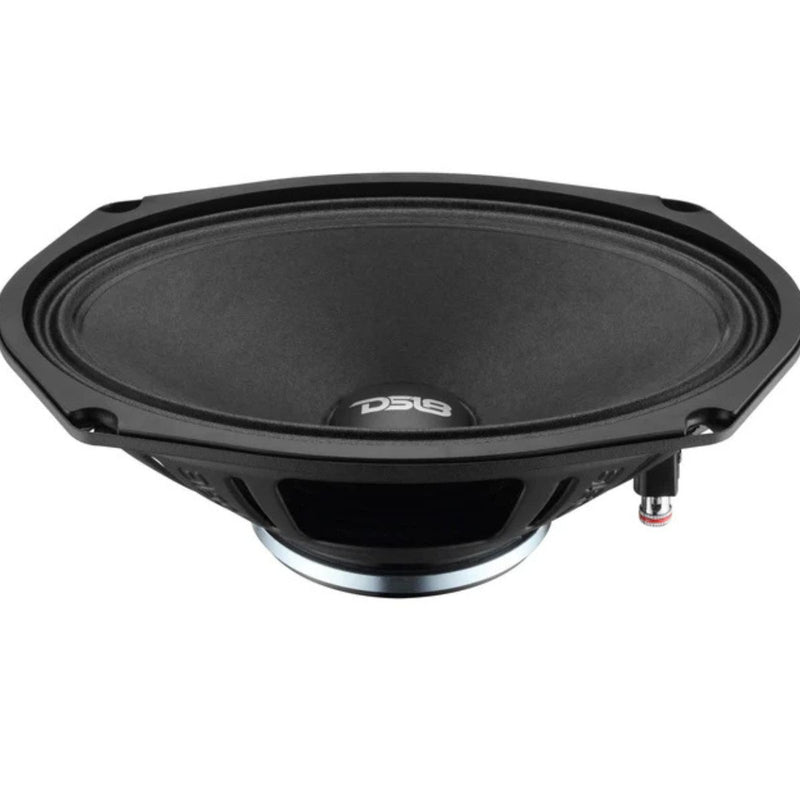

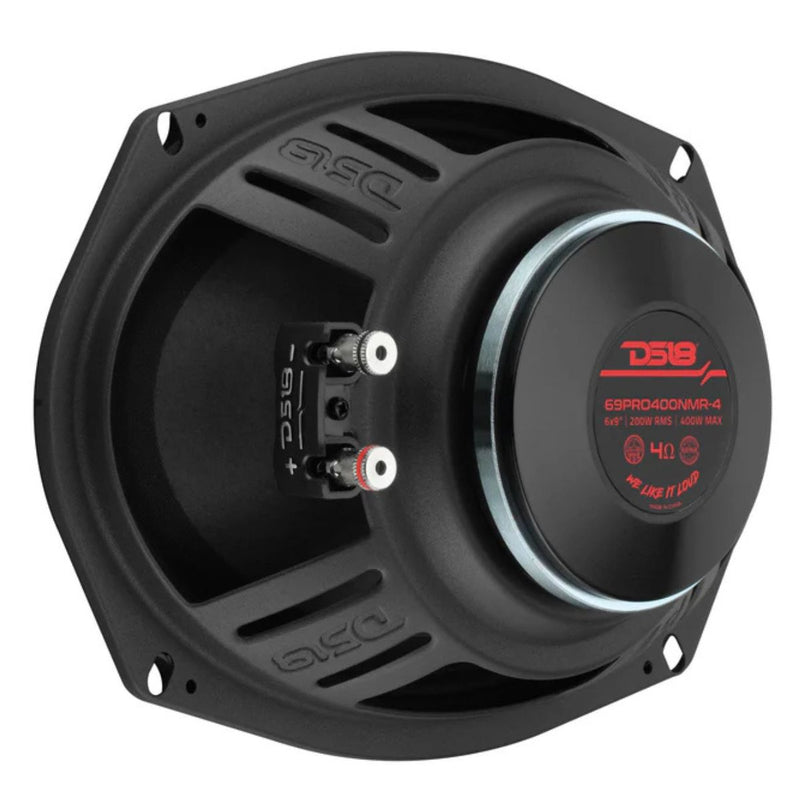

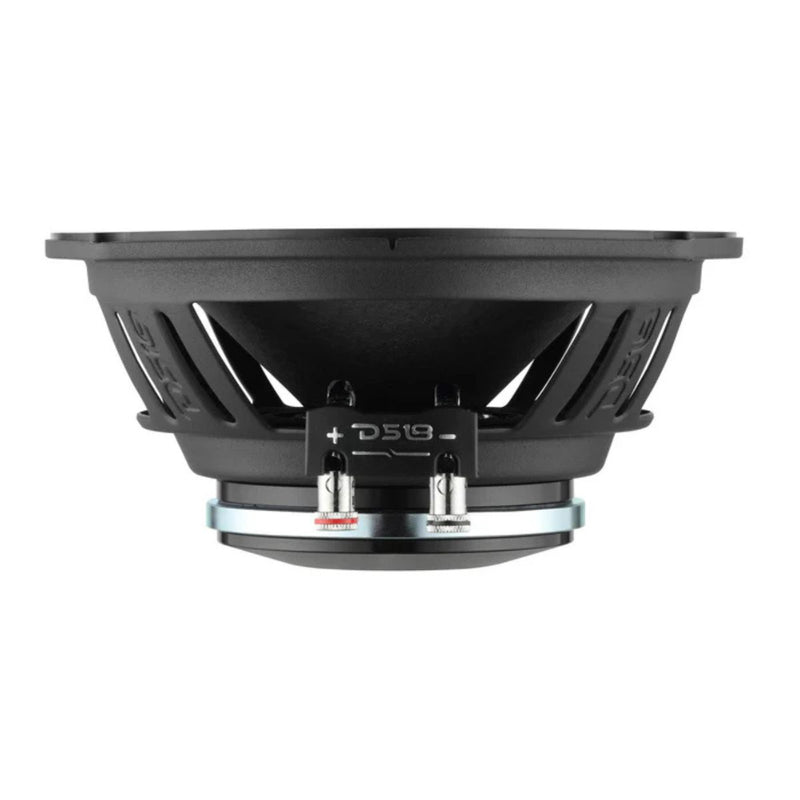

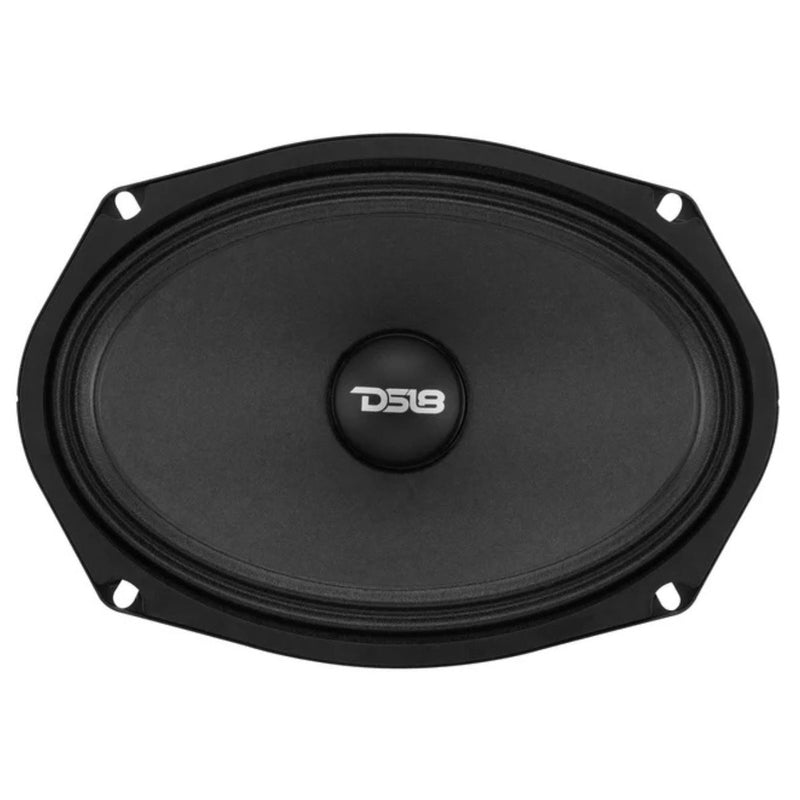

DS18 6x9" 200W RMS 4-Ohm High-Sensitivity Pro Neo Mid Loudspeaker 69PRO400NMR-4
This Listing Includes:
- (1) DS18 6x9" Loudspeaker 69PRO400NMR-4
The DS18 69PRO400NMR-4 is a 6x9-inch high-sensitivity professional midrange speaker engineered for powerful output, clean vocals, and efficient performance. Designed with a lightweight neodymium motor, this speaker delivers strong midrange projection while keeping weight down for performance-driven builds.
With 200 watts RMS and 400 watts MAX, this 4-ohm midrange is built to cut through loud systems with authority. Its 100 dB sensitivity ensures high output with less power, while the 100Hz - 17kHz frequency range provides clear, aggressive vocal response and detailed upper frequencies.
A 1.5-inch Kapton voice coil with CCAW winding ensures efficient heat dissipation and long-term reliability. The addition of a copper demodulating ring helps reduce distortion and maintain clarity at high volumes. Built on a black aluminum basket with a paper cone and cloth surround, this speaker is designed for durability and consistent performance in demanding applications.
Compact, efficient, and loud, the DS18 69PRO400NMR-4 is ideal for doors, custom panels, and high-output pro audio systems.
Features
- 6x9" High-Sensitivity Professional Midrange Speaker
- 200W RMS / 400W MAX Power Handling
- 4-Ohm Impedance
- 100 dB Sensitivity
- 100Hz - 17kHz Frequency Response
- Neodymium Magnet Motor
- 1.5" Kapton Voice Coil
- Copper Demodulating Ring
- Paper Cone with Cloth Surround
- Black Aluminum Basket
Specifications:
- 6x9" High-Sensitivity Professional Midrange Speaker
- 200W RMS / 400W MAX Power Handling
- 4-Ohm Impedance
- 100 dB Sensitivity
- 100Hz - 17kHz Frequency Response
- Neodymium Magnet Motor
- 1.5" Kapton Voice Coil
- Copper Demodulating Ring
- Paper Cone with Cloth Surround
- Black Aluminum Basket
General:
- Nominal Diameter: 6x9" / 152x228mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 200W
- MAX Power Handling: 400W
- Sensitivity (1w/1m): 100dB
- Frequency Response: 100Hz - 17kHz
- Recommended High-Pass Crossover: 120Hz
- Sold As: Single Unit
- Demodulating Rings: Copper Ring
- Cone Shape: Curvilinear

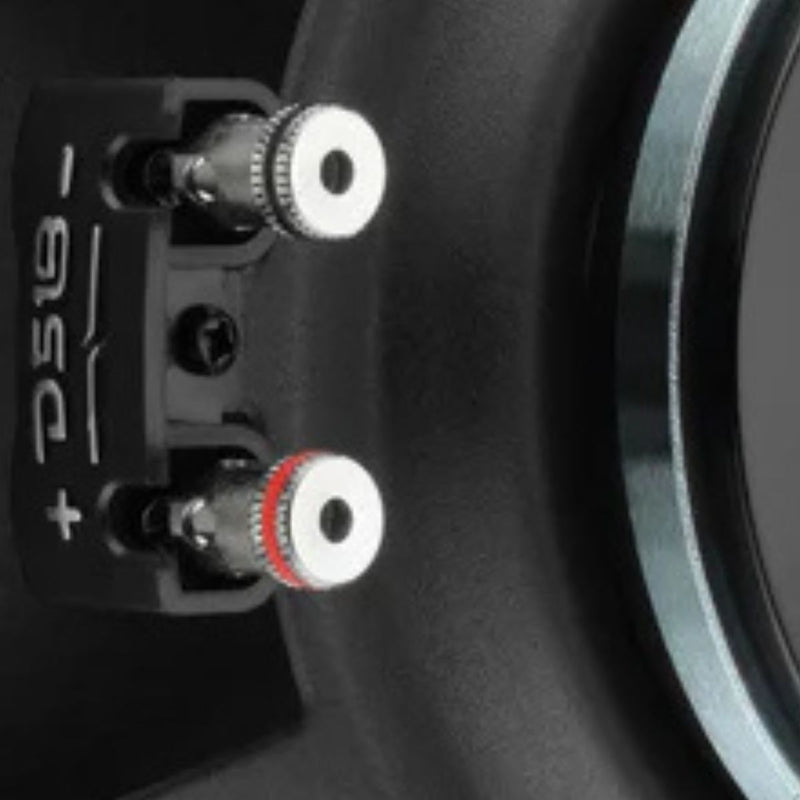

- Speaker Terminals: Push 16ga
Motor:
- Voice Coil Diameter: 1.5" / 38.6mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Leads Connection Type: Spider Crossed
- Basket Material: Aluminum
- Basket Color / Finish: Black
- Magnet Material: Neodymium
- Magnet Weight: 8 Oz
Thiele & Small Parameters:
- Equivalent Volume (Vas): 11.89L / 0.419ft3
- Excursion (One Way): 1.65mm
- Free Air Resonance (Fs): 117Hz
- Mechanical Factor (Qms): 1.980
- Electrical Factor (Qes): 0.34
- Total Factor (Qts): 0.27
Dimensions:
- Overall Diameter: 6.4" x 9.2" / 164 x 234mm
- Overall Depth: 3.1" / 79mm
- Front Mount Baffle Cutout: 5.7" x 8.5" / 145 x 218mm
- Mounting Depth: 2.9" / 74.8mm
- Motor Diameter: 3.5" / 90mm
