- Ultra-Slim 1.16-Inch Mounting Depth: Perfect for shallow installs in doors, motorcycles, side panels, and custom pods
- High Efficiency 95 dB Sensitivity: Delivers loud, clear midrange output with less amplifier power
- 120W RMS Power Handling: Handles aggressive volume levels while maintaining clean response
- Neodymium Motor Design: Lightweight magnet provides fast, accurate midrange performance
- Focused 80 Hz to 6 kHz Range: Ideal for mid-focused systems with a recommended 120 Hz high-pass
- Durable Construction: Paper cone, cloth surround, matte black steel basket, and protective steel mesh grille

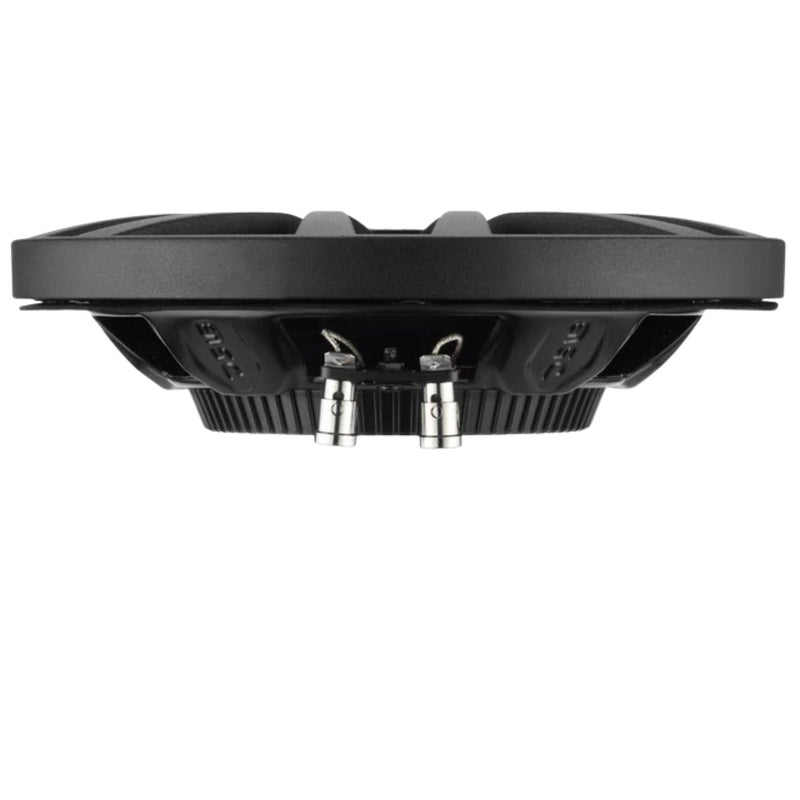

DS18 6.5" Ultra-Slim 1.16" Depth 120W RMS 4-Ohm Mid-Range Neo Pro Loudspeaker
This Listing Includes

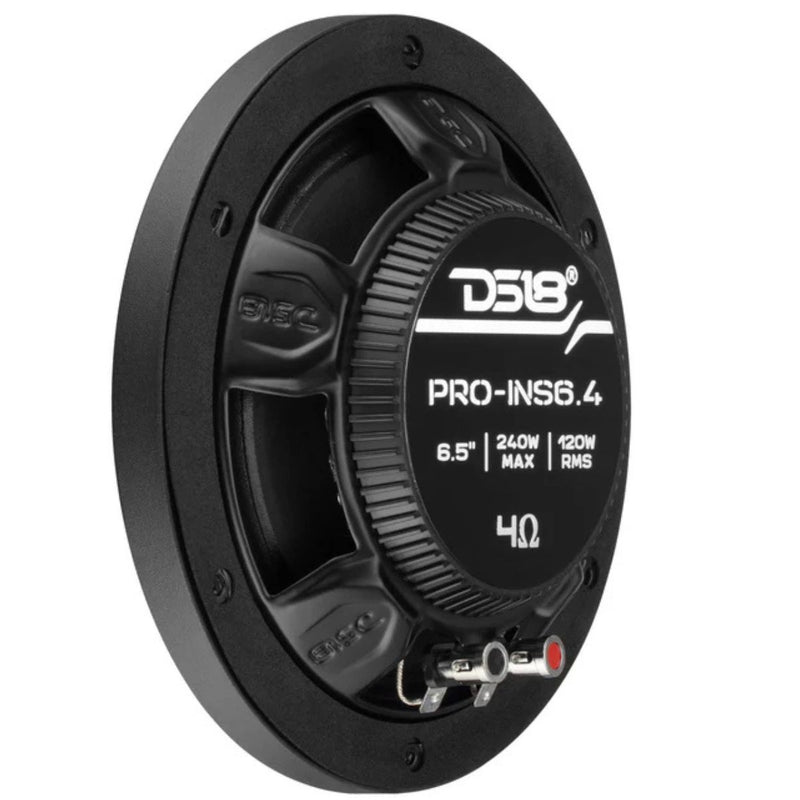

- (1) DS18 6.5" Ultra-Slim Speaker PRO-INS6.4
The DS18 PRO-INS6.4 was engineered for one purpose: delivering real midrange output where traditional speakers simply cannot fit. With an ultra-slim 1.16-inch mounting depth, this 6.5-inch neodymium midrange speaker is the perfect solution for shallow, zero-clearance installations without sacrificing output or clarity.
Designed to Fit Anywhere
At just 1.16 inches deep, the PRO-INS6.4 excels in tight spaces such as motorcycle fairings, side panels, custom pods, door panels, and compact enclosures. It’s a true drop-in solution when space is limited, but sound quality still matters.
Powerful and Efficient
Rated at 120 watts RMS and 240 watts MAX, this 4-ohm midrange delivers strong output with less amplifier power thanks to its 95 dB sensitivity. The 1.5-inch KSV voice coil, lightweight CCAW windings, and neodymium motor work together to produce fast, accurate midrange response that stays clean even at higher volumes.
Focused Midrange Performance
Covering a frequency range of 80 Hz to 6 kHz, the PRO-INS6.4 is optimized for tight, punchy midrange reproduction. For best performance and reliability, a 120 Hz high-pass crossover is recommended.
Built for Daily Use
The speaker includes a custom steel mesh grille with cloth protection, helping shield the cone from dust and debris. A paper cone, cloth surround, and matte black steel basket provide a durable, balanced design suitable for everyday driving and demanding installations.
Whether you're filling gaps in a crowded build or stacking multiple drivers in a compact layout, the DS18 PRO-INS6.4 delivers full-size sound from an ultra-low-profile package that fits almost anywhere.
Features
- Ultra-slim 1.16-inch mounting depth for shallow installs
- 120W RMS / 240W MAX power handling
- High-efficiency 95 dB sensitivity
- Neodymium motor for fast, accurate response
- 1.5-inch KSV voice coil with CCAW windings
- Focused midrange frequency range

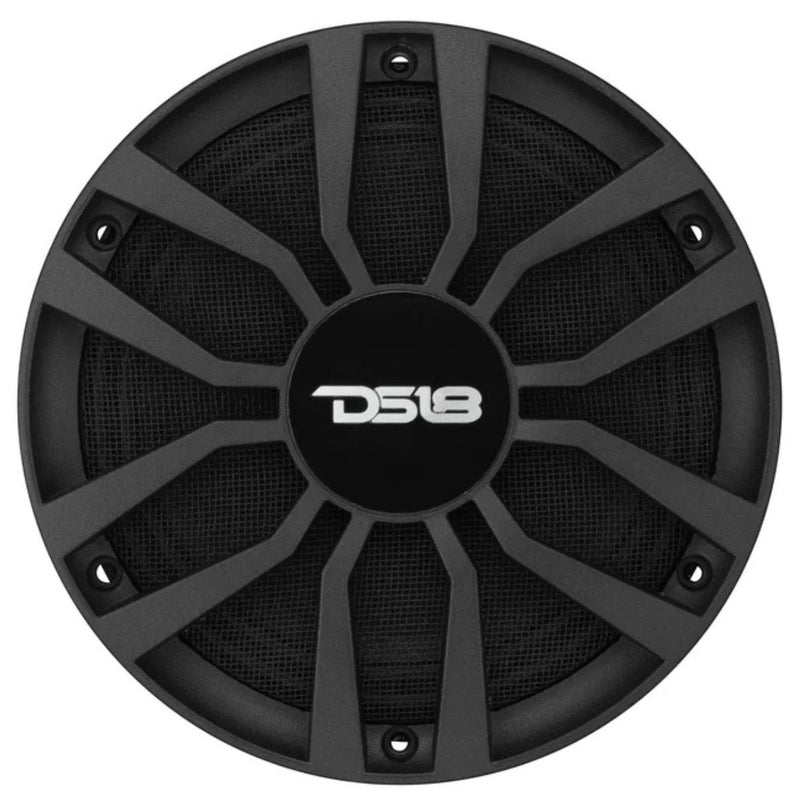

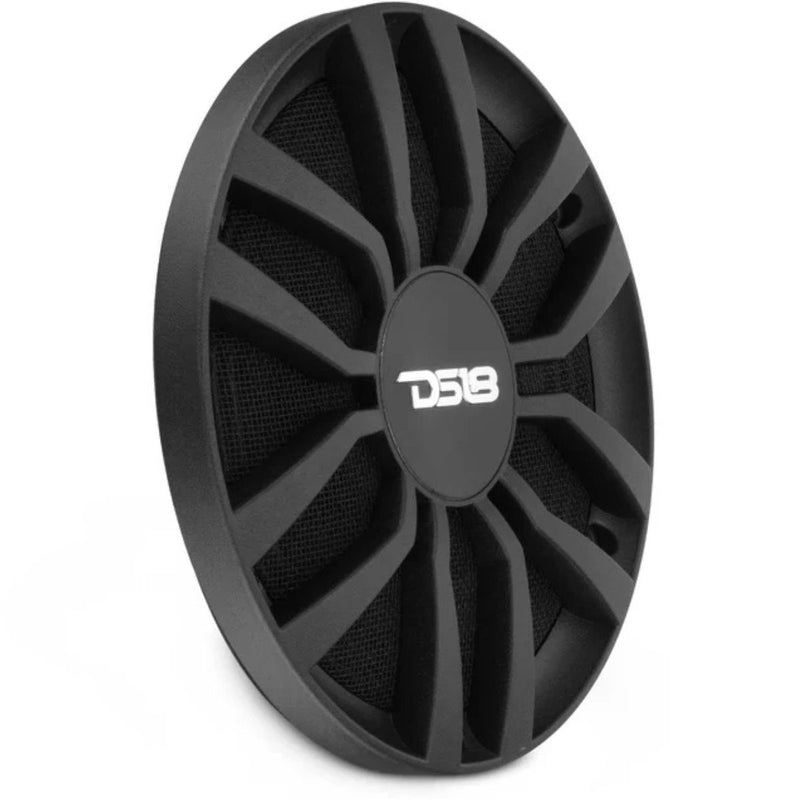

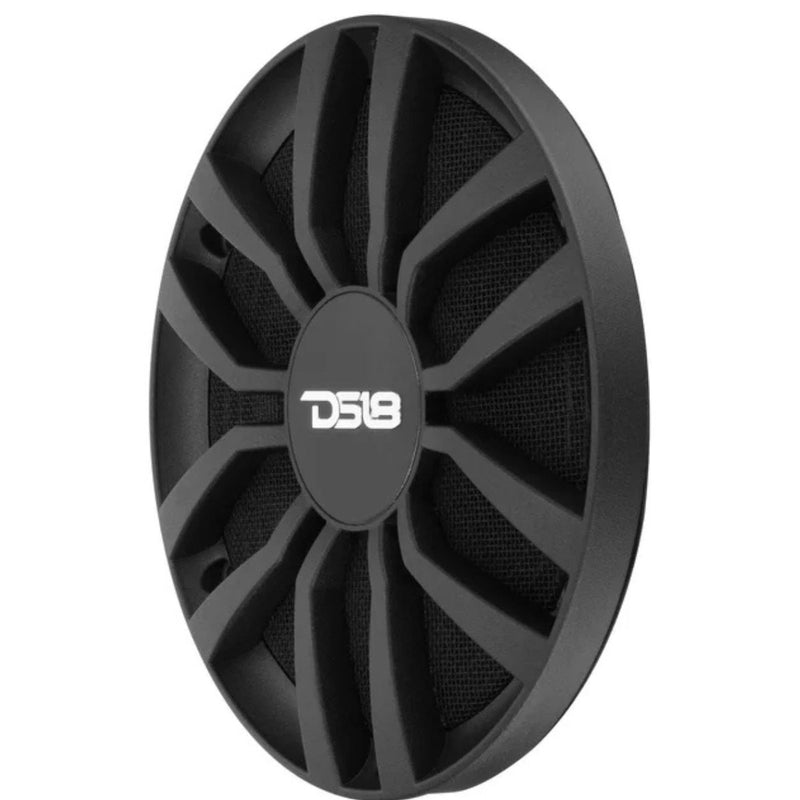

- Custom steel mesh grille with cloth protection included
- Ideal for motorcycles, doors, pods, and tight enclosures
Specification
- Nominal Diameter: 6.5" / 167 mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 120W
- MAX Power Handling: 240W
- Sensitivity (1W/1m): 95 dB
- Frequency Response: 80 Hz - 6 kHz
- Recommended High-Pass Crossover: 120 Hz
- Sold As: Single
- Grille Included: Yes, with cloth protection
- Voice Coil Diameter: 1.5" / 38.6 mm
- Voice Coil Former: KSV
- Winding Material: CCAW
- Cone Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Basket Finish: Matte Black
- Magnet Material: Neodymium
- Magnet Weight: 1.89 oz
Thiele & Small Parameters
- Equivalent Volume (Vas): 7.961 L / 0.281 ft
- Excursion (Xmax one way): 2 mm
- Free Air Resonance (Fs): 140 Hz
- Mechanical Factor (Qms): 5.336
- Electrical Factor (Qes): 1.408
- Total Factor (Qts): 1.114
- Moving Mass (Mms): 8.868 g
- Compliance (Cms): 0.312 mm/N
- BL Factor: 3
- Voice Coil Inductance: 0.119 mH
- Cone Area (Sd): 132.73 cm
- DC Resistance (Re): 3.5 Ohms
- Mechanical Mass w/o Air: 7.988 g
Dimensions:
- Overall Diameter: 6.89" / 175 mm
- Overall Depth: 1.94" / 49 mm
- Mounting Depth: 1.16" / 29 mm
- Front Mount Cutout: 5.65" / 144 mm
- Motor Diameter: 4.31" / 110 mm
