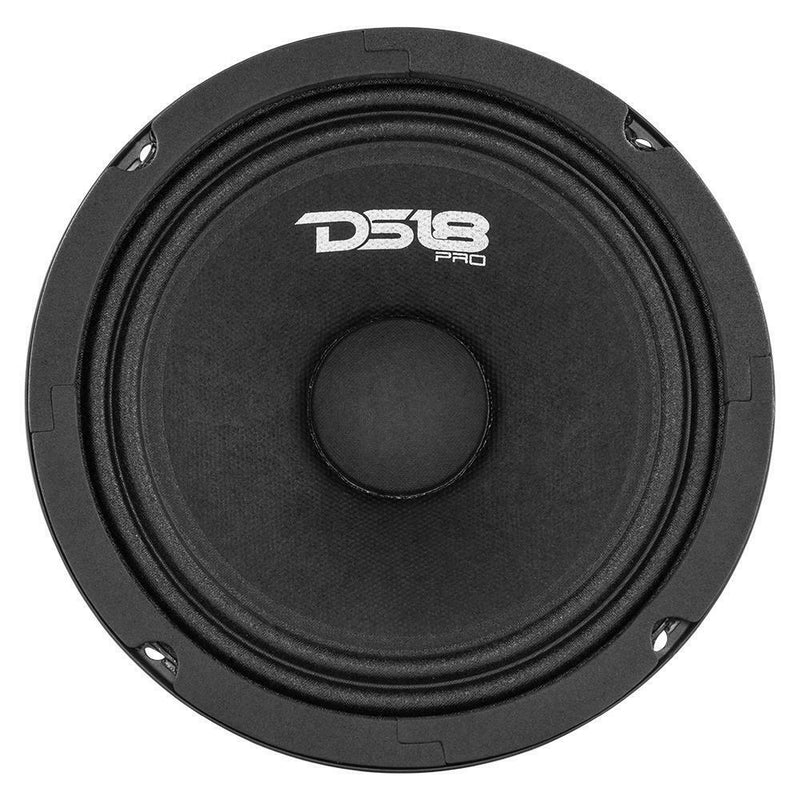

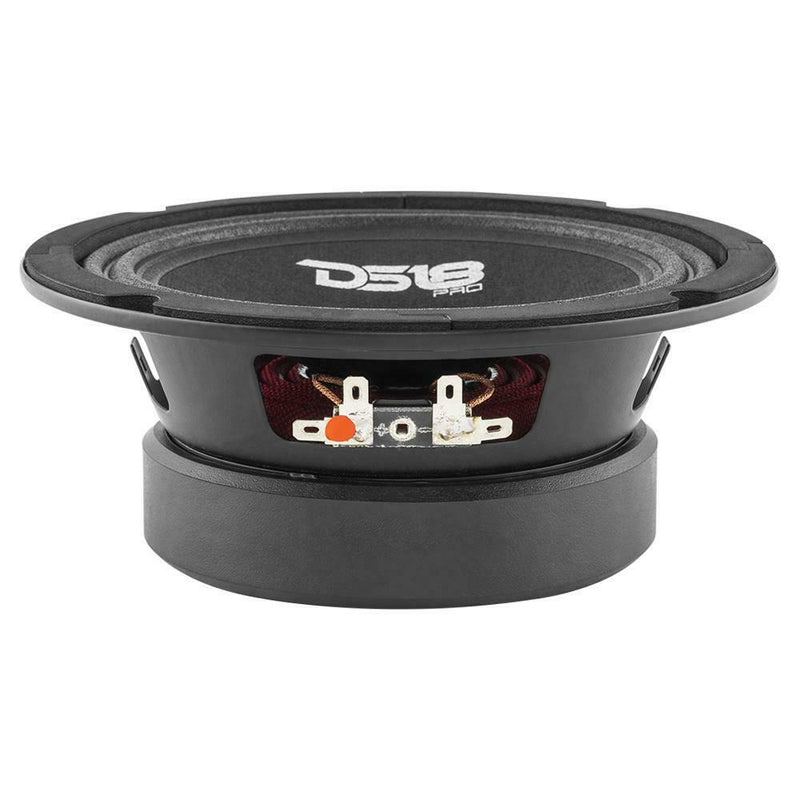

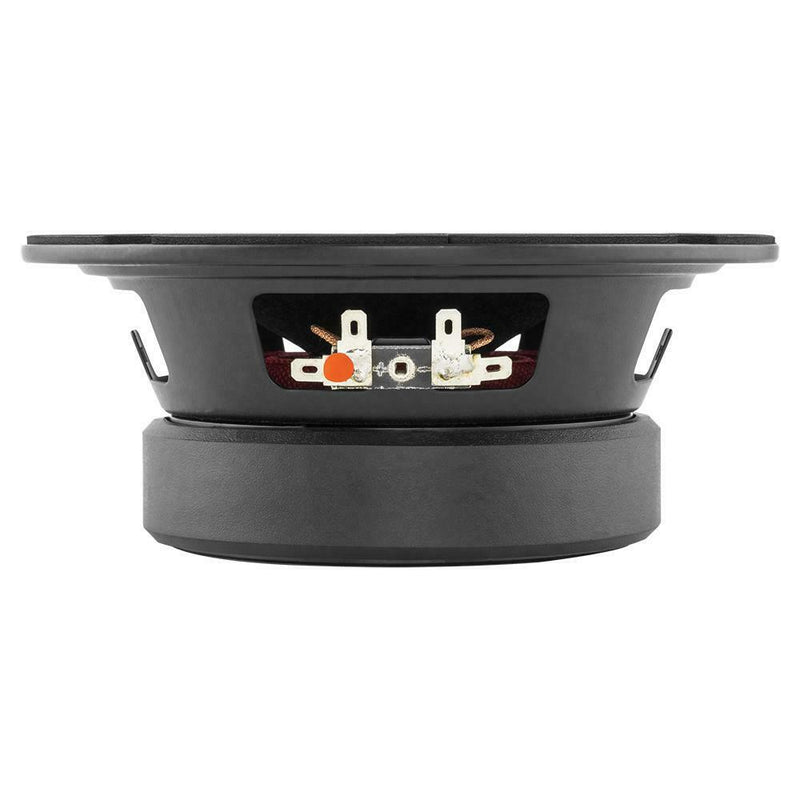

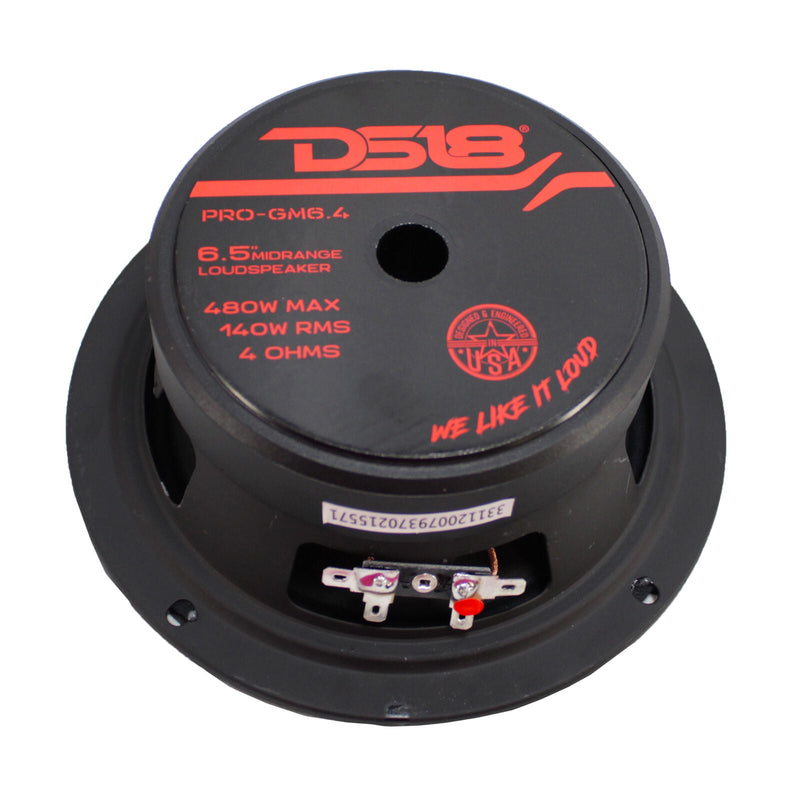

DS18 Pro Car Audio 6.5 Midrange Loudspeaker 480 Watt 4 Ohm PRO-GM6.4

DS18 Pro Car Audio 6.5 Midrange Loudspeaker 480 Watt 4 Ohm PRO-GM6.4



This monster midrange handles up to 140W RMS and 480W maximum power. A frequency range of 90Hz to 10KHz will ensure you get the most out of your frequency range, so you hit all your desired notes with ease. These speakers are a very good selection for someone who wants a little mid bass and very precise voice through their 6-inch speakers. These give amazing crescendos and very solid rock bottom notes. They come with non-pressed paper cones and steel pressed frames that hold a 30oz ferrite magnet. These are very solid speakers that will make even the most advanced audiophile smile.



Highlights:

- Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones.

- Perfect for walls or cuchero boxes that have mid-bass or bass speakers in the enclosure.

- High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.



This listing includes:

(1) DS18 6.5 Midrange Loudspeaker PRO-GM6.4



SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6.5 (165.1mm)

Nominal Impedance: 4 Ohms

MAX Power Handling: 480 Watts

RMS Power Handling: 140 Watts

Sensitivity (1w/1m): 92dB

Frequency Response: 100Hz ~ 10KHz

Recommended HI Pass Crossover: 120Hz



MOTOR:

Voice Coil Diameter: 1.5 (38.1mm)

Voice Coil Former Material: Kapton

Winding Material: CCAW

Cone Material: Paper

Dust Cap Material: Paper

Surround Material: Cloth

Basket Material: Steel

Basket Color: Matte Black

Magnet Material: Ferrite

Magnet Weight: 23 Oz



THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 7.15L (0.252ft)

Free Air Resonance: Fs -102Hz

Mechanical Factor: Qms - 11

Electrical Factor: Qes - 0.729

Total Factor: Qts - 0.684

Cone Area: Sd - 132.73cm

DC Resistance: Re - 3.3 Ohm

Moving Mass: Mms - 8.384g

Compliance: Cms - 0.289mm/N

Force Factor: BL - 4.95



DIMENSIONS PER SPEAKER:

Overall Diameter: 6.57 (167mm)

Front Mount Baffle Cutout: 5.7 (145mm)

Mounting Depth: 2.5 (64mm)

Overall Depth: 2.7 (69mm)

Motor Diameter: 4.33 (110mm)
