DS18 6.5” 250 Watts RMS 4-Ohm High-Sensitivity Pro Loudspeaker w/ Ferrite Magnet

• HIGH POWER MIDRANGE PERFORMANCE: DS18 6PRO500MR-4 delivers 250W RMS / 500W MAX for aggressive, high-output sound in pro audio and SPL systems
• EXTREME 103DB SENSITIVITY: Ultra-efficient design produces louder output with less power, making it ideal for high-volume builds
• CLEAR VOCALS AND STRONG PROJECTION: Wide 100Hz–12.5kHz frequency range allows vocals and instruments to cut through heavy bass systems
• FERRITE MOTOR WITH COPPER RING: Strong motor structure with demodulating ring reduces distortion and improves overall sound clarity
• HIGH-TEMP 1.75" VOICE COIL: Kapton former with CCAW winding increases durability and maintains performance under heavy load
• BUILT FOR LOUD SYSTEMS: Steel basket and cloth surround provide long-lasting reliability in daily and competition builds
• OPTIMIZED FOR PRO AUDIO APPLICATIONS: Designed for amplified systems requiring strong midrange presence and output
• REQUIRES HIGH PASS FILTER: Recommended crossover at 140Hz or higher to protect the speaker and ensure clean performance

DS18 6.5†250 Watts RMS 4-Ohm High-Sensitivity Pro Loudspeaker w/ Ferrite Magnet

This listing includes

• (1) DS18 6PRO500MR-4 6.5†Midrange Speaker

If your system sounds loud but your vocals disappear†this is the fix.

The DS18 6PRO500MR-4 is built for projection, clarity, and raw midrange authority.

103dB sensitivity means it doesn’t just play†it cuts through everything else in the system.

This is not a “fill speaker.â€

This is your front-stage weapon.

The DS18 6PRO500MR-4 is built for one thing—output. With 250W RMS power handling and ultra-high 103dB sensitivity, this 6.5†pro audio midrange cuts through any system with aggressive, crystal-clear sound.

Designed for high-output builds, it delivers strong vocal projection and instrument clarity while maintaining control at extreme volume levels. Whether you're building a loud daily or an all-out SPL setup, this speaker brings serious midrange authority.

Features:

• 250W RMS / 500W MAX power handling


• 103dB ultra-high sensitivity (LOUD with less power)


• Wide frequency response: 100Hz – 12.5kHz


• Ferrite motor for strong, consistent output


• Copper demodulating ring reduces distortion


• 1.75†Kapton voice coil (heat-resistant, efficient)


• Cloth surround for durability in high-output systems


• Built for SPL and aggressive daily builds

Specifications

• Nominal Diameter: 6.5" (165mm)


• Midrange Loudspeaker Speaker


• RMS: 250 Watts


• Max: 500 Watts


• Impedance: 4 Ohms


• Sold As: Single


• Sensitivity (1W/1M): 103 dB


• Frequency Response: 100Hz – 12.5kHz


• Recommended High-Pass Crossover: 140Hz


• Voice Coil: 1.75" Kapton / CCAW


• Magnet: Ferrite (48 oz)


• Magnet Type: Ferrite


• Magnet Weight: 48 oz


• Demodulating Ring: Copper Ring


• Voice Coil Diameter: 1.75" (44.5mm)


• Voice Coil Former: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Cone Shape: Curvilinear


• Surround Material: Cloth


• Spider Diameter: 3.8" (96mm)


• Dust Cap Material: Paper


• Basket Material: Steel


• Basket Finish: Black

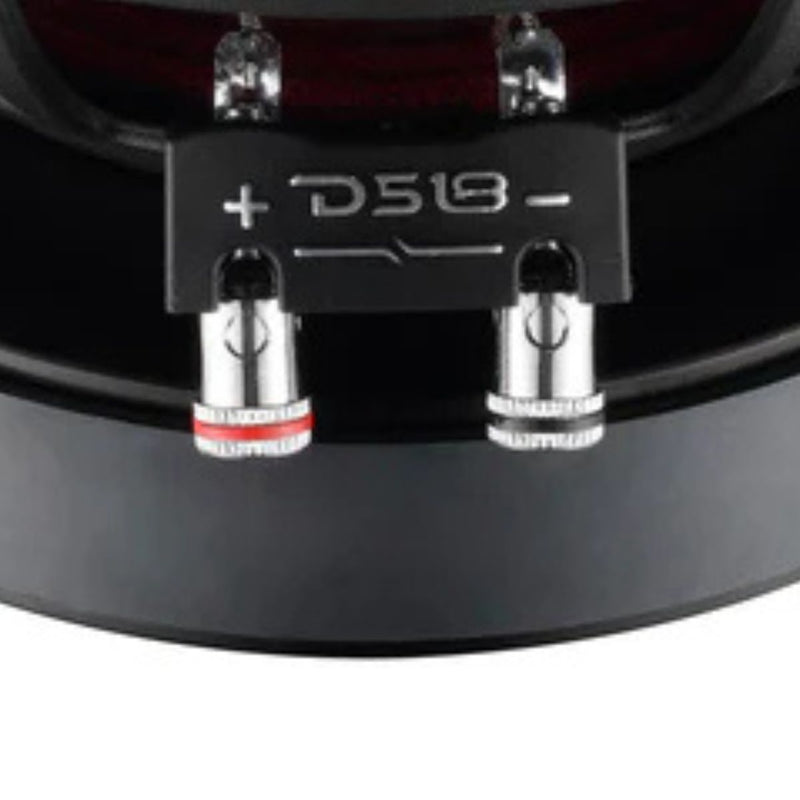

• Speaker Terminals: Push Terminal (16ga compatible)


• Leads Connection: Spider Crossed

Thiele & Small Parameters

• Fs (Resonance Frequency): 130Hz


• Qms (Mechanical Factor): 1.17


• Qes (Electrical Factor): 0.32


• Qts (Total Factor): 0.25


• Vas (Equivalent Volume): 7.25L / 0.256 ft


• Xmax (One Way Excursion): 1.1mm


• BL Factor: 7.95


• Mms (Mechanical Mass): 7.59g


• Cms (Compliance): 0.19 mm/N


• Le (Inductance): 0.33mH


• Re (DC Resistance): 3.2 Ohms


• Sd (Cone Area): 165.13 cm

Dimensions:

• Overall Diameter: 6.85" (174mm)


• Overall Depth: 3.6" (92mm)


• Mounting Depth: 3.36" (85mm)


• Cutout Diameter: 5.9" (150mm)


• Motor Diameter: 5.5" (140mm)

What It Is Best For

• Loud door builds


• SPL setups


• Systems that need vocals to punch through bass


• Pairing with tweeters for full pro-audio front stage

Important Setup Note: These are NOT full-range speakers.

• You MUST run a high-pass crossover at 140Hz or higher


• Do NOT run off head unit power


• These are designed for amplified pro audio setups
