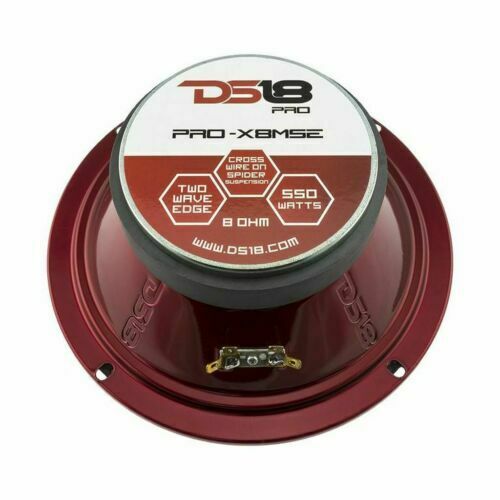

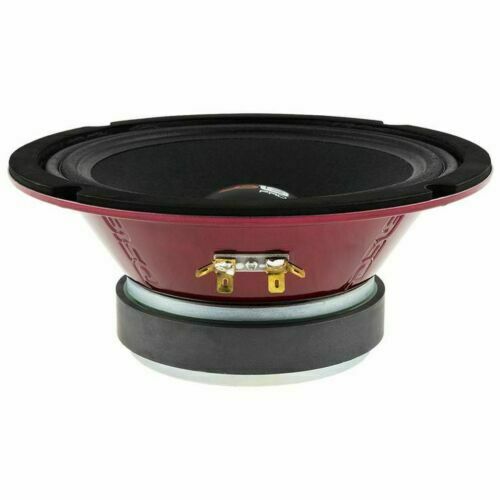

DS18 Car Audio 8" Midrange Speakers Loud Sealed Back 550 Watts 8 Ohm PRO-X8MSE
These Pro Speakers feature a Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones. High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.
Highlights
- Sealed back design which allows you to put these in boxes that have high turbulence or pressure so you don't damage cones.
- Perfect for walls or cuchero boxes that have mid-bass or bass speakers in the ensure.
- High sensitivity and power ratings to make sure your midrange frequencies pierce through the bass and midrange for an amazing full sound.
This Listing includes:

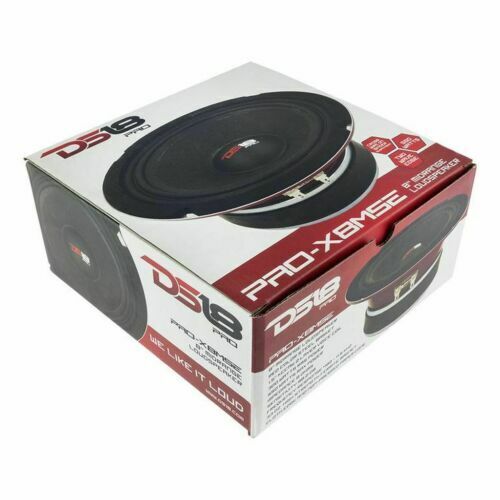

(1) DS18 8" Mid range Loudspeaker PRO-X8MSE
SPECIFICATIONS PER SPEAKER:
Nominal Diameter: 8
Nominal Impedance: 8 OHMS
MAX Power Handling: 550 Watts
RMS Power Handling: 275 Watts
Sensitivity (1w/1m): 97 dB
Frequency Response: 250Hz - 8KHz
Recommended HI Pass Crossover: 500Hz
MOTOR:
Voice Coil Diameter: 1.5 (38.6 mm)
Voice Coil Former Material: KAPTON
Winding Material: CCA
Cone Material: Non-Pressed Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 33 oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 0.727L
Excursion: X-max - 6mm
Free Air Resonance: Fs - 450Hz
Mechanical Factor: Qms - 2.498
Electrical Factor: Qes - 2.292
Total Factor: Qts - 1.195
Diaphragm Area: Sd - 216.42cm
DC Resistance: Re - 5.46 OHMS
Moving Mass: Mms - 11.321g
Compliance: Cms - 0.011mm/N
Force Factor: BL - 8.73
DIMENSIONS PER SPEAKER:
Overall Diameter: 8.2 (208.5 mm)
Front Mount Baffle Cutout: 7.2 (183 mm)
Mounting Depth: 3.23 (82 mm)
Overall Depth: 3.54 (90 mm)
Motor Diameter: 4.72 (120 mm)
