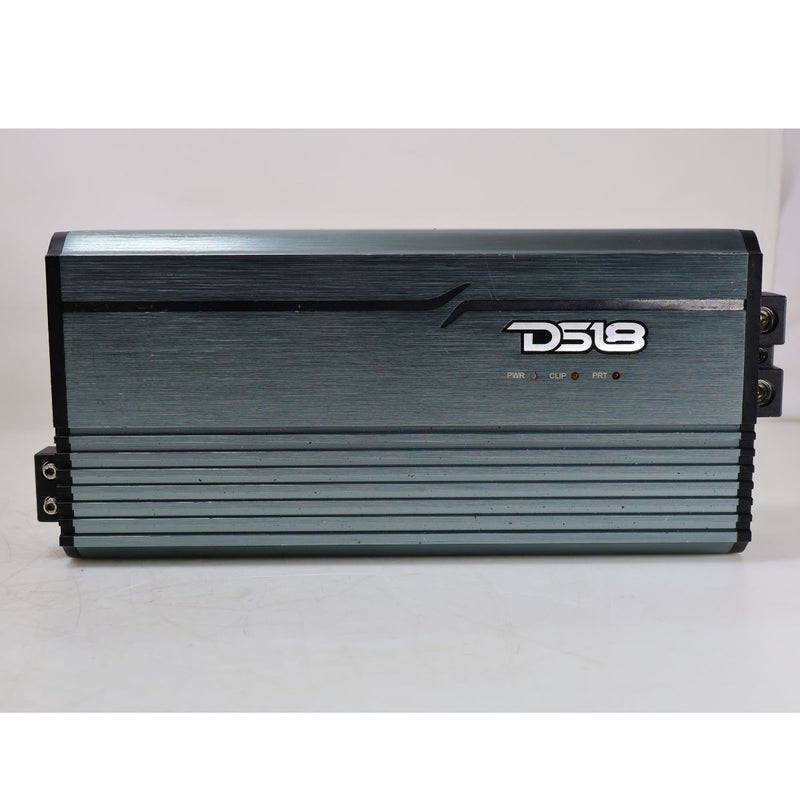

DS18 5000W 1-Ohm Full-Range Class-D Amplifiers FRP Monoblock Titanium OPEN BOX

• Exceptional Power: Delivers outstanding power and audio quality for an immersive listening experience.
• High Efficiency Design: Micro digital design maximizes power output while minimizing energy consumption.
• Tailored Sound: Variable full crossover filters allow for customized sound performance.
• Advanced Engineering: Features surface mount component technology and Reliable Four Layer Trace PCB Design for durability.
• Enhanced Safety: LED indicators offer real-time feedback, while built-in protections ensure amplifier and vehicle safety.

DS18 5000W 1-Ohm Full-Range Class-D Amplifiers FRP Monoblock Titanium OPEN BOX

In perfect working condition

Has been mounted

Small scratches

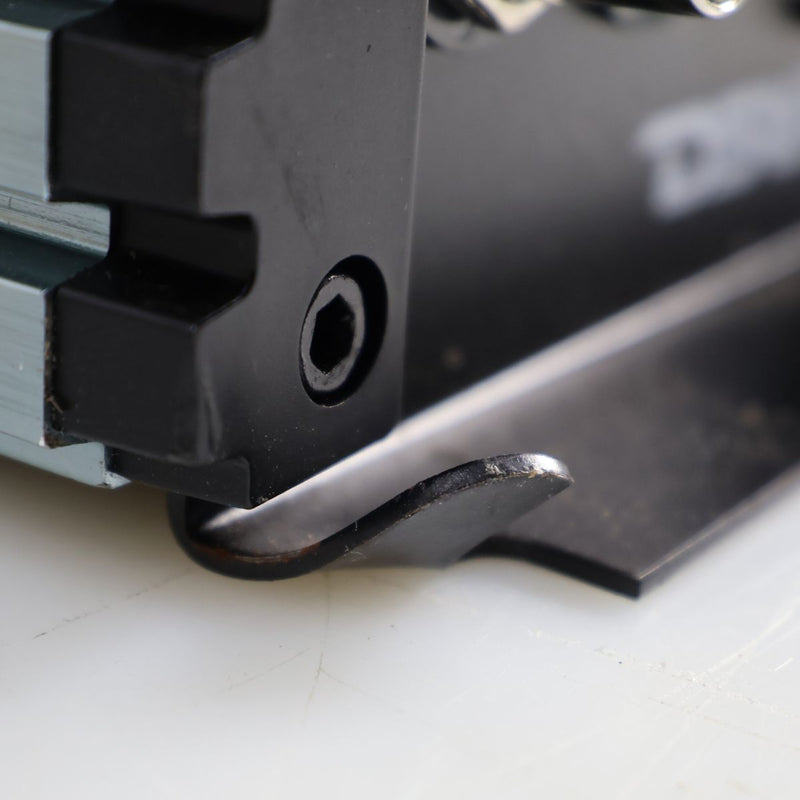

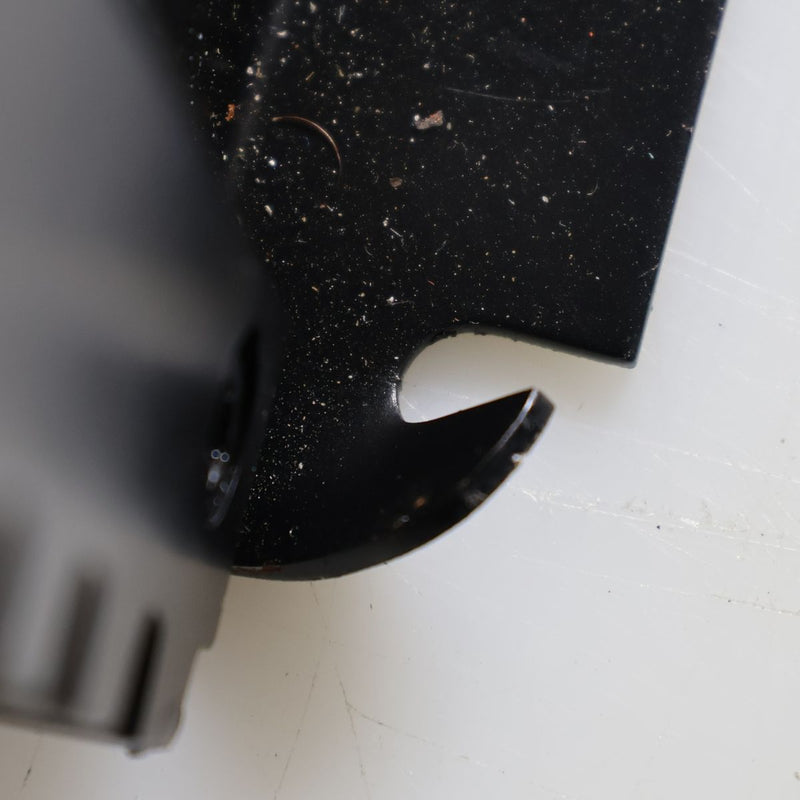

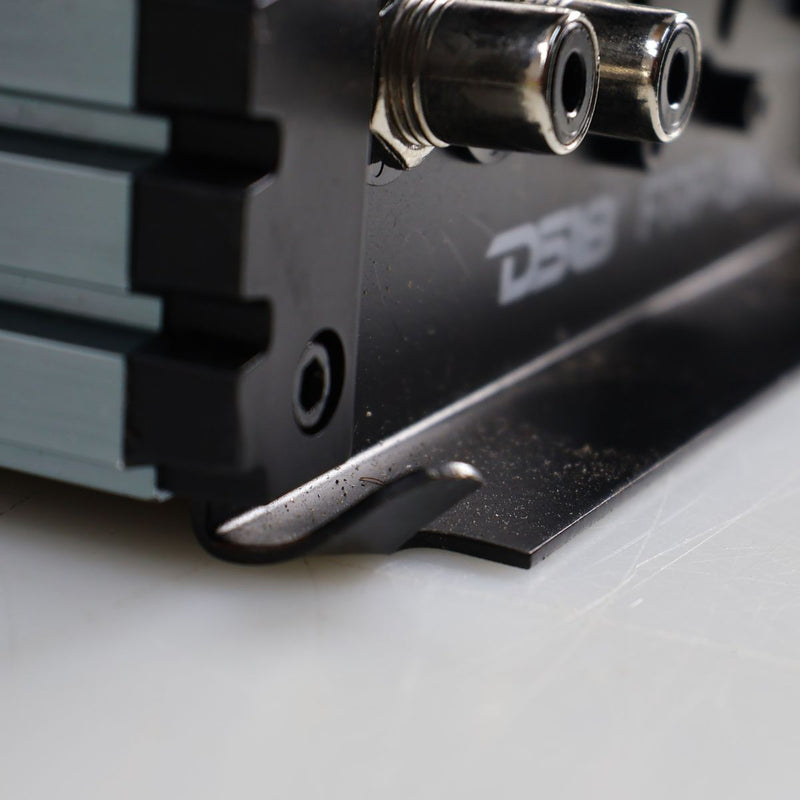

Mounting brackets bent

Missing original packaging & manuals

Missing Bass Knob & Cable

Open-box items are not subject to returns. They are sold "As Is". All requests for returns will not be accepted.

This Listing Includes:

• (1) DS18 FRP 5000W Amplifier

DS18’s FRP-5K is a game-changer in car audio, delivering exceptional power and audio quality. Its high efficiency micro digital design maximizes power output while minimizing energy consumption. Variable full crossover filters allow for tailored sound performance. Engineered with advanced technology, it features surface mount component technology and Reliable Four Layer Trace PCB Design for durability. LED indicators provide real-time feedback on status, and built-in protections ensure amplifier and vehicle safety. With outputs ranging from 1500W to 5600W RMS, it's perfect for any vehicle. Easy installation with compact size and Tiffany RCA Terminals. Experience the DS18 Difference with the FRP-5K.

POWER

• RMS Power @ 4-OHM @ 4-OHM: 1500W


• RMS Power @ 2-OHM @ 2-OHM: 2900W


• RMS Power @ 1-OHM @ 1-OHM: 5000W


• MAX Power @ 1-OHM (BURST): 5600W

AUDIO

• Frequency Response: 10Hz-15KHz


• Signal to Noise Ratio: 83dB


• Efficiency @ 4-Ohm: 92%


• Damping Factor: 90


• Input Impedance: 10K-Ohm


• Total Harmonic Distortion (THD): 0.5%


• Low Level Input Range: 400mv-3.6V

Selectable X-Over

• X-Over Filter Range HP: 10Hz-2KHz / LP: 40Hz-20KHz


• Bass Boost Range: 0-12dB


• Bass Boost Frequency: 50Hz

FEATURES:

• Amplifier Class: Digital


• Amplifier Type: Full-Range Monoblock


• Number of Channels: 1-CH


• Minimum Impedance: 1-OHM


• LED Indicator Power / Protect / Clipping

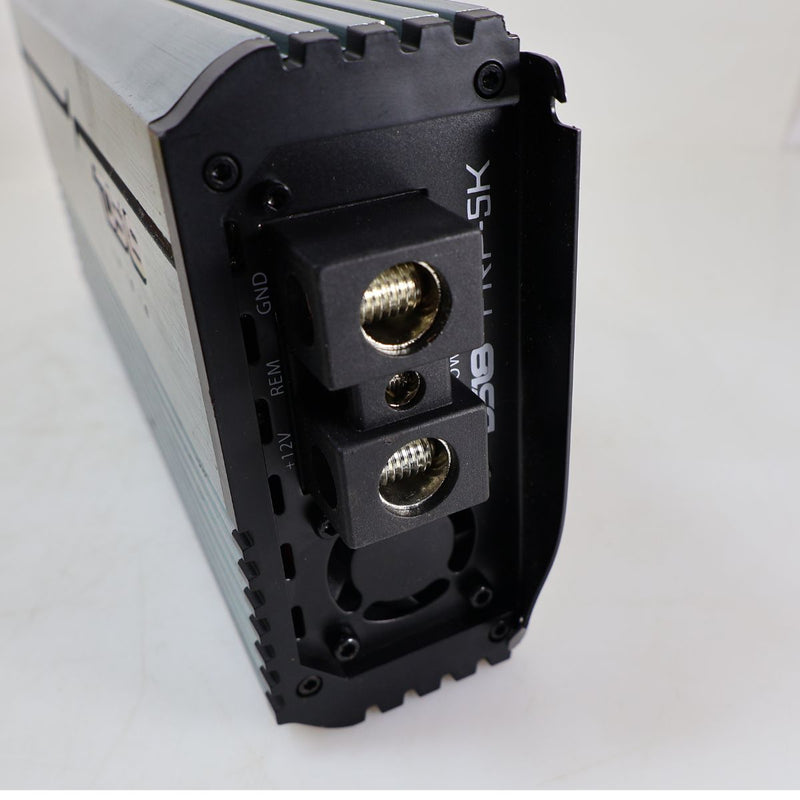

• Power Input Terminal Size: 0Ga


• Fuse Size: 500A


• Remote Level Control with Clip Indicator: Yes


• Cooling Fan Yes (Smart Cooling x 2)


• Thermal Protection: Yes


• Over-Load Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes


• Clipping Protection: Yes


• Compact Size for an Easy Installation in any Application: Yes


• Stable/Reliable Four Layers Traces PCB Design: Yes


• Surface Mount Component Technology: Yes


• Quality Control Verification using Audio Precision Instruments: Yes


• Tiffany RCA Terminal: Yes


• LED Clip Indicator: Yes


• Metal Knobs with Click Steps: Yes


• Remote Level Control with Clip Indicator and Voltmeter: (sold separately)

Body Color:

• FRP-5K-BL - Blue


• FRP-5K-TI - Titanium


• FRP-5K-RD - Red

MEASUREMENTS

• Overall Length: 12.2" / 310mm


• Overall Width: 5.5" / 140mm


• Overall Height: 2.36" / 60mm


• Heatsink Length: 11" / 278mm


• Gross Single Unit Weight: 7.3lbs / 3.3kg
