DS18 NXL-M5 1520W RMS 5-Ch IPX5 Marine Class-D Amplifier w/Bass Knob

• 3600W peak marine amplifier with powerful 5-channel output
• IPX5 water resistant with UV and corrosion protection
• Full range Class-D design with dedicated subwoofer channel
• Waterproof bass knob and LED clip indicators included
• Built-in thermal, voltage, and short circuit protection

DS18 NXL-M5 1520W RMS 5-Ch IPX5 Marine Class-D Amplifier w/Bass Knob

This listing Includes:

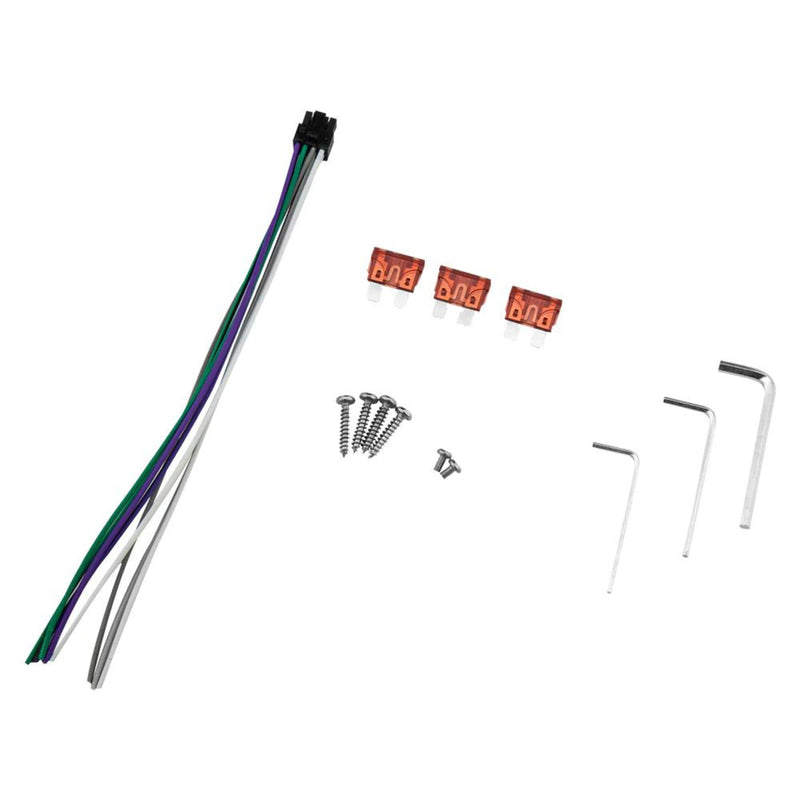

• (1) 5 Channel Full Range Class D Amplifier

Utilizing an impressive MAX power of 3600W, the NXL-M5 delivers unrivaled performance that will make your system soar. With its RMS power output of 4 x 150W and a whopping 600W for SUB's, the NXL-M5 guarantees consistent audio performance that is guaranteed to satisfy even the most discerning audiophile. The DS18 NXL-M5 covers the full range of frequencies ensuring that every beat, note, and whisper is reproduced with unrivaled precision. Built to withstand the harshest marine environments. Made from hardware resistant to corrosion and UV rays, the NXL-M5 is guaranteed to stand the test of time, even under the most challenging circumstances. The coated 4-layer PCB provides an additional layer of protection against corrosion, guaranteeing the NXL-M5's reliability for years to come.

Features:

• Hardware resistant to corrosion and UV protection


• Coated 4 Layers PCB to prevent corrosion


• Class D Circuit Design


• IPX5 Water resistant grade

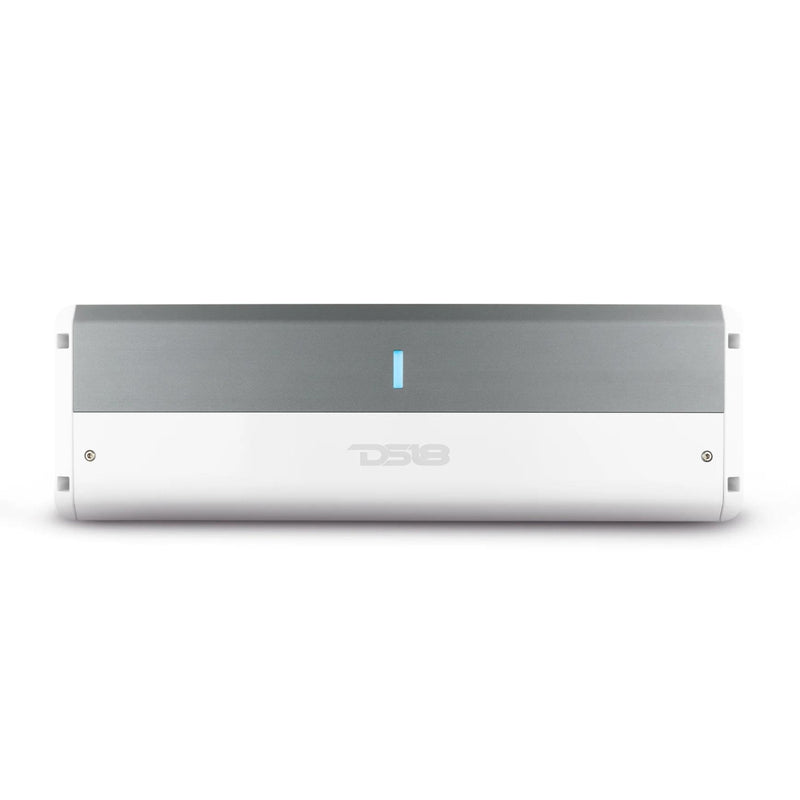

• Front cover to keep the controls safe to the elements


• LED Clip Indicator to easier adjustment

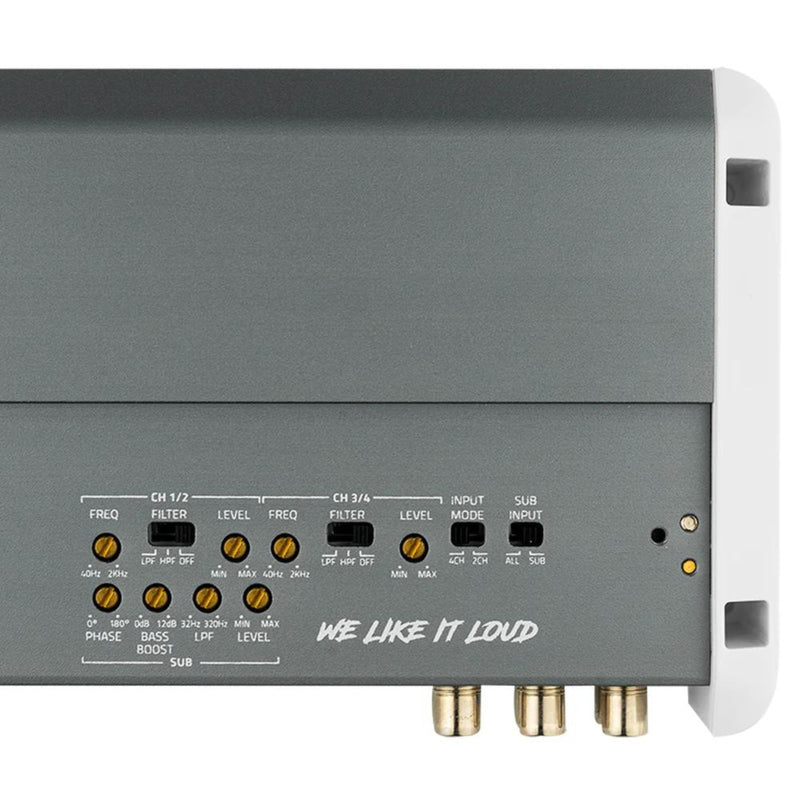

• High Quality Potentiometers with copper shaft


• Surface Mount Component Technology


• Audio Precision Quality Control Verification

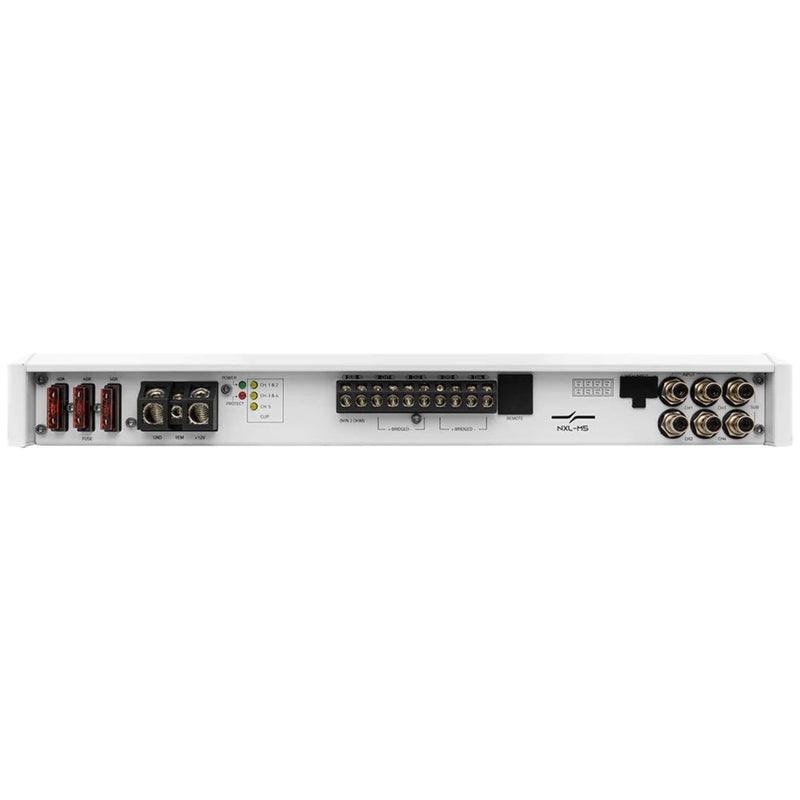

• Direct Insert Power and Speaker Terminals


• Short Circuit, Thermal, and Voltage Protection

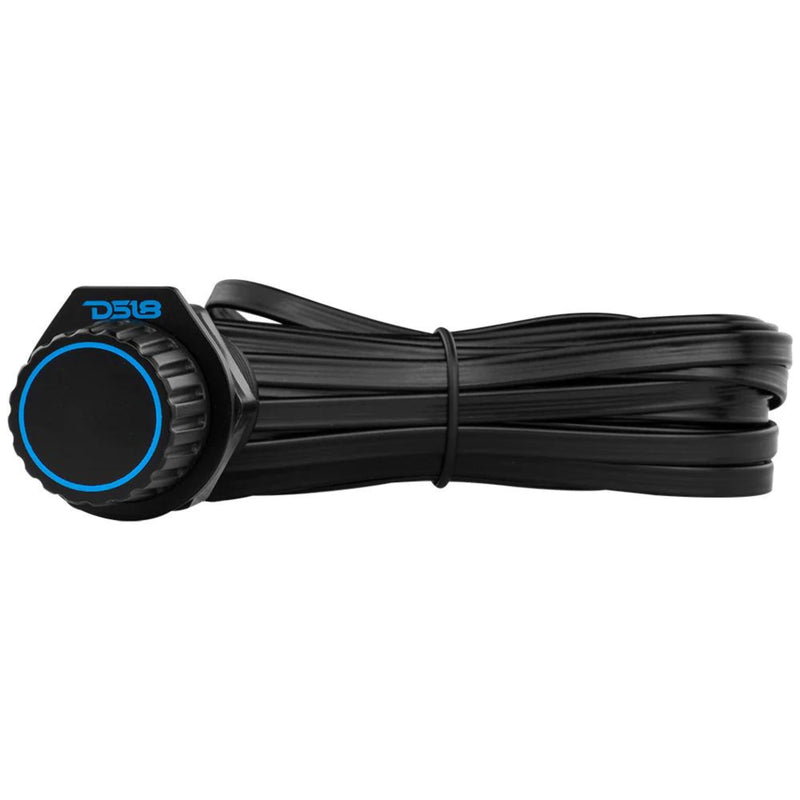

• Waterproof Remote level bass knob specially designed for easy installation on the panel's boat or wet areas.


• DS18 Quality You Can Trust


• Effortless Installation DS18 is Known For


• Unleash Unprecedented Power

Specifications:

• Total Watts (Peak): 3600W


• RMS Power @ 4 ohm: 4 x 150W / SUB: 300W


• RMS Power @ 2 ohm: 4 x 230W / SUB: 600W


• RMS Power @ 4 ohm Bridge: 2 x 440W


• Frequency Response: 20Hz - 20KHz


• Signal to Noise Ratio: >90dB


• Efficiency @ 4ohm: >97%


• Channel Separation: >55dB


• Total Harmonic Distortion (THD): <0.15%


• Low Level Input Range: 0.2V-6V


• High Level Input: Yes: >/= 5V


• Selectable X-Over: HPF/LPF/FULL / SW: Fixed LPF


• X-Over Filter Range: 40Hz - 2KHz / SW: 32Hz - 320Hz


• Bass Boost Range: 0-12dB (SW)


• Bass Boost Frequency: 45Hz +-5Hz


• Phase Selector: Yes 0~180 degrees (SW)
