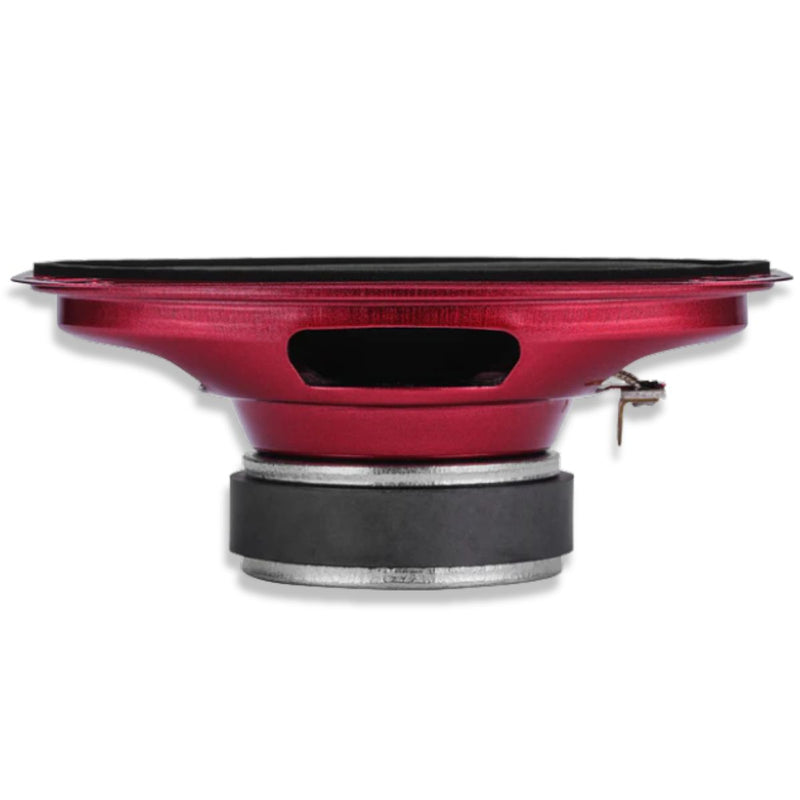

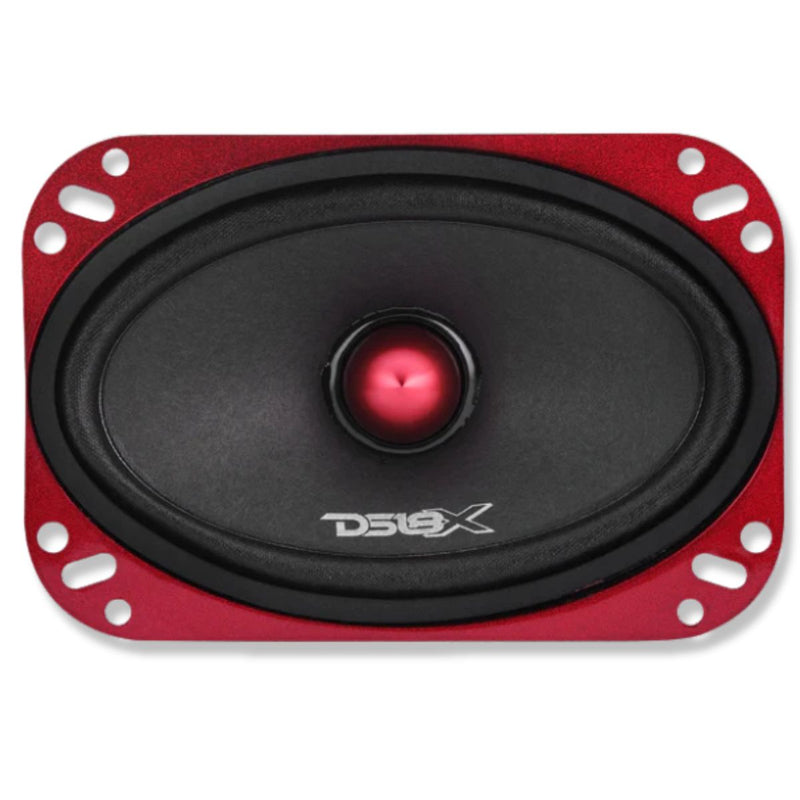

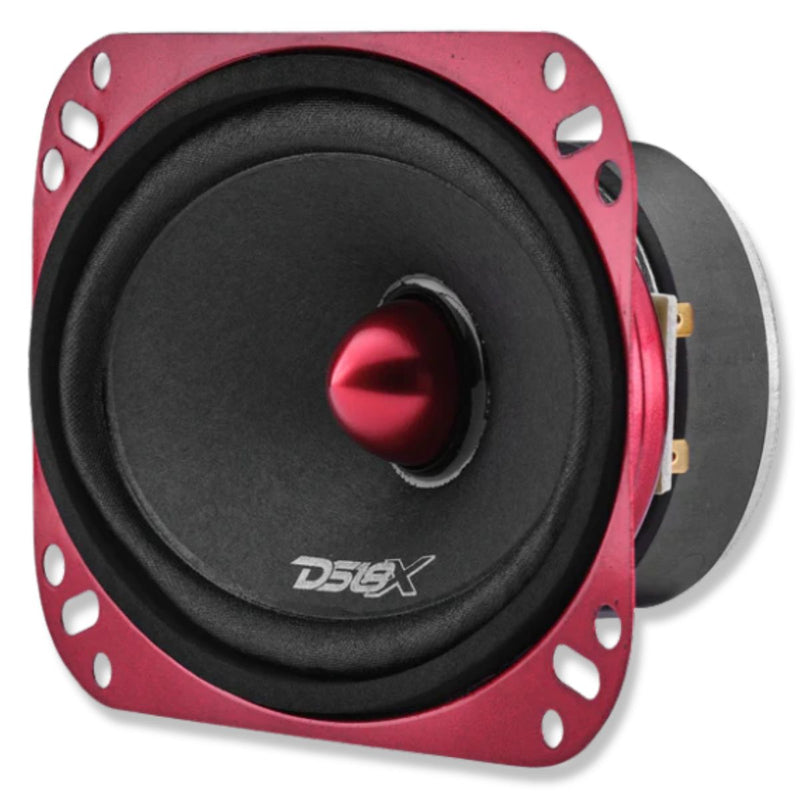

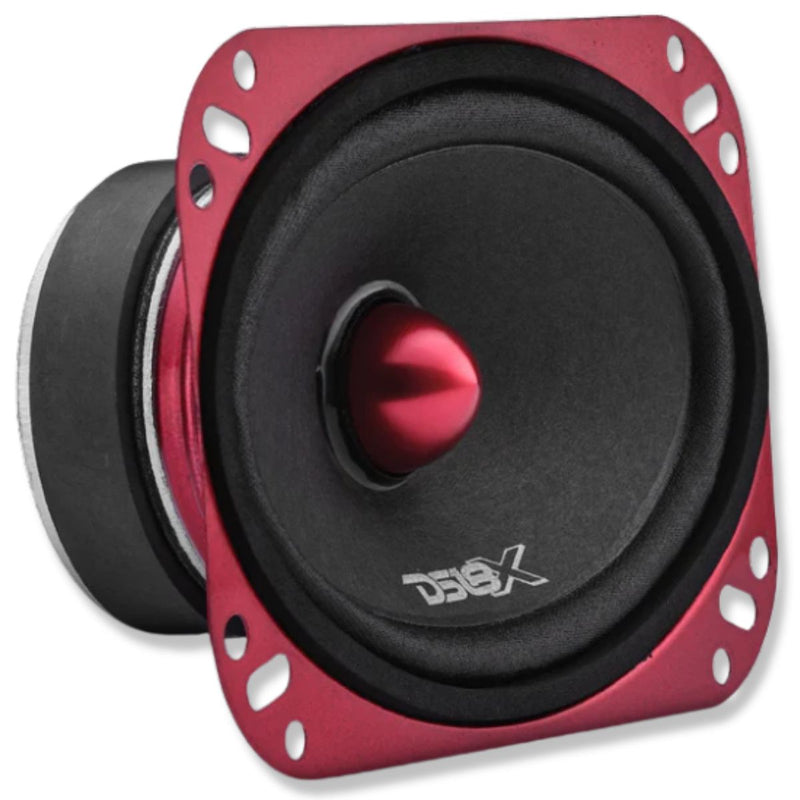

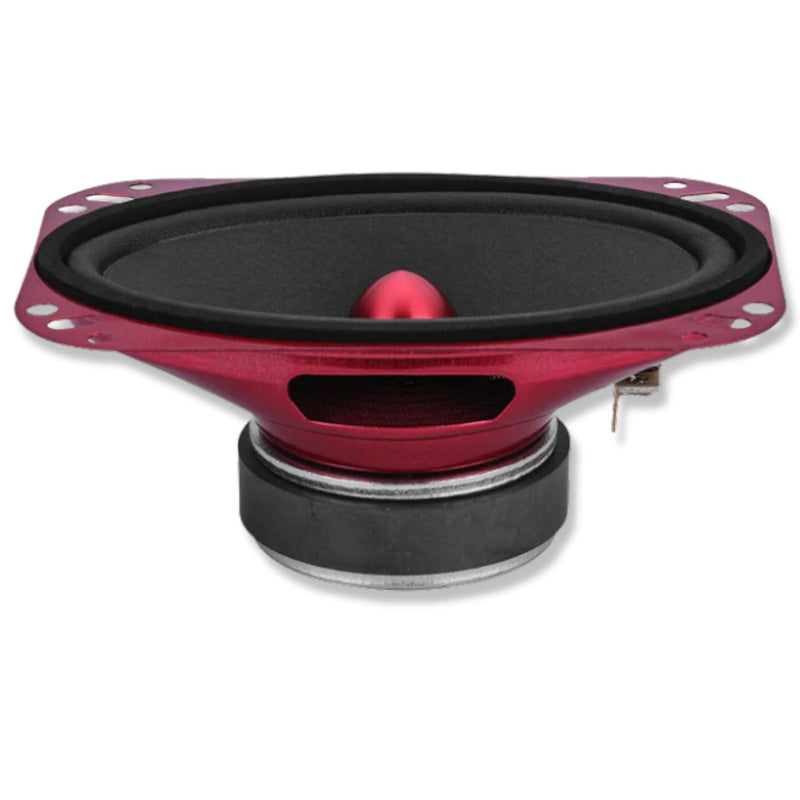

DS18 4x6" 100W RMS 4-Ohm Mid-Range Loudspeaker with Bullet PRO-X46.4BM

• Powerful Mid-Range Performance – Delivers 100W RMS and 200W MAX at 4 ohms for clear, punchy mids.
• Aluminum Bullet Design – Gloss red bullet projects sound further with added precision and clarity.
• High Sensitivity – 90dB rating ensures loud, efficient output without needing massive power.
• Durable Build – Paper cone, cloth surround, Kapton voice coil former, and steel red basket.
• Pro Audio Upgrade – Perfect for car audio enthusiasts seeking crisp mids that cut through noise.

DS18 4x6" 100W RMS 4-Ohm Mid-Range Loudspeaker with Bullet PRO-X46.4BM

This Listing Includes

• (1) DS18 PRO-X46.4BM 4x6" Mid-Range Loudspeaker

The PRO-X46.4BM is a high-output 4x6" mid-range loudspeaker engineered for clarity, projection, and precision. With a built-in gloss red aluminum bullet, it directs sound directly to your listening area, ensuring mids cut through any environment.

Delivering 100W RMS / 200W MAX at 4 ohms with 90dB sensitivity, this speaker provides powerful, detailed midrange without requiring excessive power. The CCAW voice coil wound on a Kapton former handles heat efficiently, while the ferrite magnet powers a fast, punchy response. Perfect for professional car audio setups or custom installations.

Features

• High-Output Midrange - 4x6" design with bullet for precise, clear mids.


• Power Handling - 100W RMS / 200W MAX at 4 ohms for reliable performance.


• Built-In Bullet - Gloss red aluminum bullet projects sound further and more accurately.


• Efficient Sensitivity - 90dB ensures loud, clear output without massive power.


• Durable Construction - Steel basket, paper cone, cloth surround, and CCAW voice coil on Kapton former.

Specifications

• Nominal Diameter: 4x6" (102x152 mm)


• Nominal Impedance: 4-Ohms


• RMS Power Handling: 100W


• MAX Power Handling: 200W


• Sensitivity (1W/1m): 90 dB


• Frequency Response: 100Hz-12.5kHz


• Recommended Hi-Pass Crossover: 125 Hz


• Pair or Single: Single


• Grill Included: No

Motor & Voice Coil

• Voice Coil Diameter: 1" (25.4 mm)


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Bullet Material: Aluminum


• Bullet Color/Finish: Red Gloss


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color/Finish: Red Gloss


• Magnet Material: Ferrite


• Magnet Weight: 10 oz

Thiele & Small Parameters

• Equivalent Volume: 2.44L / 0.086 ft


• Excursion (Xmax, one way): 1.3 mm


• Free Air Resonance (Fs): 158 Hz


• Mechanical Factor (Qms): 7.012


• Electrical Factor (Qes): 0.533


• Total Factor (Qts): 0.495


• Mechanical Mass (Mms): 3.772 g


• Mechanical Compliance (Cms): 0.0273 mm/N


• BL Factor: 4.87


• Voice Coil Inductance (Le): 0.134 mH


• Cone Area: 84.95 cm


• DC Resistance (Re): 3.3 Ohm

Dimensions:

• Overall Diameter: 4.1x6.1" (104x155 mm)


• Overall Depth: 2.45" (62.2 mm)


• Front Mount Baffle Cutout: 3.4x5.6" (86.4x142 mm)


• Mounting Depth: 2.26" (57.3 mm)


• Motor Diameter: 2.76" (70 mm)
