- 8 Midrange Loudspeaker with Bullet Dust Cap
- Easily tuned crossover and gain controls for the perfect sound settings in your vehicle
- Powerful and reliable Titanium 4-Ohms 1-inch voice coil rated at 60 watts AES, 120 watts program, and 240 peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- High quality circuit board to give the most power with the highest efficiency rate providing high power on demand

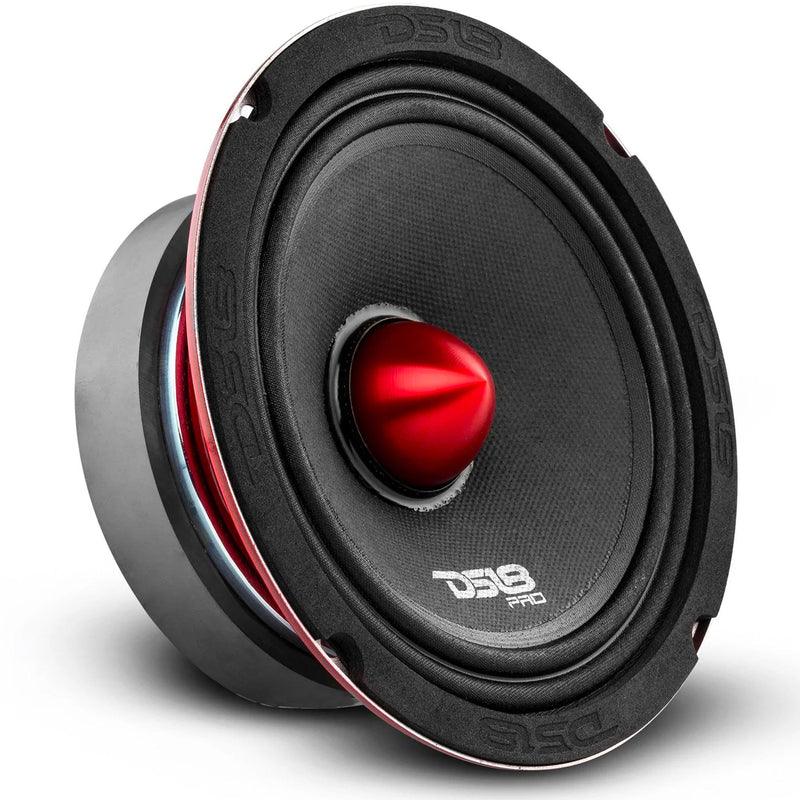

DS18 Combo Pack of 4 Car Audio 8" Midrange Loudspeakers /w Bullet 4 Ohm 2200 Watt PRO-X8.4BM, a DS18 4 Channel Full Range Amplifier Elite 4 Ohm 600 Watt Class D ZXI.4, Pair of DS18 1" Silver 240W 4 Ohm Pro Aluminum Super Bullet Tweeters PRO-TWX1, and DS18 4 AWG Guage Complete Car Amplifier Installation Kit.
With strong midrange and clear high frequencies, these loudspeakers deliver a concert-like audio experience without any distortion. Even better, the 1.5 4-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time. The high 96 dB sensitivity of the PRO-X8.4BM lets you crank up the volume without any sound distortion, while the 125Hz to 16KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 275 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!
Over time evolution is inevitable. The same can be said for DS18's new Z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of RMS power on demand. The previous Z series was very powerful to begin with and we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, and Monoblock amps in this line to power every aspect of your DS18 audio system.
Engineered and Designed in the US, the DS18 PRO Tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready to deploy for a major concert. Simply put, there are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your new PRO Tweeters as much as we do.Warning: Extremely Loud.
This Complete 4 Gauge Amp Kit comes complete with true gauge wire, hardware, fusing and signal cable. Hooking up your amplifier is easy with this complete amp kit. The best hardware, remote, and power cable comes in one convenient package.
---------------------------------------------------------------
This listing includes:
(4) DS18 8 Midrange Loudspeakers PRO-X8.4BM
(1) DS18 4 Channel Amplifier ZXI.4
(2) PRO-TWX1 Tweeters
(1) Mini-ANL Fuse Holder with Mini-ANL 120A
(1) Rubber Grommet
(6) ft. 4GA Loom Tube
(3) ft. Black Ground Cable: 21mm OD: 10mm
(17) ft. Red Power Cable: 21mm OD: 10mm
(17) ft. Red/Black Twisted RCA Cable
(17) ft. Turn-On Remote Cable 20 x 0.15mm
(17) ft. Red/Black Speaker Cable 1.31mm x 2C OD 3.2 x 6.4mm
(10) Cable Ties
(2) Ring Terminals
(2) Spade Terminals
(5) Small Spade Terminals
(1) Rubber Grommet
---------------------------------------------------------------
SPECIFICATIONS AND FEATURES PER INDIVIDUAL PRO-X6.4BM LOUDSPEAKER:
FEATURES:
- 8 Midrange Loudspeaker with Bullet Dust Cap
- Max Power Handling: 550 Watts
- Rms Power Handling: 275 Watts
- Frequency Response: 125Hz-16Khz
- Voice Coil Diameter: 1.5
- Voice Coil Material: Kapton
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 96dB
- Magnet Weight: 30 Oz
- Magnet Material: Ferrite
- Mounting Depth: 3.11
SPECIFICATIONS:
Nominal Diameter: 8 (203.2mm)
Nominal Impedance: 4 Ohms
MAX Power Handling: 550 Watts
RMS Power Handling: 275 Watts
Sensitivity (1w/1m): 96dB
Frequency Response: 125Hz ~ 16KHz
Recommended HI Pass Crossover: 120Hz
MOTOR:
Voice Coil Diameter: 1.5 (38.1mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 26.60L
Excursion: X-max - 9.3mm
Free Air Resonance: Fs - 93Hz
Mechanical Factor: Qms - 9.275
Electrical Factor: Qes - 0.589
Total Factor: Qts - 0.552
DC Resistance: Re - 3.2 Ohms

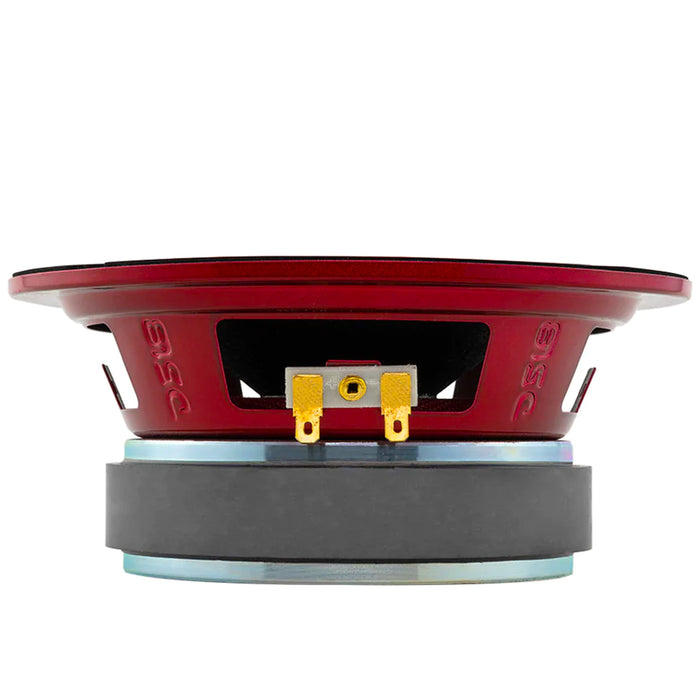

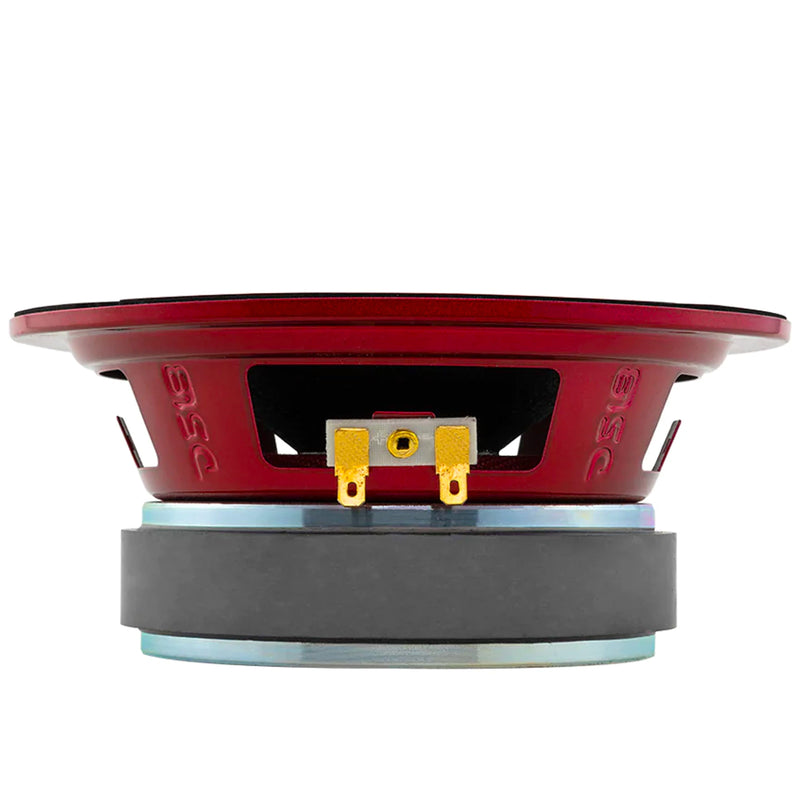

DIMENSIONS PER SPEAKER:
Overall Diameter: 8.22 (209mm)
Front Mount Baffle Cutout: 7.17 (182mm)
Mounting Depth: 3.11 (79mm)
Overall Depth: 3.39 (86mm)
Motor Diameter: 4.72 (120mm)
---------------------------------------------------------------

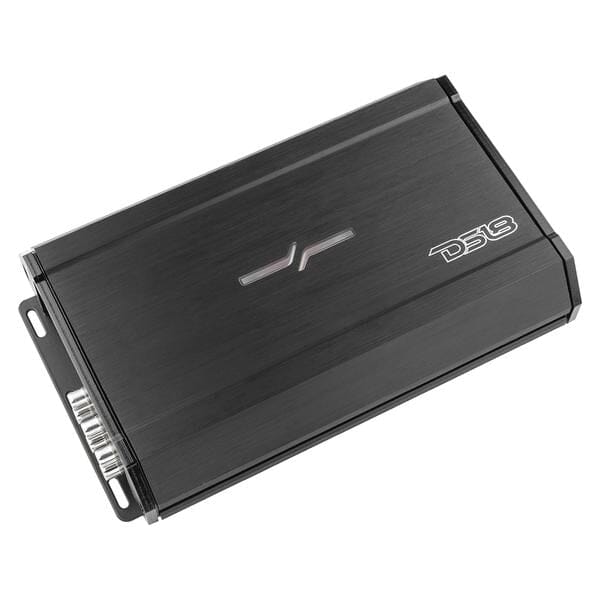

SPECIFICATIONS AND FEATURES OF ZXI.4 AMPLIFER:
FEATURES:
- Elegant design that retains very high durability with incorporated high efficiency heat sync.
- High quality circuit board to give the most power with the highest efficiency rate providing high power on demand.

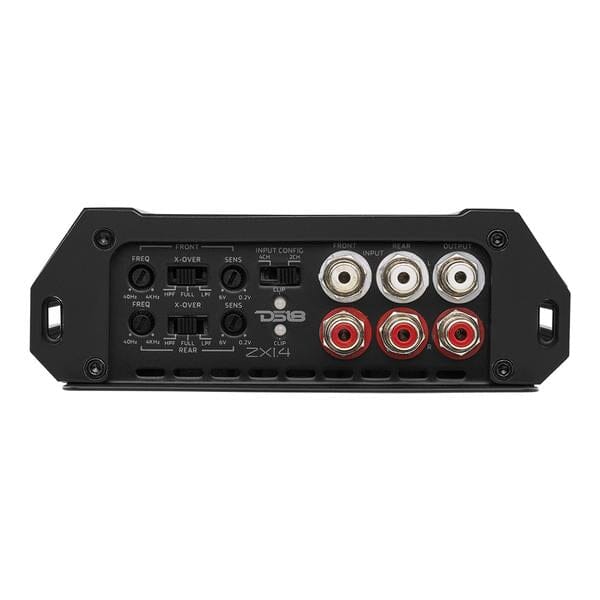

- Easily tuned crossover and gain controls for the perfect sound settings in your vehicle.
SPECIFICATIONS:

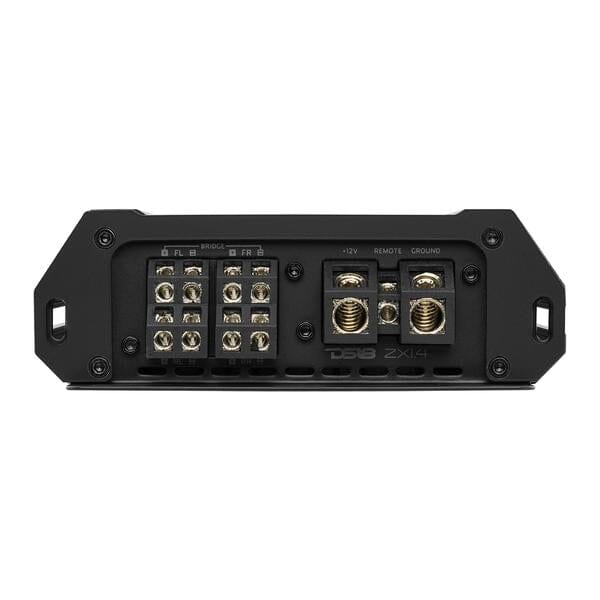

Model: ZXI.4
Class: D
Number of Channels: 4
RMS Power @ 4 Ohm: 125W x 4CH
RMS Power @ 2 Ohm: 185W x 4CH
RMS Power @ 4 Ohm Bridge: 370W x 4CH
Peak Power @ 4 Ohm: 200W x 4CH
Peak Power @ 2 Ohm Bridge: 300W x 4CH
Peak Power @ 4 Ohm Bridge: 600W x 2CH
Minimum Impendence: 2 Ohm
Frequency Response: 20 ~ 20KHz
Total Harmonic Distortion: 0.10%
Input Sensitivity: 0.2 ~ 6V
Signal/Noise Ratio: Less than 90dB
LED Power and Protection Indicator
Recommended Crossover High Pass: 40 ~ 4KHz
Recommended Crossover Low Pass: 40 ~ 4KHz
Bass Boost: 0 ~ 18dB
Operation Voltage: 8.5 ~ 16.8V
Fuse Rating: 40A x 2
Power Input Size: 4 GA
DIMENSIONS:
Length: 9.5"
Width: 5.7"
Height: 1.9"
---------------------------------------------------------------

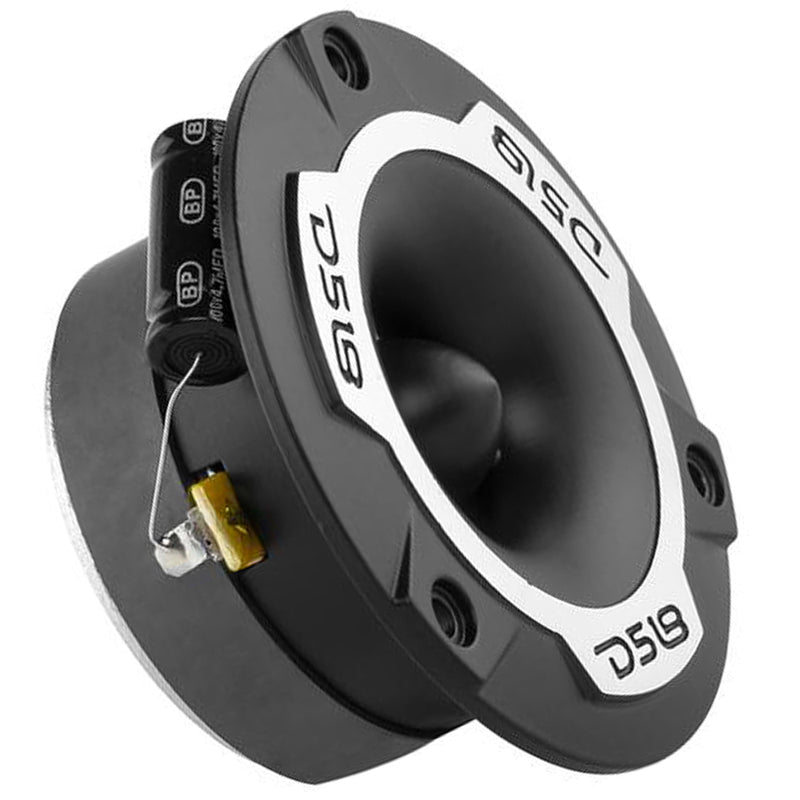

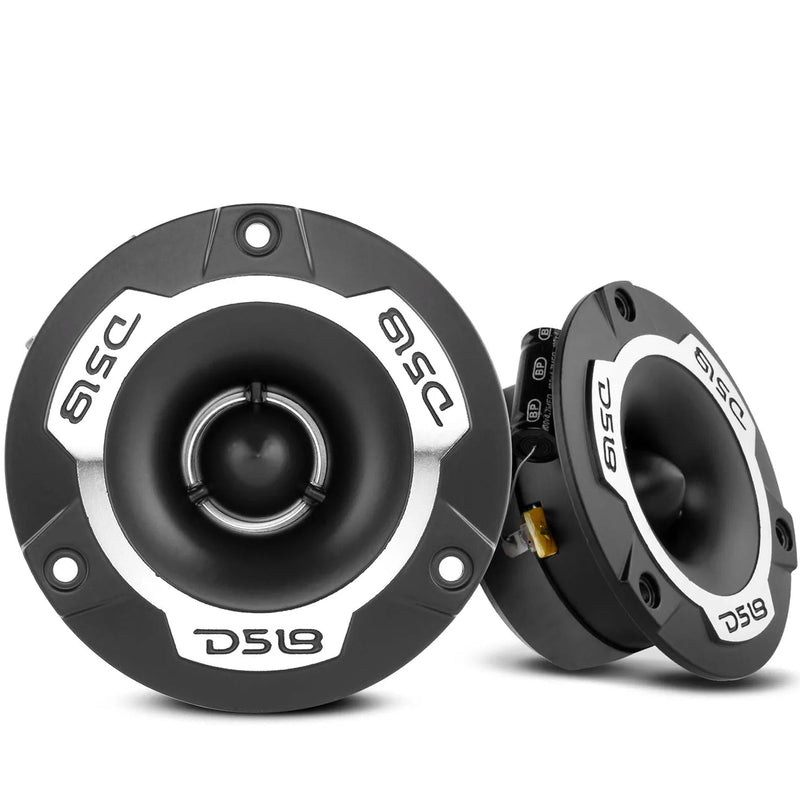

SPECIFICATIONS AND FEATURES OF EACH PRO-TWX1 TWEETER:
FEATURES:
- Handles high frequencies with ease so you can enjoy your favorite music with loudness and sound quality combined.
- Powerful and reliable Titanium 4-Ohms 1-inch voice coil rated at 60 watts AES, 120 watts program, and 240 peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Professional grade Pro-Audio tweeter that takes your sound system to the next level!
- Designed to be repaired quickly and easily with our drop in voice coil kits that can be installed in less than 5 minutes.
- Extremely high 103 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.
- The ferrite motor structure, with a mounting depth of only 1.57 inches is robust yet small enough to fit an a wide and almost limitless number of applications.
SPECIFICATIONS:
Model: PRO-TWX1
Type: Super Bullet Tweeter
Peak Power Handling: 240 Watts
Program Power Handling: 120 Watts
AES Power Handling: 60 Watts
Diaphragm Material: Aluminum
Sensitivity: 103dB
Impedance: 4 Ohms
Voice Coil Diameter: 1"
Frequency Response: 3.5KHz - 20KHz
Package Quantity: 2
Replacement Diaphragm: PRO-TW1VC
DIMENSIONS:
Overall Diameter: 3.78" (96mm)
Overall Depth: 1.78" (45mm)
Front Mount Baffle Cutout: 2.76" (70mm)
Mounting Depth: 1.57" (40mm)
---------------------------------------------------------------
