- 2000 Watts Combined Peak Power
- 1000 Watts Combined RMS Power
- Kapton Voice Coil
- Easily tuned crossover and gain controls for the perfect sound settings in your vehicle
- High quality circuit board to give the most power with the highest efficiency rate providing high power on demand

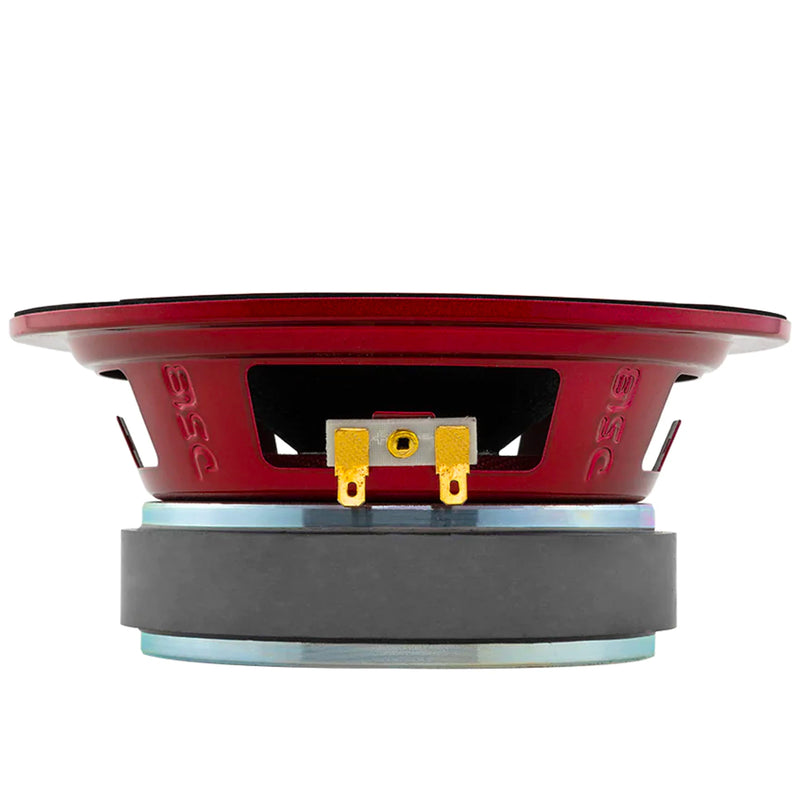

DS18 Combo Pack of 4 Car Audio 6.5" Midrange Loudspeakers 2000 Watts 4 Ohm /w Bullet PRO-X6.4BM and a DS18 4 Channel Full Range Amplifier Elite 4 Ohm 600 Watt Class D ZXI.4
With strong midrange and clear high frequencies, these speakers deliver a concert-like audio experience without any distortion. Even better, the 1.5" 4-ohms voice coil handles high heat temperatures without breaking a sweat so you can blast your favorite music on a regular basis for extended periods of time.
The high 94dB sensitivity of the PRO-X6.4BM lets you crank up the volume without any sound distortion, while the 125Hz to 12KHz frequency provides richer and more accurate tones that any audiophile will immediately notice. These loudspeakers can also handle up to 250 Watts RMS, making it capable of handling consistent and heavy usage. Put this baby on max volume and enjoy extreme volume levels with crystal clarity!
Over time evolution is inevitable. The same can be said for DS18's new Z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of RMS power on demand. The previous Z series was very powerful to begin with and we packed all new DS18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, and Monoblock amps in this line to power every aspect of your DS18 audio system.
---------------------------------------------------------------
This listing includes:

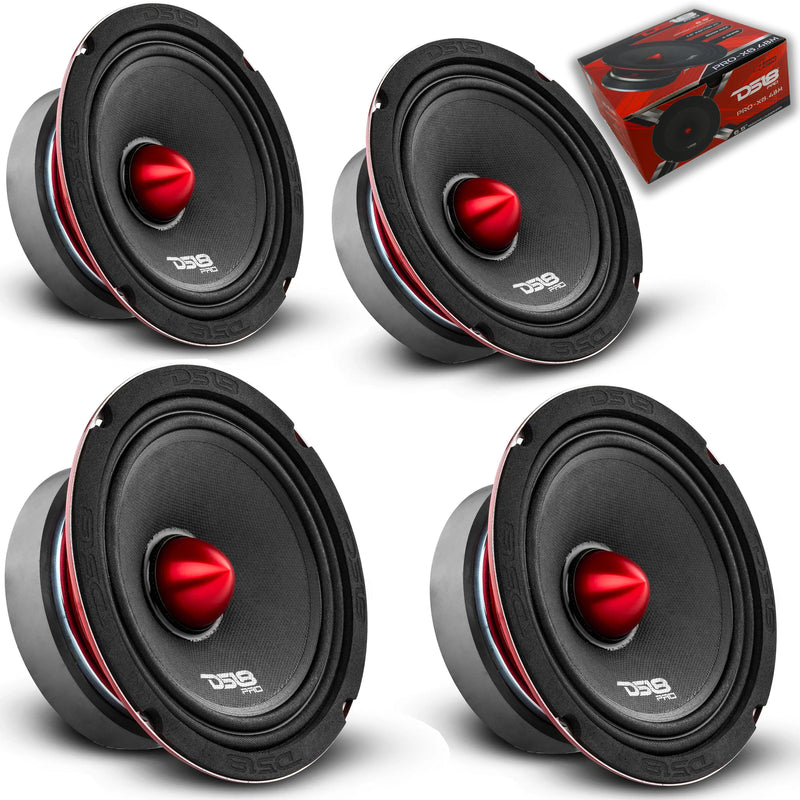

(4) DS18 6.5" Loudspeakers PRO-X6.4BM
(1) DS18 4 Channel Amplifier ZXI.4
---------------------------------------------------------------

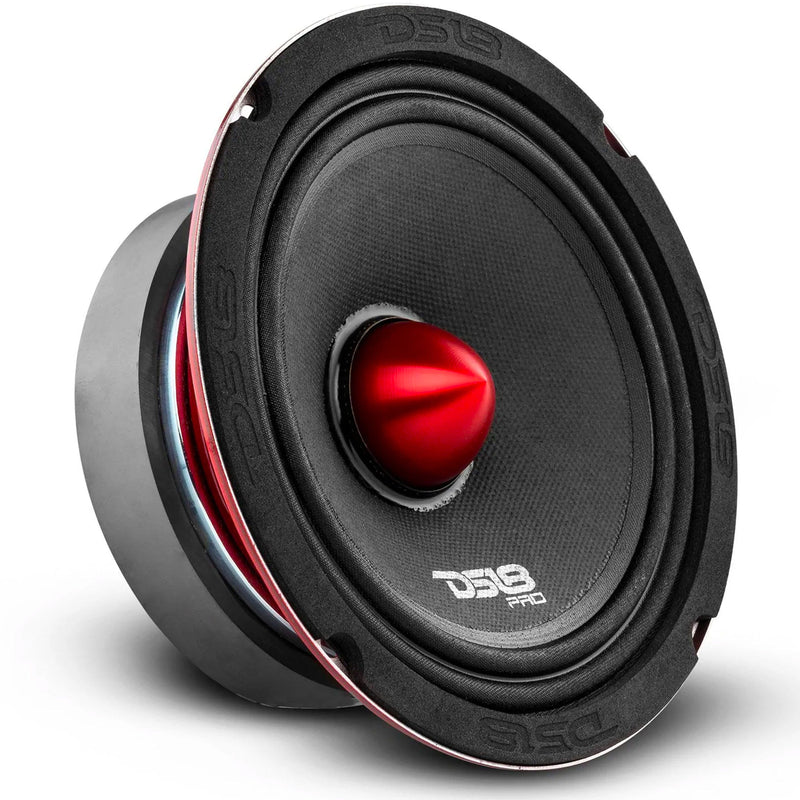

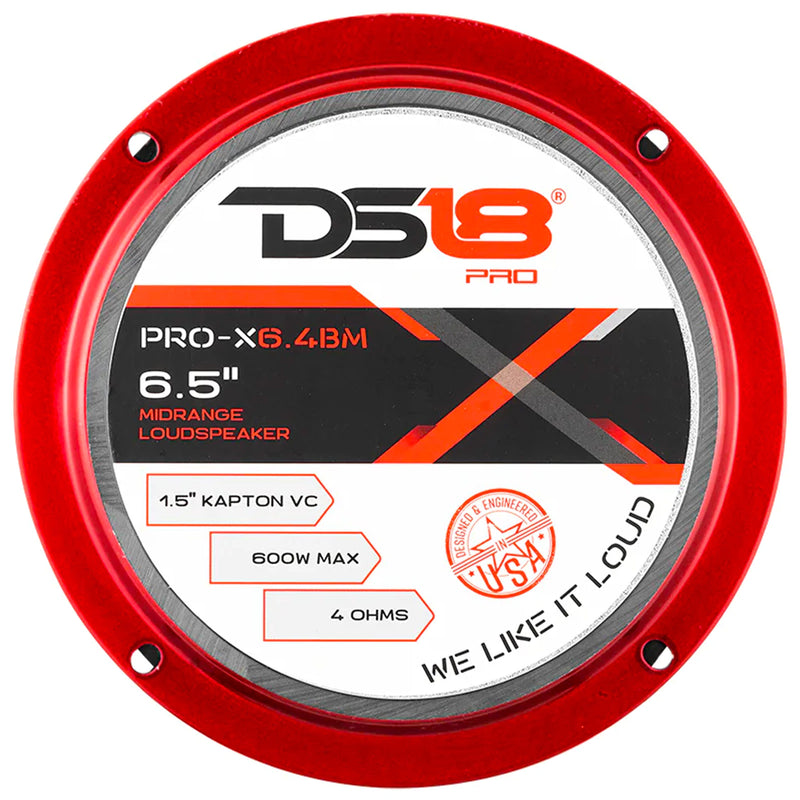

SPECIFICATIONS AND FEATURES PER INDIVIDUAL PRO-X6.4BM LOUDSPEAKER:
FEATURES:
- 6.5 Midrange Loudspeaker with Bullet Dust Cap
- MAX Power Handling: 500 Watts
- RMS Power Handling: 250 Watts
- Frequency Response: 125Hz-12Khz
- Voice Coil Diameter: 1.5
- Voice Coil Material: Kapton
- Impedance: 4-Ohms
- Sensitivity (1W/1M): 94dB
- Magnet Weight: 30 Oz
- Magnet Material: Ferrite
- Mounting Depth: 2.44
SPECIFICATIONS:
Model: PRO-X6.4BM
Type: Midrange Loudspeaker
Size: 6.5"
Nominal Diameter: 6.5" (165.1mm)
Nominal Impedance: 4 Ohm
MAX Power Handling: 500 Watts
RMS Power Handling: 250 Watts
Sensitivity (1w/1m): 94 dB
Frequency Response: 125Hz ~ 12KHz
Recommended HI Pass Crossover: 120Hz
MOTOR:
Voice Coil Diameter: 1.5"
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Non-press Paper
Surround Material: Cloth Edge
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 Oz
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 3.810L
Excursion: X-max - 8.2mm
Free Air Resonance: Fs - 106Hz
Mechanical Factor: Qms - 8.027
Electrical Factor: Qes - 0.471
Total Factor: Qts - 0.445
Dc Resistance: Re - 3.2 Ohm
DIMENSIONS PER SPEAKER:
Overall Diameter: 6.61" (168mm)
Front Mount Baffle Cutout: 5.7" (145mm)
Mounting Depth: 2.44" (62mm)
Overall Depth: 2.72" (69mm)
---------------------------------------------------------------

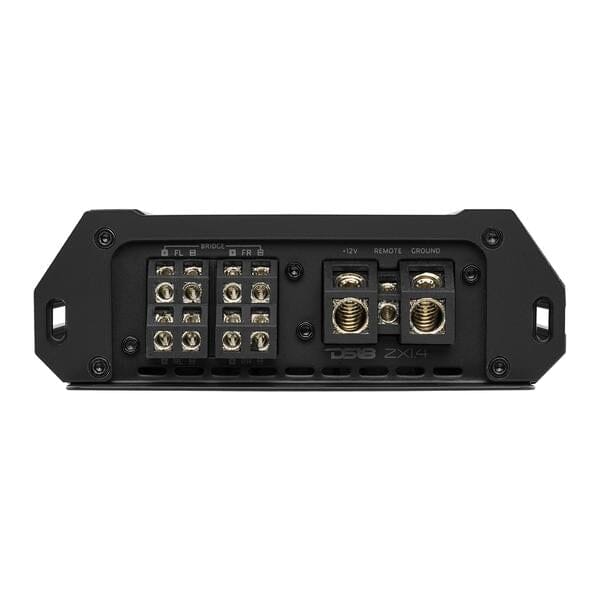

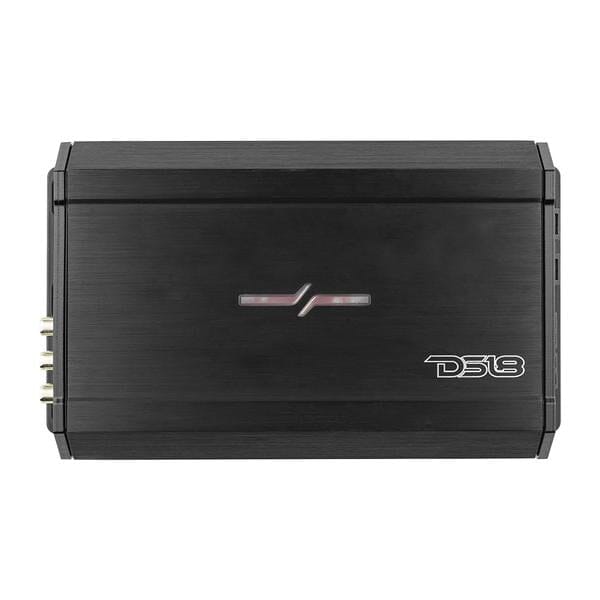

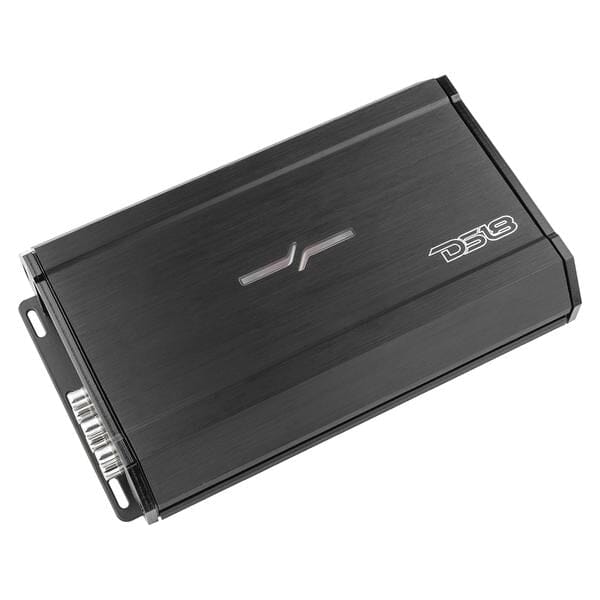

SPECIFICATIONS AND FEATURES OF ZXI.4 AMPLIFER:
FEATURES:
- Elegant design that retains very high durability with incorporated high efficiency heat sync.
- High quality circuit board to give the most power with the highest efficiency rate providing high power on demand.

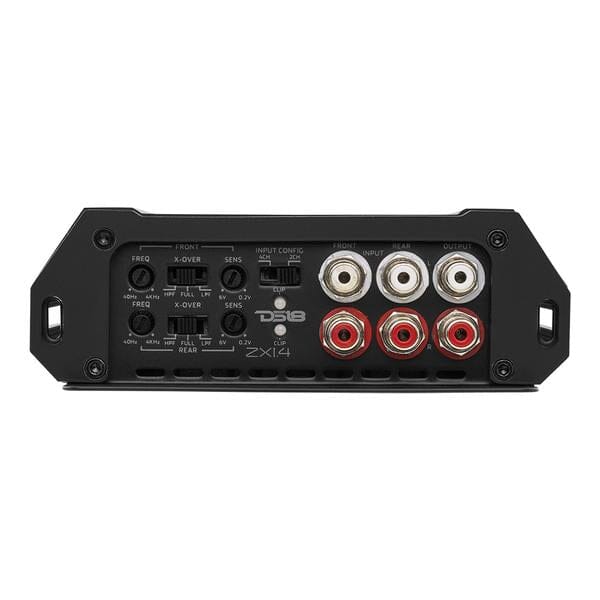

- Easily tuned crossover and gain controls for the perfect sound settings in your vehicle.
SPECIFICATIONS:
Model: ZXI.4
Class: D
Number of Channels: 4
RMS Power @ 4 Ohm: 125W x 4CH
RMS Power @ 2 Ohm: 185W x 4CH
RMS Power @ 4 Ohm Bridge: 370W x 4CH
Peak Power @ 4 Ohm: 200W x 4CH
Peak Power @ 2 Ohm Bridge: 300W x 4CH
Peak Power @ 4 Ohm Bridge: 600W x 2CH
Minimum Impendence: 2 Ohm
Frequency Response: 20 ~ 20KHz
Total Harmonic Distortion: 0.10%
Input Sensitivity: 0.2 ~ 6V
Signal/Noise Ratio: Less than 90dB
LED Power and Protection Indicator
Crossover High Pass: 40 ~ 4KHz
Crossover Low Pass: 40 ~ 4KHz
Bass Boost: 0 ~ 18dB
Operation Voltage: 8.5 ~ 16.8V
Fuse Rating: 40A x 2
Power Input Size: 4 GA
DIMENSIONS:
Length: 9.5"
Width: 5.7"
Height: 1.9"
