DS18 4x 6.5" Coaxial Speakers, 4 Ch Amp, Under Seat Sub w/ 2x 8 AWG Amp Kits
This combo is one of the best and most common solutions to any vehicle that wants great sound with incredible bass to match. Throughout all our years of testing and selling complete systems for any vehicle, this package is the most purchased and fits the widest variety of vehicles. This package consists of 2 pairs of the extremely popular ZXI-654 high volume coaxial speakers that really nails the mid and high range frequencies with precision. To power these speakers, we added the super efficient and compact CANDY-X4B amplifier so these coaxial speakers will hit their maximum performance and highest volume without distortion. To complete the package, we also added an under-the-seat mountable subwoofer, the SQBASS68 which for its small size packs a great punch with incredible sound quality. To finish off this combo we added an easy-to-use installation kit that will help you complete your installation seamlessly for both powered sub and amplifier.
This Combo Includes:
(4) ZXI-654 6.5" Coaxial Speakers
(1) CANDY-X4B Amplifier
(1) SQBASS68 Under Seat Subwoofer
(2) AMPKIT8 Installation Kits
FEATURES:
-This is a complete setup that will include everything you need to get going for loud and clear music
-Two pairs of the very popular ZXI-654 Coaxial speakers will definitely blow you away with their overall volume and clarity.
-The included ZXI-654 speakers are perfectly matched with the provided 1600 Watt CANDY-X4B amplifier
-Our SQBASS68 is a very versatile under the seat powered sub that not only packs an impressive punch, but it also has amazing fidelity

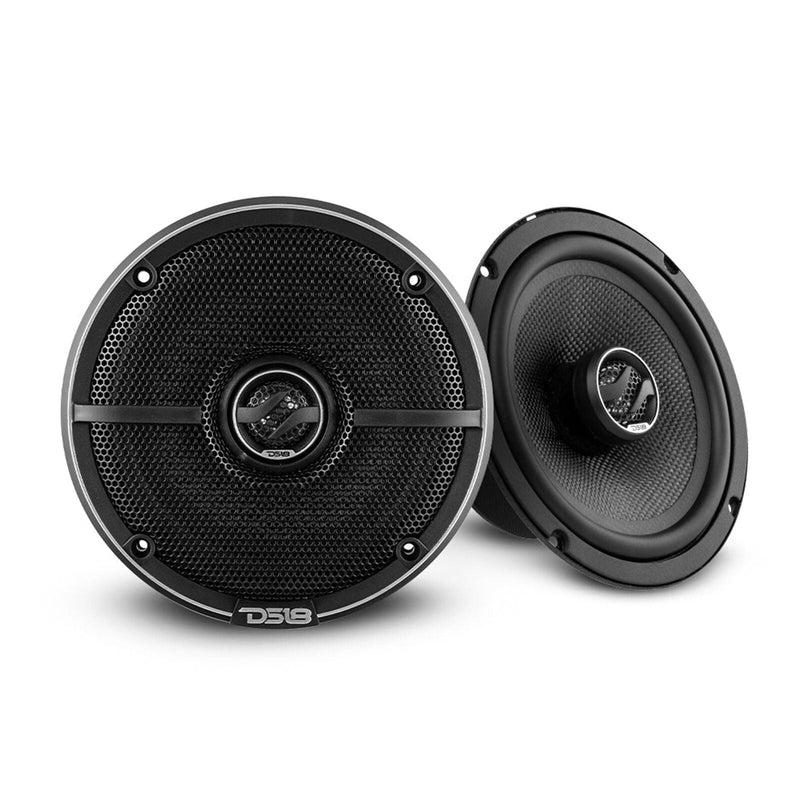

ZXI-654 SPECIFICATIONS:
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 4 ohm
RMS Power Handling: 80 Watts
MAX Power Handling: 240 Watts
Sensitivity (1w/1m): 89dB
Frequency Response:40Hz-20KHz
Recommended HI Pass Crossover: 60Hz
Speaker Type: 2-Way
Midrange:
Voice Coil Diameter: 1" / 25.5mm
Magnet Weight: 14.46 oz / 410g
Tweeter:
Nominal Diameter: 1" (25.4mm)
Voice Coil Diameter: 0.8"(20.4mm)

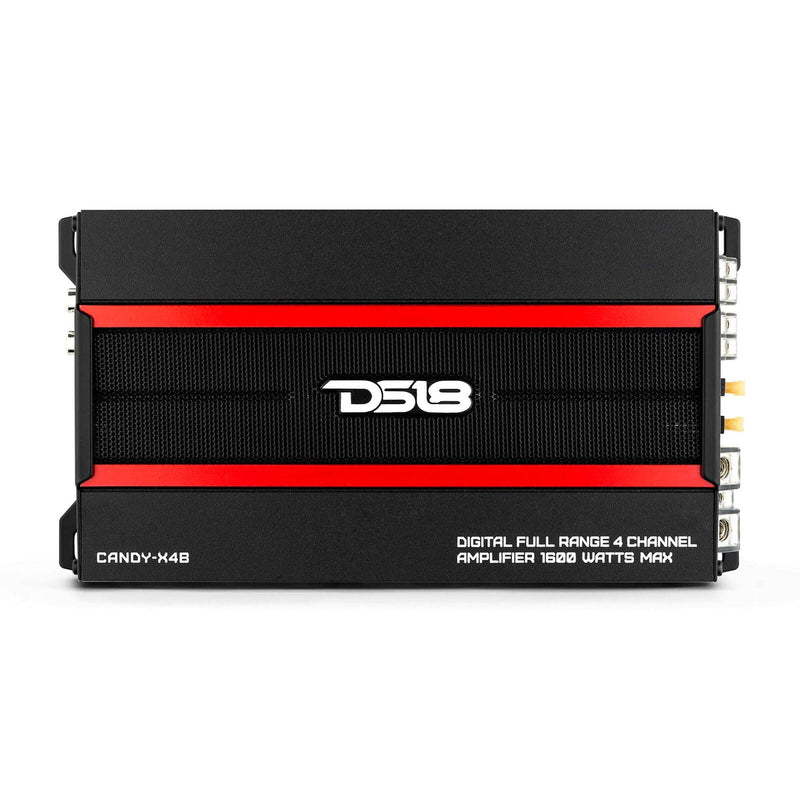

CANDY-X4B SPECIFICATIONS:
Class: Class-D
Type: Stereo Full Range
Channels: 4
Total Watts (PEAK): 1600W
RMS Power @ 4 ohm: 80W x 4CH
RMS Power @ 2 ohm: 120W x 4CH
RMS Power @ 4 ohm Bridge: 240W x 2CH
Min. Speaker Impendance: 2 OHM X 4CH
Frequency Response: 20Hz-20kHz
Signal/Noise Ratio: 100 dB
Iinput Impendence 10K
Channel Separation 50 dB
THD %: Less Than 0.01%

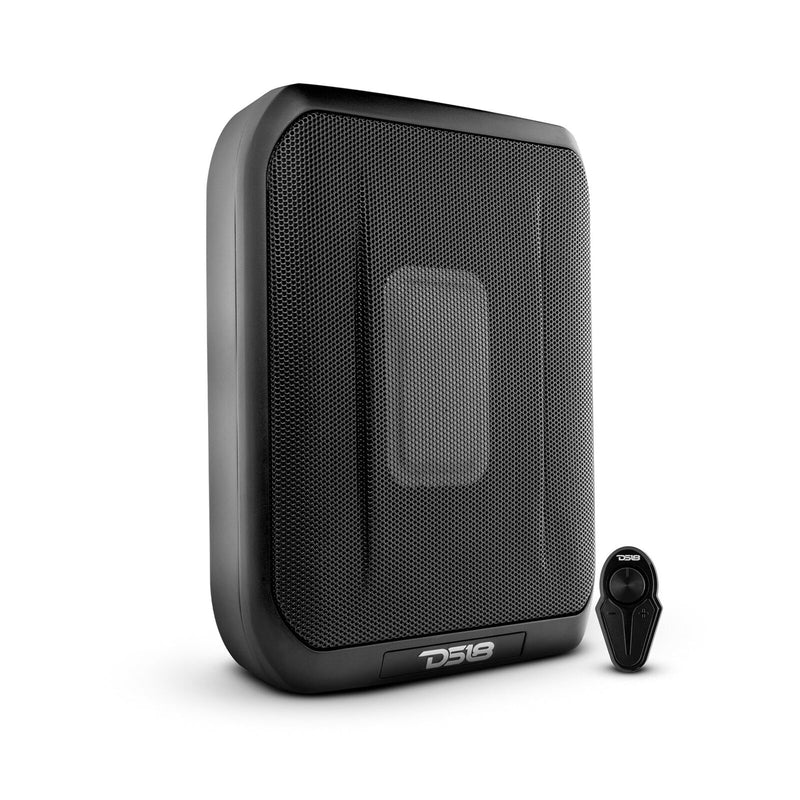

SQBASS68 SPECIFICATIONS:
General Specifications:
Speaker Size : 6x8"
Total RMS Power Handling: 150W
Total MAX Power Handling : 600W
Sensitivity (1w/1m) : 77 dB
Frequency Response : 42 Hz-400 Hz
Speaker Specifications:
Voice Coil Diameter: 1.2" / 30.6mm
Amplifier Specifications:
Amplifier Class: Digital
Amplifier Type: Subwoofer Monoblock
Number of Channels: 1Ch
Minimum Impedance: 2ohm
Signal to Noise: Greater Than 80dB
Total Harmonic Distortion (THD): Less Then 0.5%
Auto Turn-On: Yes, Signal Sensing
Measurements:
Overall Height: 2.95" / 75mm
Overall Width: 7.67" / 195mm
Overall Length 10.2" / 260mm

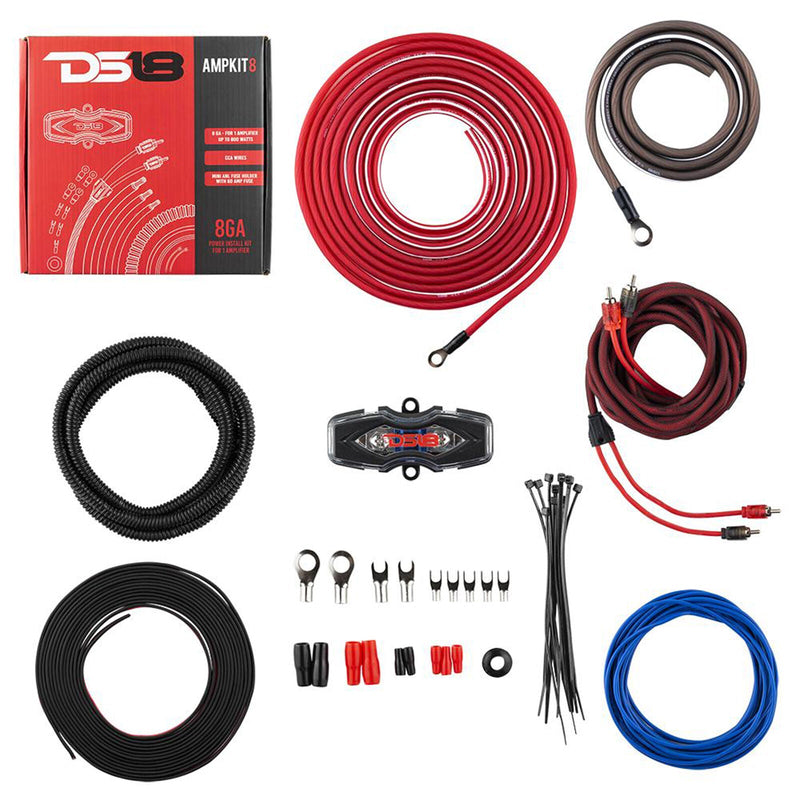

AMPKIT8 INCLUDES:
ANL fuse holder with ANL-100A
6 ft. 8-GA Loom Tube
Rubber Grommet
17 ft. Red Power Cable: 8.3mm OD: 6.7mm
3 ft. Black Ground Cable: 8.3mm OD:6.7mm
17 ft. Red/Black Twisted RCA
17 ft. Remote Cable 20 x 0.15mm
17 ft. Red/Black Speaker Cable 0.81mm x 2 wires OD 2.4 x 4.8mm
