DS18 4x 8 Inch 4 Ohm Car Audio Loudspeakers + 4 Channel Korean Amplifier Package

CASE QUANTITY: N/A

PACKAGE WEIGHT: 30.0 LB

SKU DS-10YR-COMBO-2
Sold out
Original price $662.95
Original price $662.95 - Original price $662.95
Original price $662.95
Current price $529.95
$529.95 - $529.95
Current price $529.95

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Earn [points_amount] when you buy this item.

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3% *Must purchase 2 items to qualify
  • Spend $500, Save 5% *Must purchase 3 items to qualify
  • Spend $1000, Save 7% *Must purchase 4 items to qualify

*Does not apply to: Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

  • MIDRANGE THAT HANDLES IT ALL - A mid-range driver that can answer the call to handle the most significant part of the audible sound spectrum. A speaker that sounds great with just instrumentals and, even better with vocals.
  • POWER YOU CAN COUNT ON - DS-PRO-84XA delivers an impressive 550W Max Power with 275W RMS at 4 Ohms, enough to tackle a full range of audio.
  • 4 Channel EXL-P800X4 has Remote Bass Knob and Latest SMC and MOSFET Technology


DS18 4x 8 Inch 4 Ohm Car Audio Loudspeakers + 4 Channel Korean Amplifier Package

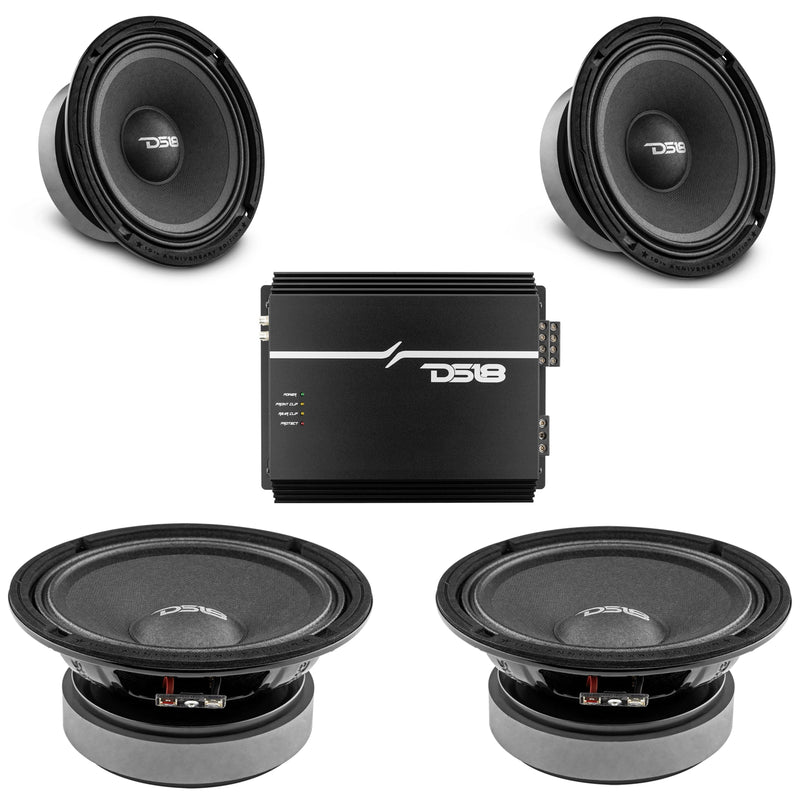

This listing includes:

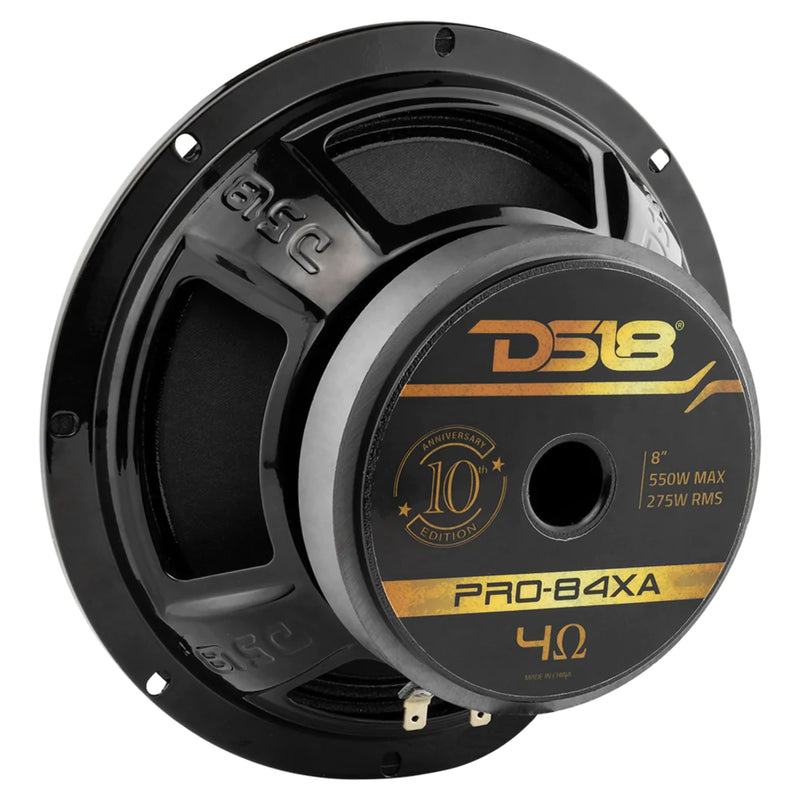

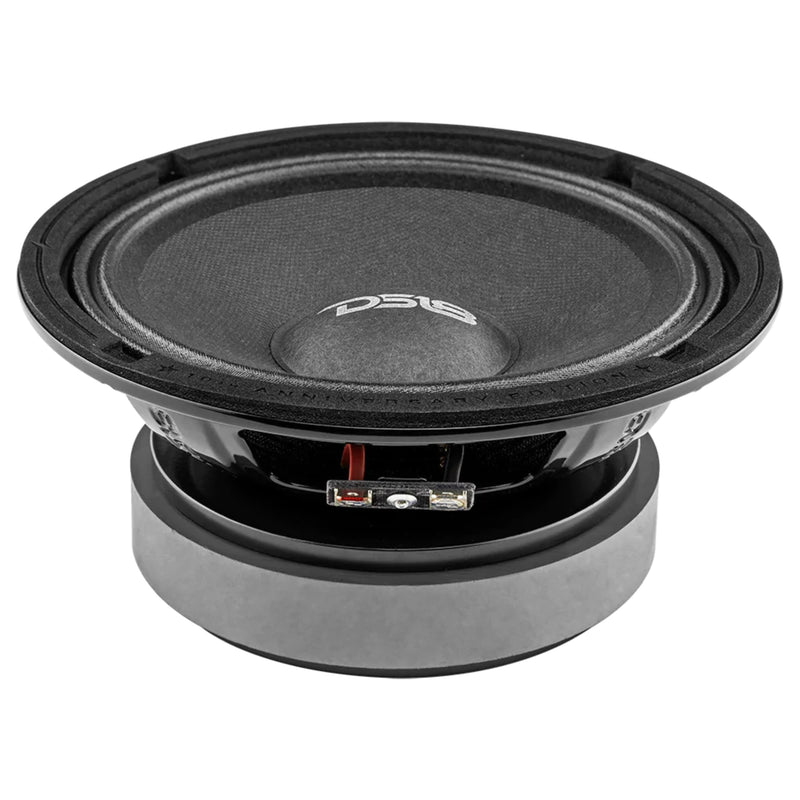

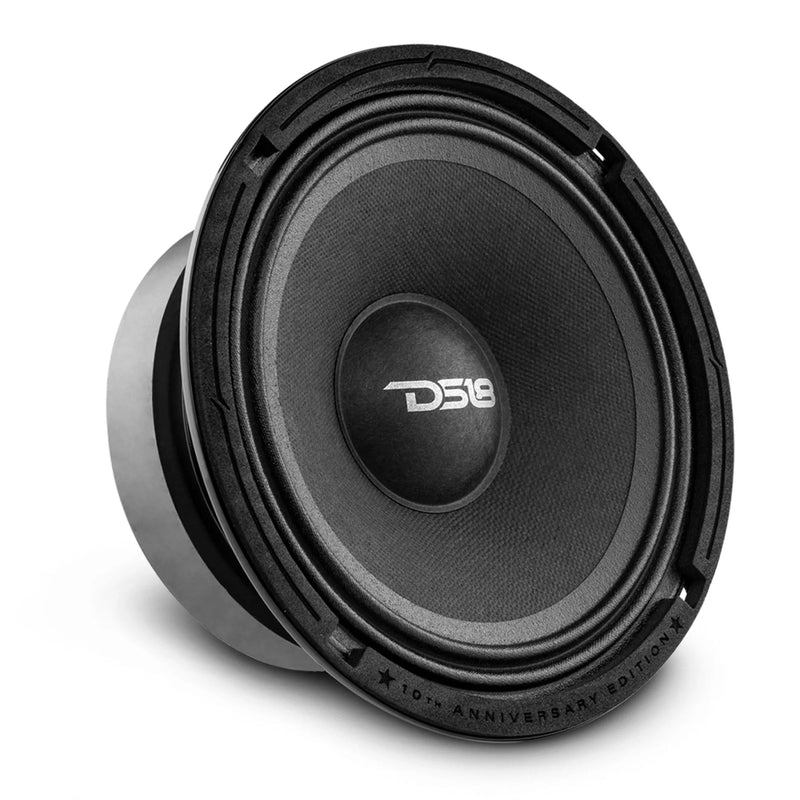

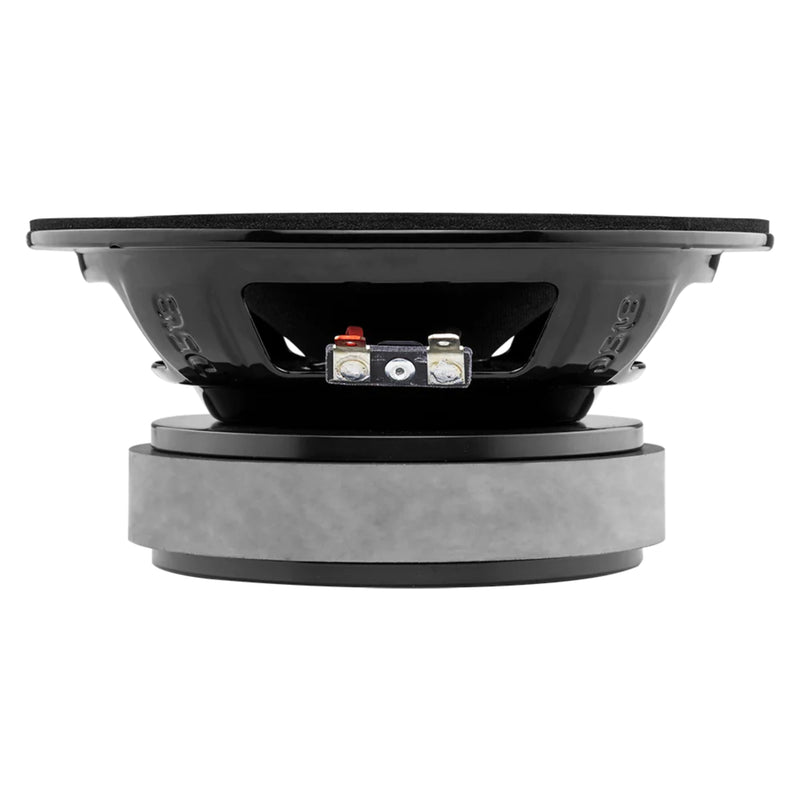

  • (4) DS18 Special Edition 8" Midrange 4 Ohm 550W Loud Car Speaker PRO-84XA

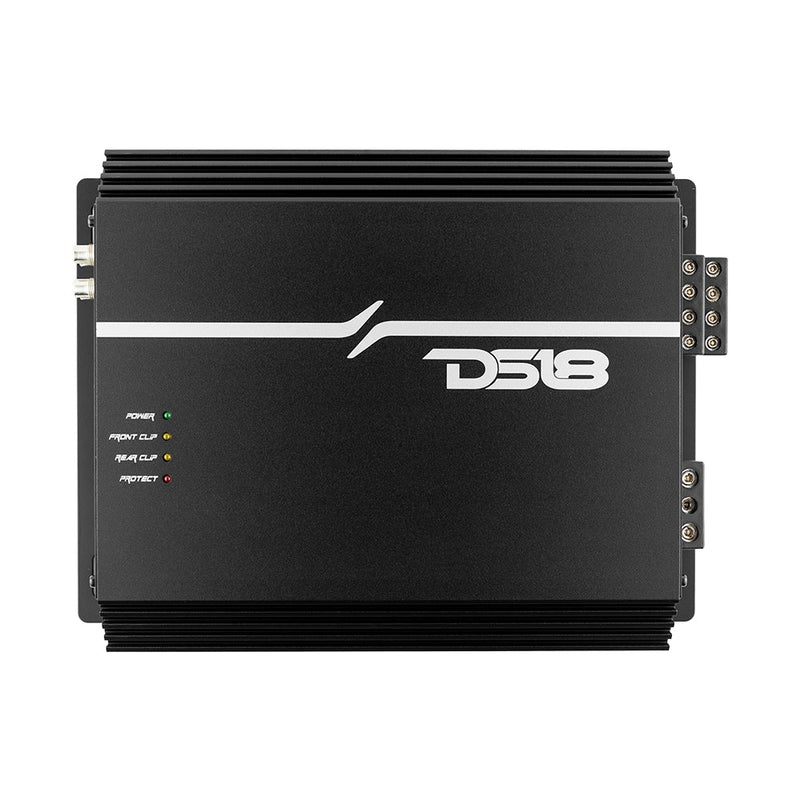

  • (1) DS18 EXL-P800X4 4 Channel Full Range Korean Amplifier


DS18 PRO-84XA Details:


SPECIFICATIONS:



  • Nominal Diameter: 8"

  • Nominal Impedance: 4 Ohms

  • RMS Power Handling: 275W

  • MAX Power Handling: 550W

  • Sensitivity (1w/1m): 97.8dB

  • Frequency Response: 60Hz-8KHz

  • Recommended HI Pass Crossover: 80Hz


MOTOR:



  • Voice Coil Diameter: 1.5"

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW

  • Cone Material: Paper

  • Dust cap Material: Paper

  • Surround Material: Cloth

  • Basket Material: Steel

  • Basket Color: Glossy Black

  • Magnet Material: Ferrite

  • Magnet Weight: 33oz


MEASUREMENTS:



  • Overall Diameter: 8.25 inches

  • Overall Depth: 3.45 inches

  • Front Mount Baffle Cutout: 7.25 inches

  • Mounting Depth: 3.2 inches

  • Motor Diameter: 4.7 inches


THIELE & SMALL PARAMETERS:



  • Equivalent Volume (Vas): 18.37L / 0.64ft3

  • Excursion (one way) (Xmax): 2.5mm

  • Free Air Resonance (Fs): 82Hz

  • Mechanical Factor (Qms): 10.34

  • Electrical Factor (Qes): 0.63

  • Total Factor (Qts): 0.6

  • Mechanical Mass (Mms): 13.39g

  • Mechanical Compliance (Cms): 0.28mm/N

  • BL Factor / Factor BL (BL): 6.44

  • Voice Coil Inductance (Le): 0.584mH

  • Cone Area (Sd): 213.82cm2

  • DC Resistance (Re): 3.82ohms

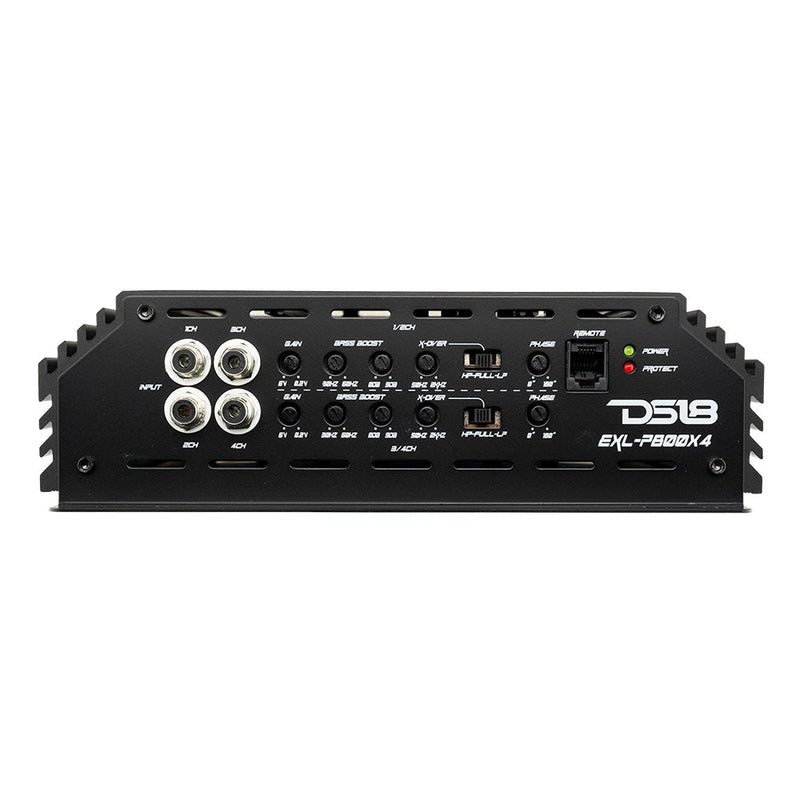

DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:



  • RMS Power @ 4 Ohm: 150W x 4CH

  • RMS Power @ 2 Ohm:  200W x 4CH

  • RMS Power @ 4 Ohm Bridge :  400W x 2CH

  • Frequency Response: 20Hz-20KHz

  • Signal/Noise Ratio: Greater than 98dB

  • Efficiency @4 Ohm:  Greater than 63%

  • Damping Factor: 140

  • THD%: Greater than 0.10%

  • Low Level Input Range: 200MV-6V

  • Selectable X-Over: Yes, HPF/FULL/LPF

  • X-Over Filter Range: 50Hz-2KHz

  • Bass Boost Range: 0-+9dB

  • Bass Boost Frequency: 30Hz-60Hz

  • Infrasonic Filter: No

  • Phase Selector:  0-180

  • Class: AB (Analog)

  • Amplifier Type: Stereo Full - Range

  • Channels: 4 CH

  • Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)

  • Led Indicator: PWR / CLIP / PROTECT

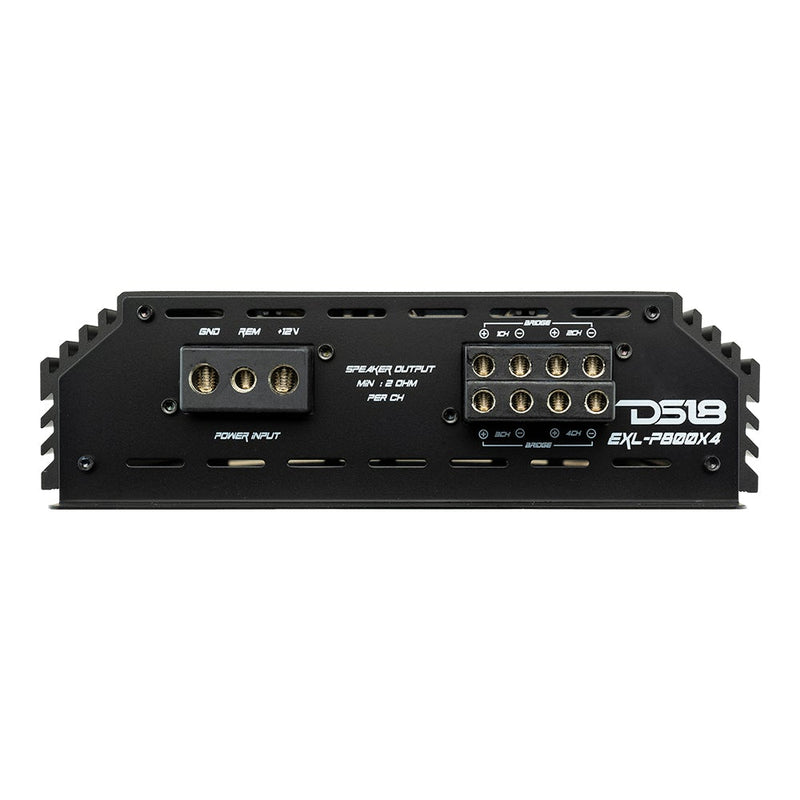

  • Power Input Size: 4 AWG

  • Fuse Rating: 120A

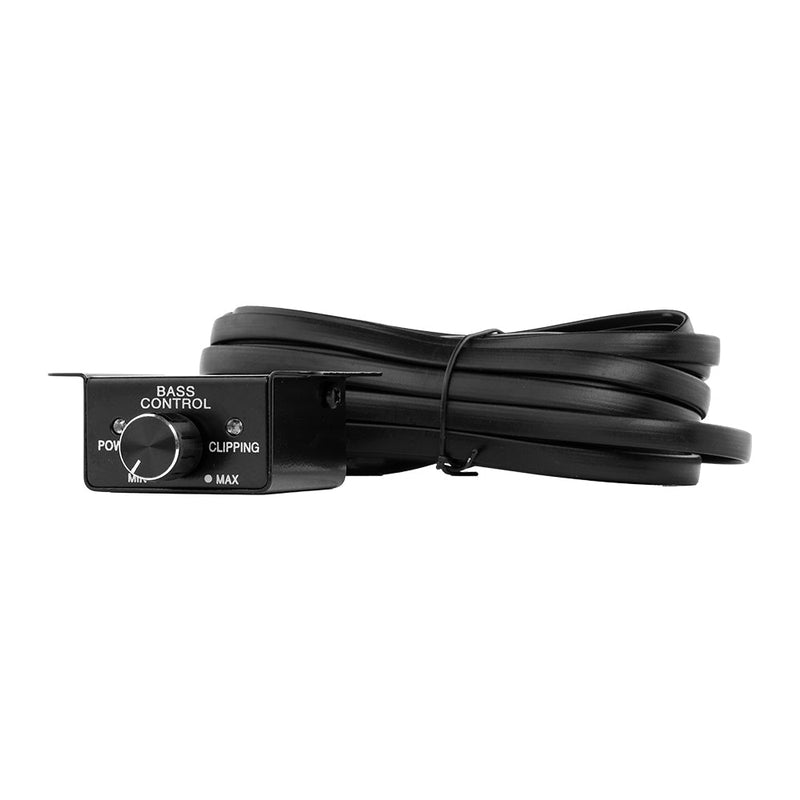

  • Remote Level Control: Yes - Dash Mount

  • Cooling Fan: Yes

  • Thermal Protection: Yes > 97C / 206F

  • Over-Load Protection: Yes

  • Dc Output Protection: Yes

  • Short Circuit Output Protection: Yes

  • Voltage Input Protection: Yes, greater than 15.5V

  • Clipping Protection: Yes

  • Body Color/Finish: Black Aluminum


DS18 4 Channel Korean Amplifier Class A/B Full Range w/ Bass Knob EXL-P800X4:



  • Length: 11.5 inches

  • Width: 8.77 inches

  • Height: 2.67 inches

  • Heatsink Length: 9.84 inches
