DS18 4x 4 Ohm 6.5" Loud Car Speakers + 2x Tweeters + 2000W 4Ch Amplifier Package

SKU DS-10YR-COMBO-3
No Brand Tag Found
Save 20% Save 20%
Original price $651.19
Original price $651.19 - Original price $651.19
Original price $651.19
Current price $520.95
$520.95 - $520.95
Current price $520.95
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: AudioControl, Avatar, Deaf Bonce, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

DS18 4x 4 Ohm 6.5" Loud Car Speakers + 2x Tweeters + 2000W 4Ch Amplifier Package

DS18 10th Anniversary Raffle! Register your XA speakers for the chance to win $5000.00, Register your speakers for your chance to win at the following URL: ds18.com/pages/registration-form - Winner will be chosen on April 18th, 2023!

Items participating on this Amazing Raffle are: PRO-64XA, PRO-88XA, PRO-68XA AND PRO-84XA!

Good Luck!


This listing includes:
- (4) DS18 Special Edition 6.5" Midrange 4 Ohm 500W Loud Car Speaker PRO-64XA
- (2) DS18 1" Black 240W 4 Ohm Pro Aluminum Super Bullet Tweeter PRO-TWX1B
- (1) DS18 Car Audio Amplifier Full Range Class AB 4 Channel 2000 Watts GEN-X2000.4

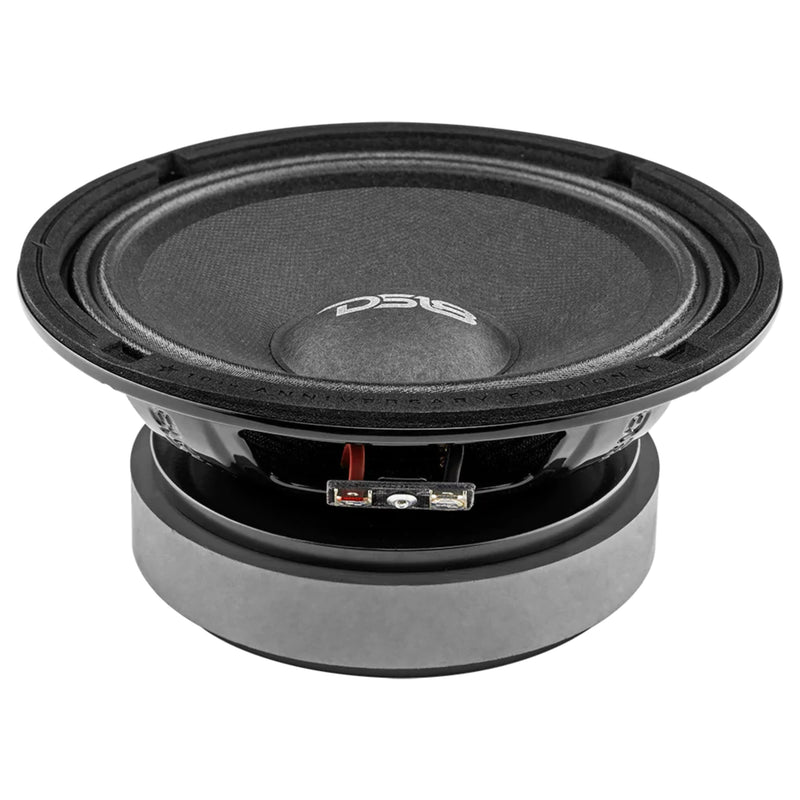

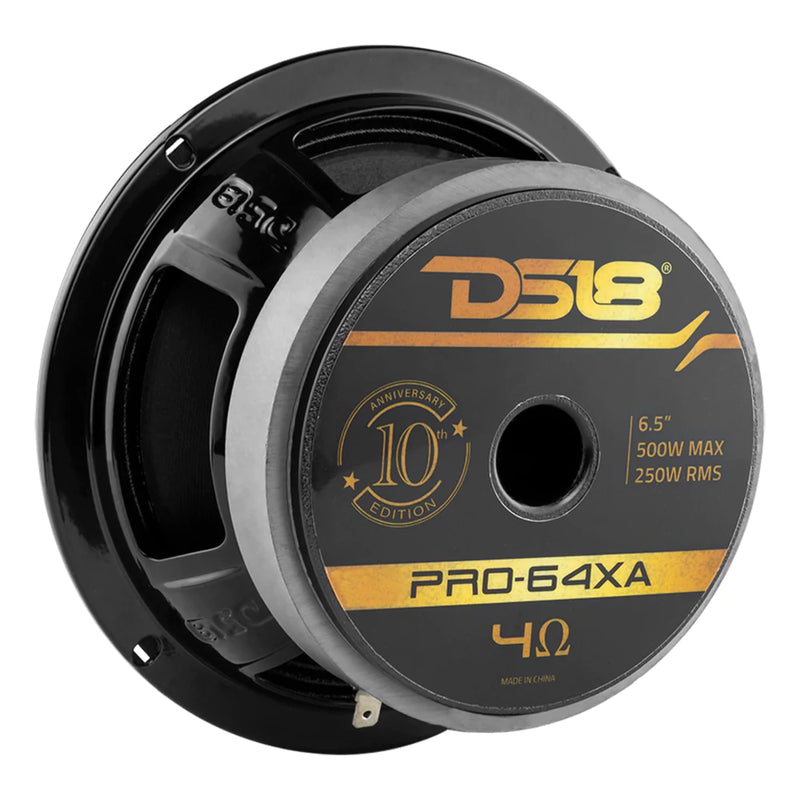

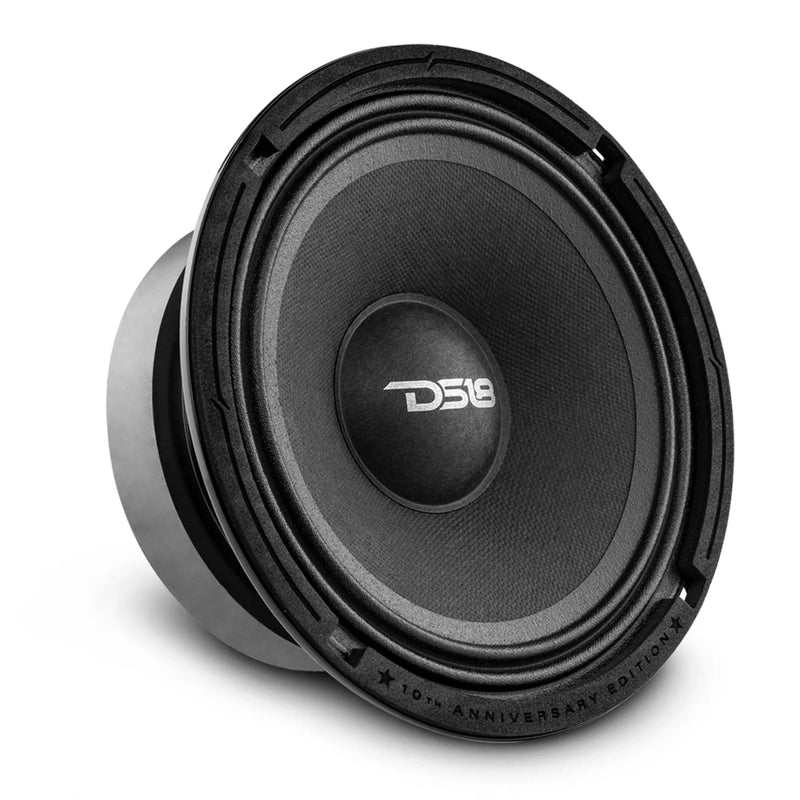

DS18 PRO-64XA Details:

SPECIFICATIONS (Per Speaker):
- Nominal Diameter: 6.5"
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 250W
- MAX Power Handling: 500W
- Sensitivity (1w/1m): 96dB
- Frequency Response: 80Hz-6.3KHz
- Recommended HI Pass Crossover: 100Hz
- Pair or Single: Single

MOTOR SPECIFICATIONS (Per Speaker):
- Voice Coil Diameter: 1.5"
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Dust cap Material: Paper
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color: Glossy Black
- Magnet Material: Ferrite
- Magnet Weight: 33 oz

MEASUREMENTS (Per Speaker):
- Overall Diameter: 6.5"
- Overall Depth: 3.00"
- Front Mount Baffle Cutout: 5.6"
- Mounting Depth: 2.75"
- Motor Diameter: 4.7"

THIELE & SMALL PARAMETERS (Per Speaker):
- Equivalent Volume (Vas): 3.02L / 0.1ft3
- Excursion (one way) (Xmax): 2.5mm
- Free Air Resonance (Fs): 130Hz
- Mechanical Factor (Qms): 8.28
- Electrical Factor (Qes): 0.93
- Total Factor (Qts): 0.83
- Mechanical Mass (Mms): 8.61g
- Mechanical Compliance (Cms): 0.11mm/N
- BL Factor / Factor BL (BL): 5.97
- Voice Coil Inductance (Le): 0.58mH
- Cone Area (Sd): 138.93cm2
- DC Resistance (Re) 3.79ohms

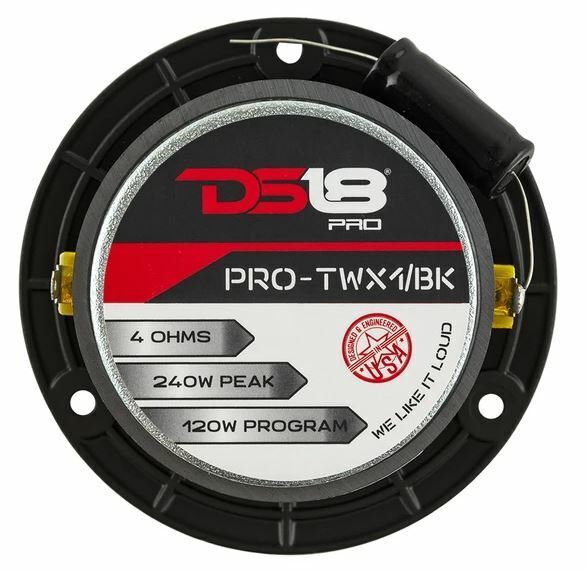

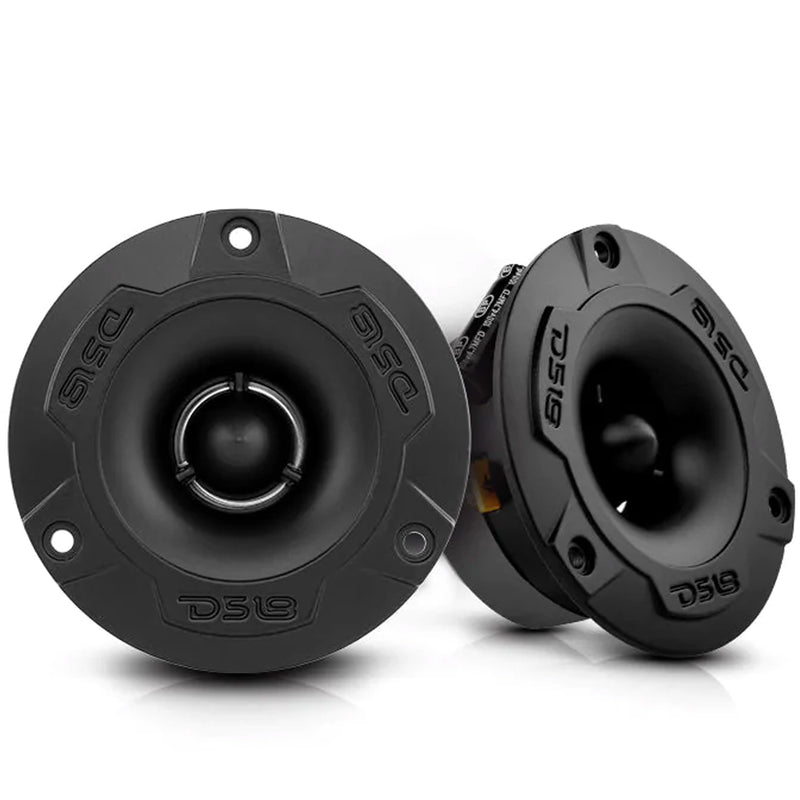

DS-PRO-TWX1B Details:

SPECIFICATIONS (Per Speaker):
- Nominal Impedance: 4 Ohms
- 60W RMS
- 120W MAX
- Sensitivity (1W/1W): 103 dB
- Frequency Response: 3.5K-20kHz
- Voice Coil Diameter: 1"
- Diaphragm Material: Aluminum
- Magnet Material: Ferrite
- Body Material: Aluminum
- Recommended Hi Pass Crossover: 2kHz

Dimensions (Per Speaker):
- Overall Diameter: 3.78"
- Overall Depth: 1.78"
- Front Mount Baffle Cutout: 2.76"
- Mounting Depth: 1.57"

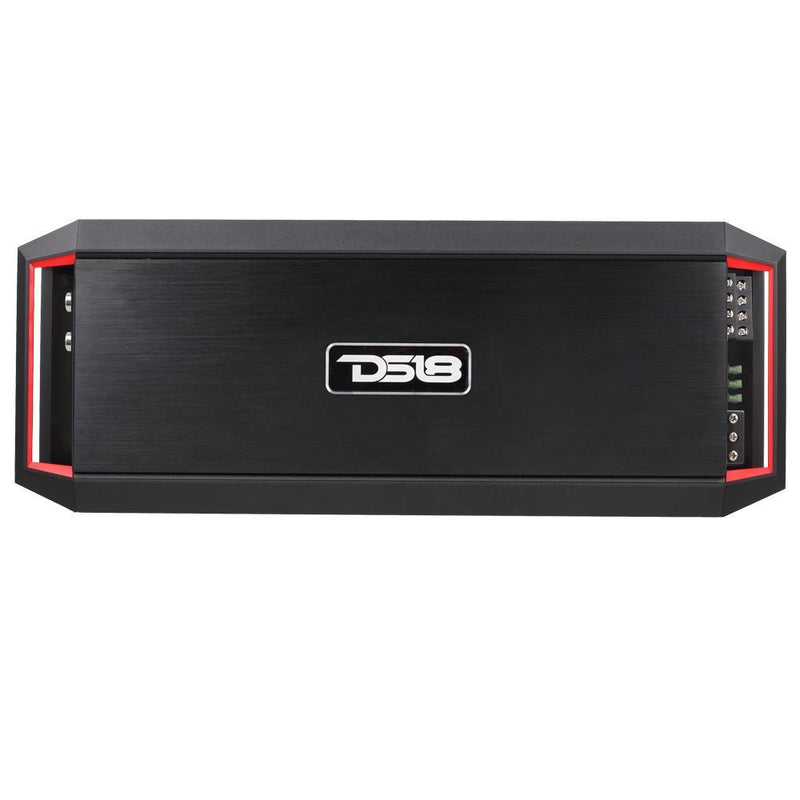

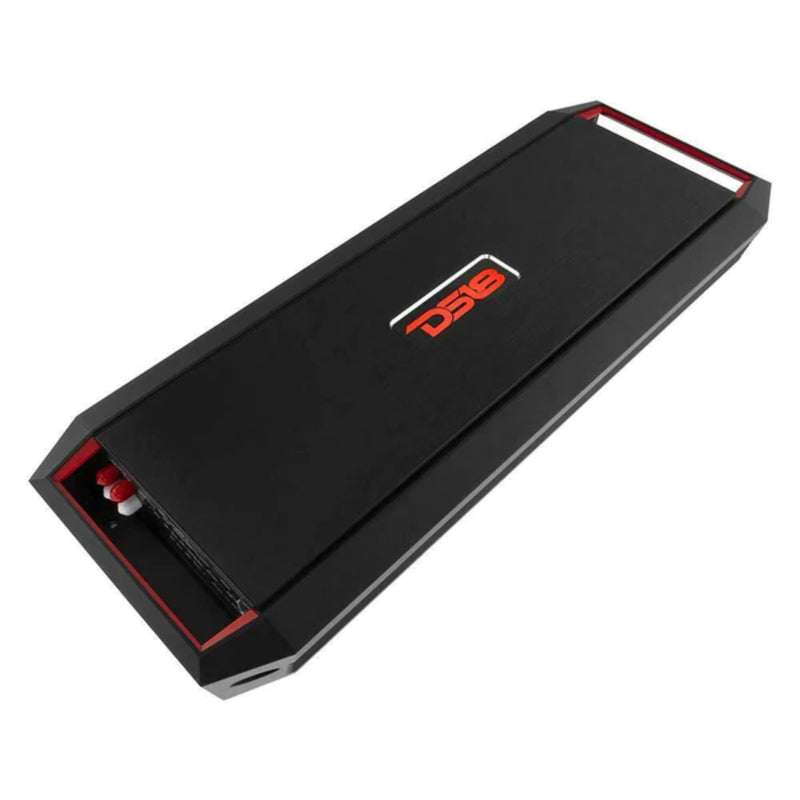

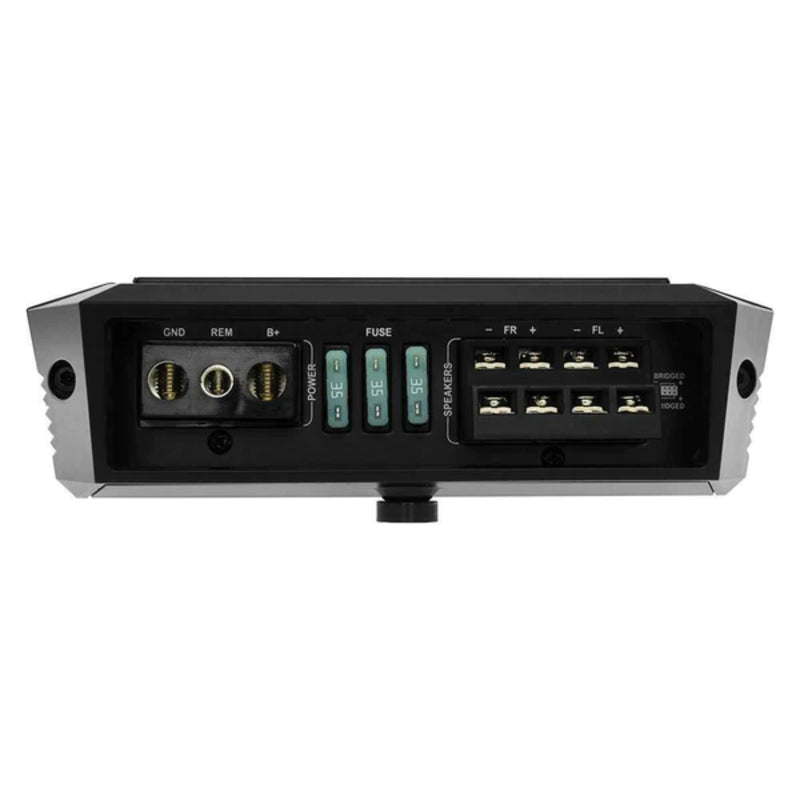

DS18 GEN-X2000.4 Details:

FEATURES:
- Lightweight design that retains very high durability with incorporated high efficiency heat sync.
- High quality circuit board to give the most power with a high efficiency rate.
- Light up DS18 logo and fully adjustable crossover filters.

SPECIFICATIONS:
- Number of Channels: 4
- Frequency Response: 20Hz - 20KHz
- MAX Power: 2000W
- 2 Ohm RMS Power (14.4V) Per Channel: 4 x 180W
- 4 Ohm RMS Power (14.4V) Per Channel: 4 x 120W
- 4 Ohm RMS Power Bridge (14.4V) Per Channel: 2 x 300W
- Speaker Impedance Range: 2-8 Ohm
- Input Sensitivity: 0.2V-+6V
- Low Pass Filter: 50Hz - 500Hz
- High Pass Filter: 50Hz - 500Hz
- Fuse Size: 3 x 35A
- Signal-to-Noise Ratio: 98dB
- THD: 0.01%

DIMENSIONS:
- Length: 19.5"
- Width: 7.5"
- Height: 2"
- Weight: 10 Lbs
