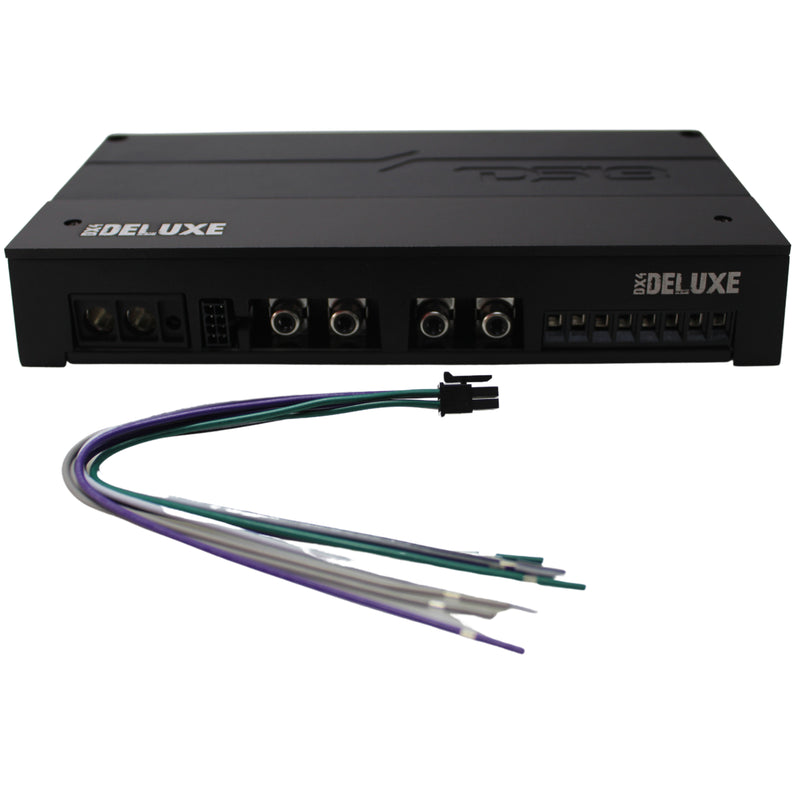

DS18 4Ch Marine & Powersports/Motorcycle Full Range Amplifier Class D 3000W DX4

• HIGH PERFORMANCE - DS18’s Deluxe AMP was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The DX4 guarantees your sound system’s speakers perform at their peaks on every use in small areas
• SMALL AND POWERFUL DESIGN - Compact enough to be placed almost anywhere, this amplifier is perfect for fittings to motorcycle fairings and other spots most amplifiers would be unable to fit into
• SUPERCHARGE - What this amplifier doesn’t have in size, it makes up for in power; providing unyielding power that maximizes your speakers to their production peak. 3000 Watts in a very small package
• UNMATCHED ACCURACY - With high pass and low pass filter options, this amp is flexible enough to play mids, highs, and lows with unmatched accuracy for an ear opening audio experience
• NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market

DS18 4Ch Marine & Powersports/Motorcycle Full Range Amplifier Class D 3000W DX4

This listing includes:

• (1) DS18 4 Channel Amplifier DX4

Designed to supply massive amounts of power in small areas. Compact enough to be placed almost anywhere, this amplifier is perfect for fittings to motorcycle fairings and other spots most amplifiers would be unable to fit into. What this amplifier doesnt have in size, it makes up for in the production and maintenance of its power; this amplifiers components are attached to a printed circuit board (PCB) that allows it to maintain high efficiency even at low voltages and utilize surge protection features (such as speaker overload, short circuit, and low input voltage protection) which helps it provide unyielding power that maximizes your speakers to their production peak. With high pass and low pass filter options, this amp is flexible enough to play mids, highs, and lows with unmatched accuracy for an ear-opening audio experience.

Highlights

• Great power per size ratio packing in 3000w in a very small package


• Power Rating of 150W x 4 at 4 ohms: 250W x 4 at 2 ohms: 480W x 2 at 4 ohms bridged


• Can be used in 2, 3, and 4 channel configurations with the channel switch


• Can be powered up by a signal from the RCA, Offset Voltage from Speaker Inputs, or a 12v remote


• Small and powerful design so you can power your new equipment with great efficiency and power without taking up much space


• Integrated low pass and high pass filter to help you get the perfect response you are looking for.


• Great For Motorcycle Audio, Pro Audio, Car Audio, Marine Audio, Powersports Audio and OEM Head Unit Installation.

Power

• Total Watts (Peak): 3000W


• RMS Power @ 4 OHM: 150W x 4


• RMS Power @ 2 OHM: 250W x 4


• RMS Power @ 4 OHM Bridge: 480W x 2

Audio Specifications

• Frequency Response: 10Hz - 20KHz


• Signal To Noise Ratio: >98 dB


• Efficiency @ 4 OHM: 110%


• Damping Factor: >400


• Channel Separation: >68 dB


• Total Harmonic Distortion (THD): 0.02%


• Low Level Input Range: 350mV - 5V


• High Level Input: Yes


• Selectable X-over: HPF/Full/BPF


• X-over Filter Range: 20Hz-4Khz(HPF)/ 50Hz-5Khz(LPF)


• X-Over Slope (cut): 24 dB/Oct

Features

• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number Of Channels: 4


• Minimum Impedance: 2 Ohm


• Led Indicator: Power/Protection


• Power Input Terminal Size: 4 Ga


• Recommended Fuse Size: 100A


• Thermal Protection: Yes


• Over-Load Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (10-15v)


• Body Color | Finish: Black Sandblasted

Dimensions

• Overall Length: 8.2 (210mm)


• Overall Width: 4.3 (109mm)


• Overall Height: 1.4 (35mm)


• Gross Single Unit Weight: 3.5 Lb (1.6Kg)
