DS18 PRO-X6M 6.5" 8 Ohm Midrange Speaker 450W Max 225W RMS Loudspeaker

• Loud Concert Style Sound: Designed for pro audio and voceteo systems that demand powerful, high-output vocals and midrange performance.
• Handles Serious Power: Rated at 225 watts RMS and 450 watts max to keep up with high-performance amplifiers and demanding systems.
• Cuts Through Heavy Bass: The 94 dB sensitivity produces loud, clear vocals and instruments that remain noticeable even in bass-heavy builds.
• Built For Long-Term Reliability: Features a high temperature CCAW voice coil, cloth surround, and steel basket designed to handle extended high-volume use.
• Perfect For Custom Installations: Great for SPL systems, door speaker upgrades, motorcycle audio systems, and pro audio builds that need maximum vocal output.

DS18 PRO-X6M 6.5" 8 Ohm Midrange Speaker 450W Max 225W RMS Loudspeaker

This Listing Includes:

• (1) DS18 PRO-X6M 6.5" Midrange Loudspeaker

Description

Get vocals that cut through the bass and stay clear at high volume. The DS18 PRO-X6M was built for enthusiasts who want concert-style sound and powerful midrange performance without sacrificing clarity.

Designed for voceteo systems, SPL builds, and pro audio applications, the PRO-X6M delivers 225 watts RMS and 450 watts max power handling through a high temperature 1.5-inch CCAW voice coil and large 30-ounce ferrite magnet. Its high sensitivity of 94 dB helps produce loud, crisp vocals and instruments while requiring less power than lower sensitivity speakers.

The PRO-X6M is built to handle demanding environments with a durable red steel basket, cloth surround, and non-pressed paper cone that work together to provide reliable performance and impressive output for years to come.

Key Features:

• Delivers loud and clear vocals that cut through powerful bass systems


• Handles 225 watts RMS and 450 watts max power per speaker


• High 94 dB sensitivity for impressive output and efficiency


• Large 30 oz ferrite magnet provides strong motor force and dynamic performance


• High temperature 1.5-inch CCAW voice coil built for demanding applications


• Durable cloth surround and non-pressed paper cone for long-lasting reliability


• Ideal for voceteo systems, pro audio builds, and high-output custom installations

Specifications:

• Brand: DS18


• Model: PRO-X6M


• Speaker Size: 6.5" (165.1 mm)


• Type: Midrange Loudspeaker


• Impedance: 8 Ohms


• RMS Power: 225 Watts


• Max Power: 450 Watts


• Sensitivity: 94 dB (1W/1M)


• Frequency Response: 115Hz to 15kHz


• Recommended High Pass Crossover: 140Hz


• Voice Coil Diameter: 1.5" (38.1 mm)


• Voice Coil Material: High Temperature CCAW


• Voice Coil Former: Kapton


• Basket Material: Red Steel Basket


• Magnet Weight: 30 oz Ferrite Magnet


• Cone Material: Non-Pressed Paper Cone


• Surround Material: Cloth

Thiele & Small Parameters:

• Vas: 2.654 L


• Xmax: 8.2 mm


• Fs: 115 Hz


• Qms: 9.856


• Qes: 0.781


• Qts: 0.678


• Re: 5.2 Ohms

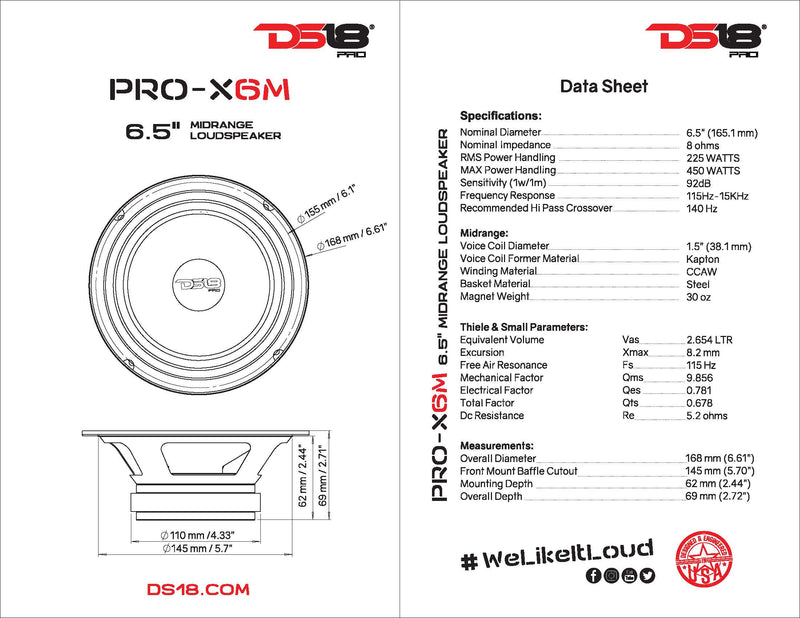

Mounting Dimensions:

• Overall Diameter: 6.10" (154.94 mm)


• Cutout Diameter: 5.70" (144.78 mm)


• Mounting Depth: 2.44" (61.97 mm)


• Overall Depth: 2.72" (69.08 mm)
