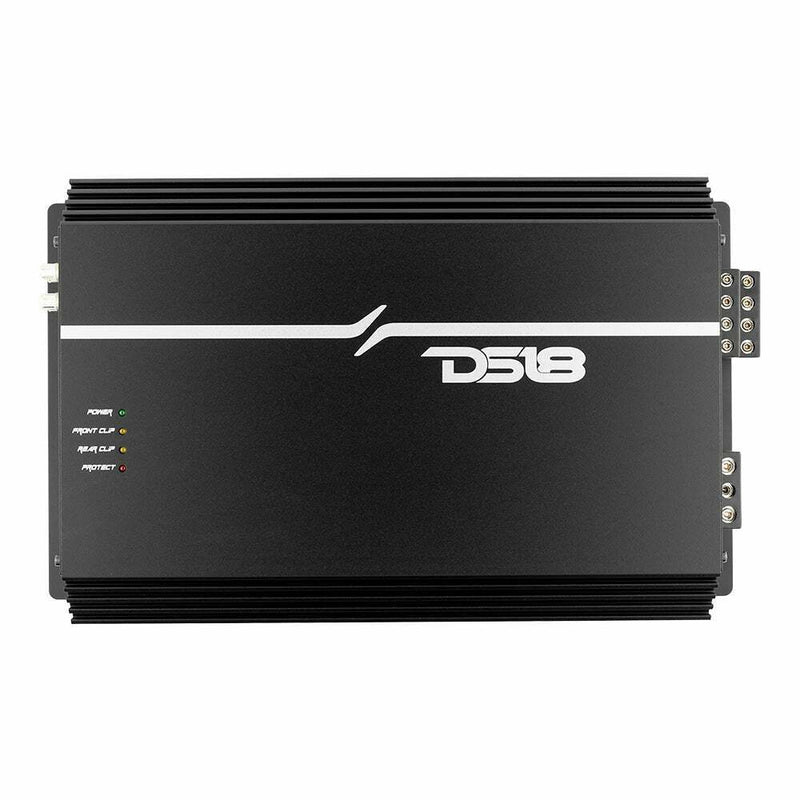

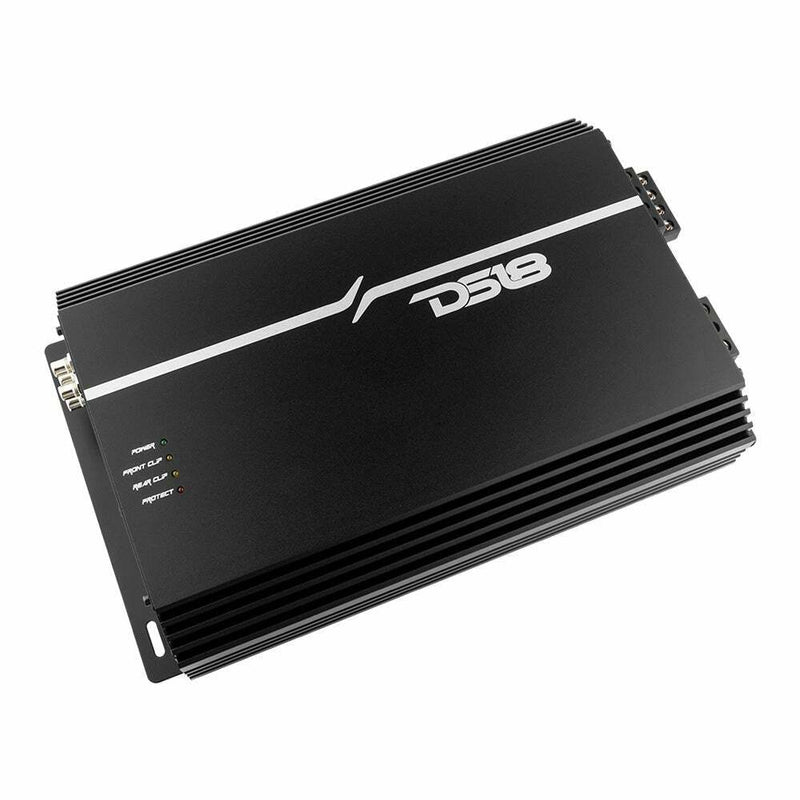

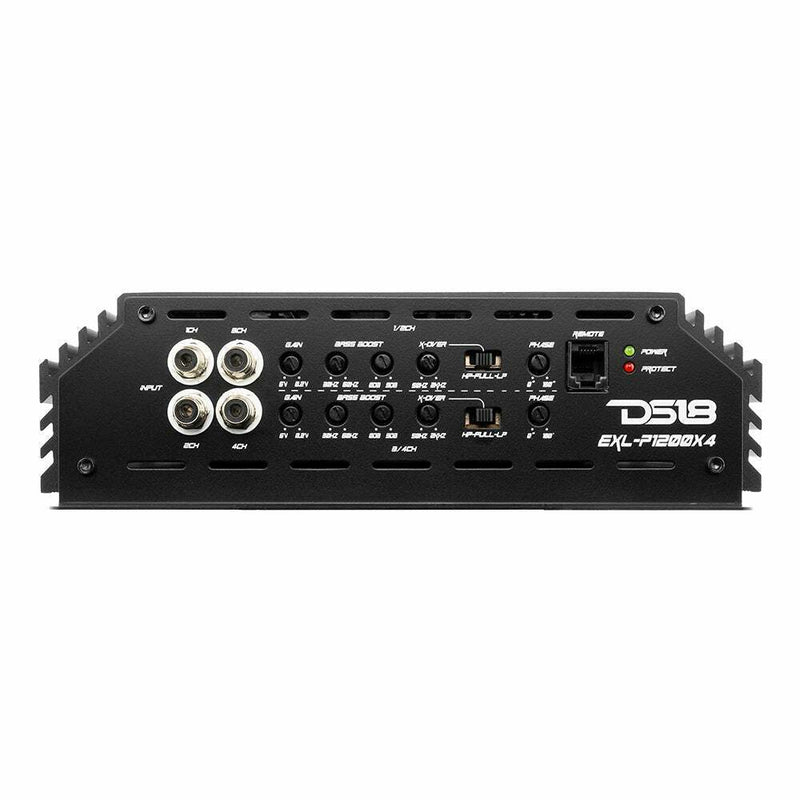

DS18 4 Channel Korean Amplifier Class AB Full Range w/ Bass Knob EXL-P1200X4

DS18 4 Channel Korean Amplifier Class AB Full Range w/ Bass Knob EXL-P1200X4

Blast away your music with extreme efficiency and power with our NEW EXL-P series amps for crazy loud sound that is driven by Korean Power. Korean amps have been proven time over time to be the best amps if you want pure power driven by high quality parts assembled by our factory that has the longest proven track history. Our Korean Facilities take a more time in the manufacturing process while also using the highest quality parts for the best results. This helps the amplifier live a long life all while producing more than rated power if installed and tuned correctly. These amps are for enthusiasts that accept no compromises for their sound and power levels for car audio

This Listing Includes:

(1) DS18 1-Channel Class AB Amplifier EXL-P1200X4

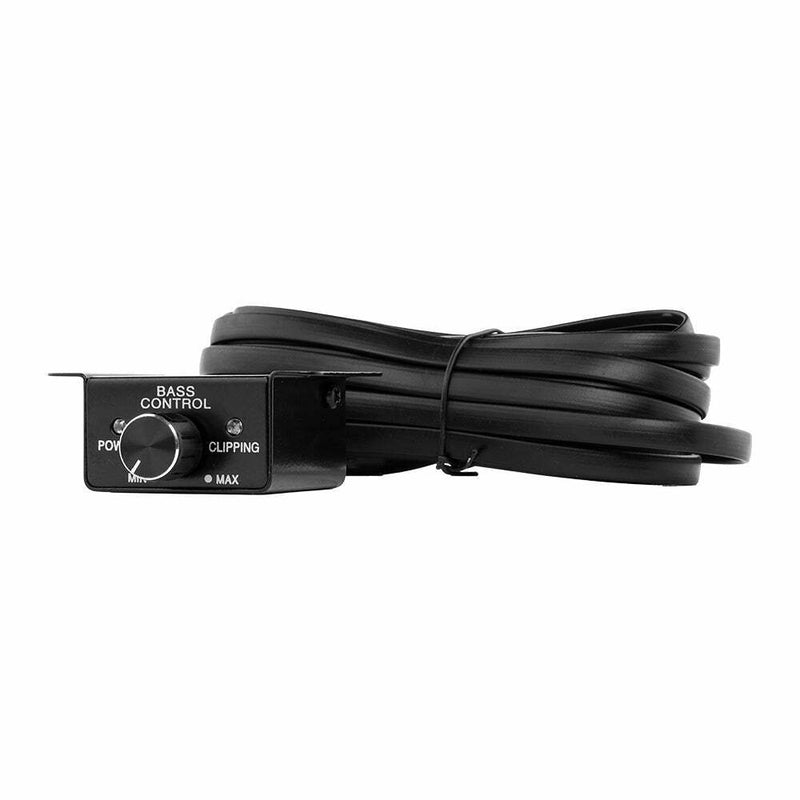

(1) Bass Knob with Clipping Indicator

  FEATURES:

- High power Analog (class A/B) Amplifier

- Protection Circuit: Thermal, Over-Load, DC, Short Circuit, Voltage and Clipping

- LED indicate working status: Power/Protection/Clipping

- Bass Boost with Selectable Frequency and Phase Output Adjustable

- Full Adjustable X-Over with 12dB/Oct Slope

- Remote Bass Knob with Power and Clip LED Indicator included

- Latest SMC and MOSFET Technology

- Reliable Heavy duty Korean Circuit Board design

- Professional Tiffany RCA connectors

- Power Input Size: 4 AWG

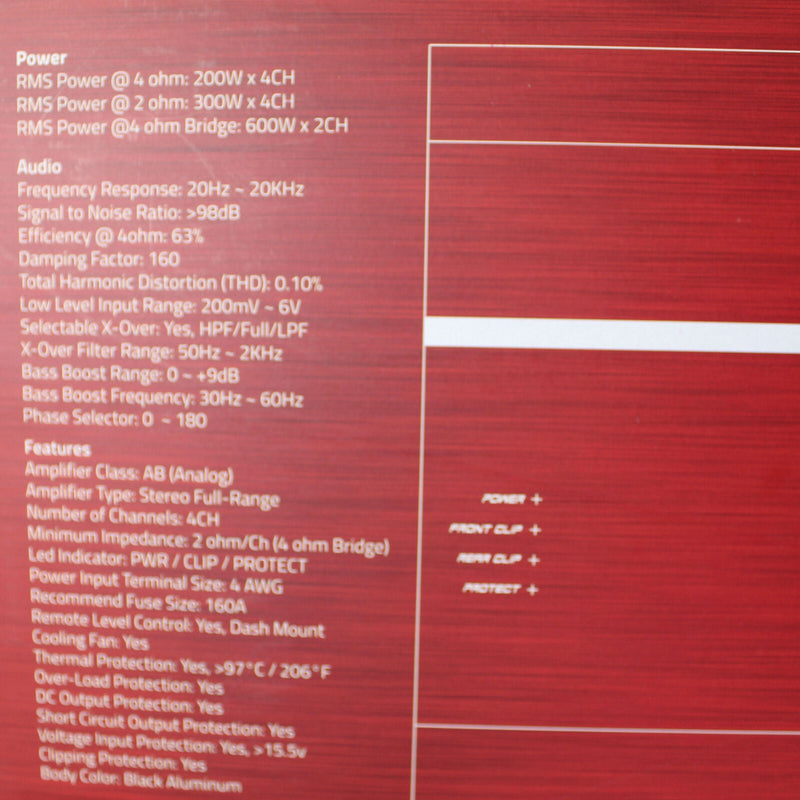

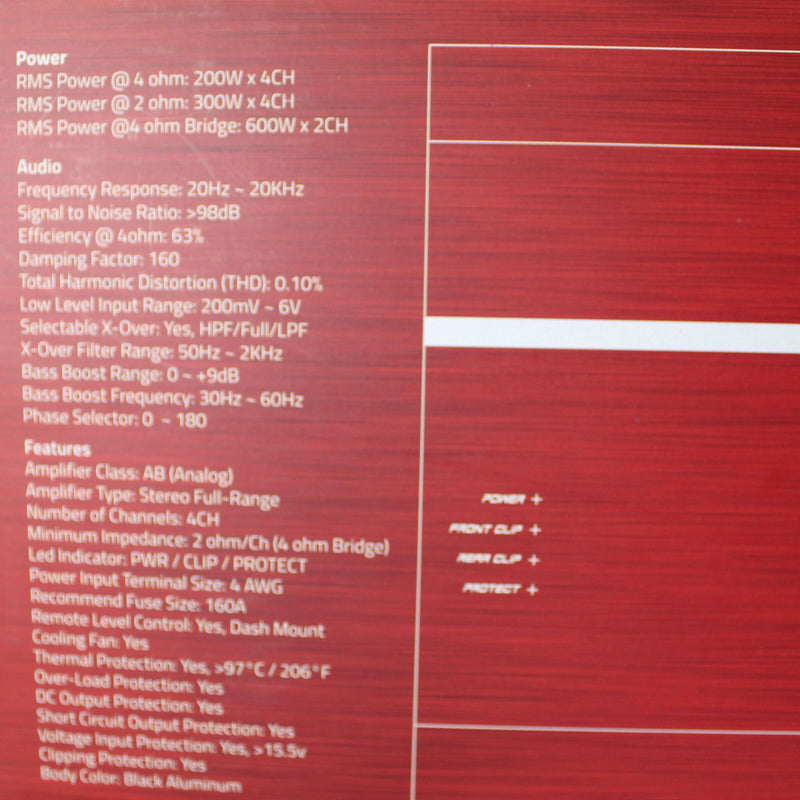

SPECIFICATIONS:

RMS Power @ 4 Ohm: 200W x 4CH

RMS Power @ 2 Ohm: 300W x 4CH

RMS Power @ 4 Ohm Bridge: 600W x 2CH

Frequency Response : 20Hz-20KHz

Signal/Noise Ratio: Greater than 98dB

Efficiency@4 0hm: Greater than 63%

Damping Factor: 160

THD : Less than: 0.10%

Low Level Input Range: 200MV-6V

Selectable X-Over: Yes, HPF/FULL/LPF

X-Over Filter Range: 50Hz-2KHz

Bass Boost Range: 0-+9dB

Bass Boost Frequency: 30Hz - 60Hz

Infrasonic Filter: No

Phase Selector: 0-180

Class: AB (Analog)

Amplifier Type: Stereo Full - Range

Channels: 4 CH

Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)

Led Indicator: PWR / CLIP / PROTECT

Power Input Size: 4 AWG

Fuse Rating: 160A

Remote Level Control: Yes - Dash Mount

Cooling Fan: Yes

Thermal Protection: Yes  >97C / 206F

Over-Load Protection: Yes

Dc Output Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes  >15.5V

Clipping Protection: Yes

Body Color / Finish: Black Aluminum

DIMENSIONS:

(L x W x H)  14.25" x 8.77" x 2.67"

HEATSINK LENGTH: 12.6"
