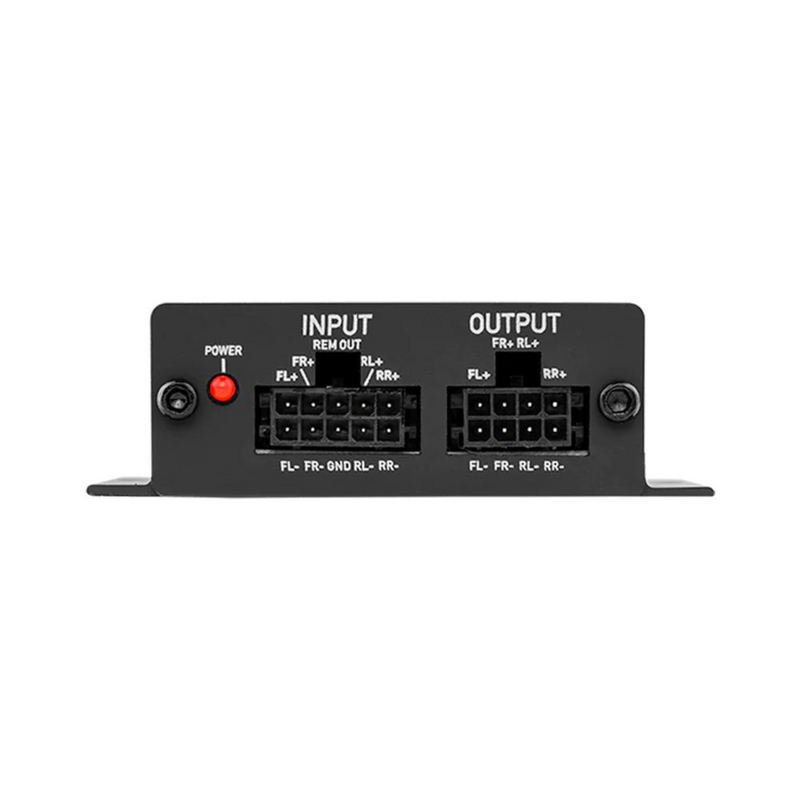

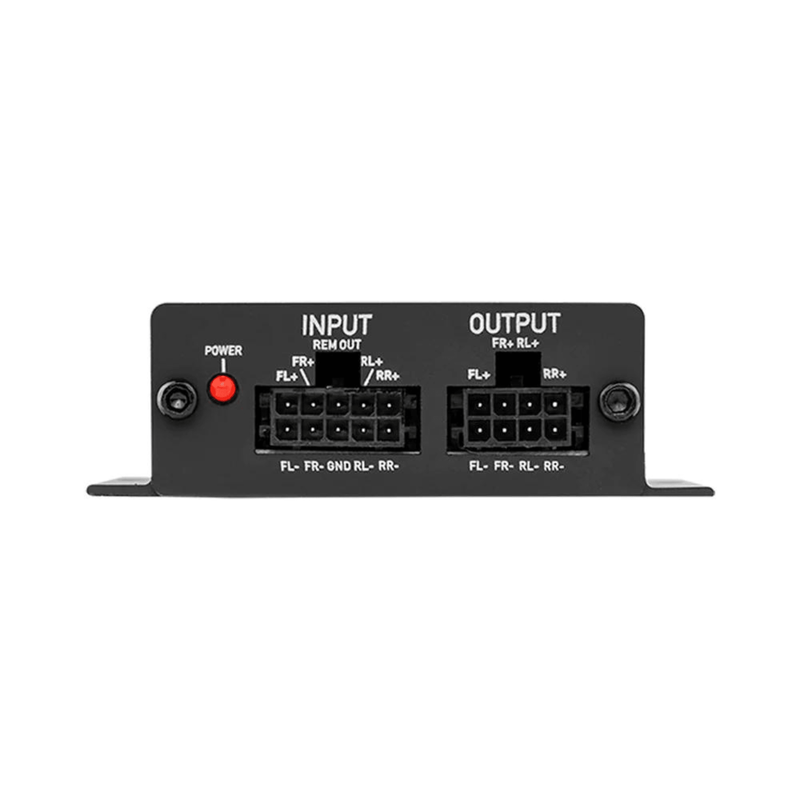

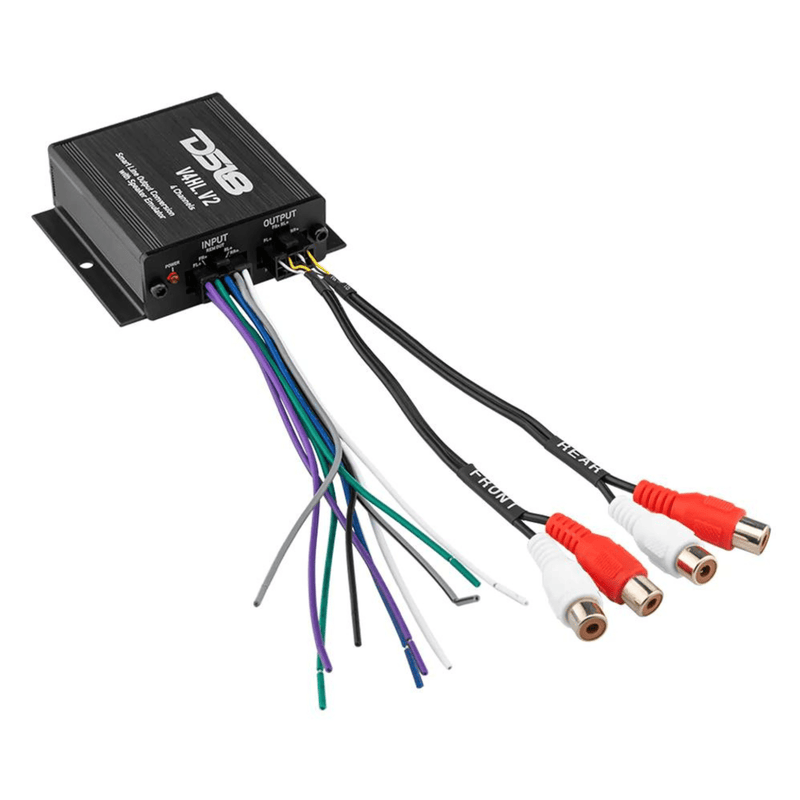

DS18 4-Channel Hi/Lo Converter w/ Speaker Emulator + High Level Signal V4HL.V2

• Equipped with signal sensing technology for instant activation upon detecting a signal.
• Easy mounting options for flexible positioning and access to fine-tuning tools.
• Features a speaker emulator to maintain functionality of select OEM amplifiers and head units without using resistors.
• Includes a 4CH Smart Line-Output Converter, 4CH High-Level Input, and 4CH RCA Output.

DS18 4-Channel Hi/Lo Converter w/ Speaker Emulator + High Level Signal V4HL.V2

This listing includes:

• (1) Hi/Lo 4-Channel Converter V4HL.V2

At DS18 our mission is to provide all users with professional quality audio that amazes everyone listening. A vital part of that mission is supplying our customers with the appropriate tools needed to make any difficult job easier.

Its very difficult to switch your head unit and keep your factory functions integrated: like climate control, lighting, and GPS. DS18s V4HL.V2 is an improved version of our 4 channel converter designed to connect to your vehicles factory head unit and convert the signals sent from it into signals recognizable by your aftermarket amplifier. This device uses your vehicles factory amplifier output to provide RCAs to relate to aftermarket single or multi amp systems.

This unit will provide 4 channel outputs so you can enjoy all the benefits of your aftermarket sound system with your factory head unit.

Features:

• Signal sensing technology that turns the unit on as soon as signal is detected


• Easy mounting for unlimited placement options


• Adjustable output voltage up to 8V for a crystal clear signal with no distortion


• Speaker emulator that enables signal output from some OEM amplifiers that shut down if no speakers are detected and let you do away with adding -resistors to keep the amplifier and OEM head unit functional.


• 4CH Smart Line-Output Converter


• 4CH High Level Input


• 4CH RCA Output


• Surface Mount Component Technology


• Lowest Impedance and Best Power Filter


• FR4 Double Sides PC Board


• Remote Trigger Output with Signal Sensing


• Power LED indicator to show working status


• Integrate any amplifier to your existing factory audio system easily

Specifications:

• Input: Up to 55W


• Output: Up to 8V


• Remote Output Voltage: 12V


• Frequency Response: 10Hz-30KHz


• Input Impedance: 20K Ohms


• Standby Current: 200mA

Dimensions:

• Length: 4.17"


• Width: 3.39"


• Height: 1.38"


• Weight: 4.2 Ounces
