DS18 4 Ch Marine & Powersports Amplifier 1600 Watt Class D With Fuse & Holder

DS18 4 Ch Marine & Powersports Amplifier 1600 Watt Class D With Fuse & Holder



The DS18 NXL Series was developed for people who want a very a small audio footprint that is capable of putting out lots of power and sound in a small and waterproof package. The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience. The NXL Marine Amplifier series is exactly what the outdoors lover will need for their vehicle's audio to brave the trails, enjoy the lake, or any situation that needs a strong versatile waterproof amplifier.



AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE - WILL VOID WARRANTY -



This listing includes...

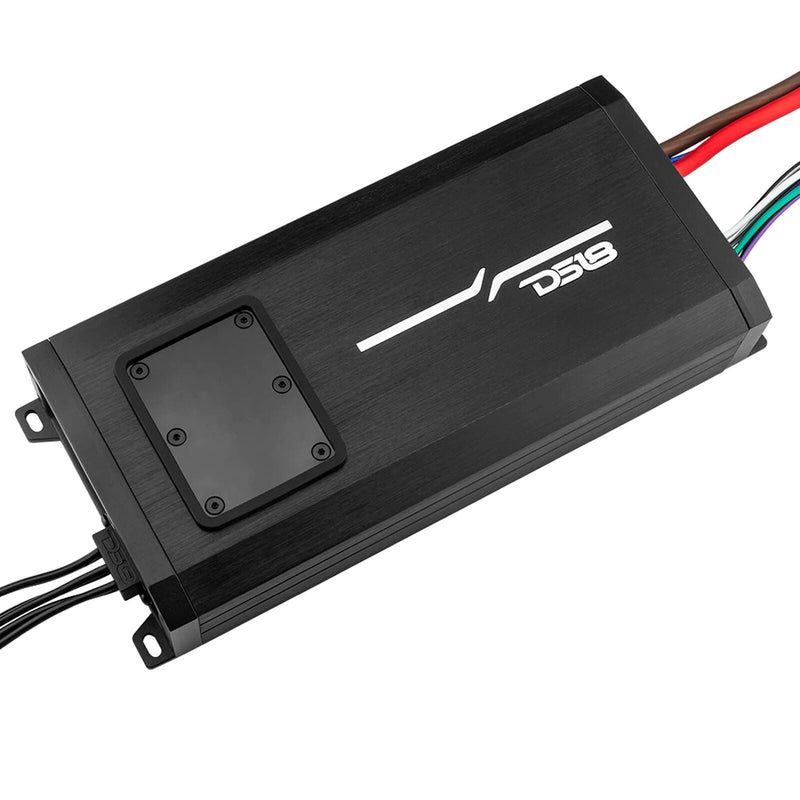

(1) DS18 Marine Amplifier NXL-X600.4D

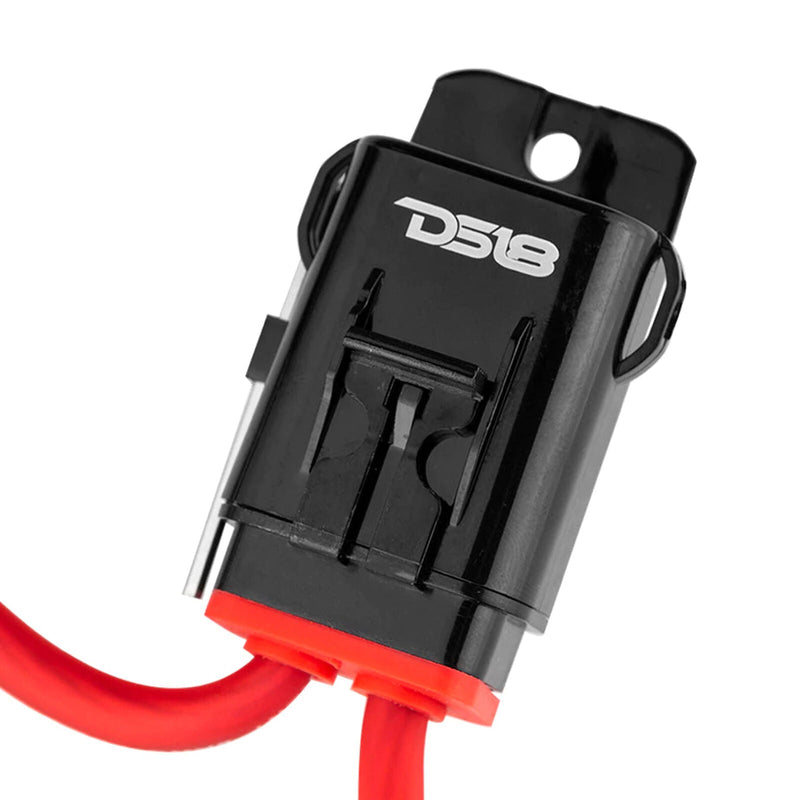

(1) DS18 Marine Grade Fuse Holder



POWER

Total Watts (Peak): 1600 Watts

RMS Power @ 4 ohm: 4 x 150W

RMS Power @ 2 ohm: 4 x 200W

RMS Power @ 4 ohm Bridge: 2 x 400W



AUDIO / AUDIO

Frequency Response: 10Hz-20KHz

Signal to Noise Ratio 1W @ 4: 100dB

Efficiency @ 4 ohm: 87%

Input Impedance: 20K OHM

Channel Separation: Greater Than 60dB

Total Harmonic Distortion (THD): Less Than 0.05%

Low Level Input Range: 200mV-5V

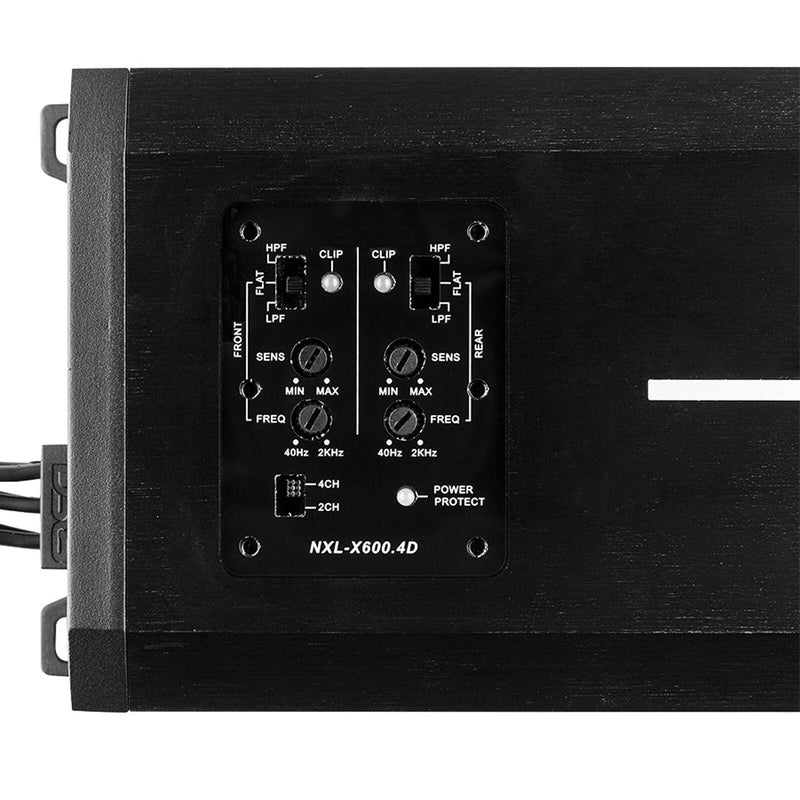

Selectable X-Over: HPF/Full/BPF

X-Over Filter Range: 40Hz-2KHz



FEATURES:

Amplifier Class: Digital / Digital

Amplifier Type: Stereo Full Range

Number of Channels: 4

Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)

Led Indicator: Power ' Protection ' Clip

Power Input Size: 8GA Tinned OFC

Fuse Size: 2x40A (80A)

Thermal Protection: Yes (75C)

Over-Load Protection: Yes

Short Circuit Output Protection: Yes

Voltage Input Protection: Yes (7-16V)

Body Color Finish: Black Brushed Aluminum



EXTRA FEATURES

2Ch / 4Ch Input Selector: Yes

RCA Audio Output: Yes

Waterproof Rating: IP67

UV / Salt Fog Protection: Yes

Direct Power Harness Design: Yes

Quick Connect Plug: Yes

Surface Mount Component Technology: Yes

Marine Grade Fuse Holder: Yes



MEASUREMENT

Overall Length: 9.92" / 252mm

Overall Wide: 4.4" / 112mm

Overall Height: 1.77" / 45mm

Heatsink Length: 9.11" / 231.6mm

Gross Single Unit Weight: 3.96 Lbs
