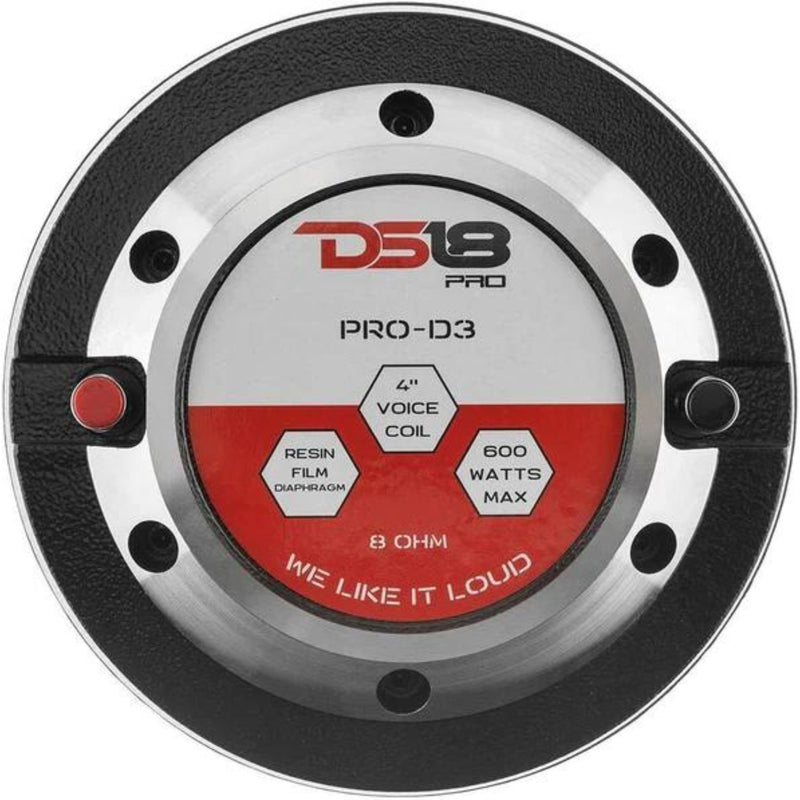

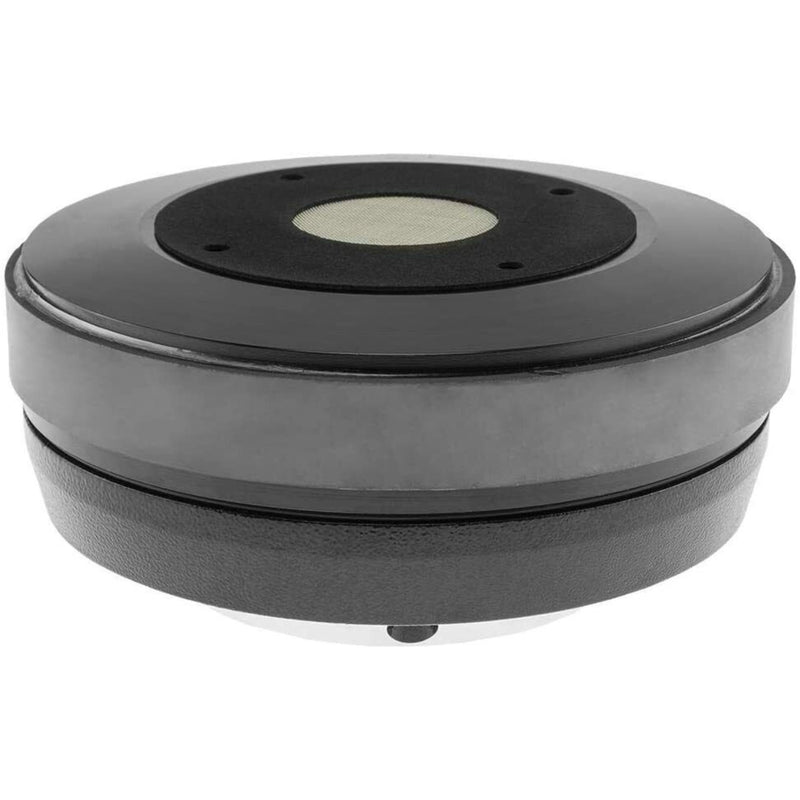

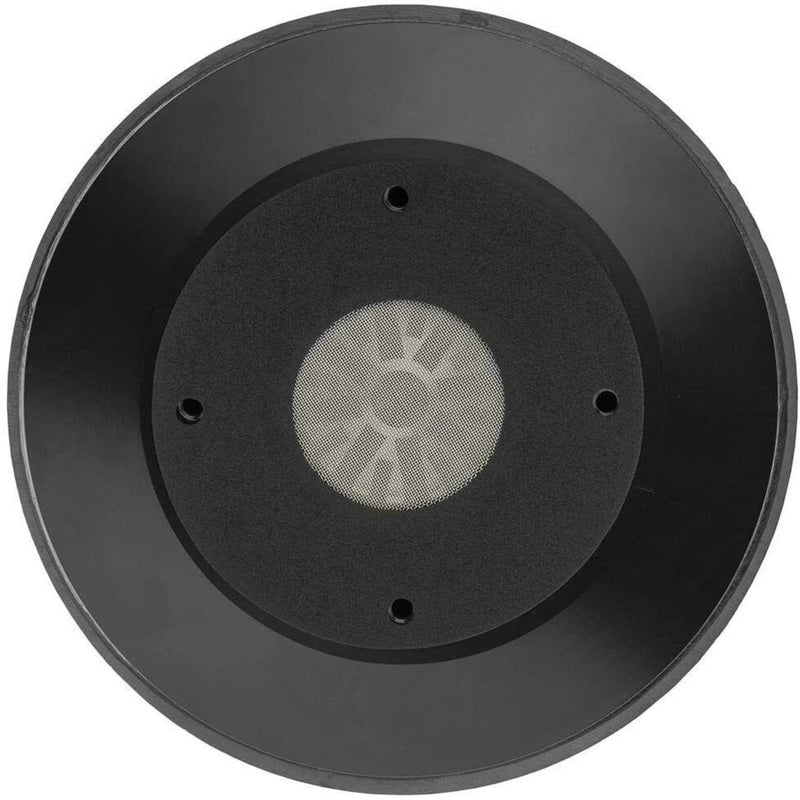

DS18 4" 600 Watt 8 Ohm Phenolic Bolt On Throat Compression Driver PRO-D3

Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the industry. These bad boys deliver so much power that you'd think with one horn your whole system is prepared for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these ones, especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests, DS18's team of audio-experts perfected the PRO line. We are ecstatic to share with you this achievement of hard-work and non-stop innovating attitude!

This Listing Includes:

(1) Driver PRO-D3

SPECIFICATIONS:

Type: Compression

RMS Power: 300W

MAX Power: 600W

Sensitivity (1w/1m): 104.5dB

Impedance: 8 ohm

Frequency Response: 700Hz - 16.5KHz

Recommended Hi Pass Crossover: 800 Hz / 12 oct

Diaphragm Material: Resin

Throat Diameter: 2"

Exit Throat Diameter: 99.8 mm (4)

Voice Coil Diameter: 99.8mm (4)

Voice Coil Wire: CCAW

Voice Coil Former Material: KAPTON

Overall Diameter: 200mm (7.87)

Overall Depth: 95mm (3.74)

Mounting Bolt Cirle: 102mm (4)

Net Weight: 16.97 lbs (7.7 KG)

Magnet Weight: 98 oz

Magnet Material: Ferrite

Flux Density: 2.1T

Replacement Diaphragm Model: PRO-D3VC

WARNING: EXTREMELY LOUD!!
