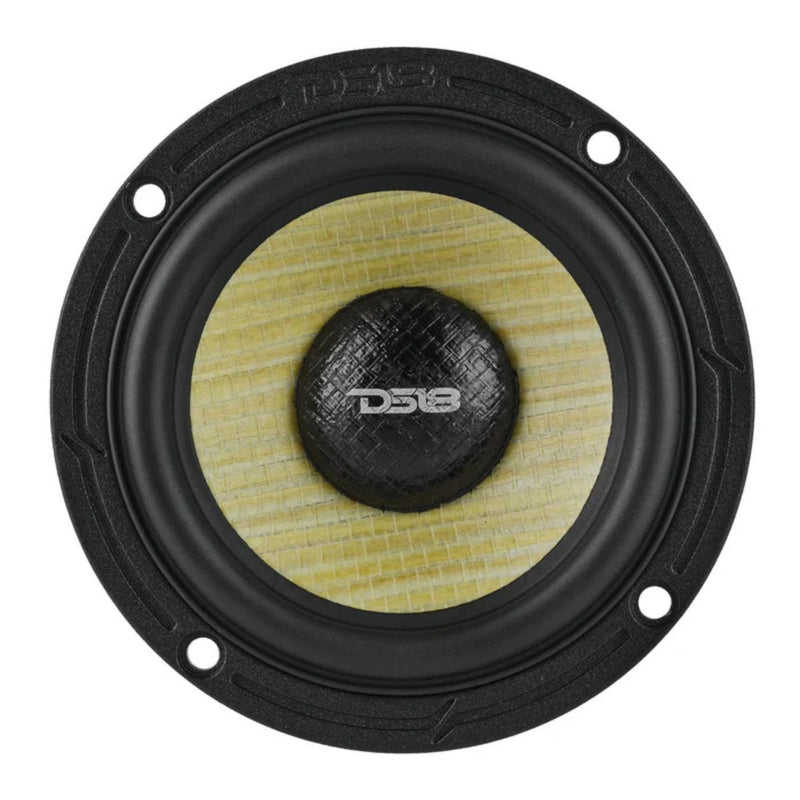

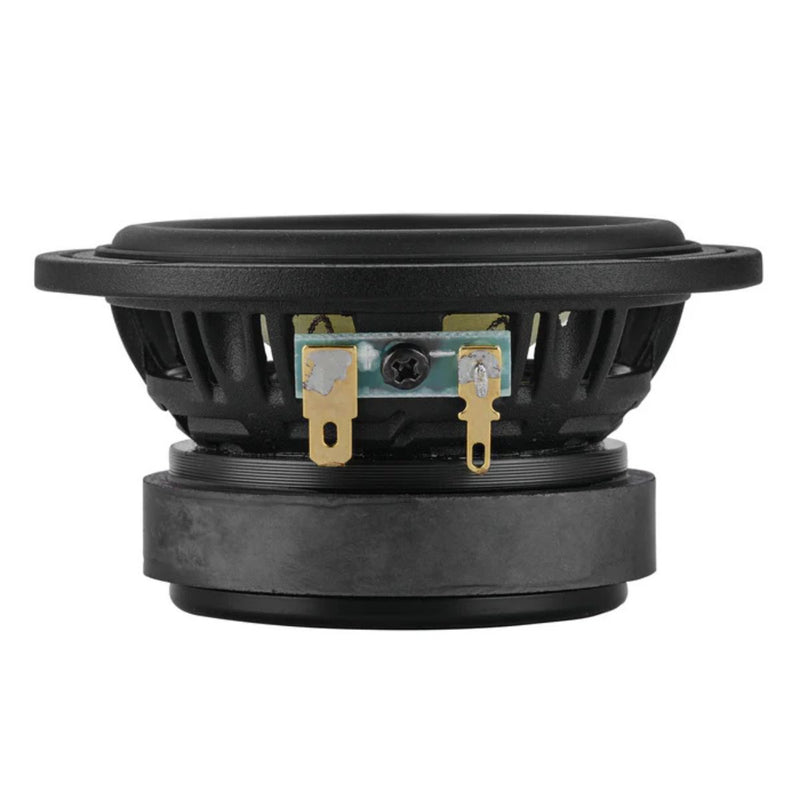

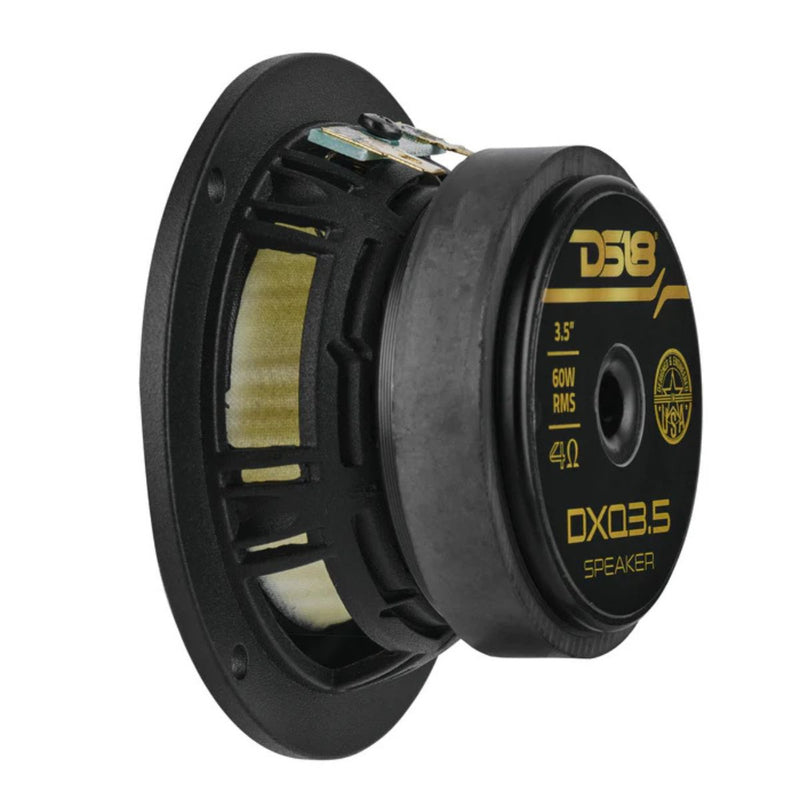

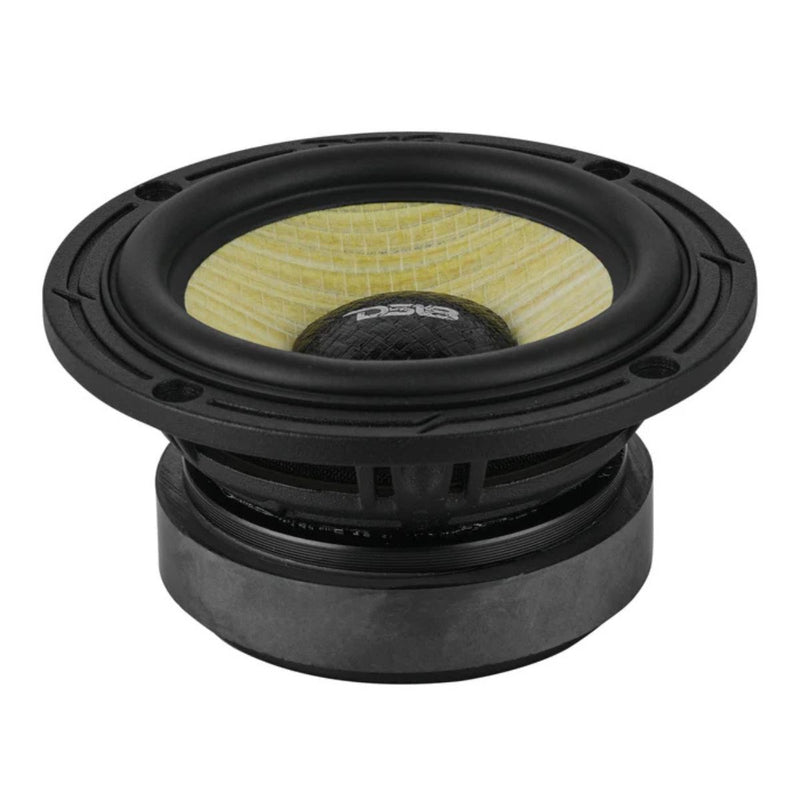

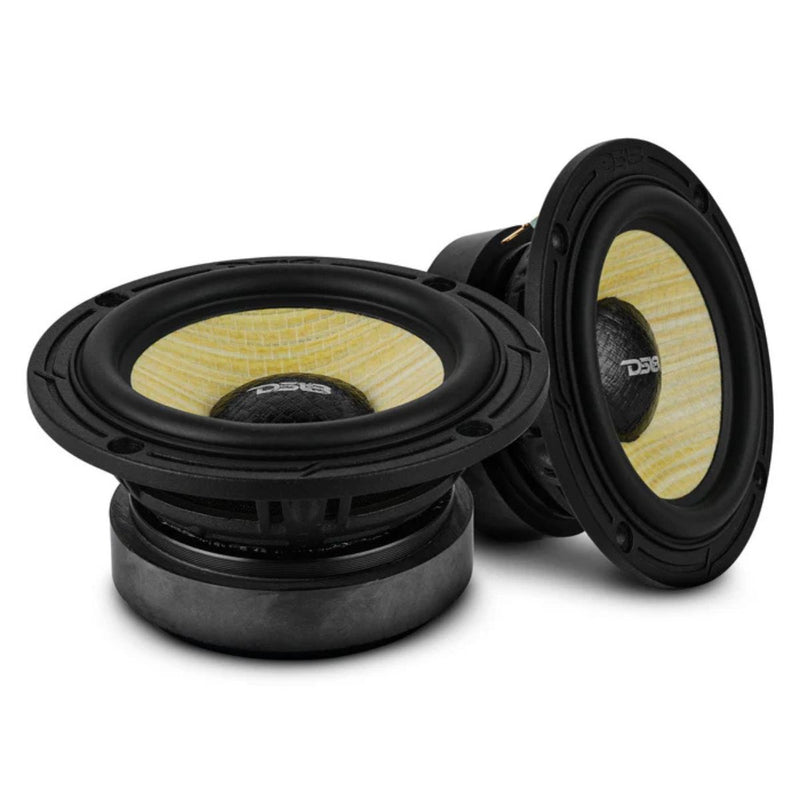

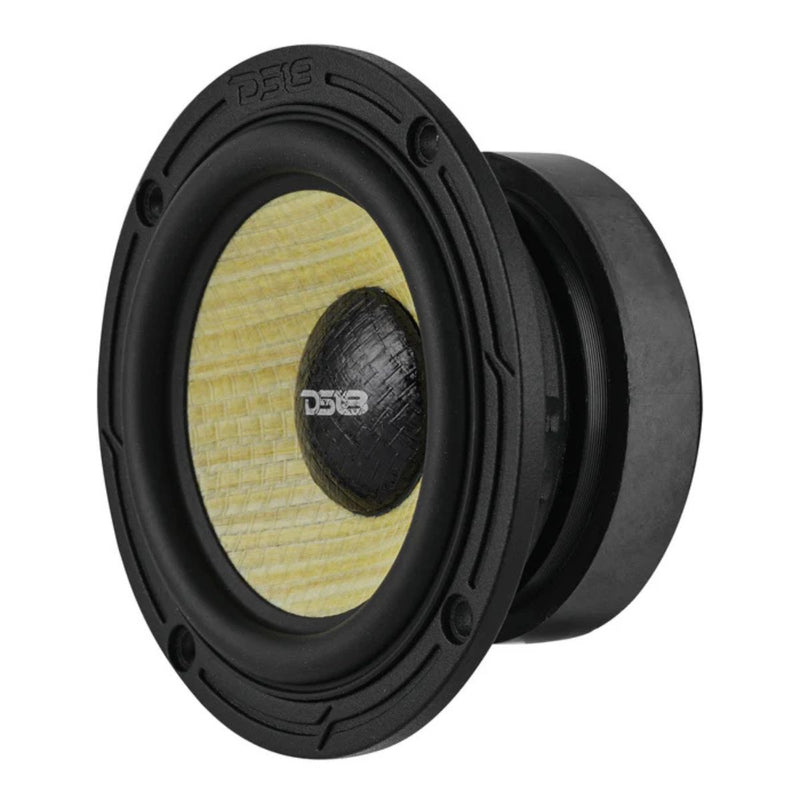

DS18 3.5” 60W RMS 4-Ohm Midrange Speaker Pair w/Woven Yellow Cone DXQ3.5

• Compact 3.5” Midrange: Perfect for tight spaces in car audio builds.
• Powerful Output: 60W RMS / 120W Max with 87dB sensitivity.
• Lightweight Cone: Yellow straw + composite foam for clear mids and vocals.
• Ferrite Magnet: Strong, stable output with efficient heat dissipation.
• Easy Install: Shallow 1.6” mounting depth fits most factory or custom locations.

DS18 3.5†60W RMS 4-Ohm Midrange Speaker Pair w/Woven Yellow Cone DXQ3.5

Included In This Listing:

• (1) Pair of 3.5" Midrange Speakers


• Mounting Hardware

The DS18 DXQ3.5 is a high-performance 3.5-inch midrange speaker engineered for accurate, distortion-free sound reproduction. Its yellow straw and composite foam cone deliver detailed vocals and instruments with excellent clarity.

With 60W RMS / 120W MAX power handling and an 87dB sensitivity, the DXQ3.5 is built to balance clean audio performance with reliability. The ferrite magnet, TIL 1" voice coil, and rubber surround work together to provide strong output, heat dissipation, and long-term durability.

A compact 1.6-inch mounting depth and 2.9-inch cutout diameter make installation easy in most factory or custom applications.

Upgrade to DS18 DXQ3.5 for pro-level clarity and precision in your car audio build.

Features:

• Compact 3.5" midrange fits tight spaces


• 60W RMS / 120W Max power handling for clean, clear sound


• Wide frequency response 120Hz - 20kHz for accurate midrange reproduction


• Yellow straw + composite foam cone for lightweight strength


• Ferrite magnet for powerful output


• 87dB sensitivity for crisp detail


• 1" TIL voice coil for heat resistance and performance


• Sold as a pair

Specifications:

• Nominal Diameter: 3.5" (91mm)


• Impedance: 4 Ohms


• RMS Power: 60W


• Max Power: 120W


• Sensitivity: 87dB


• Frequency Response: 120Hz - 20kHz


• Recommended Hi-Pass Crossover: 160Hz


• Sold As: Pair

Construction:

• Voice Coil Diameter: 1" (25mm)


• Voice Coil Former: TIL


• Winding: CCAW


• Cone: Yellow Straw + Composite Foam


• Dust Cap: Yellow Straw


• Surround: Rubber Edge


• Leads: Direct to Coil


• Basket: Aluminum (Black Finish)


• Magnet: Ferrite, 5.5 oz


• Net Weight (Each): 0.79 lb / 0.36 kg


• Net Weight (Pair): 1.58 lb / 0.72 kg

Thiele & Small Parameters:

• Vas: 1.338L


• Xmax: 2mm


• Fs: 88.7Hz


• Qms: 9.688 | Qes: 0.856 | Qts: 0.794


• Mms: 3.746g


• Cms: 0.859mm/N


• BL: 2.833


• Le: 0.133mH


• Sd: 33.18cm


• Re: 3.3 Ohms


• Mmd: 3.53g

Dimensions:

• Overall Diameter: 3.6" (91.5mm)


• Overall Depth: 1.8" (47.8mm)


• Front Mount Baffle Cutout: 2.9" (74.3mm)


• Mounting Depth: 1.6" (40mm)


• Motor Diameter: 2.5" (65mm)
